Features:
*Pressure Activated: This air pressure switch is designed to activate when the pressure drops below 5/6BAR, your air compressor or pneumatic system operates smoothly and efficiently at all times.
*Auto Shutoff Feature: It automatically shuts off at 8BAR to prevent overpressure situations, safeguarding your equipment from potential damage and significantly extending its operational lifespan.
*Wide Application Range: The switch is for versatile enough to be used in various setups, including air compressors, horns, and train systems, making it an choice for multiple pneumatic applications.
*Robust Durability: Built to withstand demanding conditions, this switch boasts a lifespan of up to 100,000 cycles, consistent and reliable performance throughout its usage.
*Dual Voltage Compatibility: Designed to work seamlessly with both 12V and 24V DC power supplies as well as AC systems, providing flexibility for diverse installation requirements and environments.
Specifications:

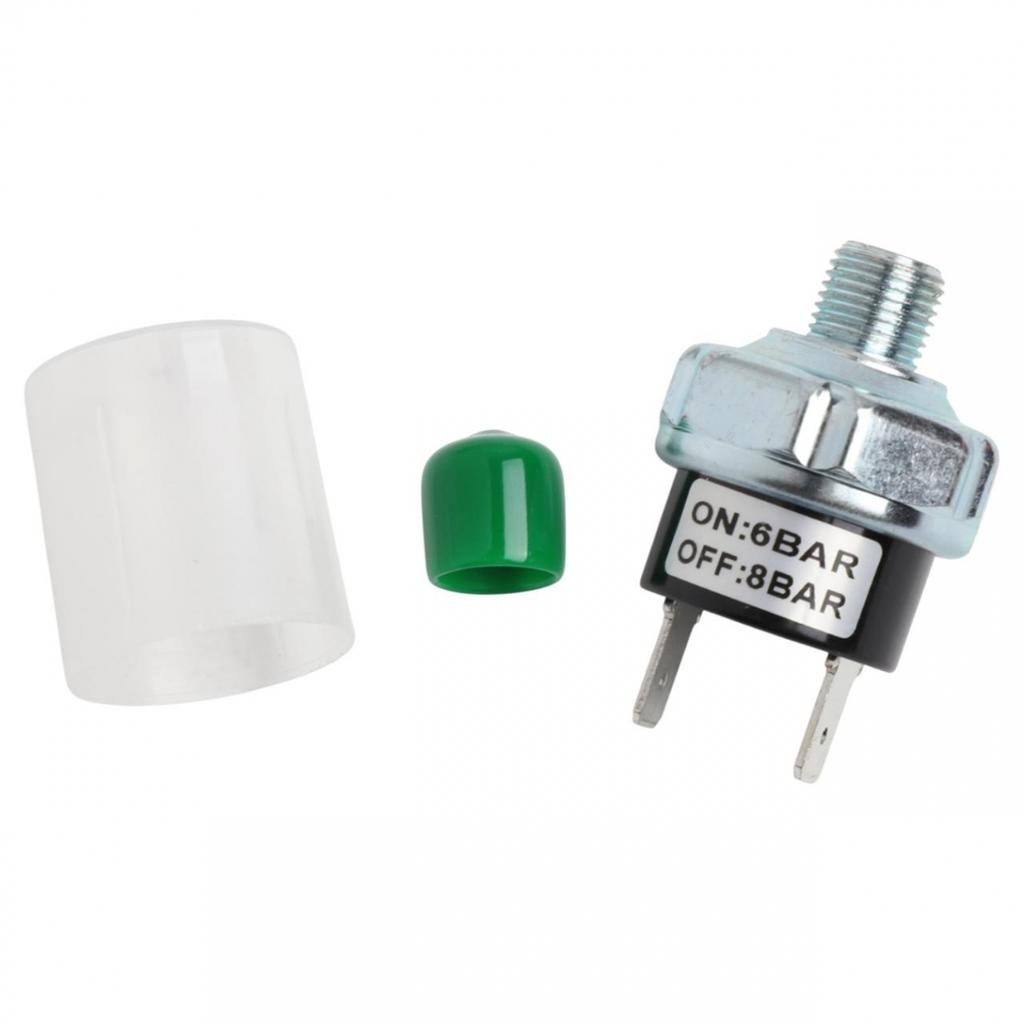

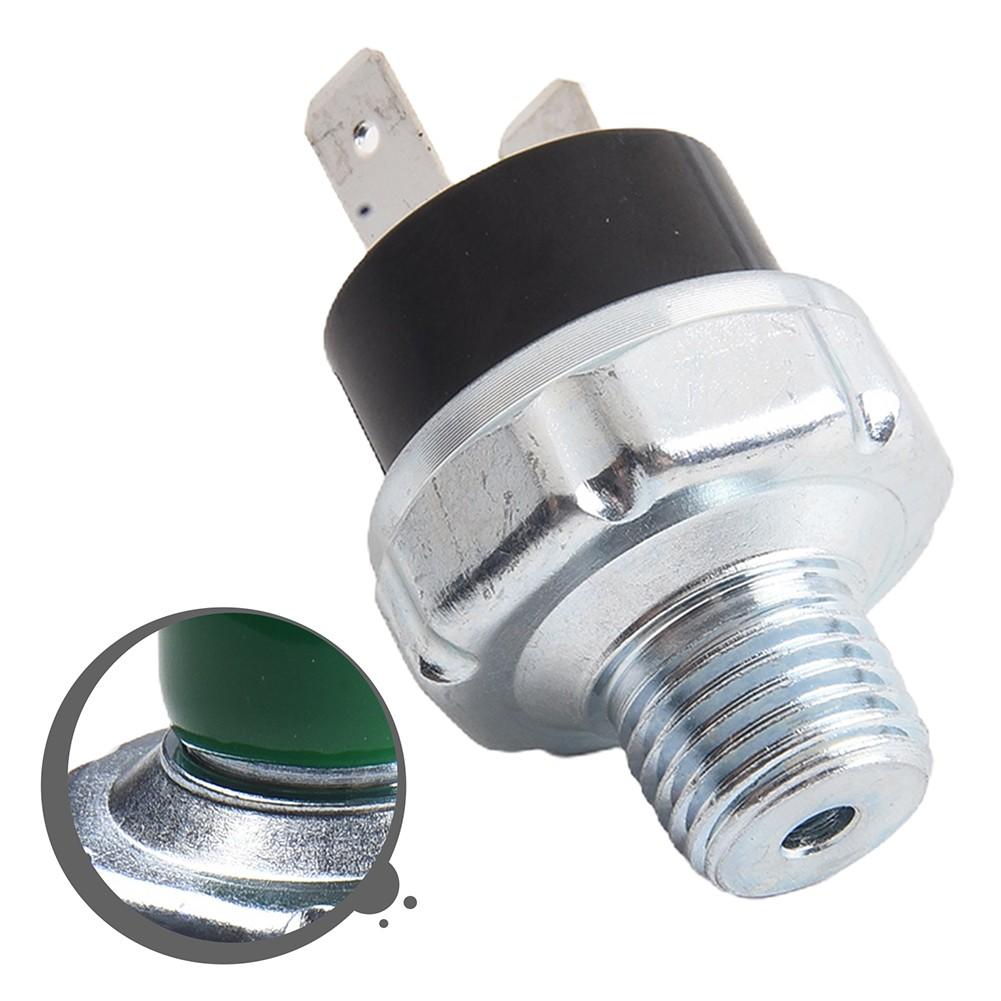

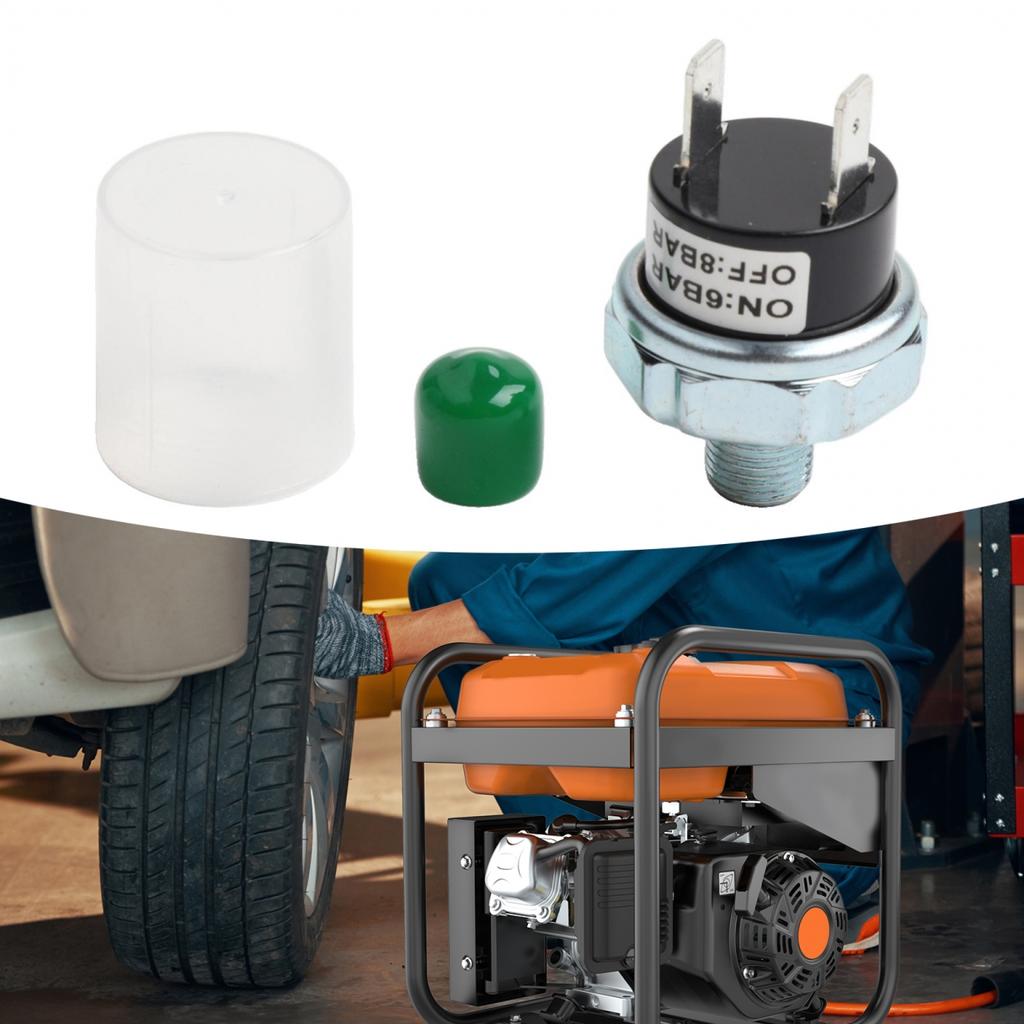

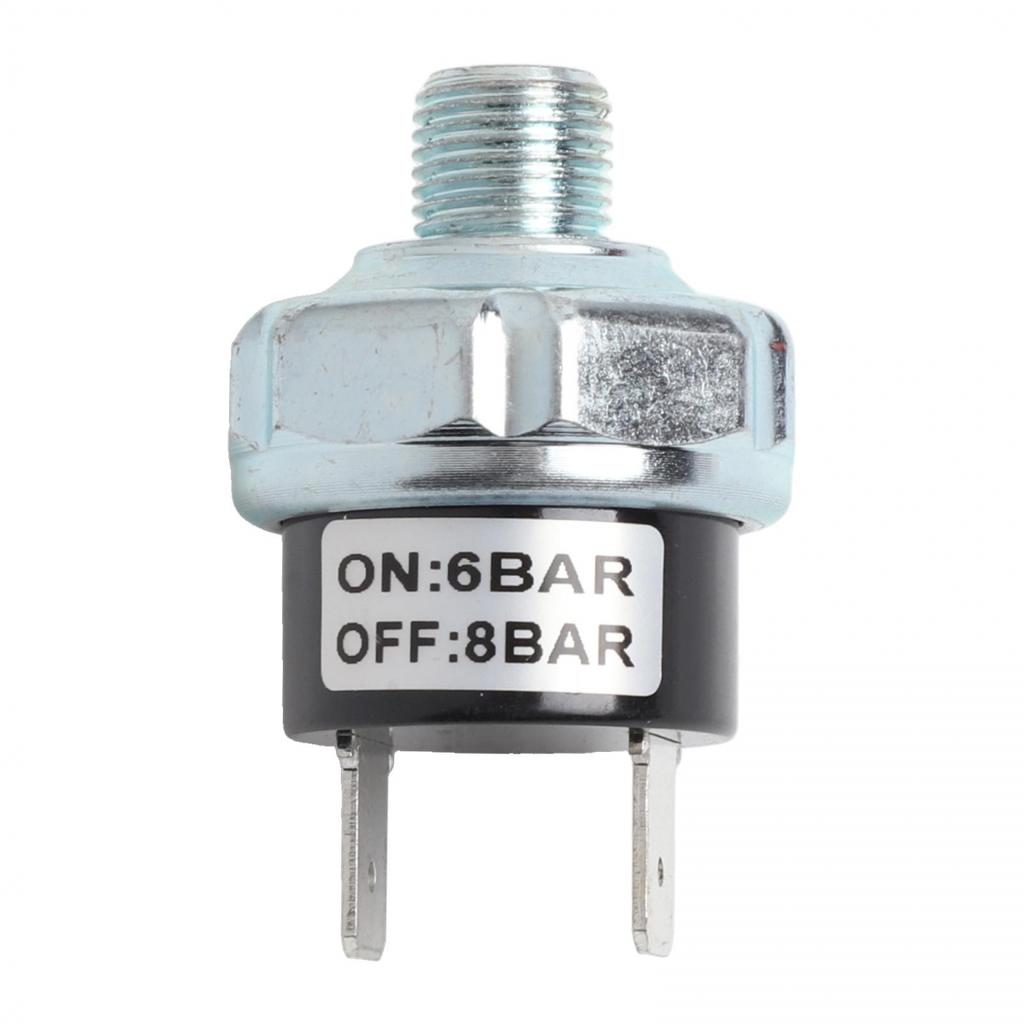

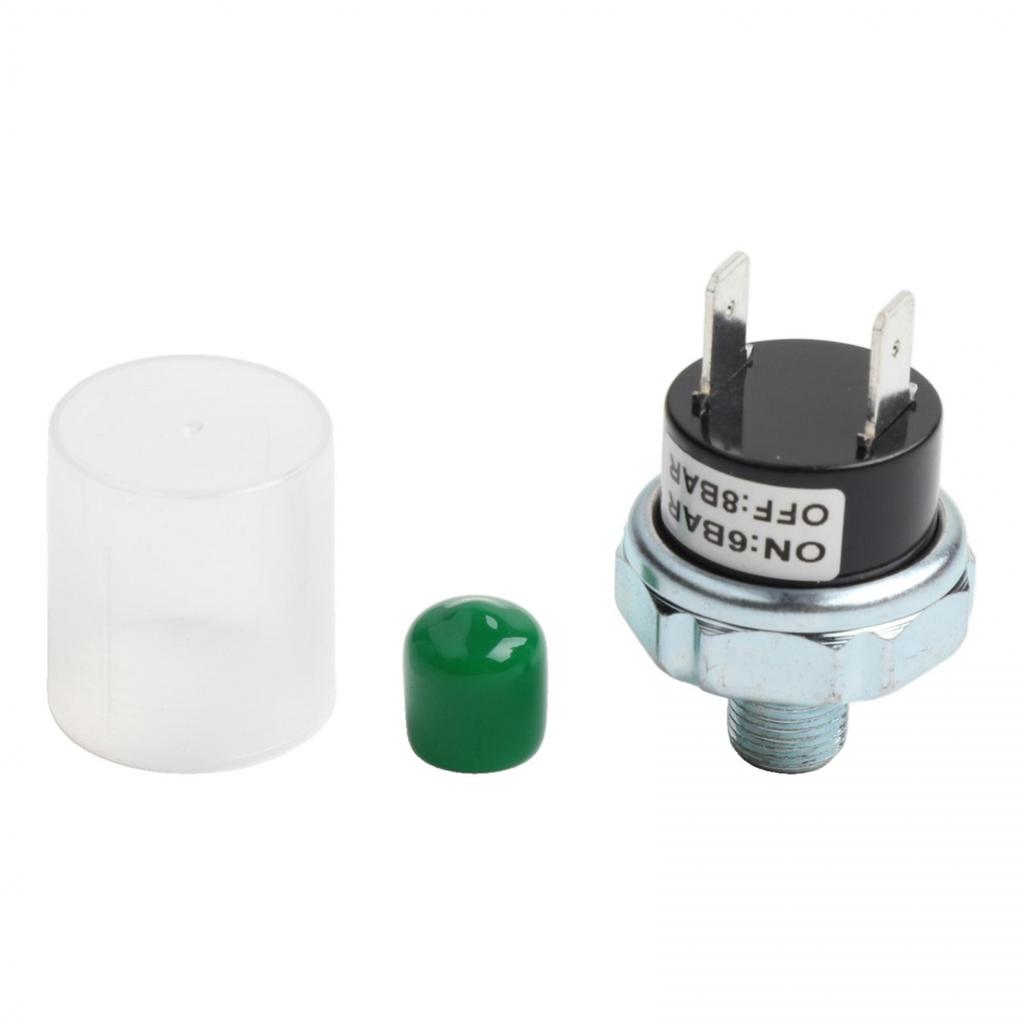

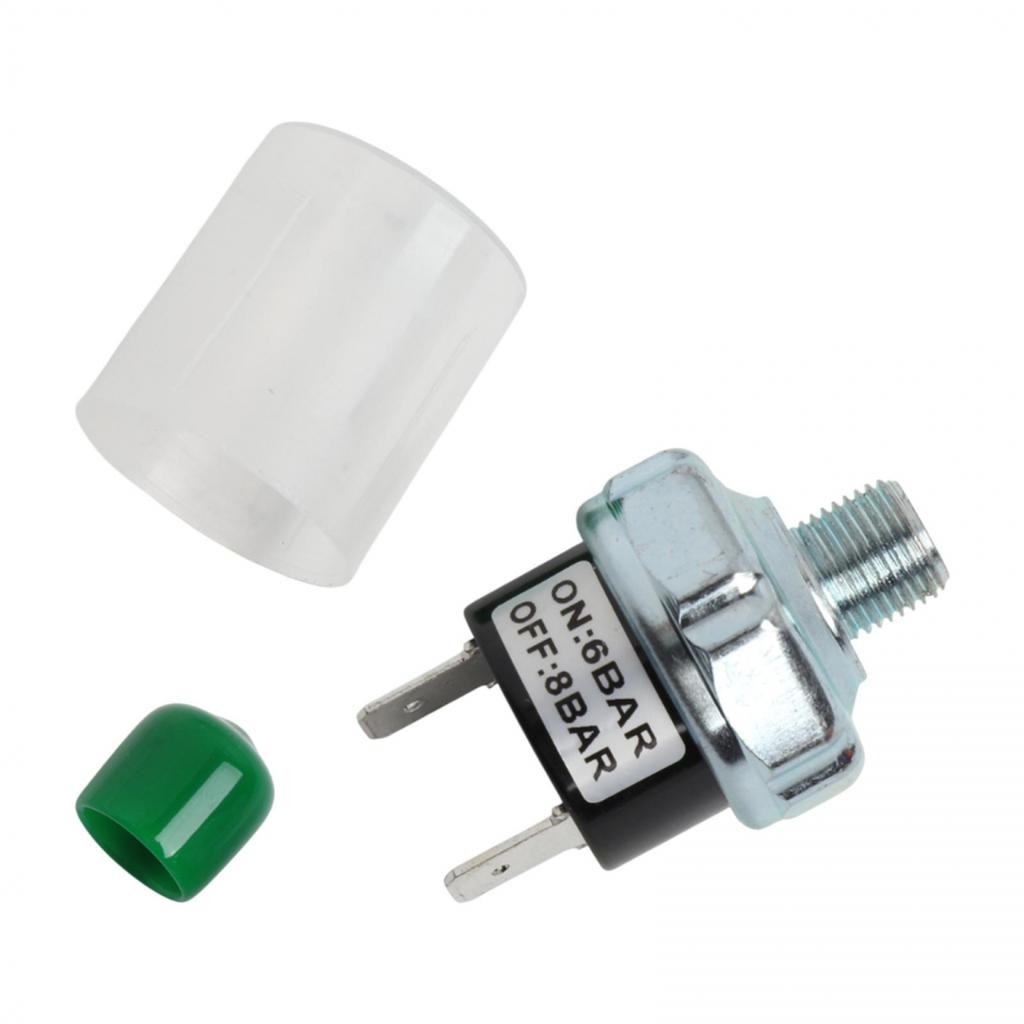

*Part Name:Air Pressure Switch
*Material:Metal
*Size:G1/4, G1/8 external thread
*Color:Silver + Black
*Working conditions: communication 110V/120V/240V or DC 12V/24V
8Maximum current supported: 20Amp
*Pressure range: G1/8 thread 6-8BAR, G1/4 thread 5-8BAR
*Thread outer diameter: 9.5mm, 12.7mm
*Air pressure switch automatically turns on the air compressor @5/6BAR; turns off the air compressor @8BAR
*Wide range of uses: Suitable for all 12V or 24V applications, for air horns, train horns, marine horns, air compressors, tank pressure switches, air suspension applications, .
Package Content:
1*Air Pressure Switch
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
