Venturi Fertilizer Injector 1/2 3/4 Inch 4 Speeds Flow Control Valve Irrigation Fitting With Water Filter Agriculture With 1 Set

Applications:

Fertilizer and chemical injection through drip and spray irrigation systems.

Characteristics: Made of engineering plastic. Excellent chemical resistance to most chemicals. Highly efficient and compact differential pressure injection device. Economic and low cost option. Available in 3/4 "or 1/2 bbbsp inlet / outlet connection.

Specifications: Thread in / out: 3/4 '' Material: POM Size: See the pictures Flow range: 0.65-2.42 m3 / h Working pressure: 0.7-9.5bar Self-priming capacity: 9-92l / h

Thread inlet / outlet: 1/2 '' Material: POM Size: See the pictures Flow range: 0.29-0.81 m3 / h Working pressure: 0.7-9.5bar Self-priming capacity: 3-37l / h

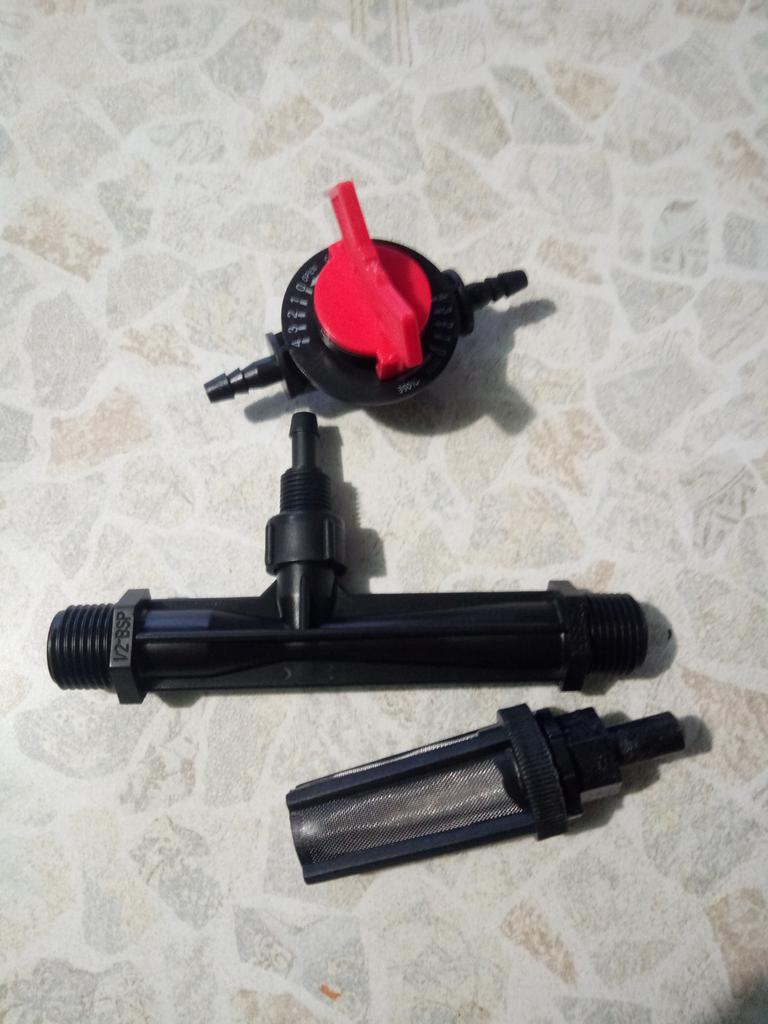

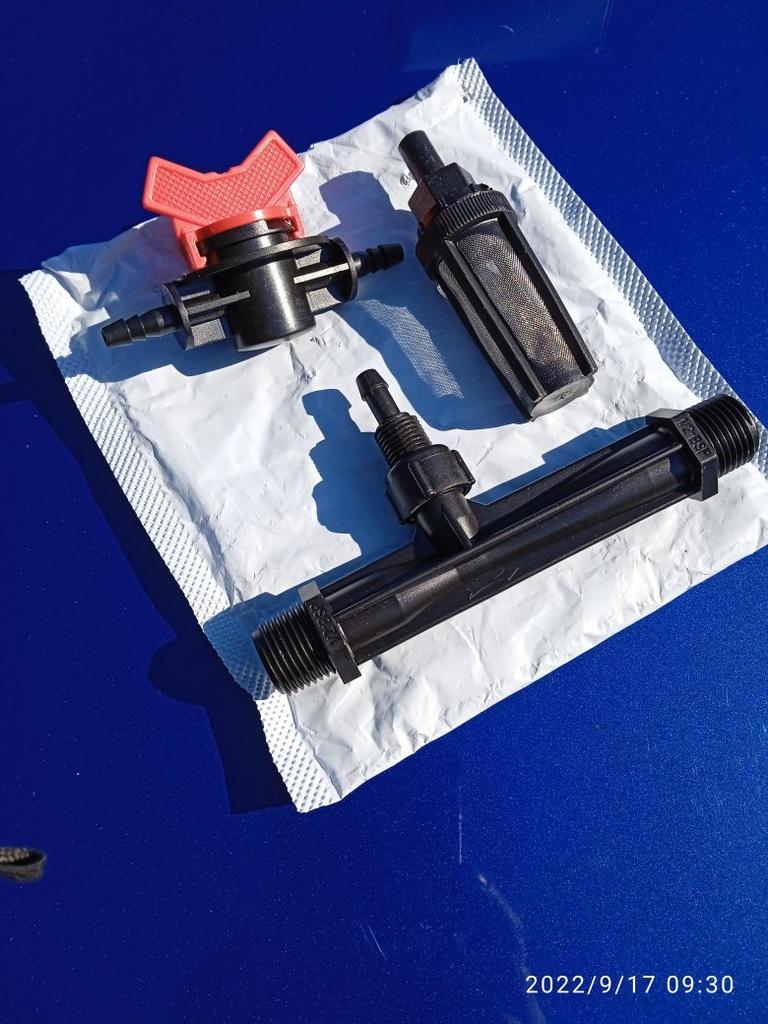

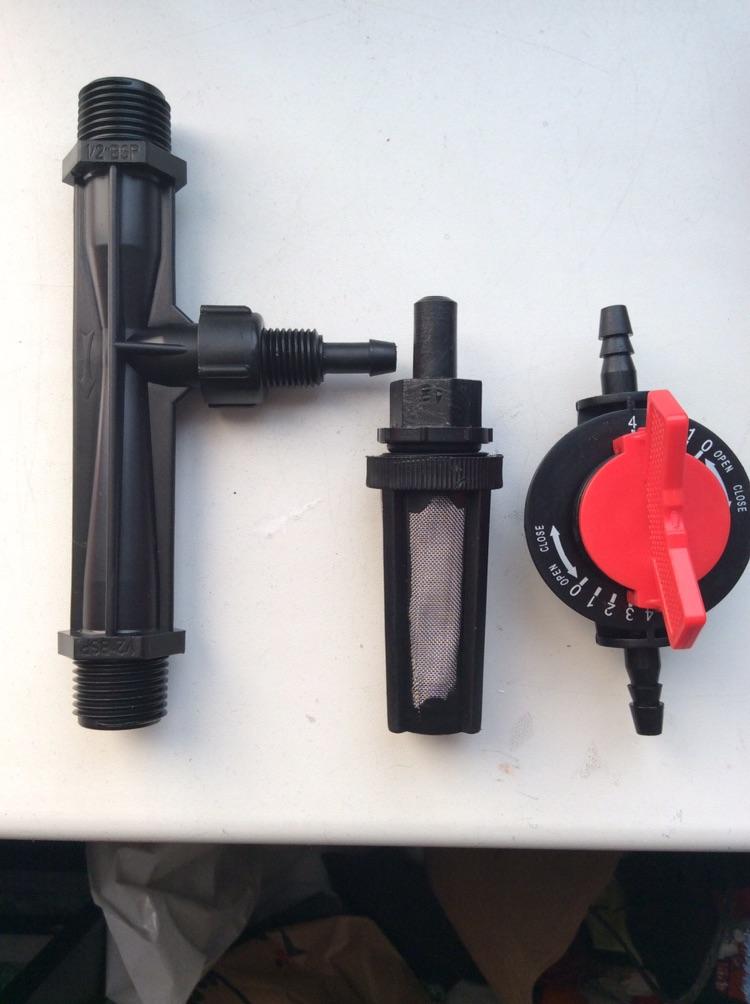

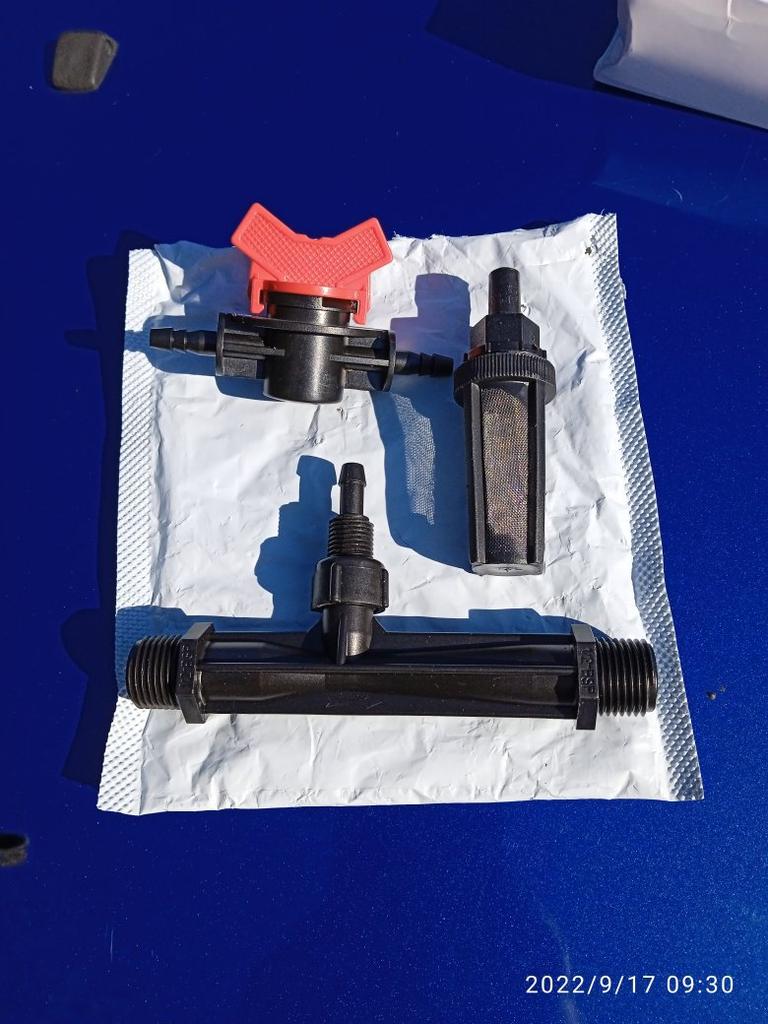

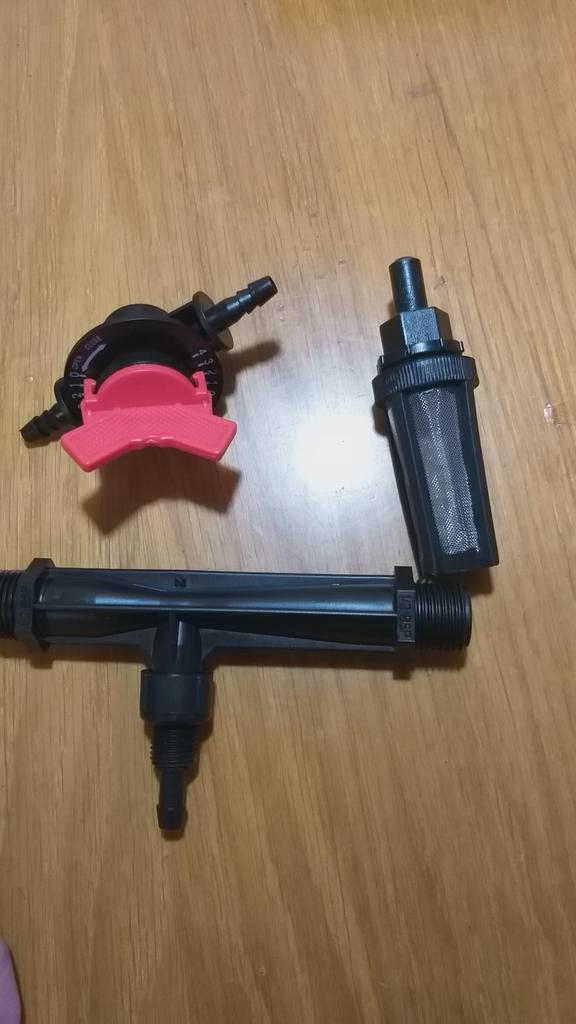

Package: 1 pc venturi fertilizer injector, 1pc 6mm 4 speed flow control valve, 1pc 10mm filter

Working principle: 1, venturi-type fertilizer and irrigation irrigation system at the entrance of the water supply control valve installed in parallel, the use of control valve will be small, the formation of the control valve before and after the pressure difference, you can dissolve when inhaling water in the venturi and then in the water supply pipe. 2, the use of water through the venturi tube produced by vacuum suction, the fertilizer solution from the exposed fertilizer bucket evenly inhaled the pipe system for fertilization. Make your operation more convenient and simple. 3, if the fertilization concentration is stable, without additional energy, more savings your time and resources! 4, the scope of application: greenhouse and other small fertilization area.

Our venturi are moved by water, that is, they are driven by the pressure of the main irrigation pipeline. The energy to run these devices reduces the pressure of the irrigation water in the water line.

Note: 1/2 "color, 3/4" Venturi, black and blue random send, thanks for understanding.

Notice: The size is measured by hands, please allow a small measurement error. The color of the photo may be slightly different from the actual product due to the color display of different monitors.
