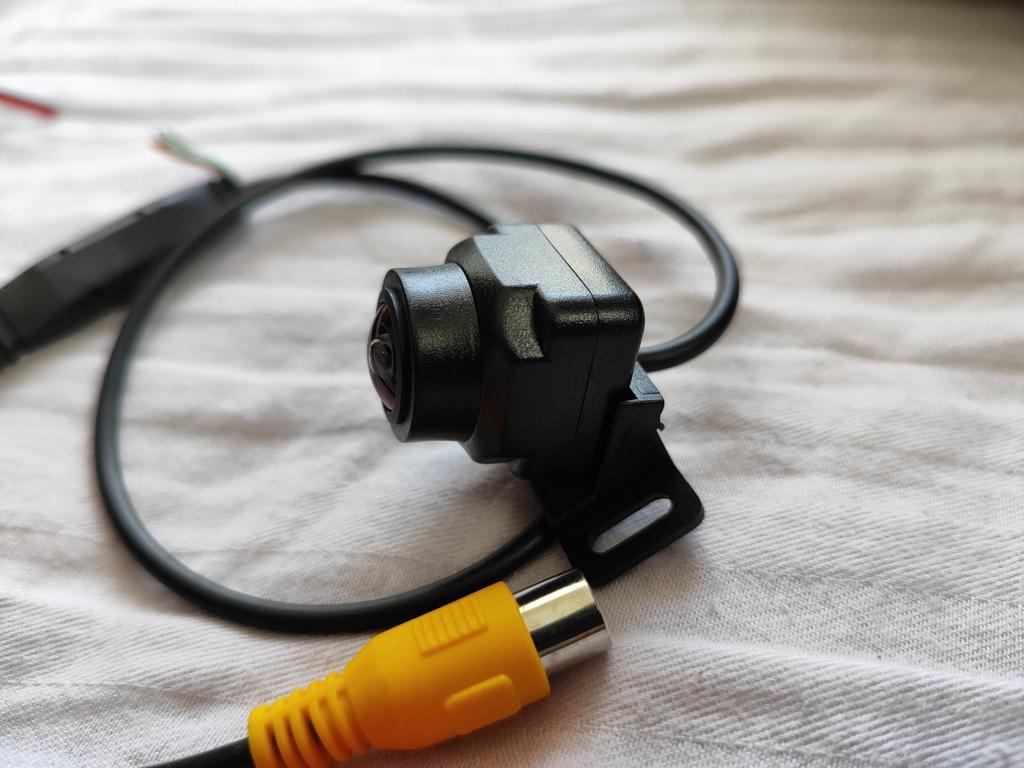

Rear View Reverse Camera High Definition AHD Auto Parts 1280x1080P Universal Car Accessories

Features:

100% brand new and high quality.

MCCD Imported 4089T chips CCD reversing track with excellent image clarity, stability, and night vision Pixel 1280*720P HD.

Support NTSC Video system. High grade of waterproofing: IP67.

Real 170° wide viewing angle. the display looks like fisheye, glass lens, with a wide field of vision, dangerous blind spots are a thing of the past.

Low-light Level Night Vision, 15m visible distance for night. Exclusive low-light camera, the industry's most cost-effective camera, excellent night vision effect, less interference, special shielding, the best quality camera!

This camera is designed for observing blind spots that cannot be reached by the mirror. The wide-angle viewing angle of the 170° fisheye lens helps you see more things while driving or parking, effectively avoiding a lot of trouble.

Easy to install: rear/front switchable: optional to define the distance scale and rearview mirror/normal image switchable-you can use it as a rear-view backup camera or a front/side camera. Note: By default, this is a front camera with no distance scale

170-degree wide viewing angle: to help you see blind spots that your eyes cannot reach. Use a host with standard RCA input or an aftermarket LCD/TFT display. Suitable for all kinds of vehicles: cars, mini trucks, minivans, etc. The working voltage is only 12V.

Highlight: This camera is a front camera, and there is no distance tick mark as the default setting for backup. To use it as a rear-view camera, you need to cut the green loop wire. To display the parking guide, cut the white loop wire.

Cut the green cable: Switch the normal image (front view) to the rear view mirror (rear view) withour ruler. Cut off the white and green cable: rear view mirror with ruler .Cut the orange cable: switch from CVBS mode to AHD mode (Note: If you want to use AHD mode, you need to set the AHD channel on the display). Specification:

Sensor: PC1030 1/4 inch color CMOS

Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.

Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation

Lens : 14/16MM Fisheye 6 glass Lens .

Signal to noise ratio: ≥69dB

Effective pixel: NTSC 648 x 488

TV system: NTSC AHD/CVBS switch

Lens angle: 170 degrees

Electronic shutter: 1/60 (NTSC), 1/50 (PAL) -1/10000s

Resolution: 480 TV lines

Minimum illumination: 0.2Lux

Power supply: DC 12V

Power consumption: 0.5W max

Operating temperature: -20 degrees Celsius to +75 degrees Celsius (RH95% maximum)

Storage temperature: -40 degrees Celsius to +85 degrees Celsius (RH95% maximum)

Waterproof rating: IP67

Colour: Black

Video cable length: about 6 meters/19.68 feet Package Included:

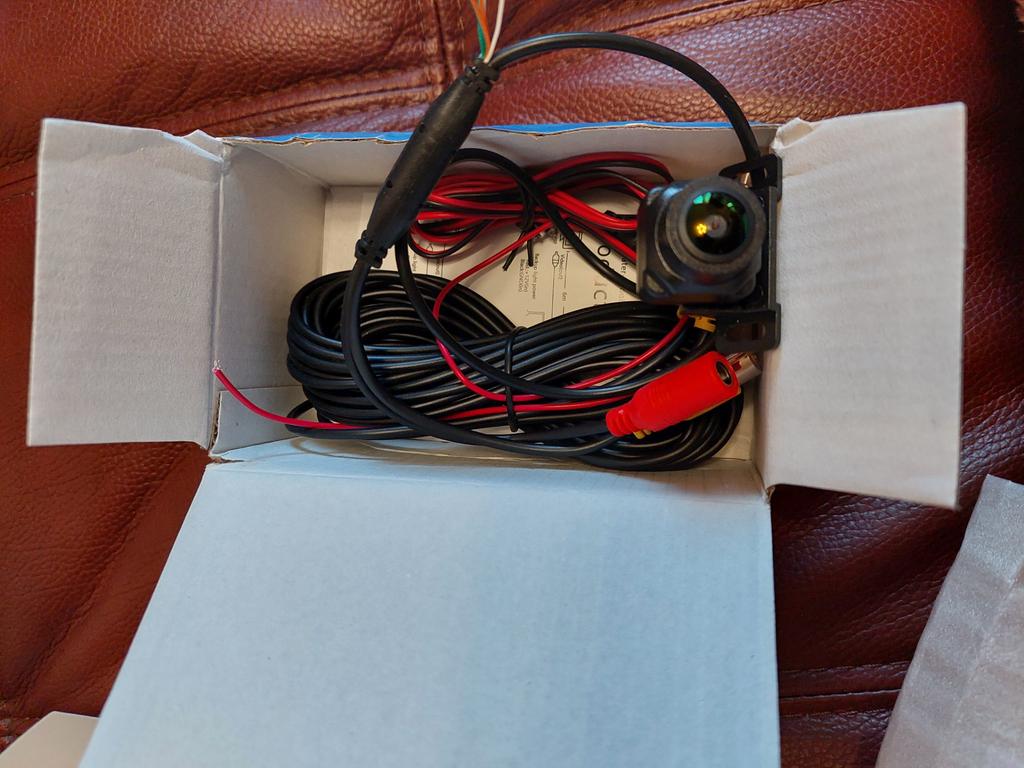

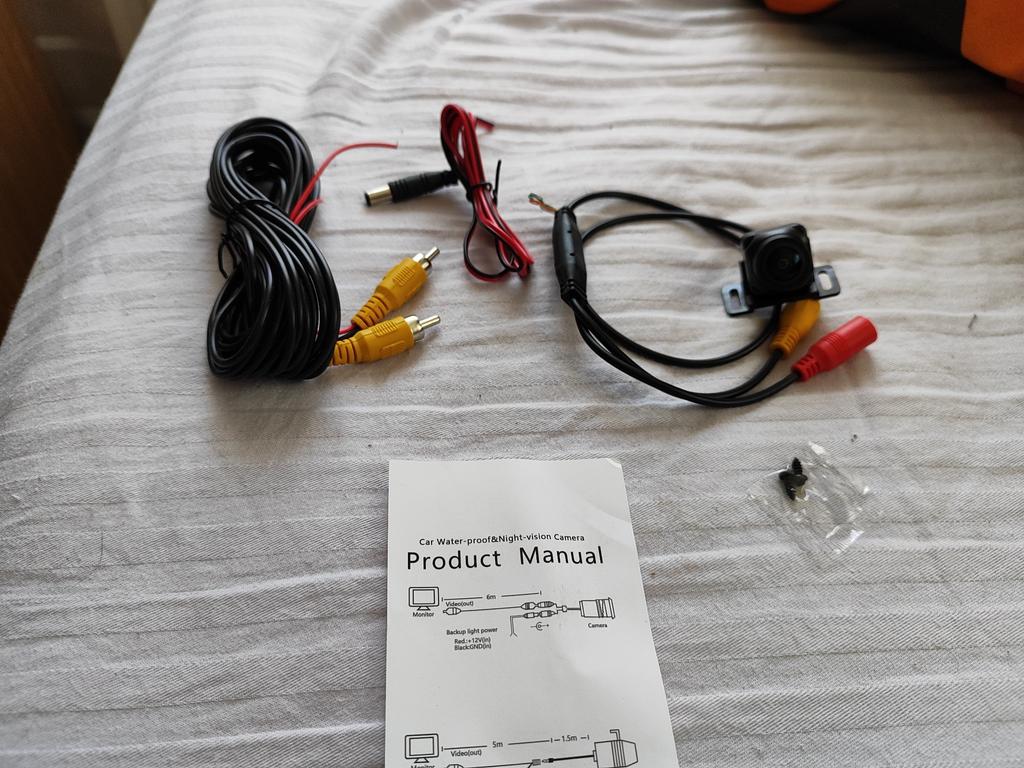

1 x Rear View Camera

1 x Video Cable

1 x Power Cable

2 x Screws
