TPMS 50448 Plus 2in1 is Auto TPMS Relearn Tool, 50448 Plus is Activation Tool for GM and Ford
TPMS 50448 Plus 2in1 is able to work with both for GM series and for Ford series vehicles.It is an essential tool for replacing tire pressure sensors, tire pressure alarms or tire replacements in models such as the for GM series (for Opel / for Chevy / for Buick / for GM / for Cadillac) and for Ford series (for Lincoln / for Mercury).
How to switch between for GM and for Ford brand?
Hold the power button for 3 seconds and 2 LEDs flashing 2 times, selected brand’s LED flashing 2 times.
How do I detect which mode my device is in?
Press the power button, if the Green LED flashing, means 50448 Plus 2in1 in GM mode, if the Red LED flashing, means 50448 Plus 2in1 Plus in Ford mode.
Auto TPMS Relearn Tool 50448 Plus 2in1 Plus Usage:

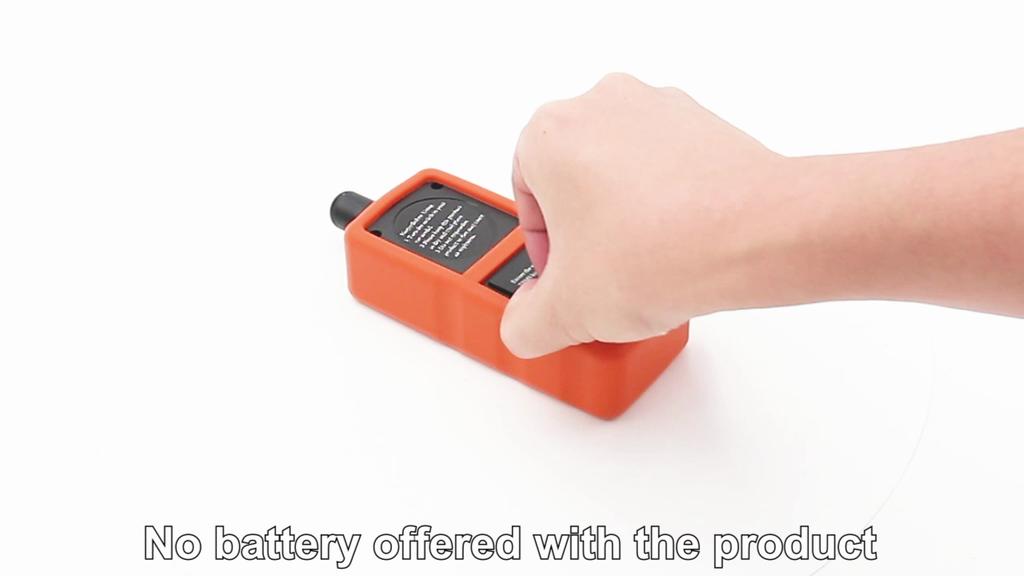

1. Need 1x Pcs 9V battery to work
2. Set the car in TPMS learning mode. (car horns twice)
3. Starting from the left front tire, the antenna of the dedicated tool for tire pressure monitoring is facing upwards against the tire sidewall near the rim of the valve stem to start the antenna. Press and release the button and wait for the speaker to emit a chirp.
Once the speaker is chirping, the sensor information is read and the turn signal to be read at the next position will light.
4. Follow this order to rest TPMS one by one: Front left, front right, rear right, rear left.
5. After all sensors reset, the car horns twice, the TPMS re-learn finished.
How to set the car to TPMS relearning mode?
For GM series cars:
1. Make the gear in P position.
2. Use cruise to choose TPMS re-learn mode in the dashboard settings.
3. Horn will ring twice and the TPMS indicator flashes, then the learning mode has been successfully entered. If equipped,the message center will display the front left (LF) tire.
For Ford series cars:
1. Make the gear in P position.
2. With the ignition switch to OFF, press and release the brake pedal.
3. Turn the ignition switch from the OFF position to the RUN position 3 times and end at RUN position.
4. Depress and release the brake pedal.
5. Ignition to OFF position.
6. Ignition goes from the OFF position to the RUN position 3 times and ends at RUN position.
7. Horn will ring once and the TPMS indicator flashes, then the learning mode has been successfully entered. If equipped, the message center will display the front left (LF) tire
Notice:
1. When using 50448 Plus 2in1, please make sure antenna in correct position.
2. Please make sure the 9v battery in good condition.
Package includes:
1PC x Auto TPMS 50448 Plus 2in1 Auto TPMS Relearn Tool
