Voltage Frequency Converter Module 010V To 025KHz PLC Electronic Component

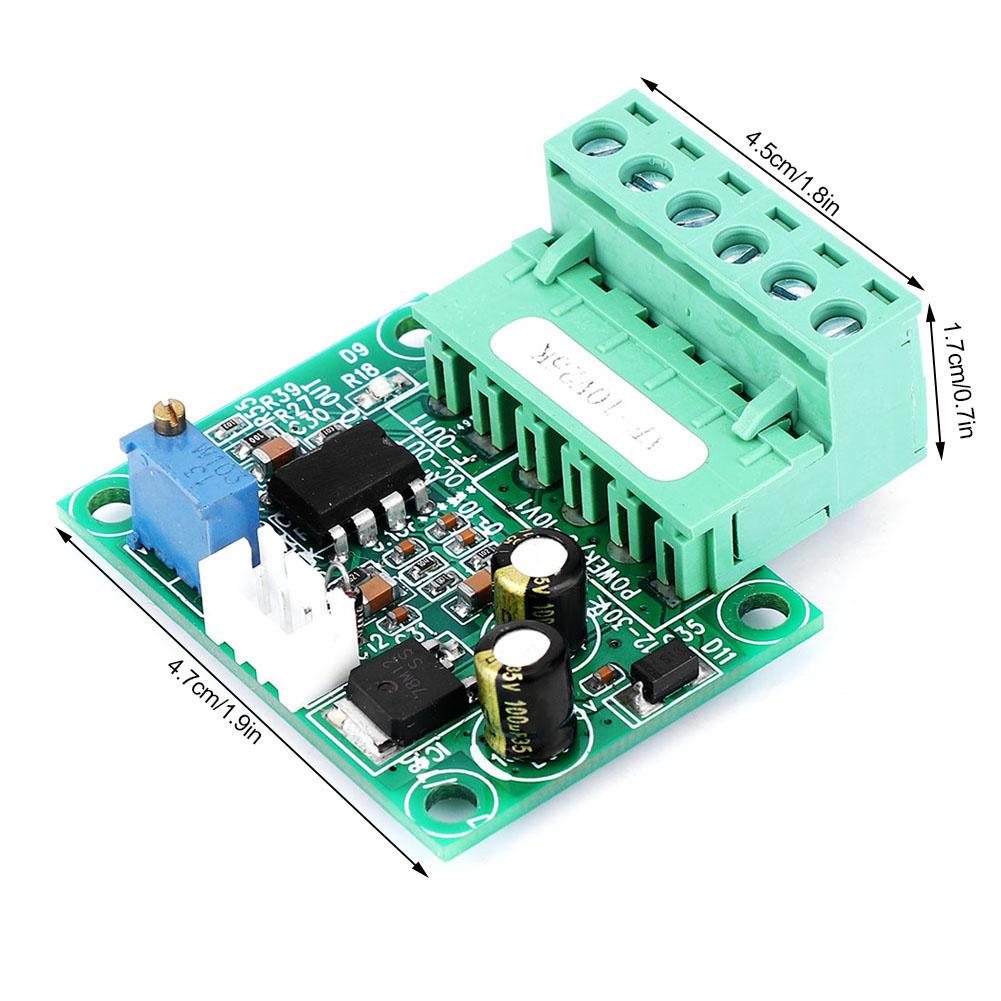

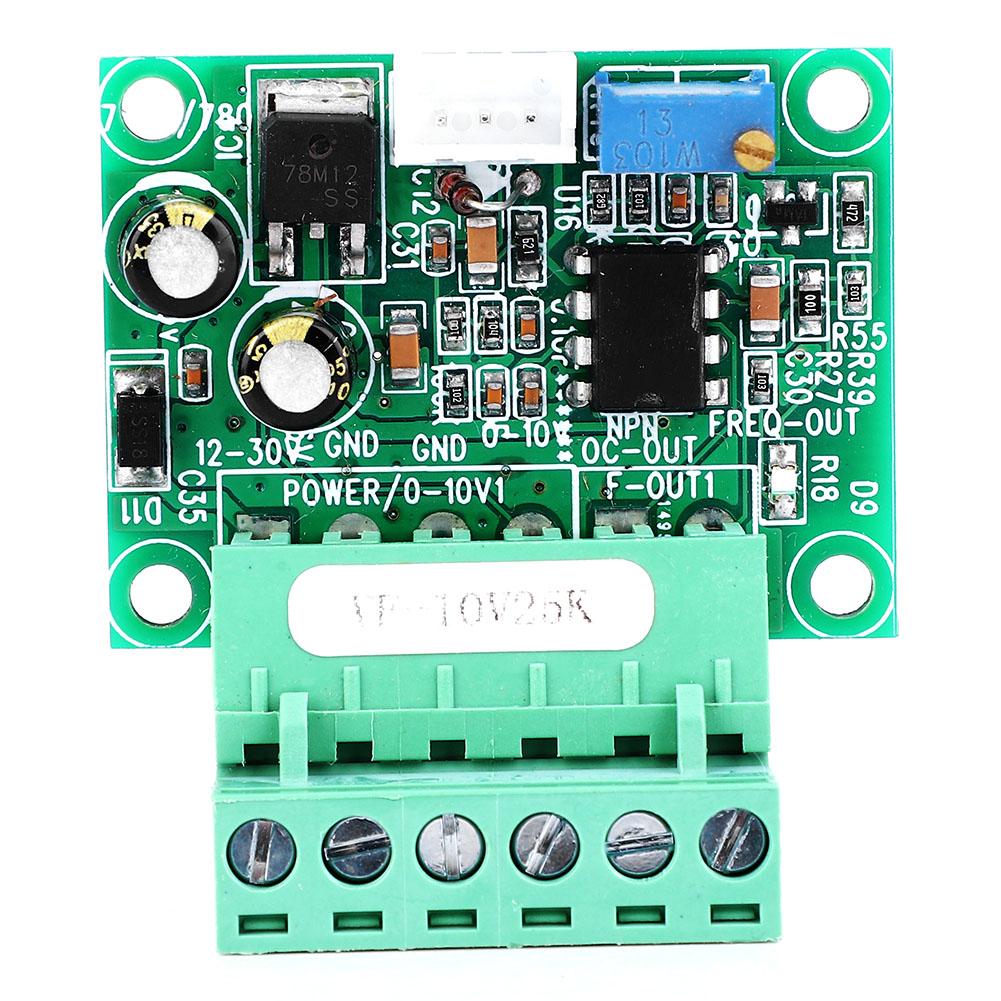

Features: 1. The module can control the frequency generated according to the input voltage level 2. According to the level of the input voltage, the frequency of the output will also change in proportion to the relationship. 3. The power supply has antireverse function 4. The power indicator is on after power up 5. High quality material can make sure the durability of the product Specification: Condition: 100percent Brand new Item Type: Voltage Frequency Converter Module Model: VF10V25KHz Input Control Voltage Range: 010VDC The input power supply has a voltage range of 1230 VDC. It is recommended that the power supply voltage be 1524 VDC. When the 12V level is input, the power supply cannot be powered by 12VDC, and at least 15VDC or more. At 24 levels, the power supply needs to be powered by 24VDC. Current Requirement of the Power Supply: greater than 30MA Mounting Fixed: 4 x M3 screw holes Size: Approx. 4.7 x 4.5 x 1.7cm 1.9 x 1.8 x 0.7in Package List: 1 x Voltage Frequency Converter Module Instructions for Use and Wiring: There is a silk screen mark on the top of the module. It can be wired according to the mark. The meaning of the mark is as follows: 010V: The analog voltage signal is input to the positive terminal. GND: Common ground, GND. 1230V: Power input positive terminal. GND: power ground wire OCOUT: signal collector output port (use this output port when equipped with a driver) FREQOUT: frequency output port (common frequency output port) Two independent outputs, OCOUT is NPN and FREQOUT is IC output. The common cathode end is used with the negative GND of the power supply. When the common anode wiring is used with the power supply, when the common anode wiring is 1324V, it is necessary to string a 2.7KR resistor. Common anode wiring, when 12V power supply, to string a 330R resistor. An example of the linear correspondence between voltage and frequency: 1V converted to 2500Hz Convert 5V to 12.5KHz Convert 10V to 25KHz The module can control the frequency generated according to the input voltage level According to the level of the input voltage, the frequency of the output will also change in proportion to the relationship. The power supply has antireverse function The power indicator is on after power up High quality material can make sure the durability of the product
