【 Product Material 】: Imported nylon, soft rubber TPU environmentally friendly material

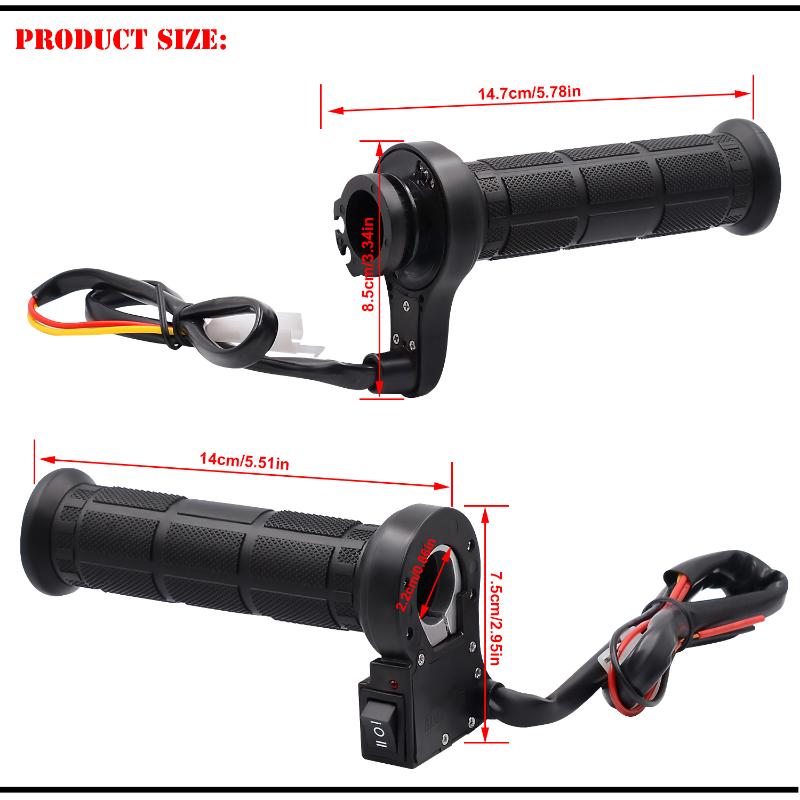

【 Handle length 】: Left hand handle: 14cm Right hand handle length: 14.7cm
【 Handle diameter 】: 2.2cm
【Input voltage】: 12V
【 Product power 】: 25W 【 One pair power 】
【 Handle temperature 】: Adjustable from 50 ℃ to 70 ℃ (all data above are obtained from experiments. The laboratory room temperature is between 15-20 ℃, and the specific values may fluctuate slightly due to changes in voltage, environment, and other objective factors, for reference only)

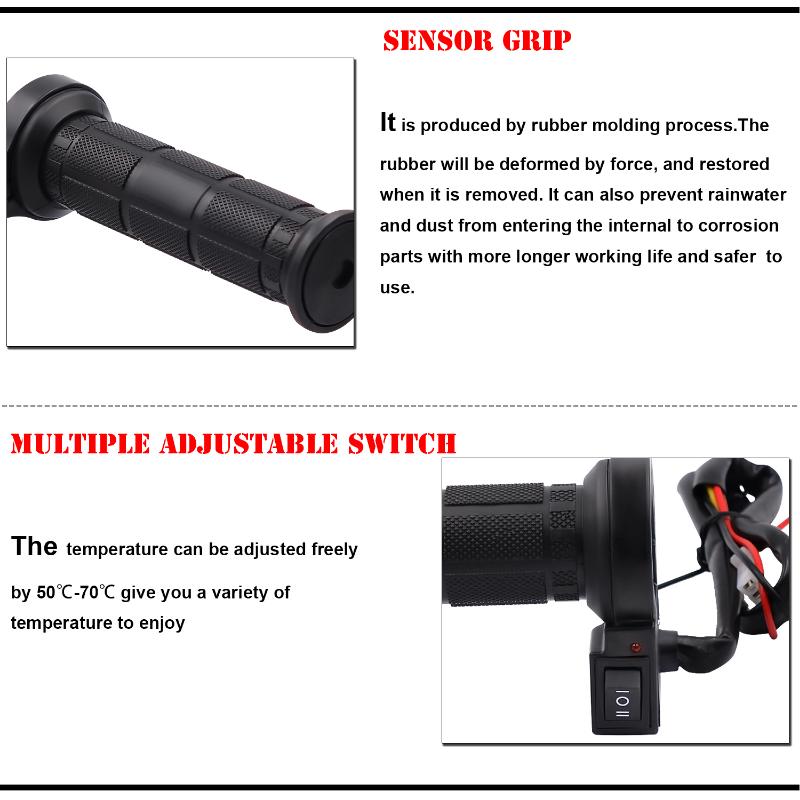

【 Switch Type 】: Three speed adjustable switch

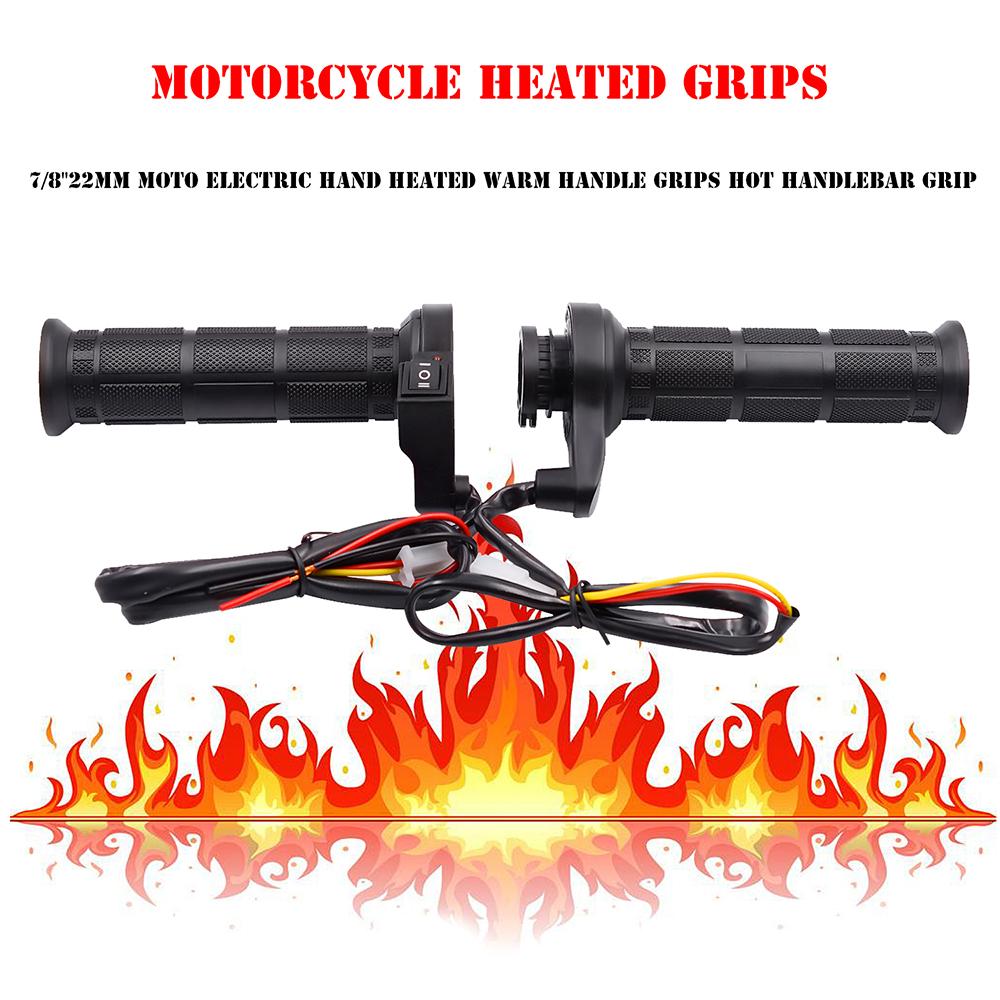

【 Product accessories 】: One pair of left and right handlebars, one accelerator card
【Applicable model】: Suitable for motorcycle handlebars with a diameter of 22MM
【Design highlights】: Six design highlights:
【1】 The wires do not rotate with refueling, resulting in longer service life and more convenience;
【2】 No sliding contact, spring powered technology, more flexible handle rotation during refueling;
【3】 The integrated injection molding of the handle ensures longer and safer waterproof and dustproof service life;
【4】 A handle suitable for 22mm and 25 direction vehicle models;

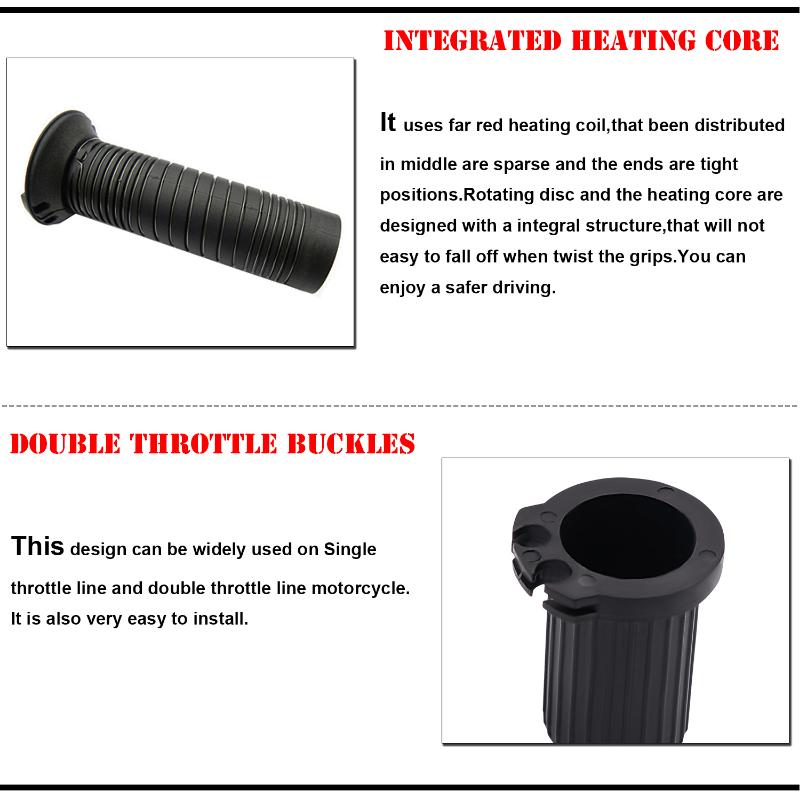

【5】 Split single and dual 360 degree throttle design;
【6】 The electric heating handle model is Universal design, which is applicable to a wider range of models.
【 Product selling point 】:
【1】 Installation is super simple: After installing the accelerator, align the right hand lead elbow with the accelerator cable post and insert it. Gently tie the elbow and cable post together with a tie. Improve the issue of too many old accessories and installation complexity.

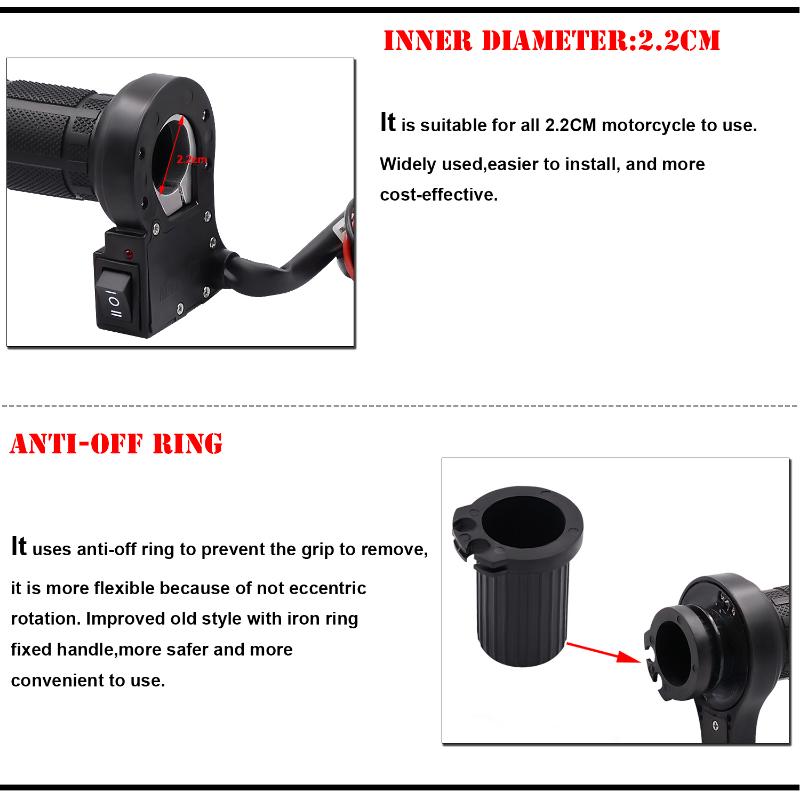

【2】 Pioneering anti detachment ring: Adopting anti detachment ring to prevent the handle from coming out, it is more flexible because it does not rotate eccentrically. Improve the old model by using an iron ring to fix the handle. Loose screws are easy to come out, and tightening the screws can cause eccentricity and inflexibility in rotation.
【3】 Aluminum ring clamp fastening: The left hand holds the aluminum ring clamp more firmly. Driving is safer. Improved old model with iron ring fixation for easy swaying.
【4】 The electric wire does not rotate with refueling: a spring power supply is used between the heating wire on the right hand and the power supply wire, and all solder joints are soldered to ensure waterproof and anti-corrosion.
【5】 Ultra thin turntable: The left and right handlebars make the turntable thinner and more aesthetically pleasing, making it more convenient to sound the horn.
【Installation Method】:
1: Install the fuel dispenser into the throttle seat
Install the fuel dispenser into the throttle seat, hang the throttle cable, close the cover, and then insert the right handle into the fuel dispenser to check if it rotates flexibly. If not, polish the fuel dispenser.
2: Insert the right handle into the fuel dispenser
Coarse positioning: Align the anti rotation elbow of the right handlebar with the accelerator cable post or other positions on the front of the vehicle, insert the right handlebar so that the elbow is against the cable post, and mark the insertion position.
Fine positioning: Change the gear slot at the marked position and insert it multiple times, even if the elbow does not rotate and the angle is moderate, it will not affect the maximum refueling. Step angle of tooth groove 15 °
3: Install the anti detachment ring into the throttle seat
Insert the right handle all the way into the fuel dispenser, and the anti detachment ring must be installed into the throttle seat! The anti detachment ring is used to prevent the right handlebar from coming out of the fuel seat and causing safety accidents.
The shell of some scooters will be inserted between the right handlebar and the fuel dispenser. At this time, the anti detachment ring cannot be installed in the throttle seat. 502 glue must be applied to the connection between the fuel dispenser and the anti detachment ring to prevent the right handlebar from coming out. After the glue is applied, the right handlebar should be immediately inverted to prevent it from flowing into the handlebar and affecting its rotation.
4: Oblique installation extends service life
Tilt the left handle switch and install it to prevent rain
