Features:
This
is a water heater for the application of changing the cold water into
hot water and it will meet your various needs such as used in kitchen, public restroom, etc.
It is a high efficient water heater with compact size to produce the hot water very quickly.
LCD digital temperature display.
Freely adjust water temperature, simple operation.
Safe heater, electricity saving, water saving, no pollution, no exhaust gas.
Stainless construction with mini style, it is durable, elegant and fashionable.
Specifications:
Material: Stainless Steel Shell
Power: 3000W
Current: 25-32A
Rated Frequency: 60Hz
Applicable Pressure: 0.04-1.2Mpa(Ordinary tap water pressure
)
Water Heater Start
ing Pressure: 0.04Mpa

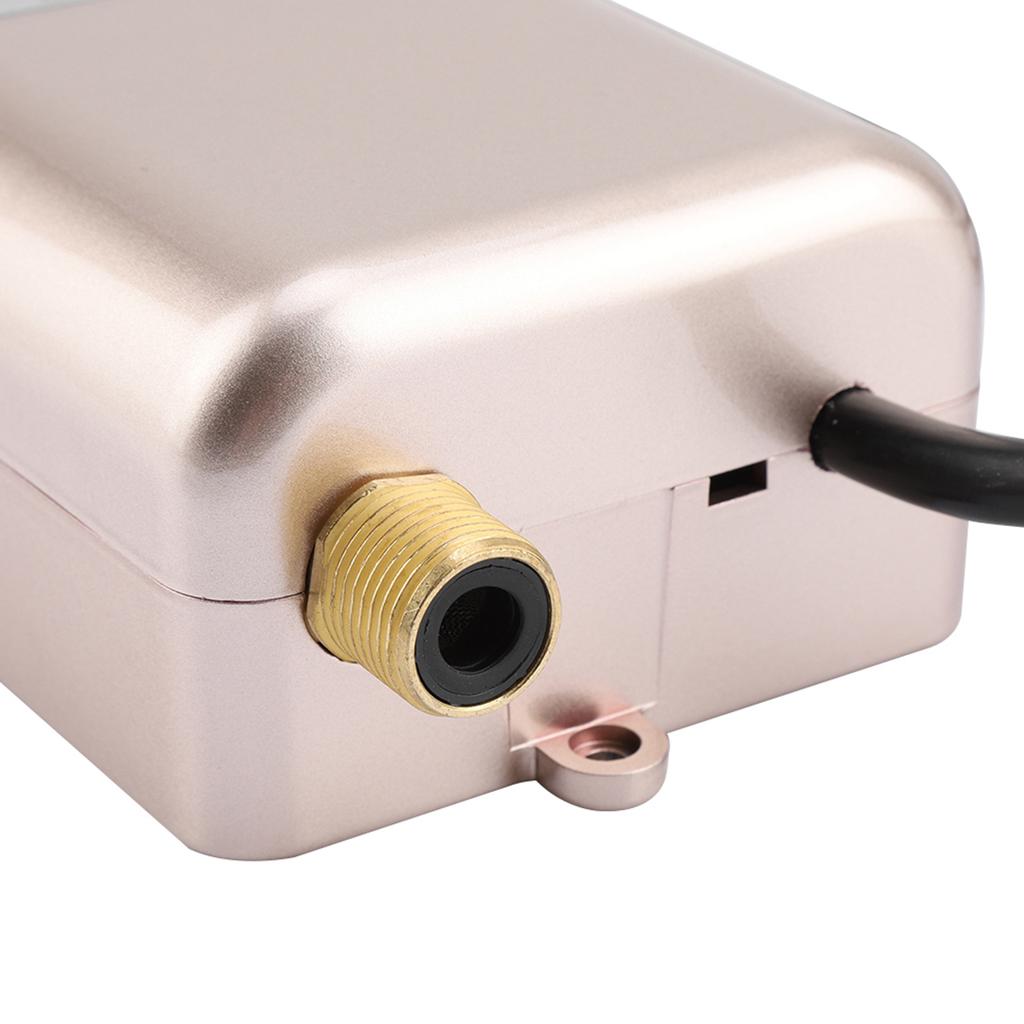

Waterproof Grade: IPX4Installation wire diameter: more than 2.5mm2 copper wire Water pipe interface: G 1/2" interface
Size: Approx. 20 x 10.5cm / 7.87 x 4.13inch
Use a circuit breaker: The installation requires that the circuit breaker switch is greater than 32 A, and the wire is greater than 2.5 square meters. Otherwise, a short circuit will be introduced!
The power of the water heater is constant 3000W, and only the inlet water flow and the inlet water temperature can change the water temperature. The larger the water flow, the lower the outlet water temperature. The higher the inlet water temperature, the higher the outlet water temperature, and vice versa. The size of the inlet water flow and the inlet water temperature are different for each customer, and the effect is different.

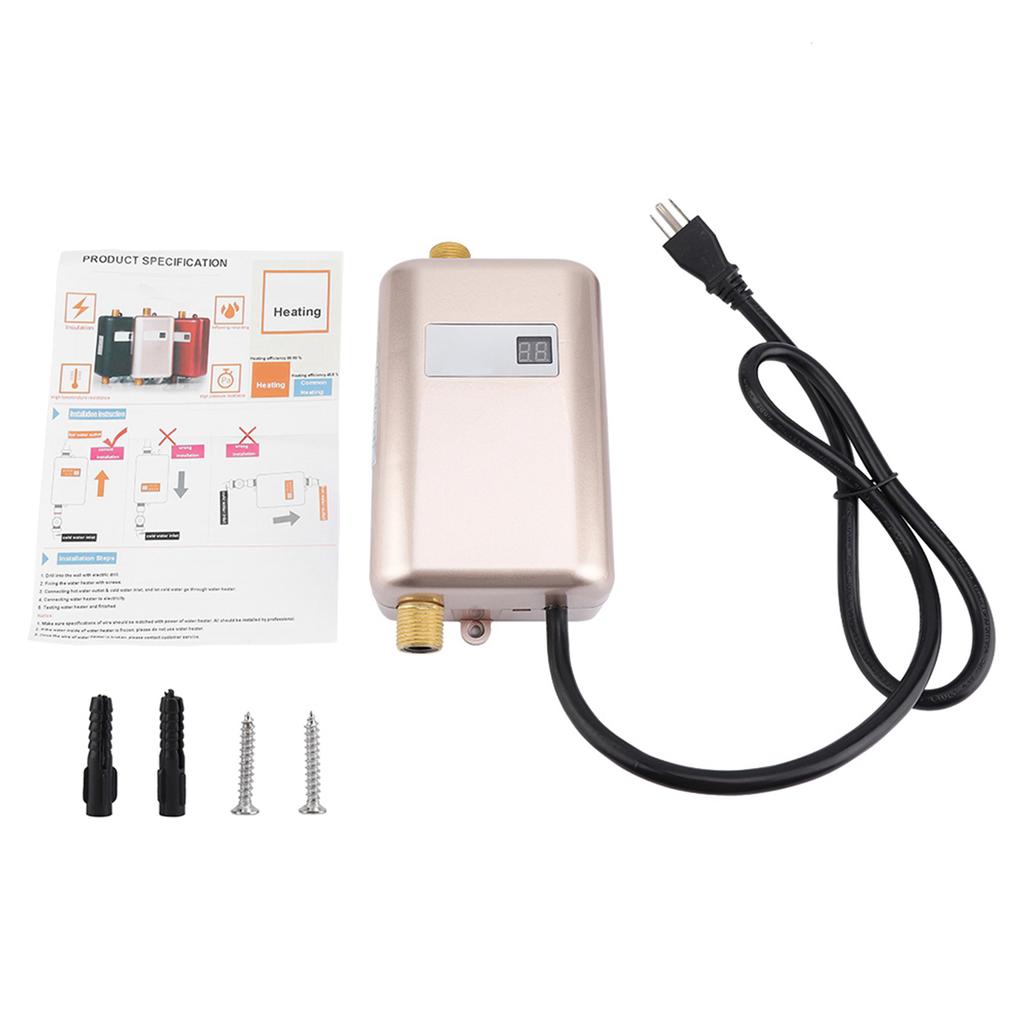

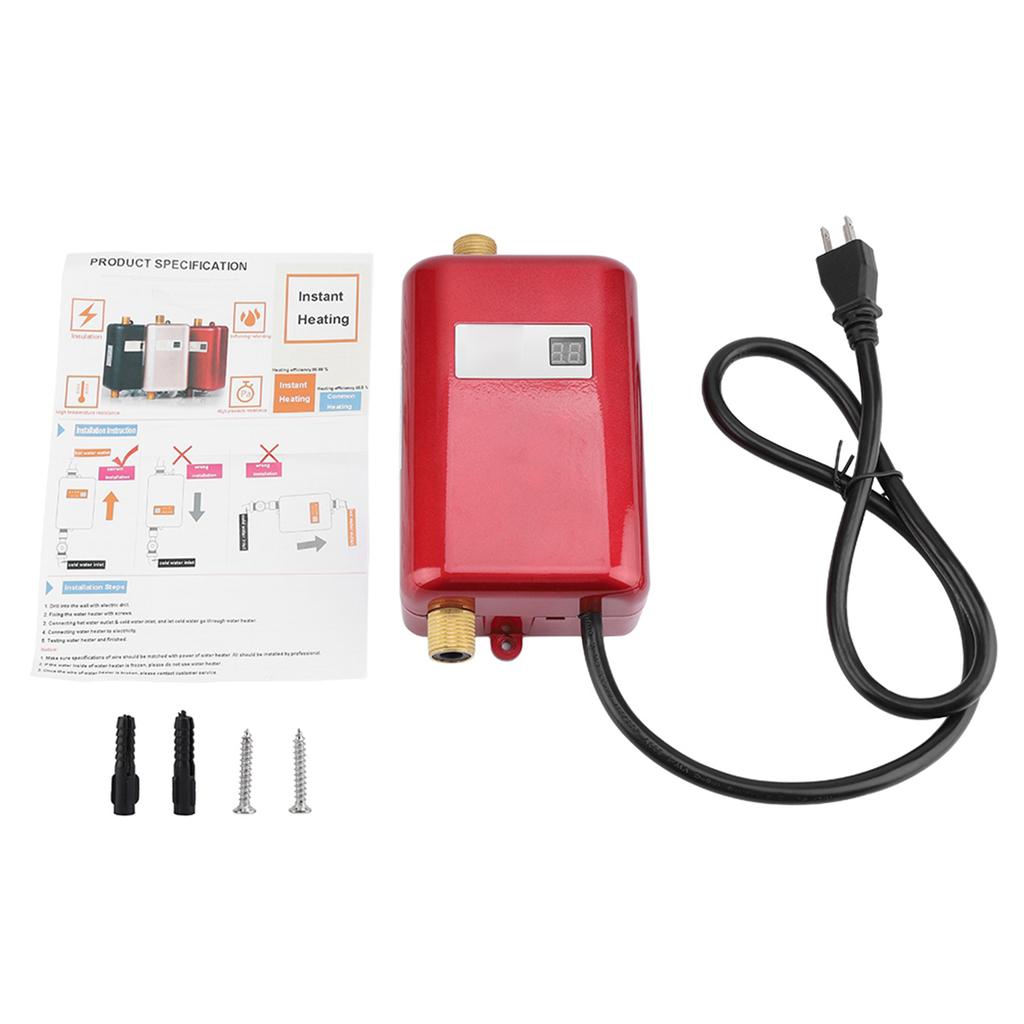

Package Included:
1 x Water Heater
2 x Fixing Screws
2 x Screws Protector
1 x Manual
Note:
1. Please note
this item should get the
water first
and then link the
electricity when installing.
2. You"d
better
install this item vertically to make
sure long
service
time.
3. Please kindly make
a note
if you need any adapter.
4.
Monitors are not calibrated same, item color displayed in photos may be
showing slightly different from the
real
object. Please take the
real
one as standard..5. The temperature control of the water heater is controlled by the amount of water inlet. The larger the inlet water , the lower the temperature, and the lower the inlet water , the higher the temperature.
6. As the
space of the
inner tank
of the
water heater is relatively small, when the
water is closed, the
remaining temperature of the
water in the
inner tank
is still rising. Turn on the
water again, the
temperature will be
warmer, after a few seconds the
temperature stabilizes again.7. The
heating of the
product is adjusted by the
water regulating valve or the
faucet switch
, the
temperature is low when the
water is large, and the
temperature is high when the
water is small. Therefore, it
is recommended that the
product be
washed in winter for
hands, dishes, face, etc.
Note:1. No cold water passes through the water heater, the water is low or the water inlet is blocked. Wait for cold water, use under normal water pressure, clean the inlet filter. 2. The shower hose or hose is improperly sealed. Reconnect or replace other hoses. 3. Temperature deviation. Turn off the water heater and let the cold water pass through for a while. 4. Electric leakage. First go to check if there is no problem with the wiring in the home, such as to see if there is a ground wire, if there is no ground wire, connect the ground wire to see if the leakage will disappear. 5. Running lamp: The equipment is not started, water pressure is adjusted to 0.04MPa. still can not be opened to open the water heater
