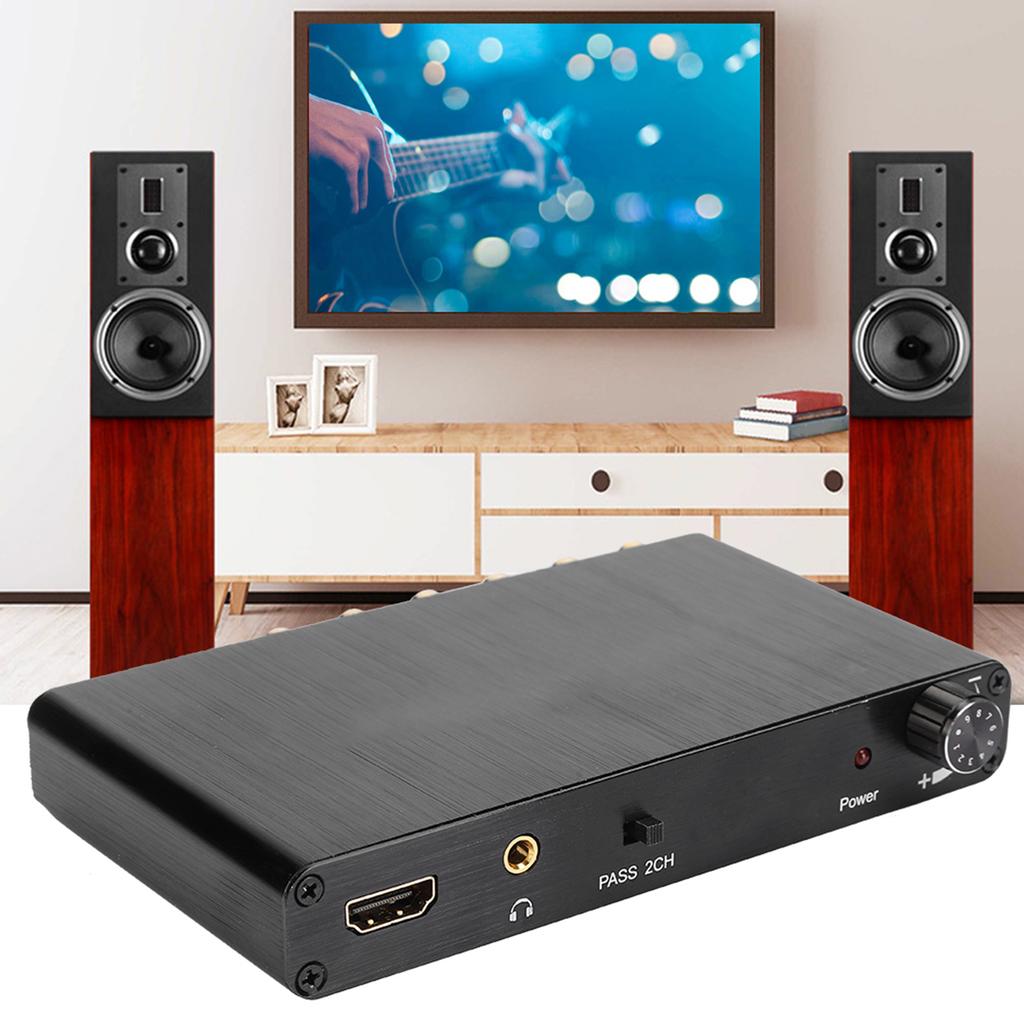

Feature:
1. It can automatically extracts digital o from HDMI signal and converts it to analog o output.
2. Widely applied to home, school, square, concert hall, cinema and other public places to provide stunning effect of DTS or for Dolby effect.
3. Built-in high-performance operating system for RTOS and o decoder chip, supporting for DTSAC-3.
4. Ultra-fast startup time of about 3 seconds, mini metal case, good anti-interference performance.
5. Realize the synchronization of o signal decoding, PASS2.0CH two optional o modes, support for 6CH (5.1CH) volume synchronous adjustment.
6. Automatic decoding of AC-3DTS (LPCMPCMRAW) input signal, no need for any setting.
7. High compatibility, support online playback, HDTV, blu-ray DVD, DVD, DM500S, DM800HD, etc.
8. Adopt 6CH RCA3.5mm headphone port, convenient and fast, better using experience.
Specification:
Item Type: o Decoder
Condition: 100percent brand new
Shell Material: Aluminum
Model: AY83
Color: Black
HDCP Version: HDCP1.4
HDMI Version: HDMI1.4b
HDMI Resolution: 2160p@30Hz1080p@5060Hz1080i720p1576i480p480i
Supported Video Color Formats: 24bitdark color 30bit, 36bit
o Output: 2CH5.1CH analog o
Maximum Bandwidth: 340MHz
Maximum HDMI Transmission Speed: 10.2Gbps
InputOutput TMDS Signal: 0.5-1.5Volts P-P (TTL)
InputOutput DDC Signal: 5Volts P-P (TTL)
Input Cable Distance: less than 7m23ft AWG26 standard cable HDMI
Output Cable Distance: less than 8m26.2ft AWG26 standard cable HDMI
Supported o Formats: MP3, AC3, DTS, WAV, WMA, AAC, ALAC, FLAC, APE, OGG, M4A
SNR: 120db
Stereo Isolation: 80db (1KHZ)
Channel Imbalance: 0db
Sampling Rate: 32192 KHZ
Bit Rate: 1624 Bits
Response Frequency: 20Hz, 20KHz + -0.7db
THD: 20 Hz-20 KHZ 0.25-0.065percent
THD + N: 1KHz 0.15percent
Size: Approx. 138.2x97.5x21.2mm0.45x0.32x0.07in
Weight: Approx. 238g
Maximum Power Current: 420mA
Operating Temperature: 0-70 celsius
Working Humidity: 10percent -80percent RH (No condensation)
Storage Temperature: -10-80 celsius
Storage Humidity: 5percent -90percent RH (No condensation).
Package List:
1 x o Decoder1 x User Manual1 x USB Cable1 x Plug
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
