Purchase Notes:
1. Diesel cars are not supported
2. All products are sold without a CD. If you need software, please download it in the mobile AppStore or scan the packaged QR code。
Super Mini ELM327 Functions:
1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL ( ''Check Engine'' light)
3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Coolant Temperature
7: Fuel System Status
8: Vehicle Speed
9: Short-Term Fuel Trim
10: Long-Term Fuel Trim
11: Intake Manifold Pressure
12: Timing Advance
13: Intake Air Temperature
14: Air Flow Rate
15: Absolute Throttle Position
16: Oxygen sensor voltages / associated short-term fuel trims
17: Fuel System status
18: Fuel Pressure
19: Many others
ELM327 Item Description：
ELM327 MINI OBD SCAN is the newly developed wireless scan tool. It supports most standard OBD-II protocols

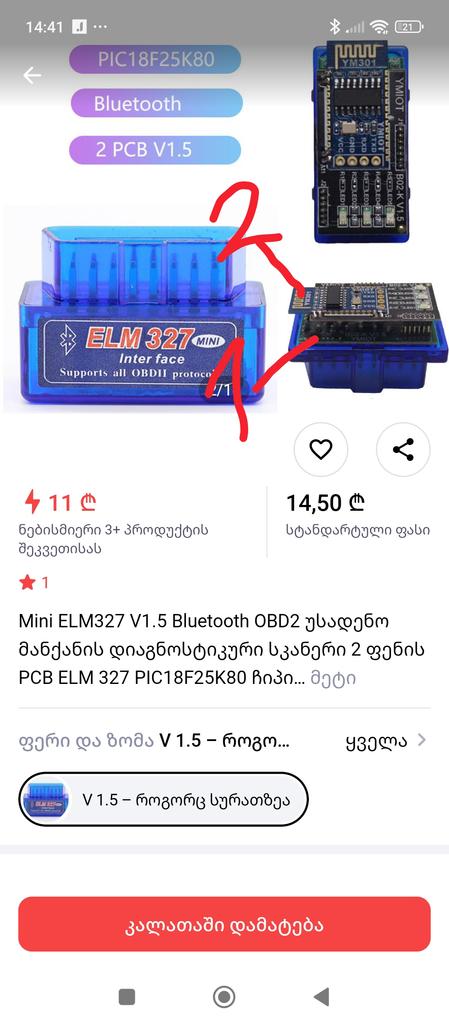

1. Special chip: PIC18F25K80/No PIC18F25K80
2.Connection method:BT2.0
Bluetooth Password :0000 / 1234 / 6789
Wireless (Bluetooth) 5~10 meter
3. Supported systems: Android
4. Hardware version: V1.5
This ELM327 Hardware V1.5. supports most OBD-II protocols cars, but it can not do all models
5. Software:Android: ELM327 identifier/Torgue/Dashcommand/Auto Doctor PC: Scanmaster
6. Features: Support 9 Standard OBD2 Protocols, 90% of cars can be supported
Supported protocols:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
Support ATAL/ATPPS etc.
Software Address:
Android: ELM327 dentifier/Torgue/Dashcommand/Auto Doctor
PC: Scanmaster(www.elm327.com)
Package included:
1 x ELM327 Diagnostic tool
