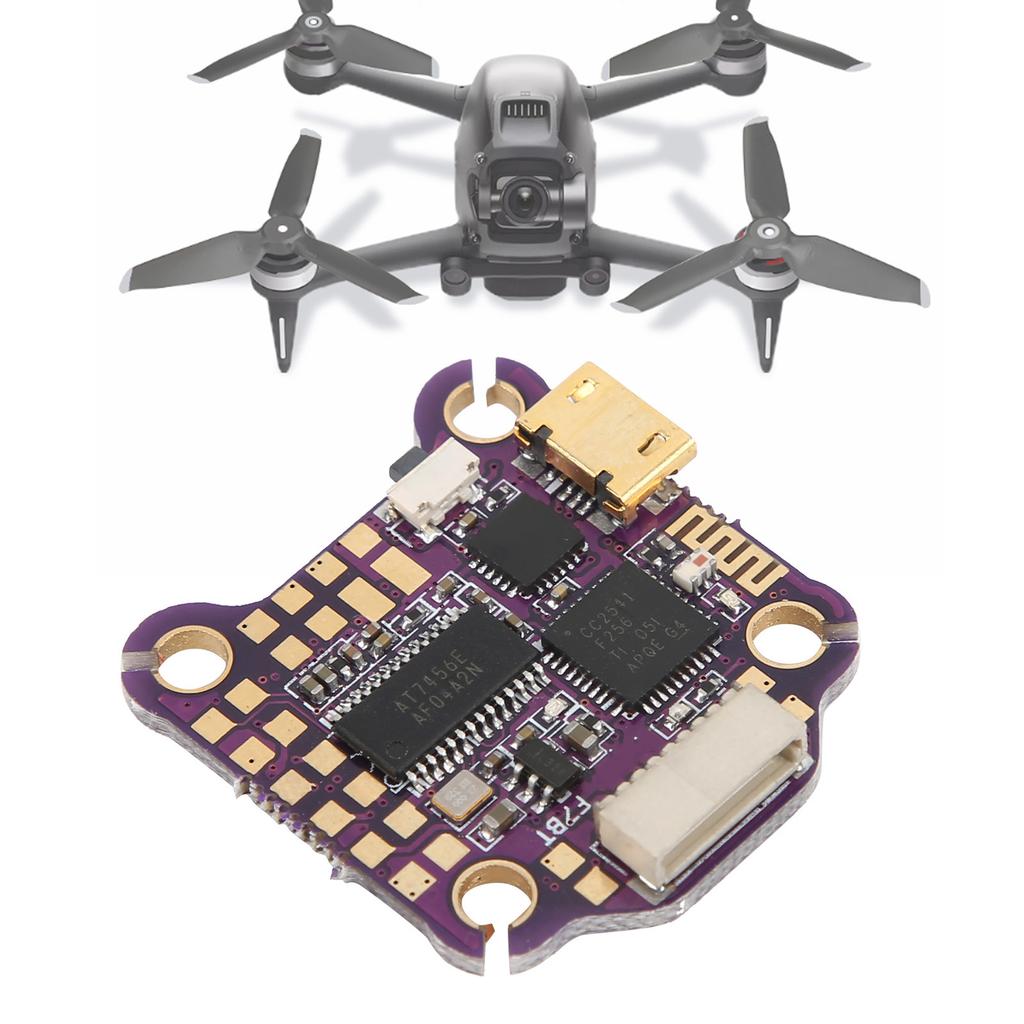

RC Quadcopters Flight Controller for OSD BEC 5V 8V Flight Controller Board for FPV

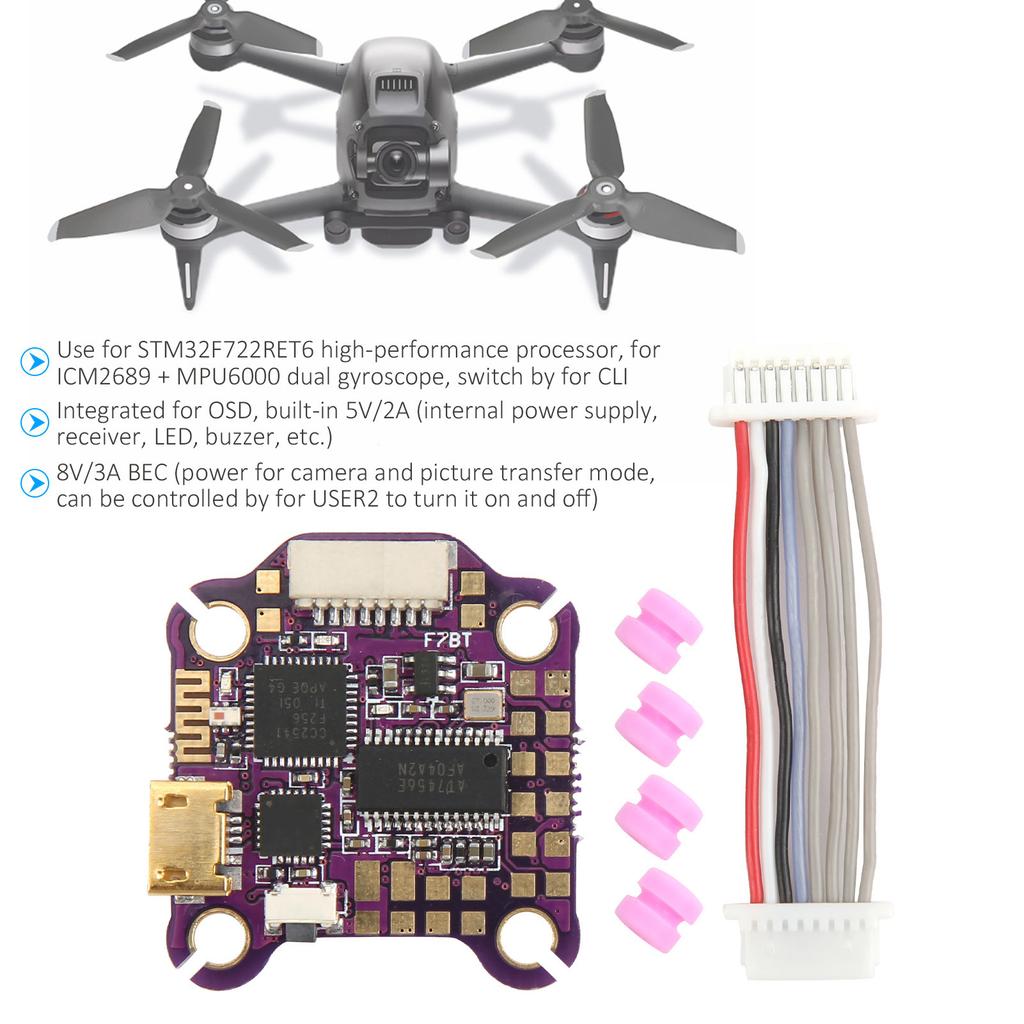

Feature: 1. Use for STM32F722RET6 high?performance processor, for ICM2689 + MPU6000 dual gyroscope, switch by for CLI, high performance. 2. Integrated for OSD, built?in 5V/2A (internal power supply, receiver, LED, buzzer, etc.) 3. 8V/3A BEC (power for camera and picture transfer mode, can be controlled by for USER2 to turn it on and off). 4. Two independent BEC work separately, optimized circuit and high?performance hardware further ensure powerful performance. 5. Supports two camera inputs (VIN1, VI2 are video input interfaces, controlled by the USER1 switch, and VIN1 is the input signal by default).

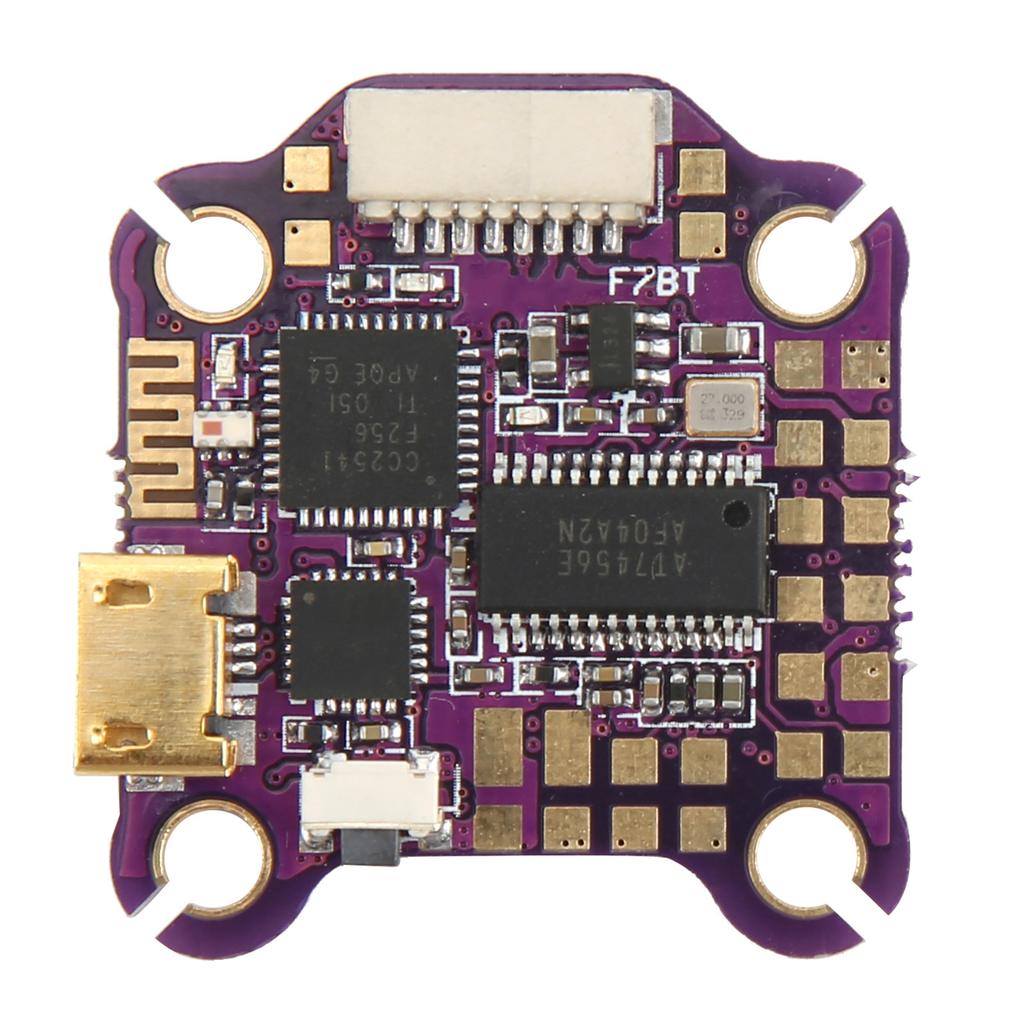

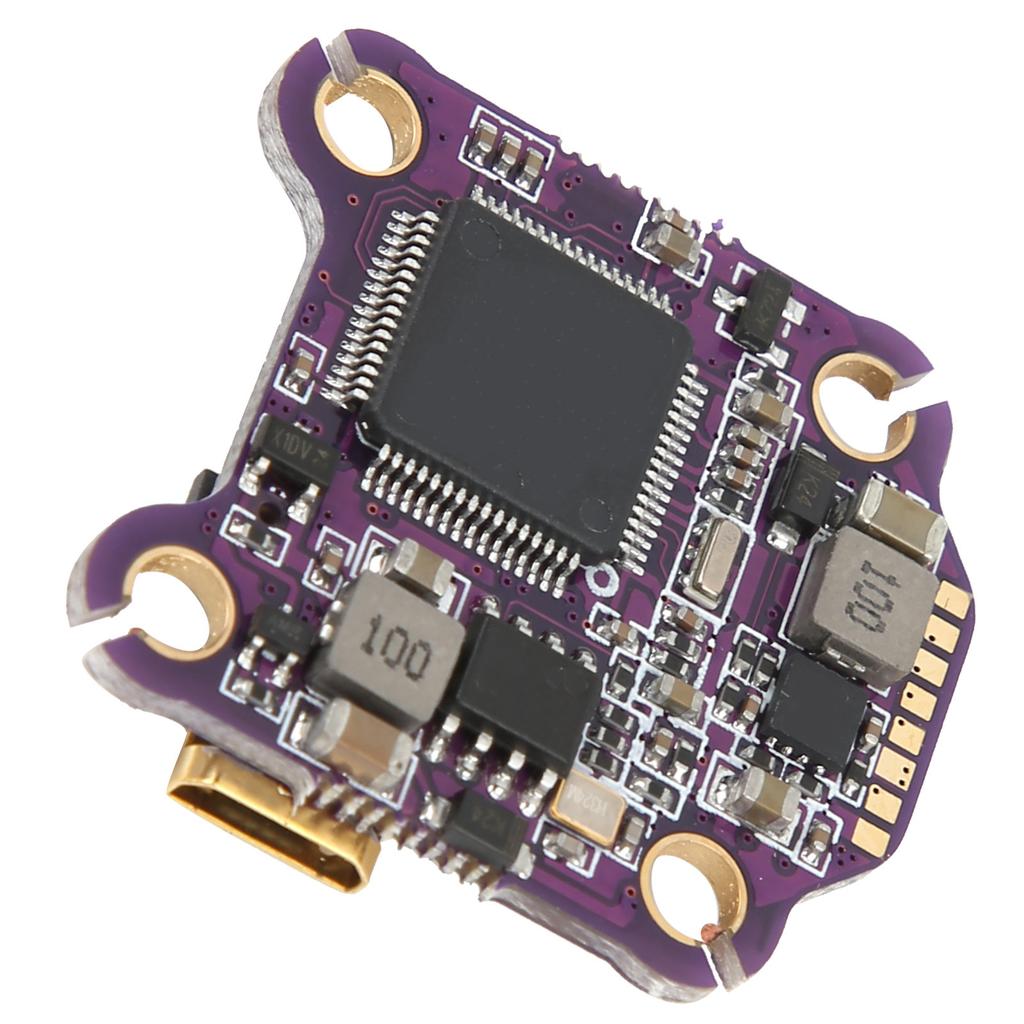

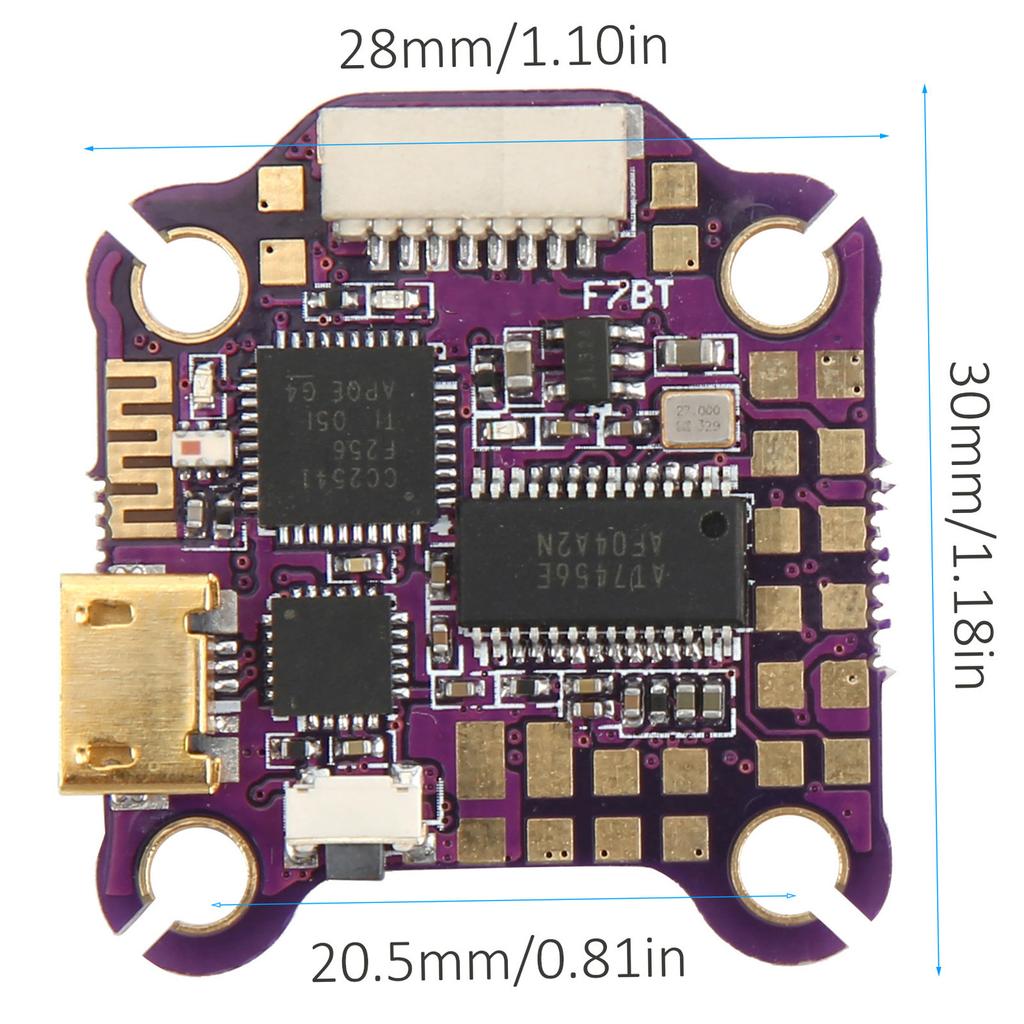

Specification: Item Type: Flight Controller Material: Electronic Component Color: As Picture Shown Flight Controller Size: Approx. 30x28mm/1.18x1.10in Install Hole Distance: Approx. 20.5mm/0.81in Weight: Approx. 18.0g/0.6oz Main Control Chip: For STM32F722RET6 216MHz Gyroscope: Dual ICM20689 + MPU6000 Dual Gyroscope Access (For SPI) For OSD Chip: AT7456E For Black Box: 16MB LED Programming: Support BB Sound: Support Input Voltage: 2-6S I2C Interface: Support BEC-1: 5V / 2A (internal power supply, receiver, LED, buzzer, etc.) BEC-2: 8V/3A (camera and picture transmission mode power, can be controlled by USER2 to turn it on and off) Dual Camera Input: Support (VIN1, VIN2 are video input interfaces, controlled by the USER1 switch, the default VIN1 is the input signal) Serial Control Port: Six Channels (UART1, UART2, UART3, UART4, UART5, UART6) Bluetooth: Support (Port For UART4, Baud Rate 115200, Name For JHEMCU) For DJIVTX: Support dedicated socket reserved on the sky side, equipped with dedicated plug cord Flight Control Firmware: For Betaflight Fit for FPV Racing Drone

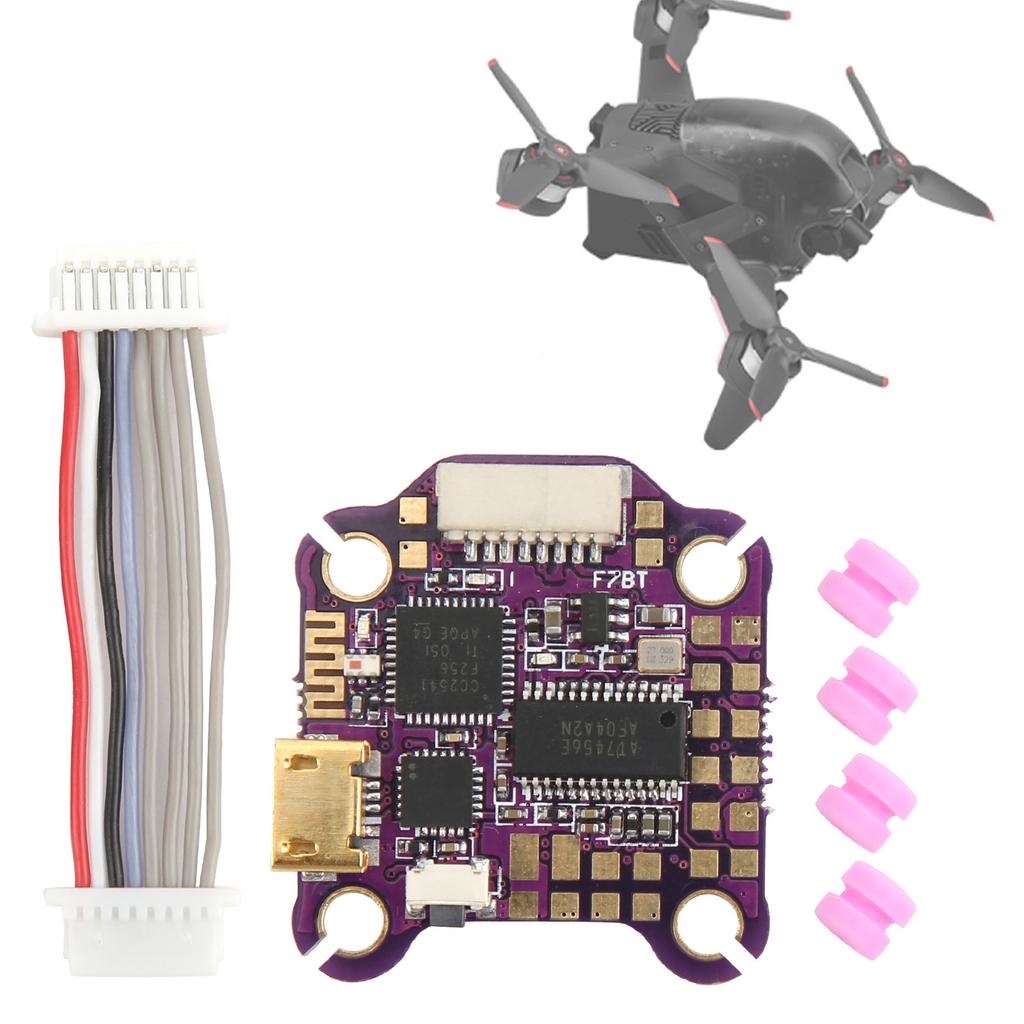

Package List: 1 x Flight Controller 1 x Connect Cable

4 x Silicone Pad 1 x Manual

Note: 1. Please use a rated battery as the power source, too high or too low voltage will cause the flight controller to fail or even be damaged 2. This flight controller has a built?in 16MB black box, which can record flight data without additional installation
