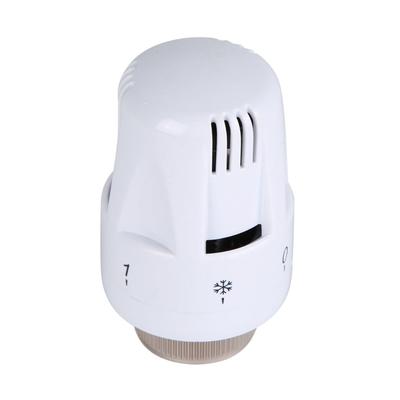

Thermostatic Radiator Valve Pneumatic Temperature Control Valves Remote Controller Radiator Head For Heating System Valve-Tool
Product name: Special temperature control valve for radiator
Material: Plastic + carbide
principle:
The radiator special temperature control valve is the temperature sensing element in the thermostat valve, and it is also an actuator filled with special material liquid. When the temperature changes, it will shrink and expand accordingly, thus pushing the valve to open or close, and the automatic control of temperature has been achieved.
Temperature control valve actuator:
Application range :7-28 degrees hand wheel rotation to the specified scale can be controlled to the corresponding room temperature;
You can manually turn the knob to control the temperature control valve switch, so that the room temperature reaches the temperature you need
How to install a temperature control valve:
1 Turn the handwheel to scale "5"
2 The temperature control valve head and the valve body are hexagonal
3 The hexagonal corners of the temperature control valve head should be aligned with the hexagonal corners of the valve body
4 Tighten the threaded ring of the temperature control valve head to the temperature control valve body using a threaded connection
Installation note: Rotating the scale value to "5" makes it easier to install to the valve body
Temperature range The application range of the thermostatic control valve :7-28°C, you can rotate the enclosure of the controller to the corresponding scale value of a certain temperature according to the room temperature you want, you can reach the room temperature you need.
