Features:
Wide Range of Applications: This pointer tachometer is suitable for 1-8 cylinder gasoline engines, 12V/24V cars, trucks, boats, diesel generators, and gasoline engines.
High Accuracy: The stepper motor-driven pointer accurately displays engine speed. High display accuracy and relatively easy operation and control.
LCD Display: The LCD display is suitable for displaying engine speeds on vehicles with 1-8 cylinder gasoline engines. The measurement range is 0-8000 RPM.

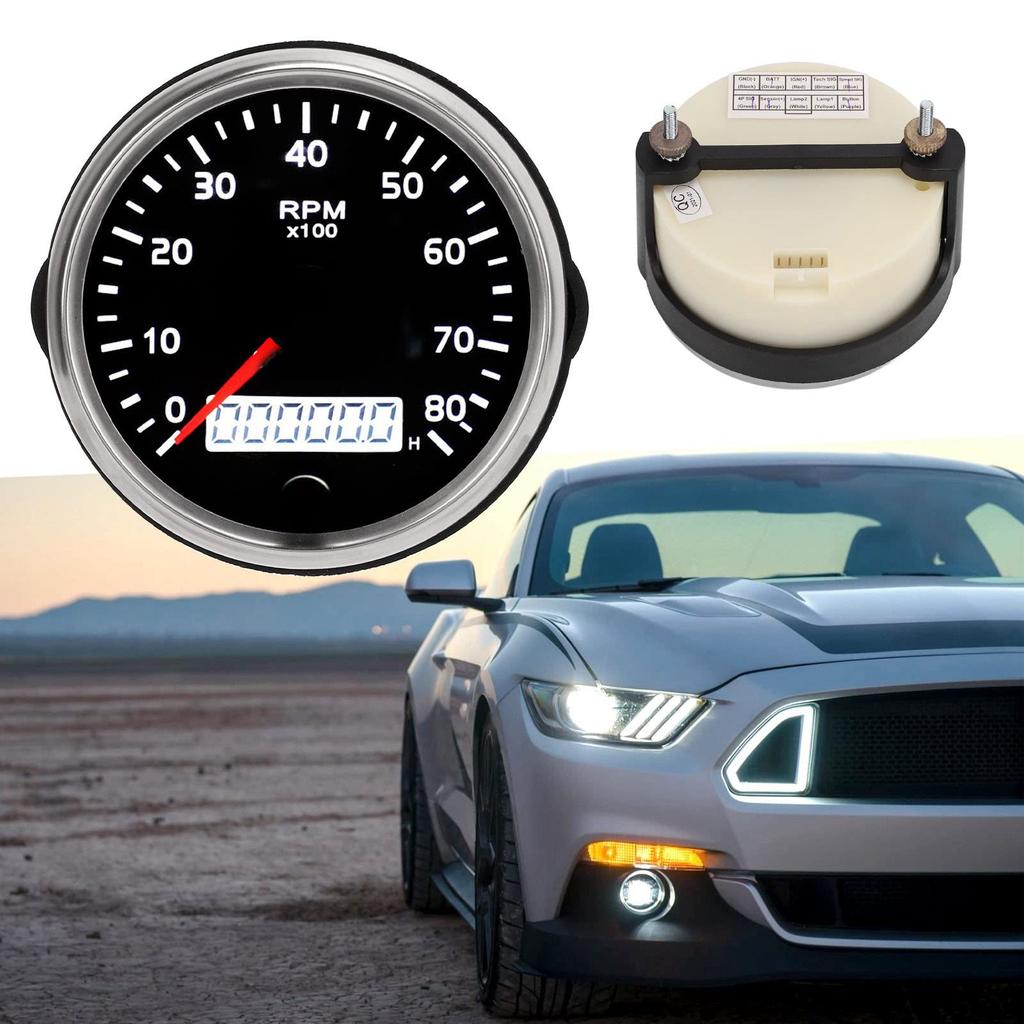

Compact Design: Features a black dial, silver 316L stainless steel case, high-transparency lens, and a red-illuminated pointer.
IP67 Waterproof: IP67 waterproof, dustproof, and corrosion-resistant, allowing it to be used in acidic, alkaline, and humid environments.
Low Power Consumption: Ultra-wideband operation voltage of 9-32V, long-lasting operation up to 36V (≤1 minute).
Vibration Resistant: The snap-on harness connector ensures a secure connection, allowing the tachometer gauge to function normally even under strong vibration.
Specifications:
Product Type: Engine Tachometer
Material: ABS + 316L Stainless Steel
Revolutions Tachometer Diameter: Approx. 85mm/3-3/8 inches
Tachometer Display Range: 0-8000 RPM
Operating Voltage: 9-32V (12V/24V)
Backlight Color: White or Yellow
Functions: Current speed/speed and time, fast-response stepper motor, configurable warning sounds and buzzers. Everything you need for installation is included.
Operation Mode: LCD Display, Stepper Motor
Operating Temperature Range: -30°C to +75°C
Storage Temperature Range: -40°C to +85°C
Protection Rating: IP67
LCD: ODO, Trip/Hour Meter, Subtotal
Application: Suitable for Cars/Trucks/Boats/Diesel Generators/Gasoline Engines
How to Use:
Installation Instructions:
1. Drill an 85mm diameter hole in the panel (cabin panel and dashboard) and insert the meter into the hole. The corresponding dashboard panel has a boss. Make a small cut in this position and ensure there is at least 85mm (3 3/8 inches) of instrument panel space behind the meter.
2. After installing the meter in the panel, screw it down with the retaining ring.
3. Connect the wiring and connect the meter case directly to a 12/24V power source.
4. Insert the wiring harness and secure it firmly to the table.
Wiring Instructions:
Red Wire - Positive
Black Wire - Negative
Yellow Wire - Yellow Backlight
White Wire - White Backlight
Remaining Wires - Signal Wires
Package Contents:
Tachometer x 1
Power Cord x 1
Instruction Manual x 1
[Universal Compatibility] This high-precision tachometer works seamlessly with 1-8 cylinder gasoline engines, 12V/24V vehicles (cars, trucks, boats), and diesel generators. Its wide range of applications makes it an essential tool for mechanics and DIY enthusiasts.
[Military-Grade Durability] The pointer tachometer features a 316L stainless steel case, IP67 waterproof/dustproof rating, and corrosion-resistant materials. It can withstand harsh conditions, including acid, alkali, and humidity, ensuring a long life in any environment.
[Clear Visibility] The tachometer features a highly transparent lens, a red-illuminated pointer, and a highly visible LCD display. A stepper motor ensures ±1% accuracy, and a 0-8000 RPM range covers most engine types with high precision.
[Vibration Resistant] The boat tachometer features a snap-lock harness connector for stable operation even under intense vibration. It is suitable for a variety of applications, including large trucks, marine engines, and off-road adventures.
[Energy-Saving] The car tachometer operates over an ultra-wide voltage range of 9-32V (36V peak), minimizing power consumption without compromising performance. It is ideal for long-term use in vehicles and stationary engines.
