Battery Included : Yes
High-concerned chemical : None
Model Number : LS237
With Backlight Or Not : Yes
Origin : Mainland China
Certification : CE

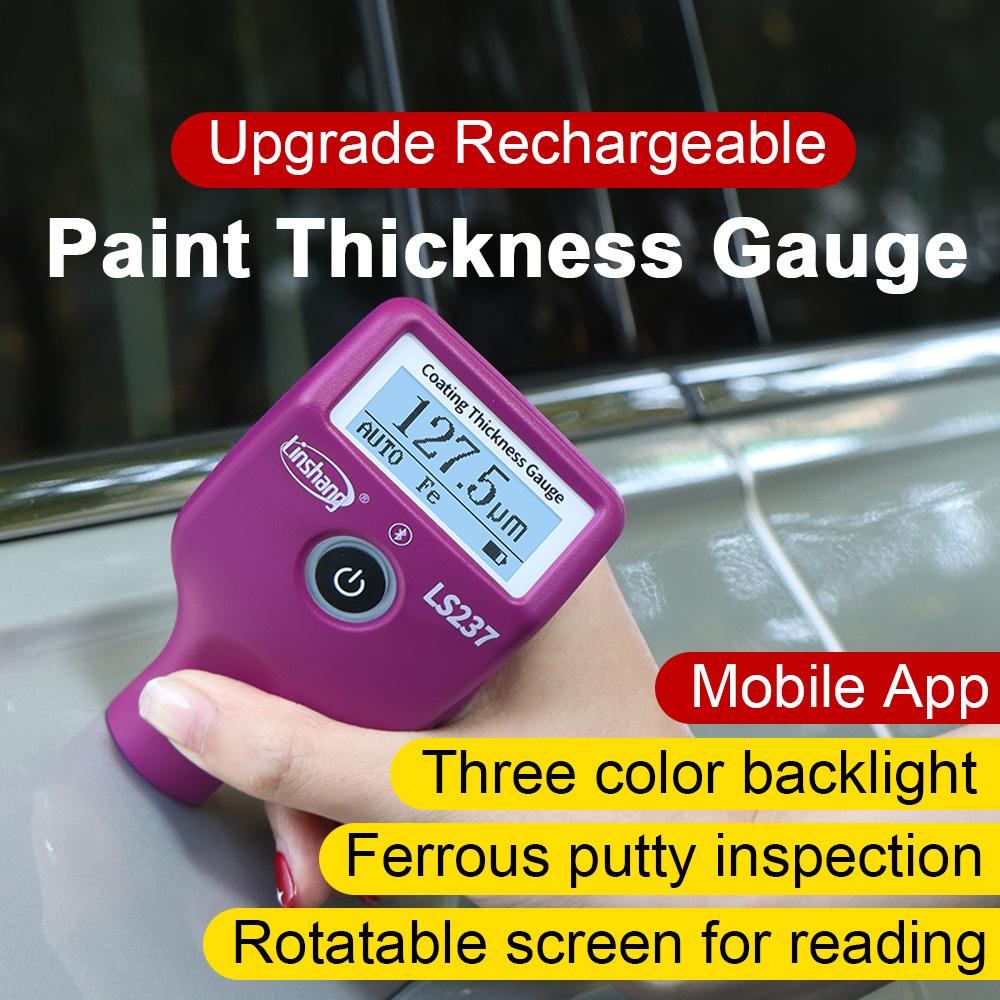

Features：1. Depending on the paint thickness, screen backlight and button indicator display different colors.2. Equipped with cell phone APP to generate vehicle inspection report.3. Powered by rechargeable lithium battery, charging via Type-C port, ultra-low power consumption.4. The film coating thickness gauge has a large measuring range of up to 5000μm.5. The high precision thickness coating gauge can recognize the ferrous putty, and the screen backlight and button indicator light up red.6. Rapid detection of ferrous, aluminum, iron galvanized and non-metallic vehicle bodywork.7. Ultra-fast response speed, 0.3s to complete a measurement.8. The galvanized coating thickness tester utilizes the hard-wearing ruby probe to prolong the life of the instrument.9. The paint thickness meter screen can be rotated by short press on the power button, enhancing readability. SpecificationsMeasurement principle: Fe: Hall effect / Al: Eddy currentProbe type: IntegratedMeasuring range: 0.0-5000μmResolution: 0.1μm/1μm/10μmAccuracy:0-3000μm: ≤±(3%H+2μm), H is the standard value3000-5000μm: ≤±(5%H+2μm), H is the standard valueUnit: μm / milMeasuring interval: 0.5sMinimum measuring area: Ø = 25mmMinimum radius of curvature: Convex: 5mm / Concave: 25mmMinimum substrate thickness: Fe:0.2mm / Al:0.05mmDisplay: 128×48 dot matrix LCDPower supply: Rechargeable lithium battery 3.7V@1200mAhRange of working temperature: -20℃-50℃Storage temperature range: -20℃-60℃Host size: 101*62*28 mmWeight (including battery): 76gData transfer: BluetoothEquipped with APP to generate inspection report
With Bluetooth function, the paint thickness gauge operates online with APP to generate test report and save or share the report.
Three colors backlit and indicator display
Different paint thicknesses are displayed in different colors on the car paint meter screen backlight and button indicator.
Intelligent identification of vehicle substrates
LS237 car paint tester coating thickness gauge in Fe/Al mode for rapid detection of ferrous, aluminum, ferrous galvanized and non-metallic vehicle substrates.
Ultra-large measuring range
The car paint detector has a large measuring range, up to 5000μm thick.
Rechargeable lithium battery power supply
Powered by rechargeable lithium battery, rechargeable via Type-C port with ultra-low power consumption
Intelligent identification of ferrous putty
In Fe/Al mode, the paint film thickness tester can automatically identify ferrous putty.
Ultra-fast response speed
LS137 high precision thickness coating gauge has ultra-fast response speed, 0.5s to complete a measurement.
Rotatable display allows for easy reading
The digital car paint tester screen can be rotated by short press on the power button, enhancing readability.
With qualified calibration reports
LS237 high precision thickness coating gauge can pass the authoritative metrological institute testing, with qualified calibration reports.
1.The coating thickness meter 1 Pcs
2. Fe zero adjustment plate 1 Pcs
3. Al zero adjustment plate 1 Pcs
4. Standard film 1 Pcs
5. User manual 1 Pcs
6. Certificate/Warranty card 1 Pcs
