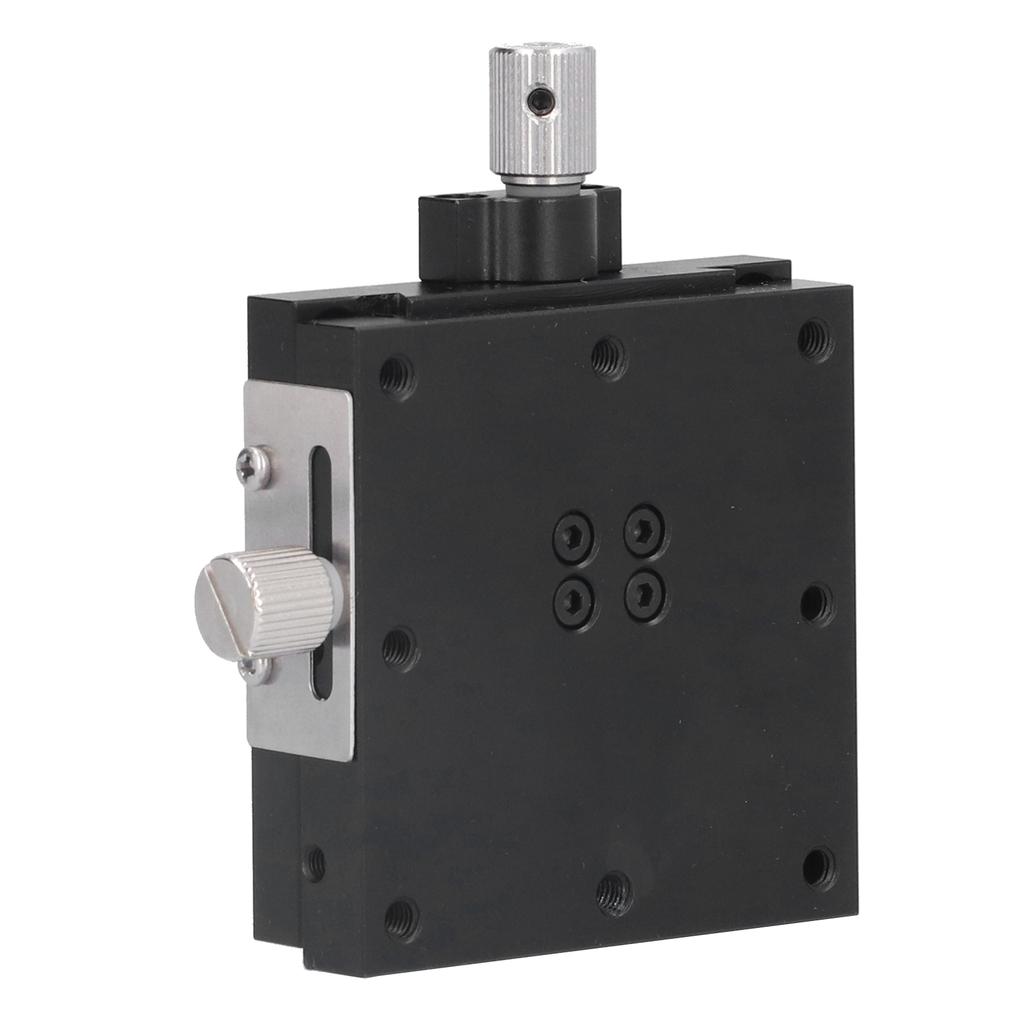

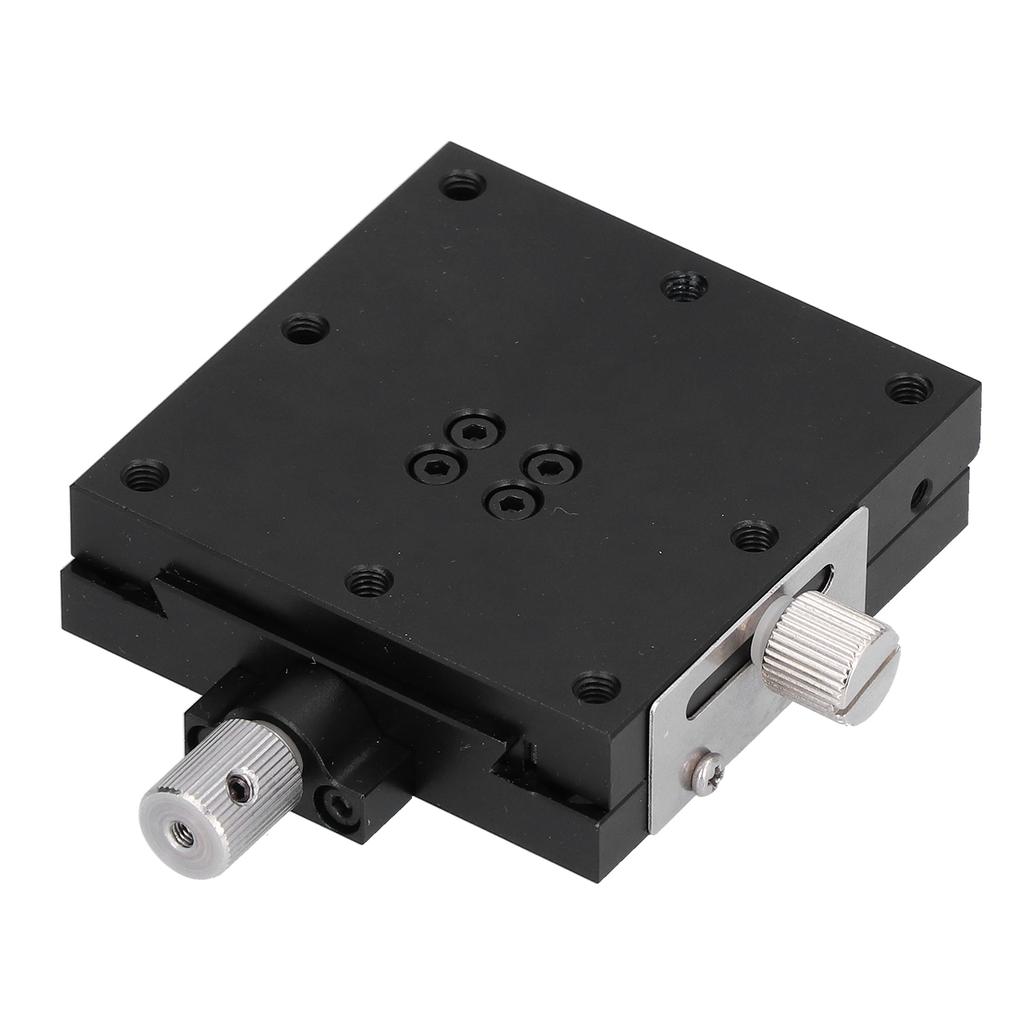

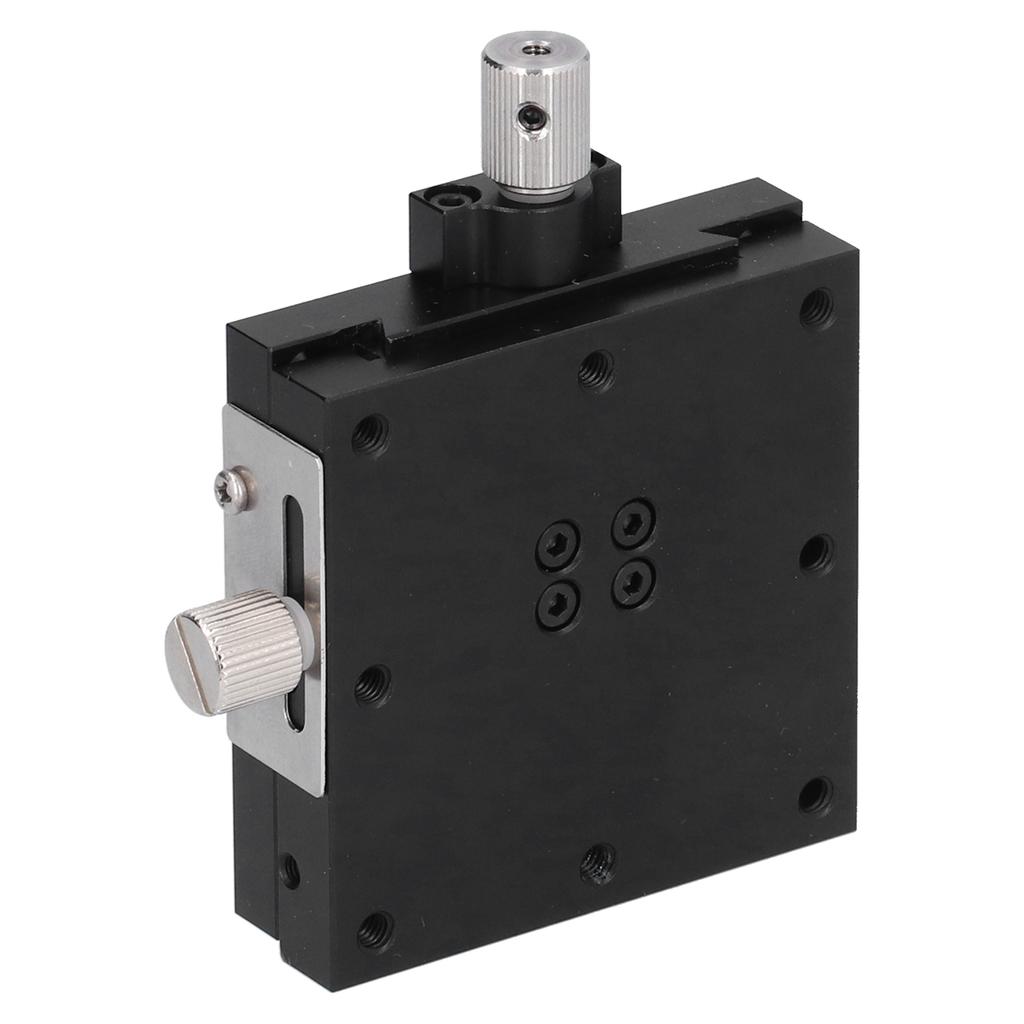

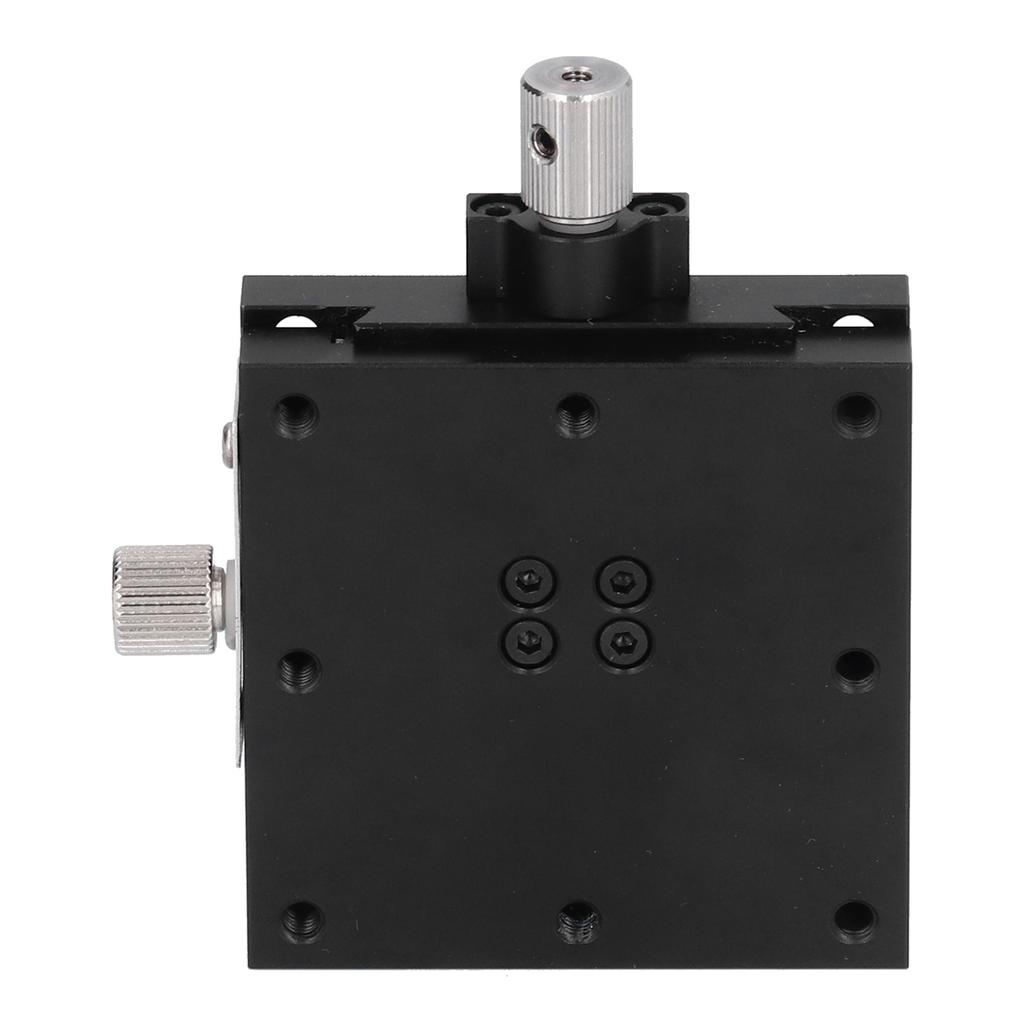

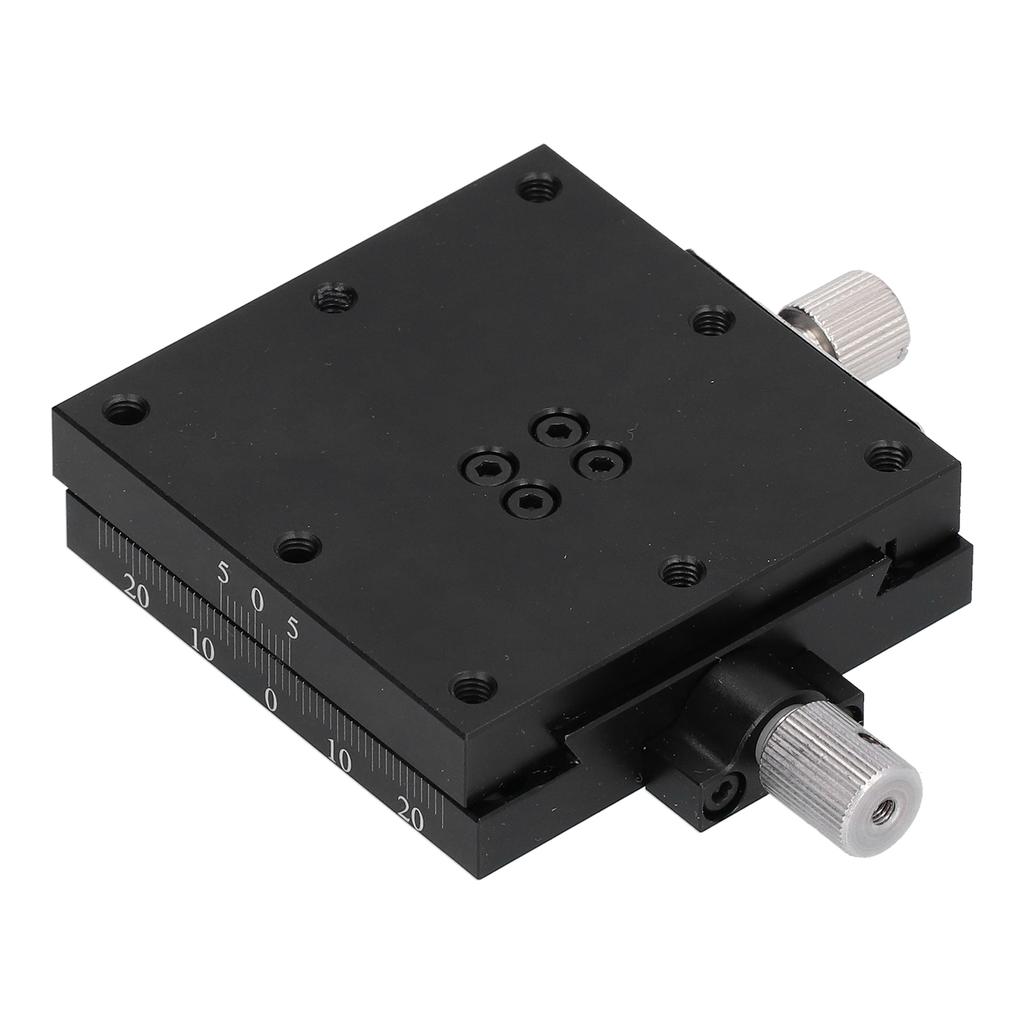

XAxes Linear Stage Dovetail Feed Screw Manual FineTune Platform Sliding Table HTGA60 60x60mm

Feature: 1. Adopt aluminum alloy material, light weight and strong, friction‑resistant, quiet, scratch‑resistant, drop‑proof and corrosion‑resistant 2. Manually rotate the screw to advance, dovetail guide, with high accuracy, smoothness, high load resistance, stable movement 3. The product come with R angle protection, protect people s safety during operation 4. Suitable for optical equipment, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, and photographic equipment 5. Use black anodizing to improve the corrosion resistance of the surface and make it more durable Specification: Item Type: X‑Axes Linear Stage Model: HTG A60 Table Size: Approx. 60 x 60mm 2.4 x 2.4in Moving Direction: X axes 1 direction Body Material: Aluminum alloy (black anodized) Drive Mode: Feed screw (manual) Sliding Track: Manually rotate the screw to advance (screw + nut) Rail Type: Dovetail groove Number of Threaded Mounting Holes on the Countertop: 8 Threaded Mounting Hole Diameter: 8 M4mm Depth of Threaded Mounting Hole: 8 6mm Vertical Load Resistance: 29.4N (3Kgf) Moving Stroke: + Approx. 8mm 0.3in Minimum Reading: 0.01mm Straightness: 0.03mm Scope of Application: Optical equipment, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, handling machines, processing machines, printing machines and others. Package List: 1 x X Axes Linear Stage
