Feature:
1. The signal comes directly from the satellites signal receiver(GPS antenna), has the advantages of high precision, quick location confirmation and short start up time.
2. With the function of fuel alarm, oil pressure alarm, malfunction alarm, GPS blind area odometer compensation, overspeed buzzer alarm (value adjustable), ensuring safety.
3. IP67 waterproof and dustproof grade, it can work in the water, and reverse polarity protection and anti‑fogging performance, safer and dependable to use.
4. Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.
5. There is a snap together with the harness connector, for best and firmly connected, in order that the gauges could work even in strong viberation.
6. Suitable for all boats, yachts, vessels, vehicles and off‑roads vehicles . can be used for the engines generating units, ships, construction machinery, agricultural machinery, automotive modification, etc.
Specification:

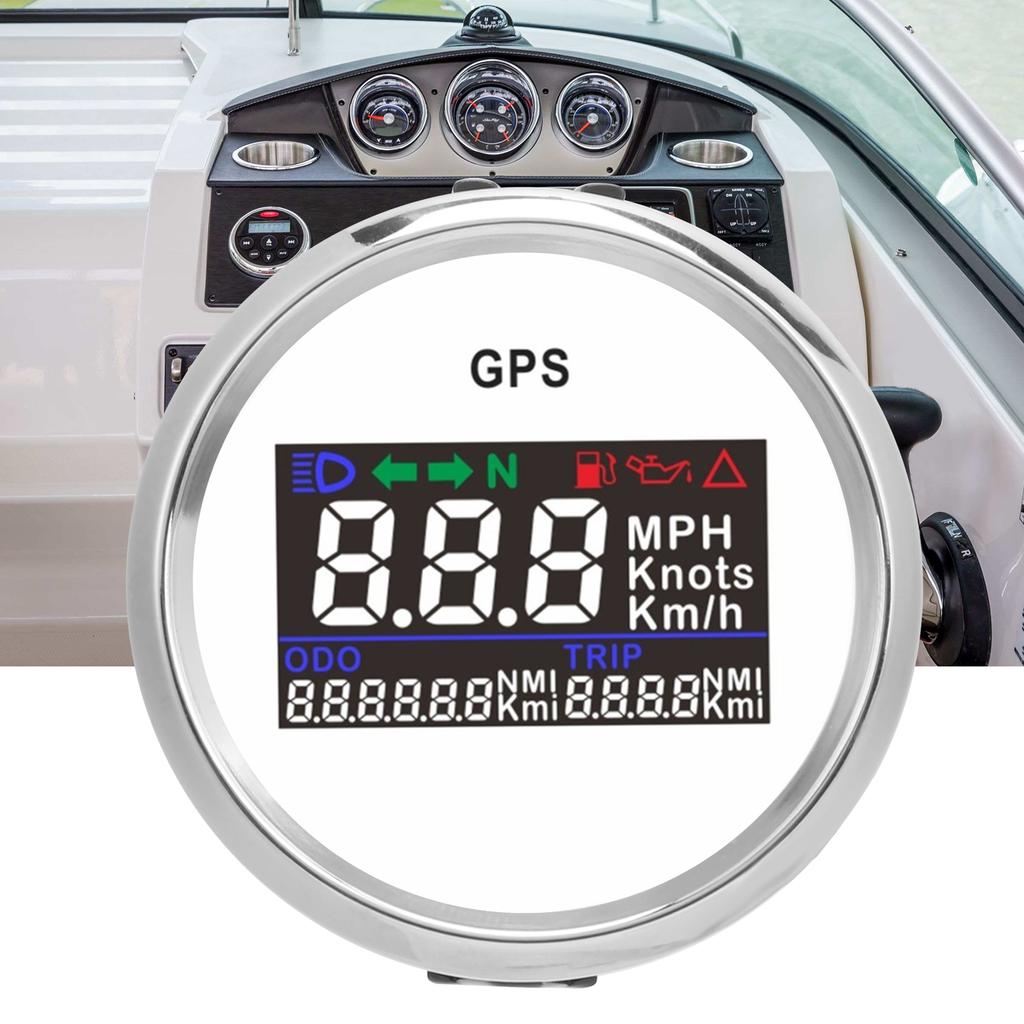

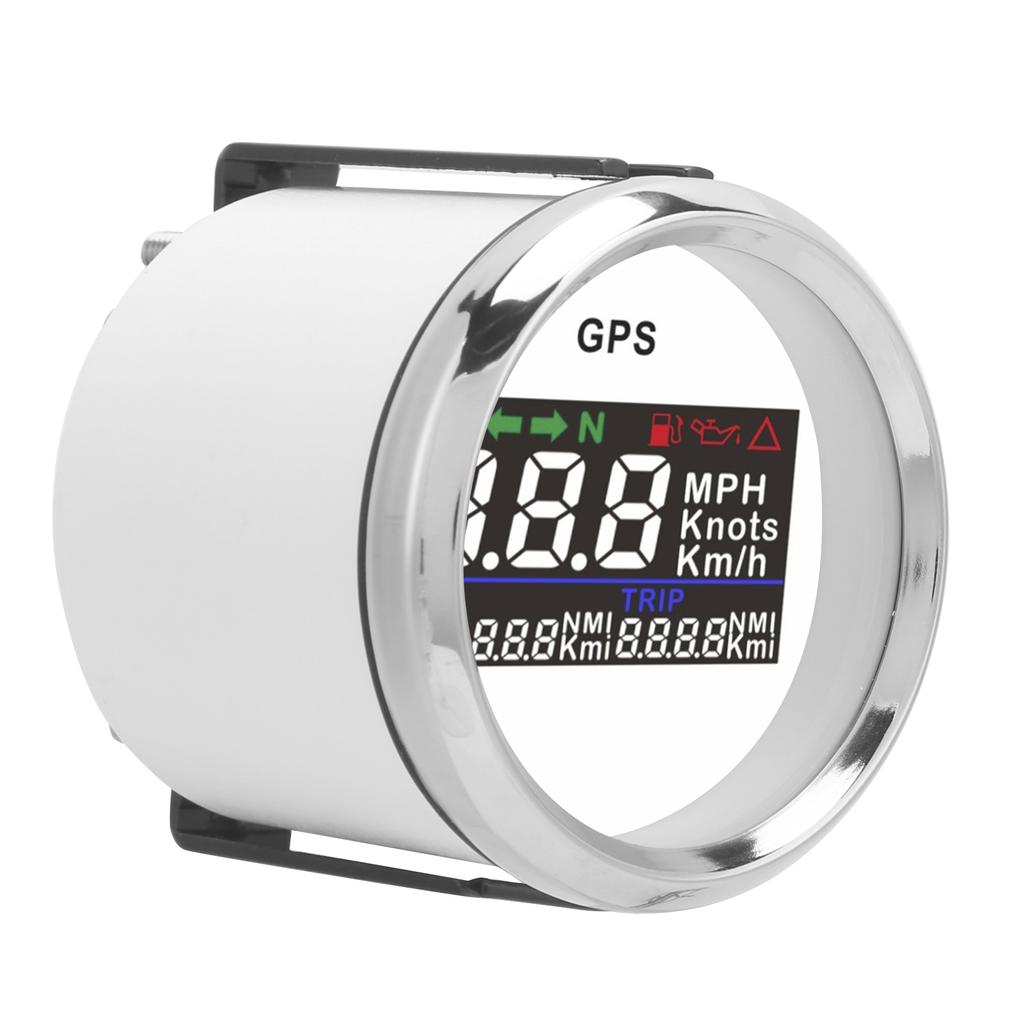

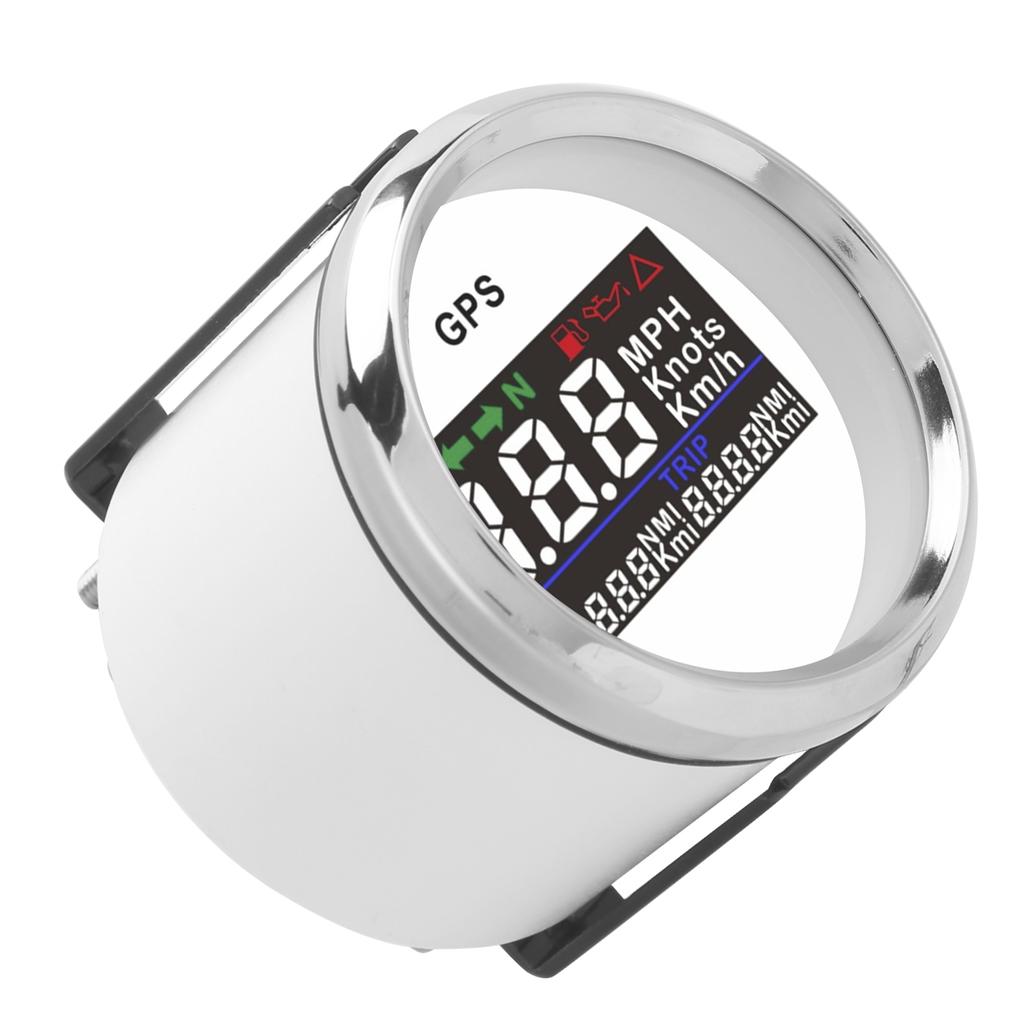

Item Type: GPS Speedometer
Material: Stainless Steel 316L Bezel + Anti Fog Glass
Fixed Size: Approx. 52mm 2in
Indication Range: 0 999 (MPH, Node, Km h Adjustable)Back Button: Switch Units between Mph (mi), knots (Nmi), and Km h (Km)
Adjustable Total Mileage Range: 0 99999.9 (Available in Miles, Miles m, km)Stroke Counter:
Working Current: less than 60mA
Operating Temperature: 30 celsius +75 celsius
Storage Temperature: 40 celsius +85 celsius Backlight Color: Red
Grade of Protection: IP67, Back Cover IP5GPS Blind Zone Odometer: CompensationAlarm: Overspeed Buzzer Alarm (Adjustable Value)Mode: LCD Display, stepping MotorcycleWiring: Red wiring positive, blue wiring negative, orange wiring neutral signal N, black wiring high beam signal, purple wiring right turn, white wiring left turning, yellow wiring oil level alarm signal, gray wiring pressure signal alarm signal, green Wiring failure alarm signalFunction:

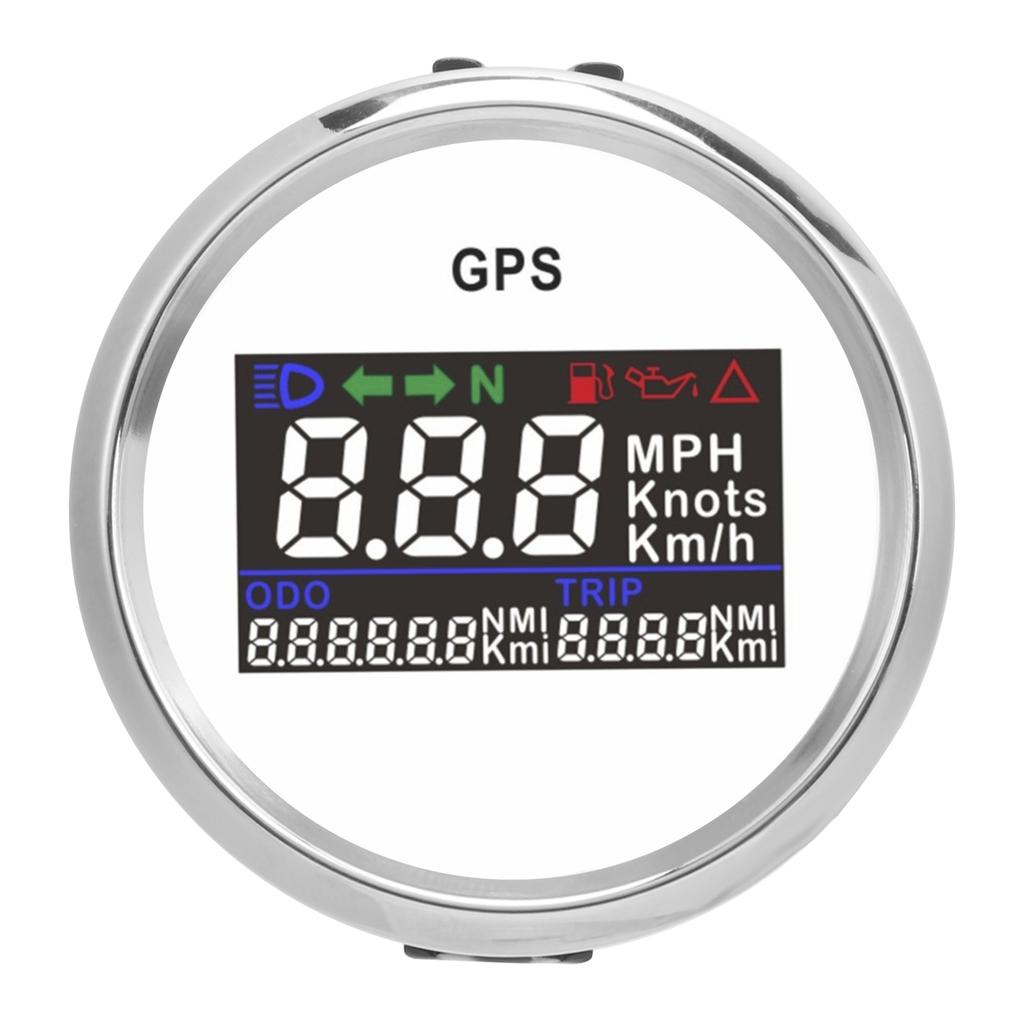

1. GPS speedometer has fuel alarm function, oil pressure alarm function, fault alarm function; Also comes with neutral signal lights, high beam signal lights, left turn signal and right turn signal
2. Press the black button on the back of the meter, you can select anyone s knots, miles, kilometers hours that need to be displayed and saved. Press the back button of the gauge for about 10s, you can select ODO, TRIP, anyone who needs to be displayed, but you cannot select all the people to be displayed at the same time
3. Itinerary: Short driving distance, data will be restored to zero after power failure, ODO: Total mileage, data record after power failure
Please Note: For this speedometer, it is recommended that the buyer connect the GPS antenna first and then turn on the power, not to connect the power first and then connect the GPS antenna, otherwise it will easily cause damage to the GPS mold
Installation Notes:
1. Make a 52mm Diameter hole on the panel (your cabin panel and instrument panel), insert the instrument into the hole, the panel corresponding to the instrument panel is marked with a boss, and make a small notch at this position To ensure that there is at least a 52mm (2in) instrument panel on the back of the instrument
2. After installing the instrument into the panel, screw it down with the fixing ring
3. Connect the wires, the instrument case is directly connected to the 12 24v power supply
4. Insert the wire harness and fix it firmly on the tableHow to Use: Install the instrument on the instrument panel and fix it, and then turn on the power
.
Package List:
1 x GPS Speedometer1 x GPS Speed Sensor1 x Power Harness 1 x Manual
