Feature:
1. Multi Protection: Sine wave controller has low noise, stable start, high safety, heat and over current protection. The controller with a groove design, which protects the internal circuit from thermal overload due to its good heat dissipation.
2. Convenient: A horizontal screen color display panel provides you with a variety of digital display functions, which can display riding time, riding speed, riding mileage, power gear, power indication, fault code prompt, headlight display, motor running power, 6Km H power assist implementation functions, etc., convenient for reading data during riding and help you grasp the riding dynamics at any time.
3. Main Uses: Suitable for 36V 48V 1000W motor, which can be used for the modification and replacement of damaged parts of electric power bicycle, electric bicycle, electric scooter, etc. You can modify and use it according to your own situation, so as to improve the fun of riding.
4. Package: The kit includes a 30A sine wave controller, for KT LCD8H panel, 10B power sensor, and 20X full throttle grip, which can be used alone or in combination.
5. Wide Application: This electric bicycle motor controller kit is easy to install and use, comes with panel and 20X full throttle grip suitable for 22.2mm handlebar.
Specification:
Item Type: Electric Bike Controller Kit
Material: Aluminum alloy, PC, Plastic, Magnet, Rubber
Weight: Approx. 1198g 42.3oz
Controller Parameters:
Controller Material: Aluminum Alloy
Maximum Current: 30+ 2A
Rated Current: 15A
Voltage: DC 36V 48V
Speed Setting: 1 4.2V
Brake Input: Low Level
Low Voltage Protection: DC30 40+ 0.5V
Applicable Motor: 1000W
Panel Parameters:
Panel Material: PC
Model: For KT LCD8H
Suitable: For 22.2mm Diameter Handlebar Installation
Voltage: 24V 36V 48V
Interface: 5pin
Panel Display Function Description: Riding Time Display, Riding Speed Display, Riding Distance Display, Power Tap Display, Power Indicator, Fault Code Prompt, Headlamp Display, Motor Running Power, 6km H Power Promotion Function, Etc
Assisted Magnetic Point Parameters:
Material: Plastic, Magnet
Voltage: DC 36V 48V
Line Length: 100cm 39.4in
Connector: 3 Pin SM Connector
Installation Position: Left Side
20X Full Throttle Grip Parameters:
Material: Rubber
Voltage: DC 24V 36V 48V 60V 72V
Line Length: 180cm 70.9in
Connector: 3 Pin SM Connector.
Package List:

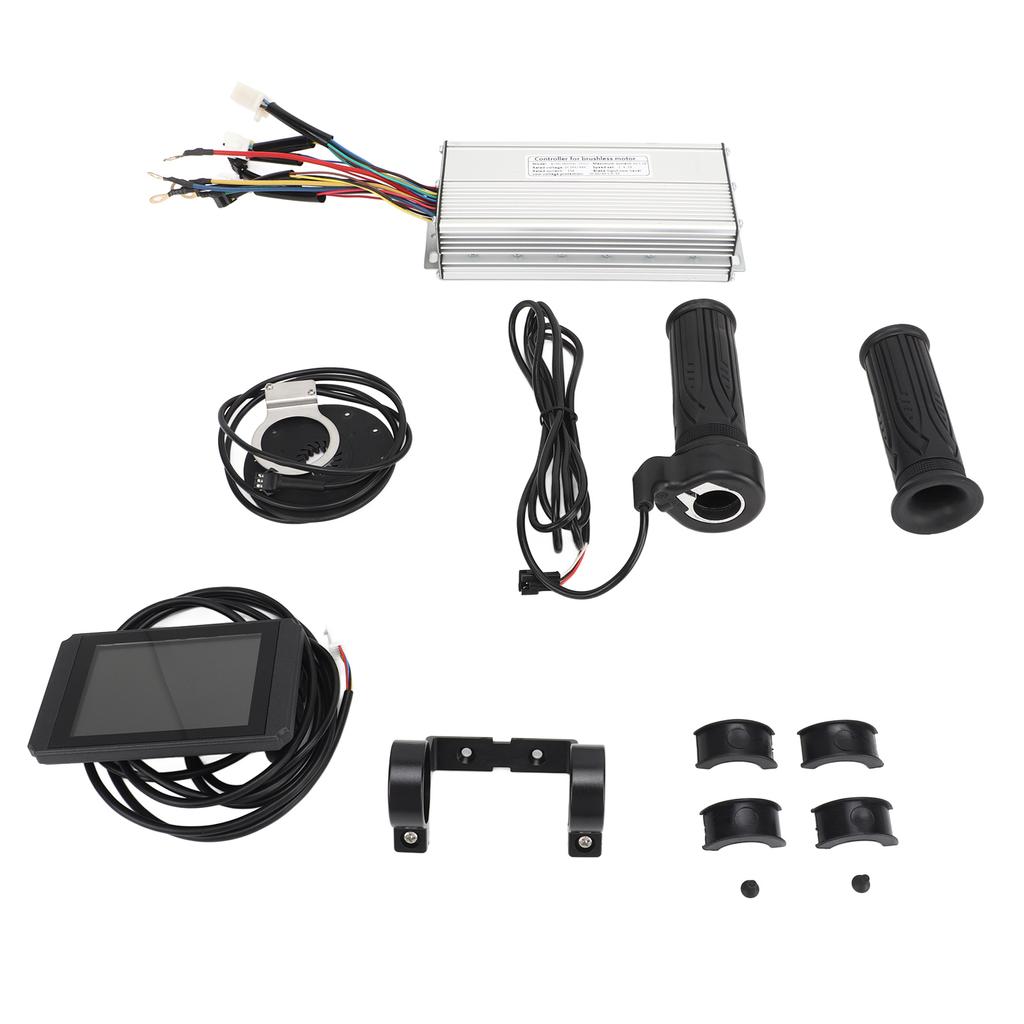

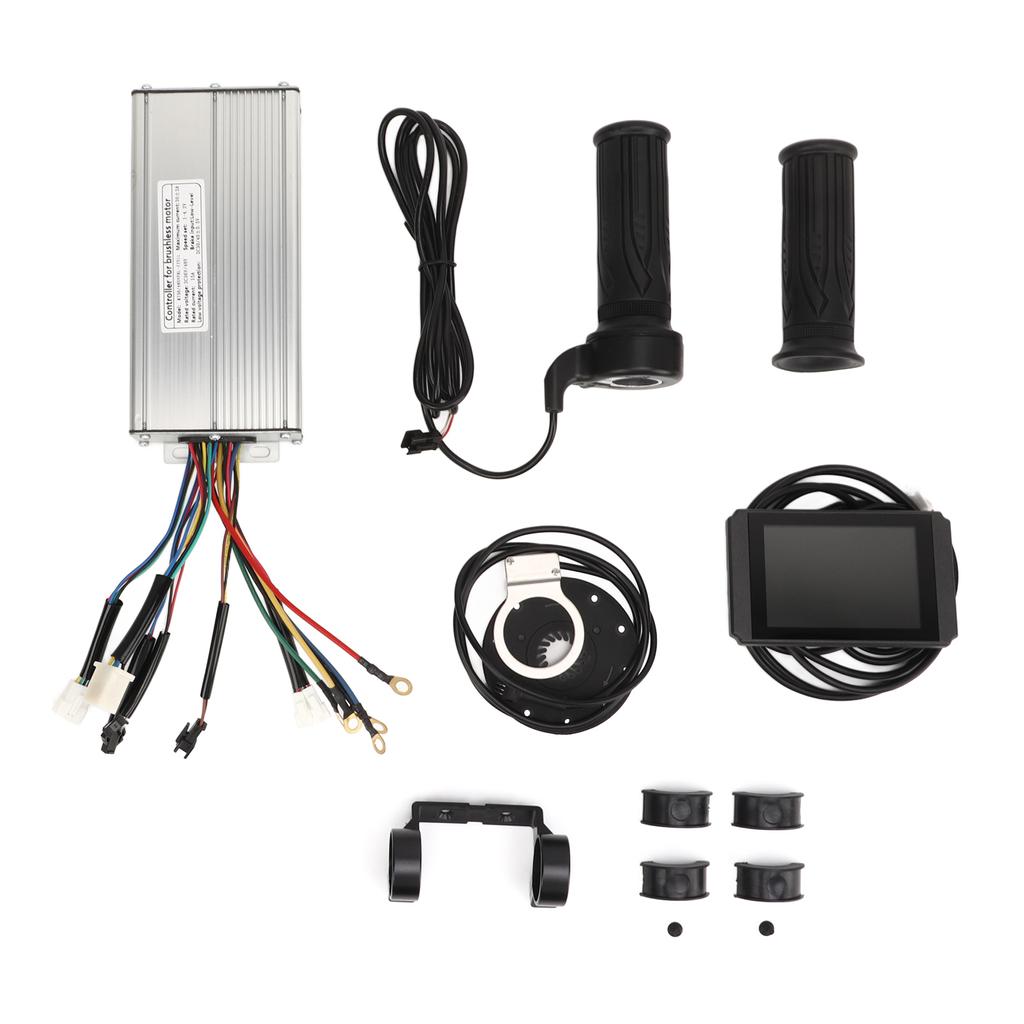

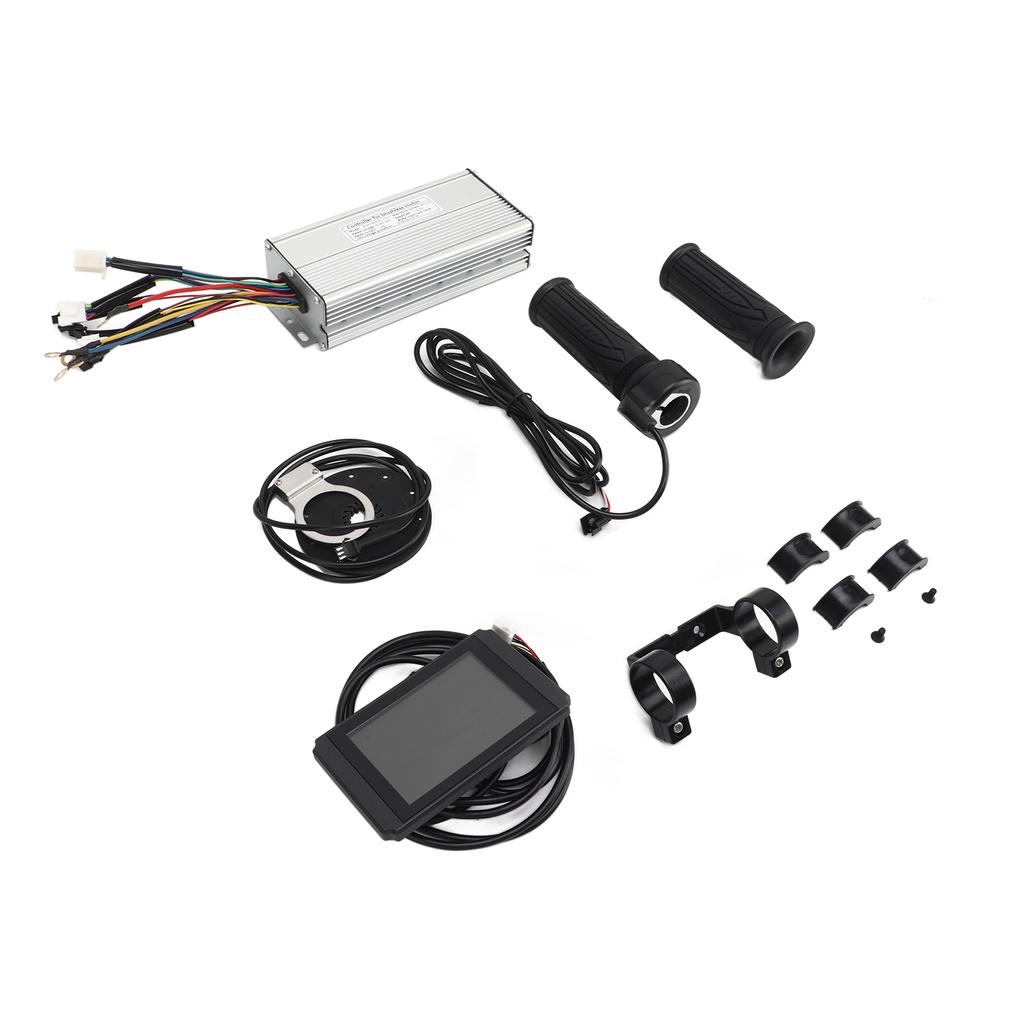

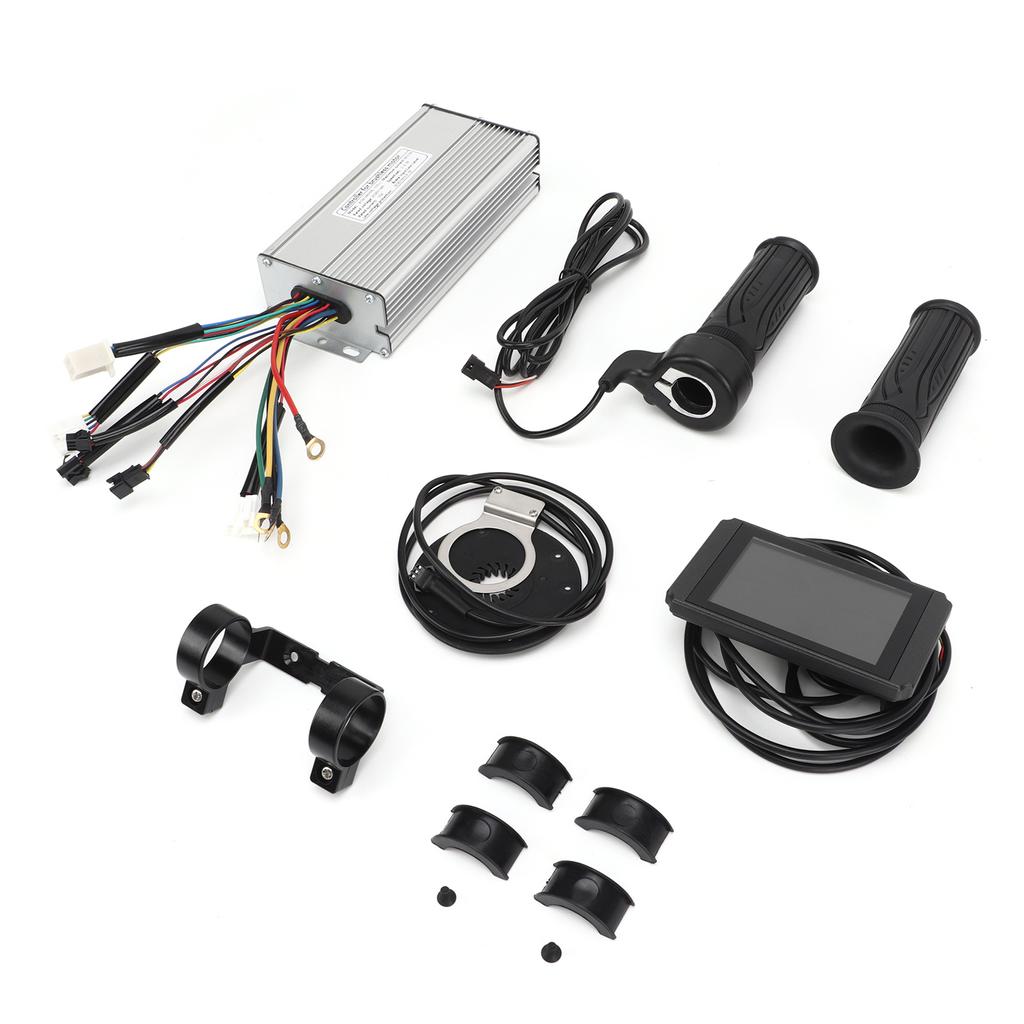

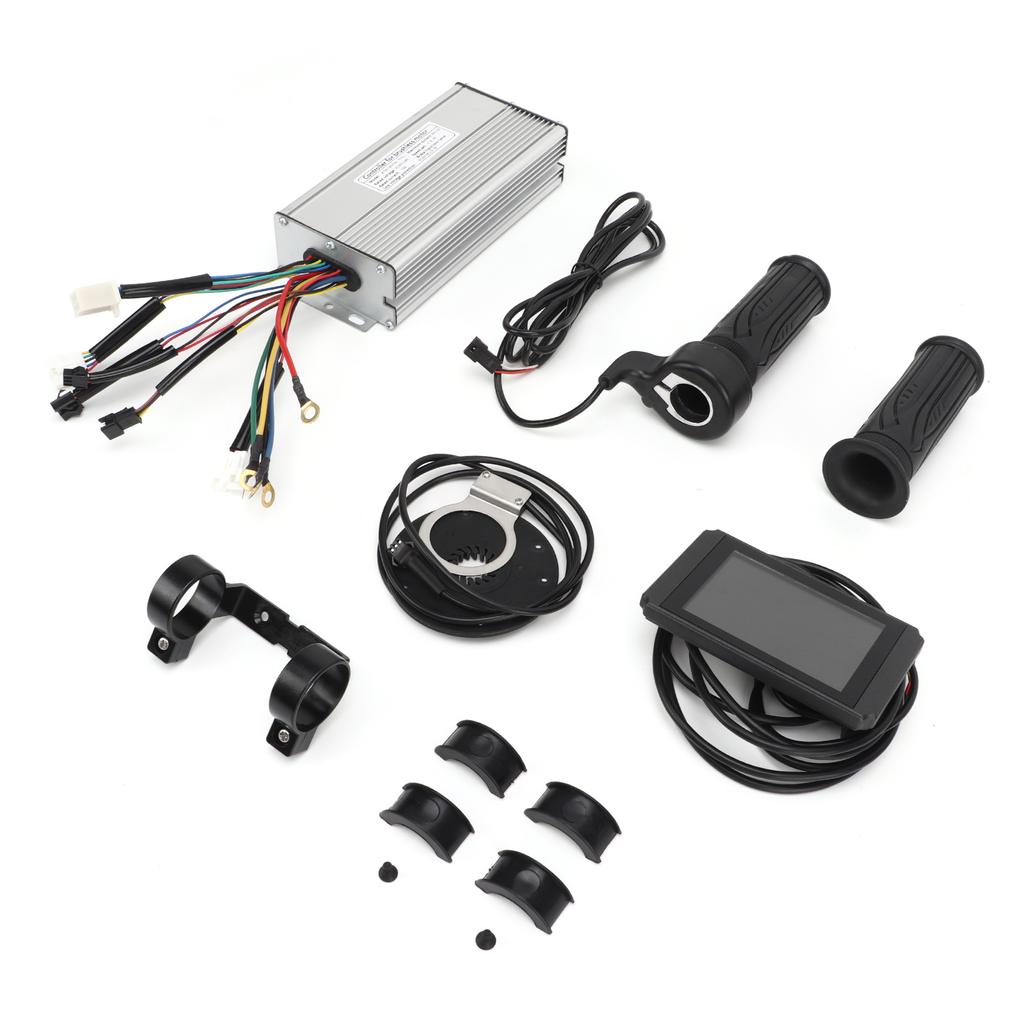

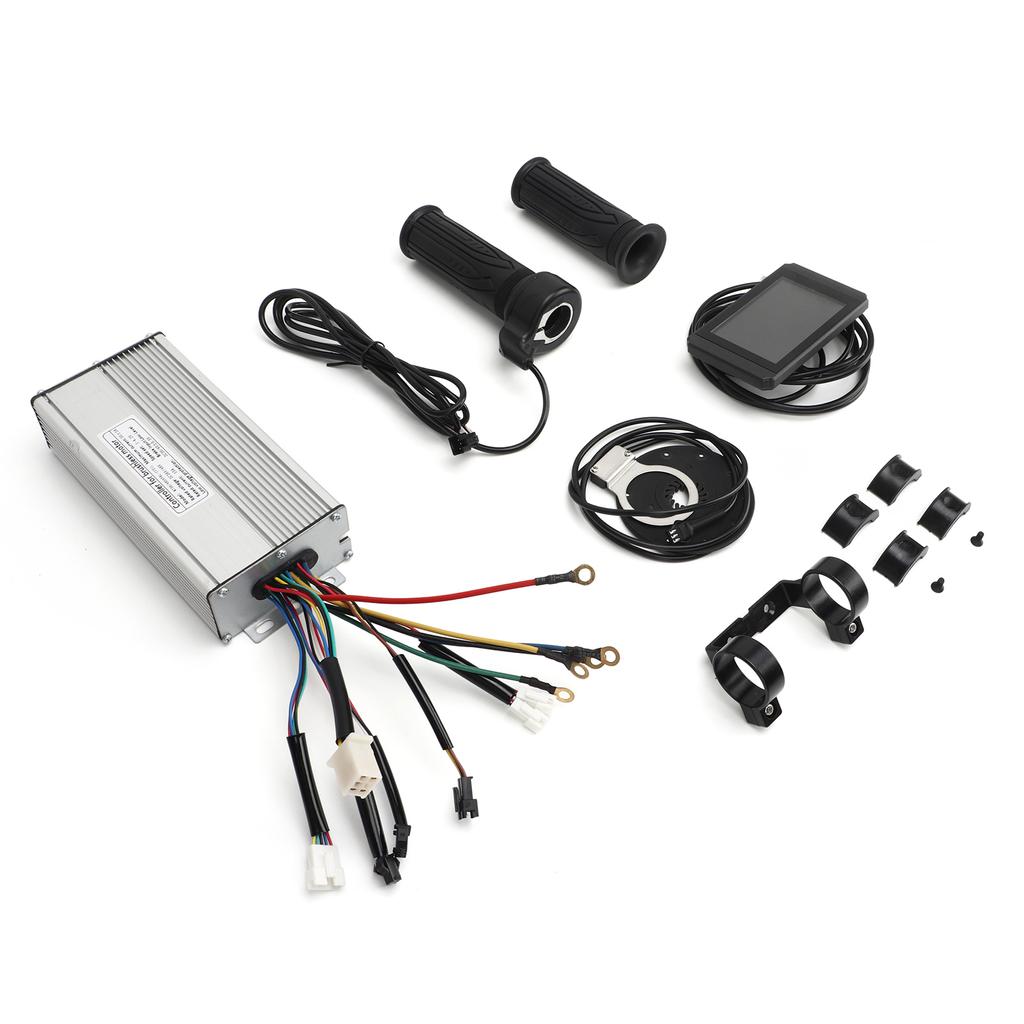

1 x Motor Controller 1 x Controller Wiring Diagram 1 x Throttle Grip1 x Handlebar Grip1 x Panel1 x Panel Specification1 x Panel Mounting Bracket 4 x Panel Mounting Gasket 2 x Panel Mounting Screws1 x Power Sensor Magnetic Sheet 1 x Power Sensor Connection Cable
Note:
1. The kit adopts controller and panel for KT. Do not change the controller and panel in the kit at will.2. Size due to manual measurement, please allow error.
