Feature:

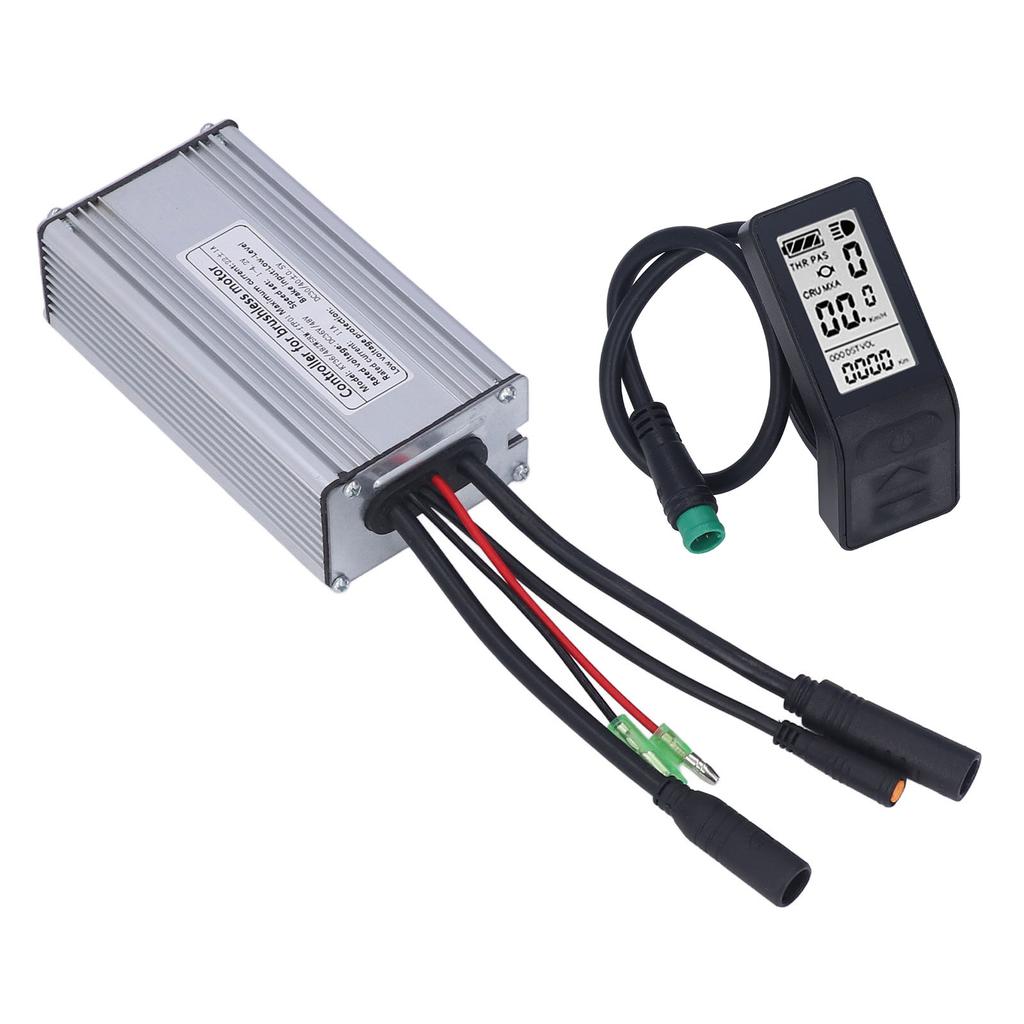

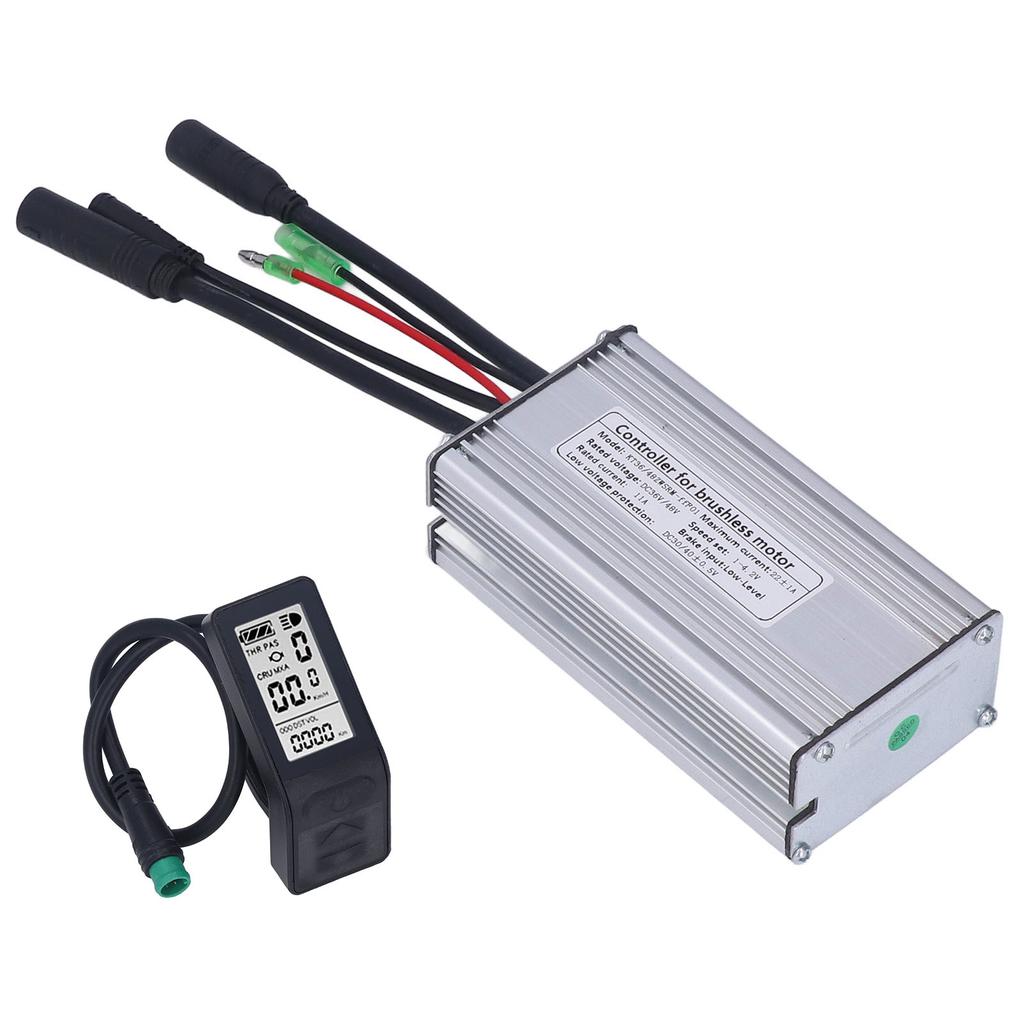

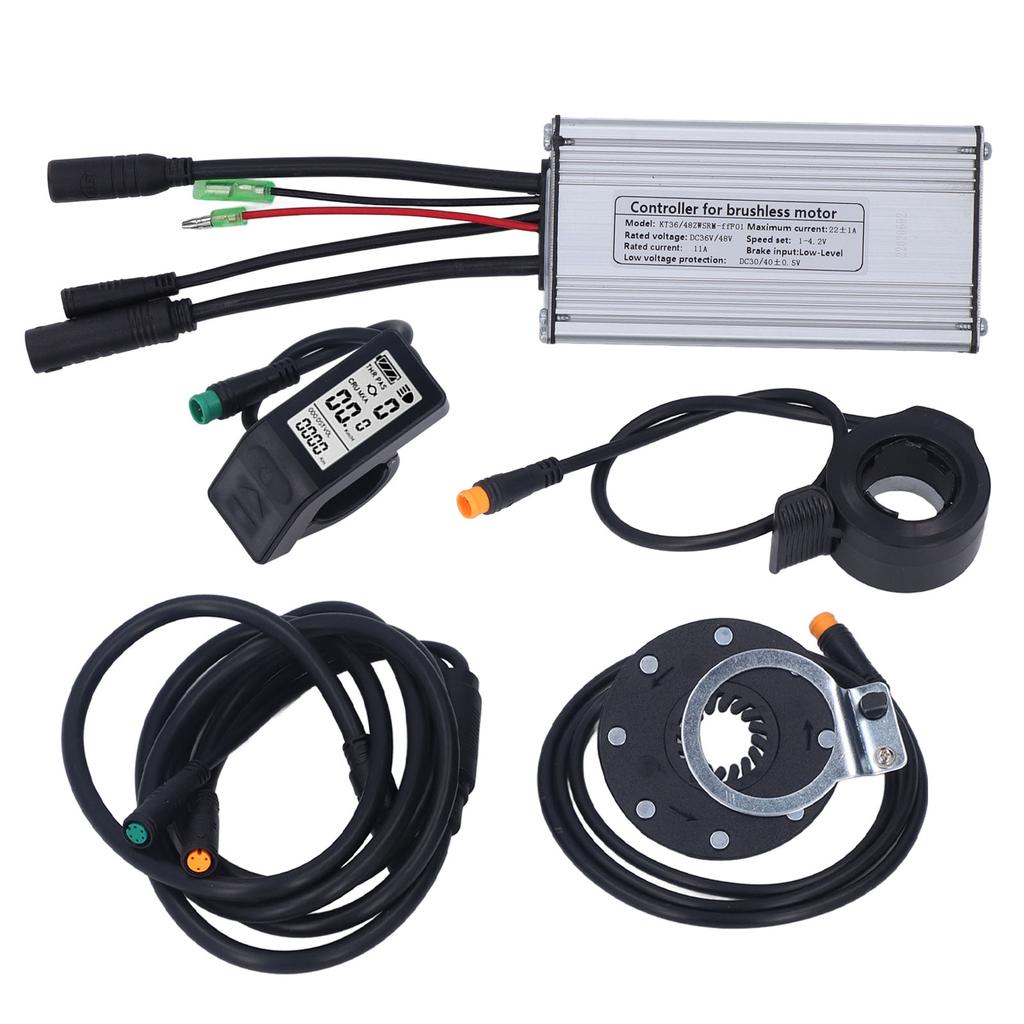

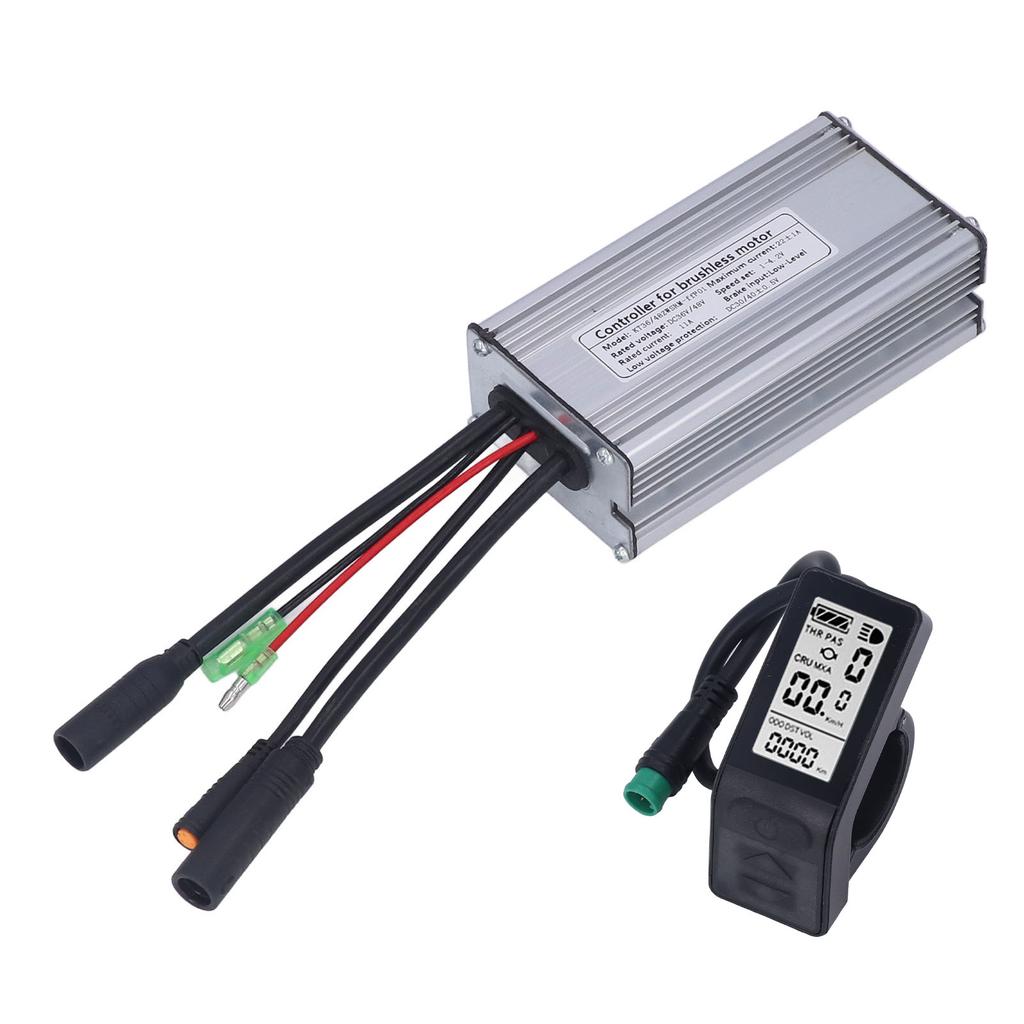

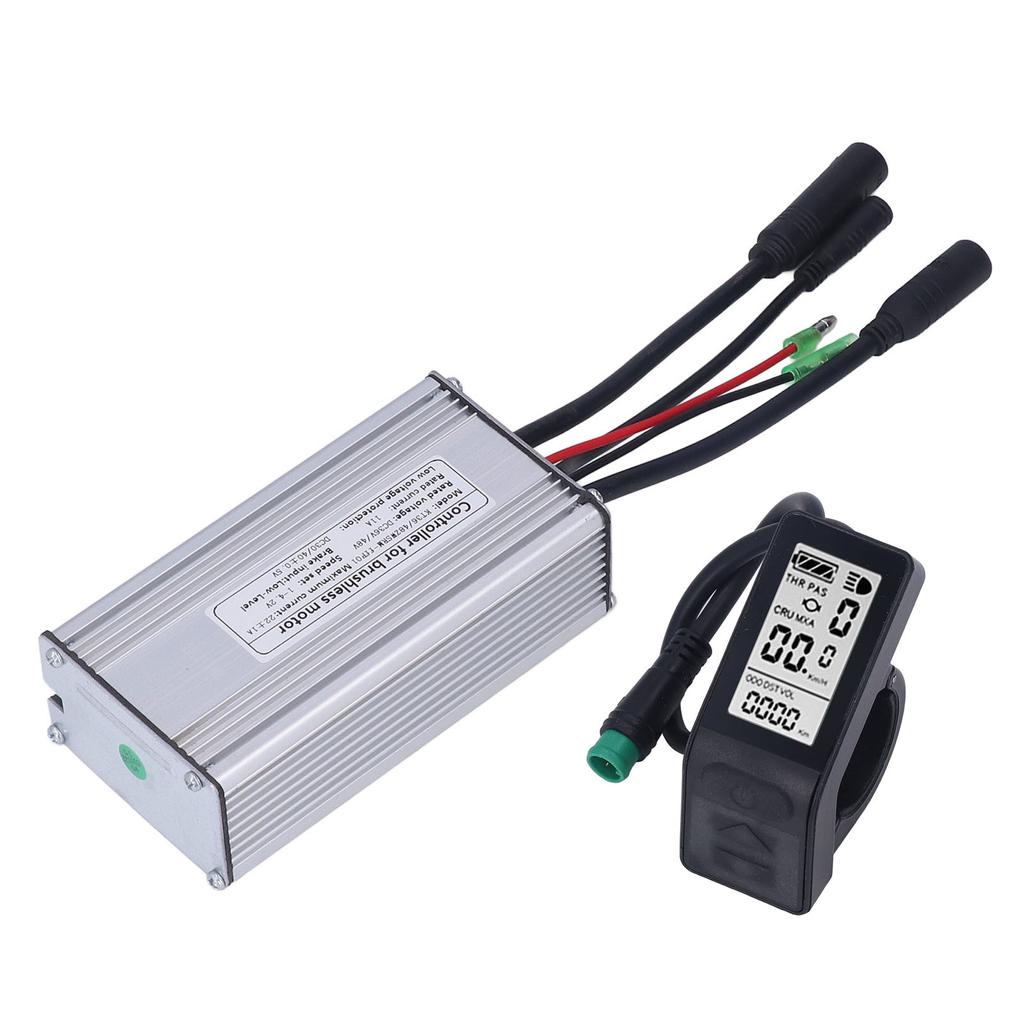

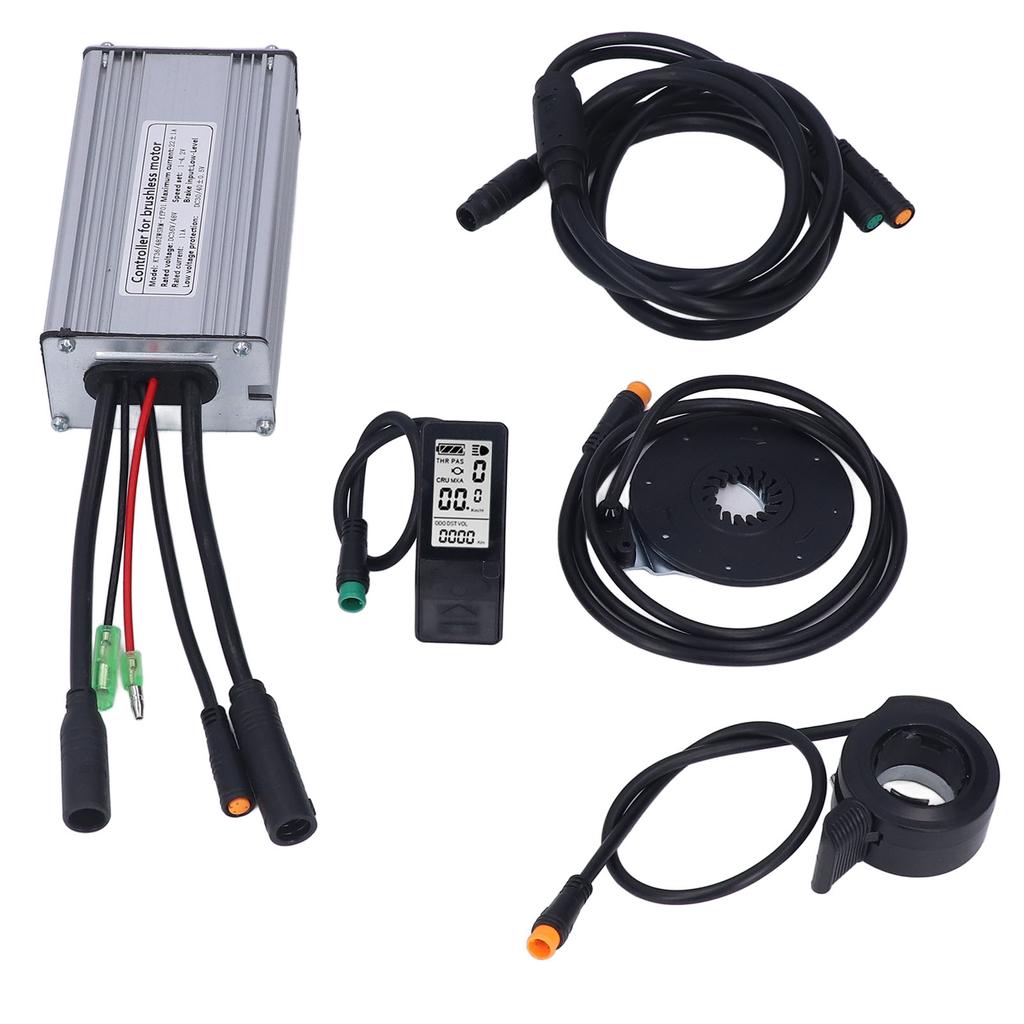

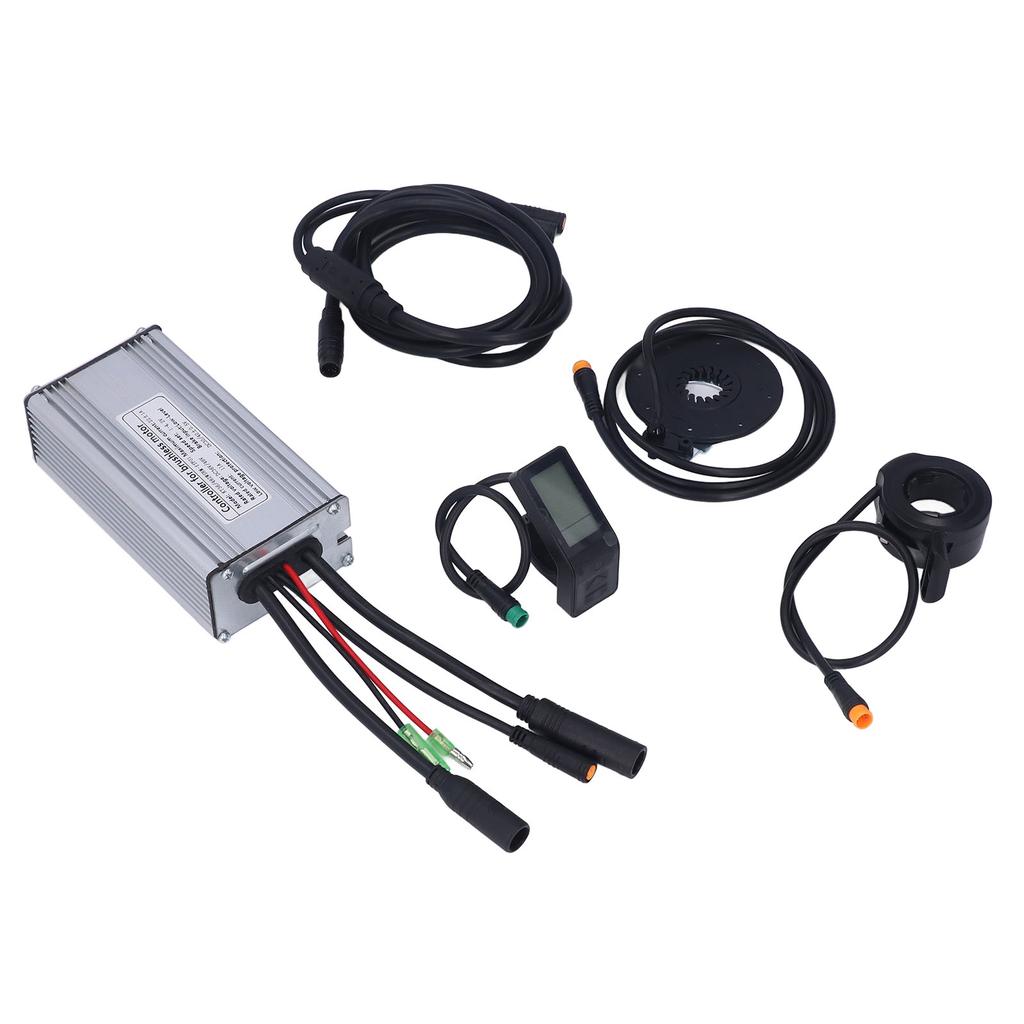

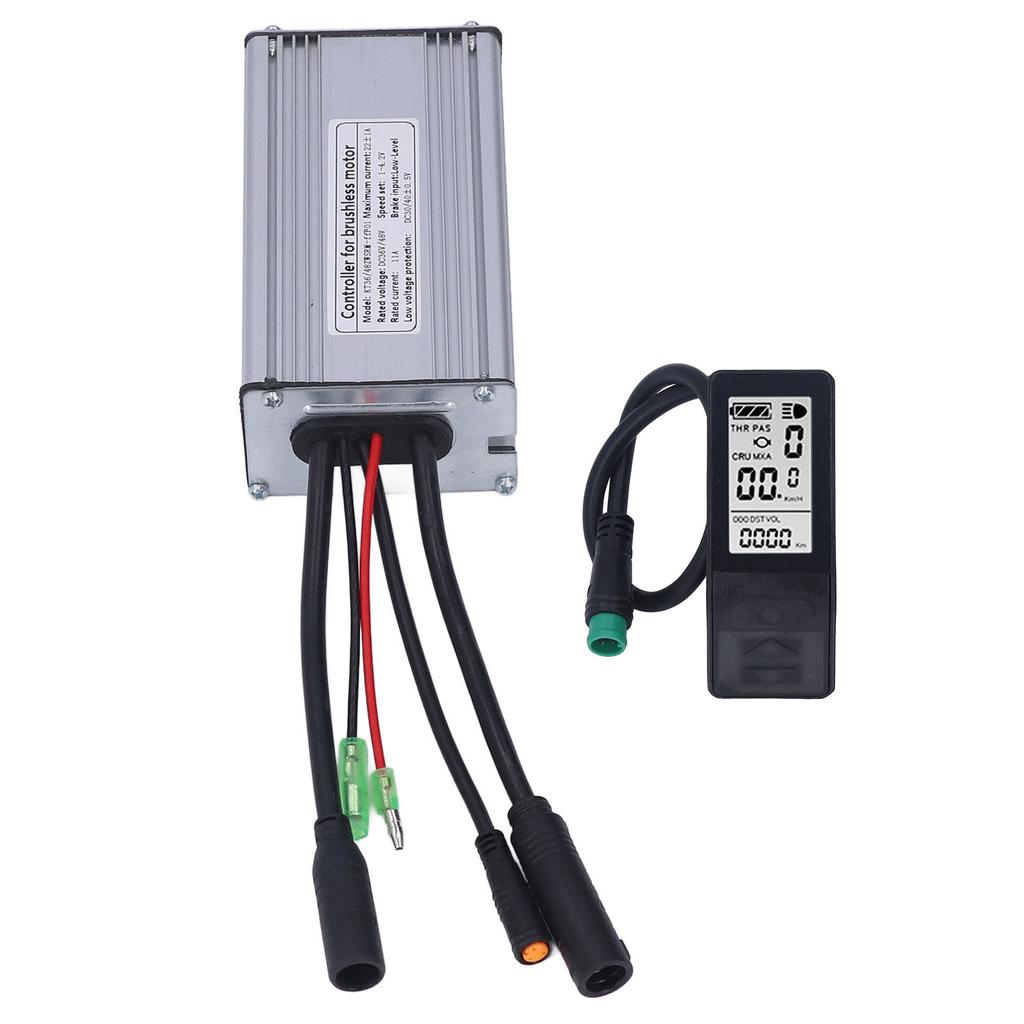

1. Fully Configured: Bicycle lithium battery modification controller kit includes 22A controller, LCD4 panel, 130X thumb throttle, 8C power assist sensor and 1 to 2 cable.
2. Circuits Protection: The controller shell is made of high quality metal material with grooved design, it protects the internal circuit from thermal overload due to good heat dissipation.
3. Panel Function: LCD4 display panel will display a lot of useful data on your bike, such as power display, backlight display, headlight display, brake display, one way time, total travel time, current speed, average speed, maximum speed, total one way distance, power assisted mode 6km h, etc.
4. ABS Panel: LCD instrument adopts high quality ABS material which is lightweight, has good toughness and waterproof properties, providing better protection for internal circuits, making it more durable.
5. Application Scope: Suitable for 500w motor; Main uses is for DIY electric bike, electric bike, electric scooter, folding bikes, etc.; Easy to maintain, the lithium ion bike modification greatly enhances the pleasure of riding.
Specification:
Item Type: Electric Bike Conversion Kit
Material: Aluminum Alloy, ABS Plastic
Application: for 500W Bicycle Motor
Gross Weight: Approx. 666g 23.49oz
Product Size: Controller Box 125x65x40mm 4.92x2.56x1.57in
Controller Rated Voltage: 36V DC 48V DC
Controller Rated Current: 11A
Controller Maximum Current: 22+ 1A
Controller Speed Setting: 1 4.2V
Controller Brake Input: Low Level
Controller Low Voltage Protection: DC 30 40+ 0.5V
Connector Type: Fully Waterproof Connector1 To 2 line Description: One end is connected to the controller, the other end is connected to the meter and dial.Controller Line Definition:
1. Red, Black Single Wire: Power wire
2. Black Single Large Wire (9pin): Motor wire
3. Black Single Wire (9pin): 1 to 2 wire
4. Black Single Wire (3pin): Power assist sensor wire
LCD4 panel functions: Up button, switch, button, button down, power assist sensor indication, battery capacity indicator, power, cruise function, real time cycling, total travel time, the gas shows, 6 km h thrust power system, the cycling speed (metric system), maximum speed, average speed, travel distance, total distance, battery voltage, brake display, backlight and headlights..
Package List:
1 x Motor Controller1 x Panel1 x Panel Manual
1 x Thumb Throttle1 x Power Assist Sensor1 x Controller Wiring Manual1 x 1 to 2 Cable
Note:
Conversion kit must be fully waterproof.
