Feature:
1. Good Heat Dissipation Function: Shell is made of aluminum alloy with groove design, which can protect the internal circuit and avoid thermal overload.
2. Applicable Model: Kit includes 30A ordinary controller and LCD8H display instrument, suitable for 36V 48V 1000W DC brushless motor for electric bicycle lithium battery modification.
3. Display Instrument Functions: Up button, switch button, down button, PAS sign, battery capacity indicator, running sign, battery voltage, ambient temperature in celsius, and ambient fahrenheit.
4. LCD8H Display: Meter has a variety of functions, allowing you to more easily view the data on the panel. When riding bicycle, it will display a lot of useful data on your bicycle.
5. Driving Data Display: Such as power display, backlight display, headlight display, brake display, one way time, total travel time, current speed, average speed, maximum speed, total one way distance, 6KM H thrust assist.
Specification:

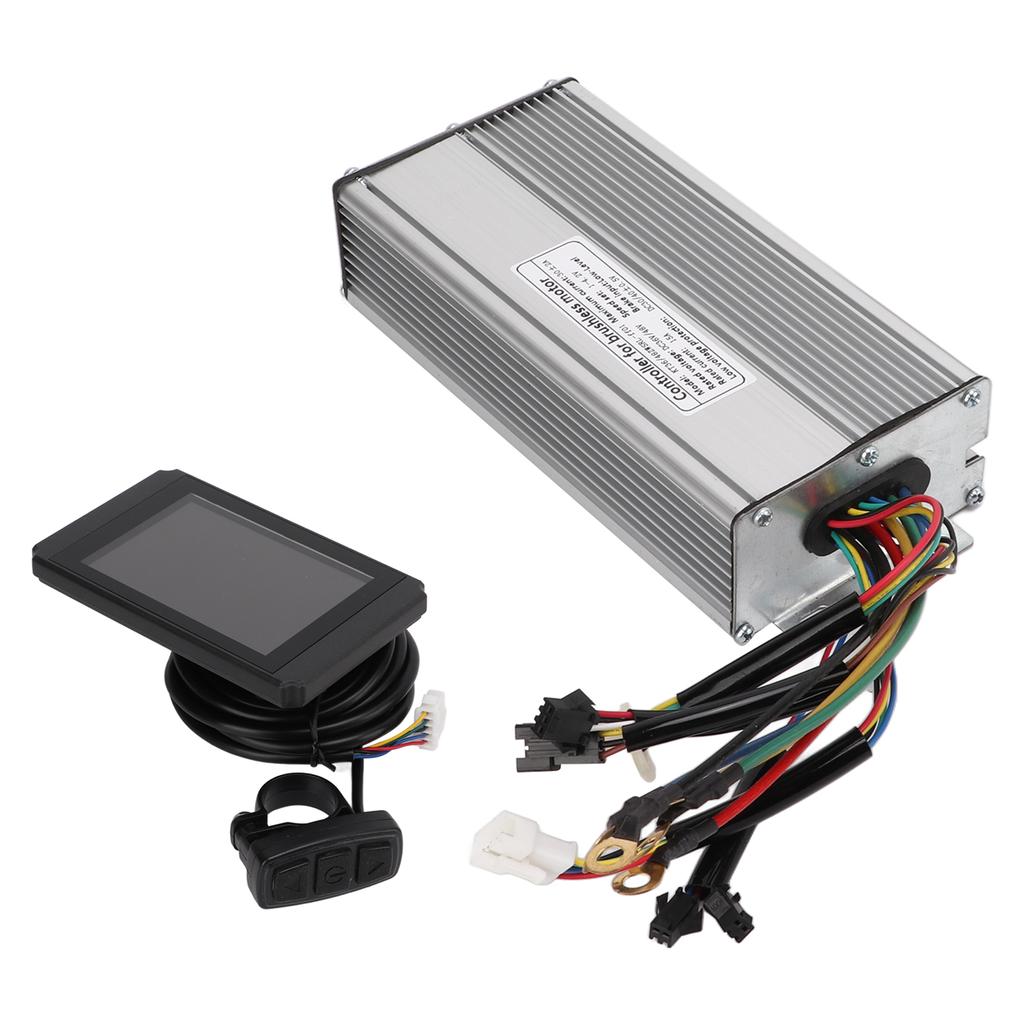

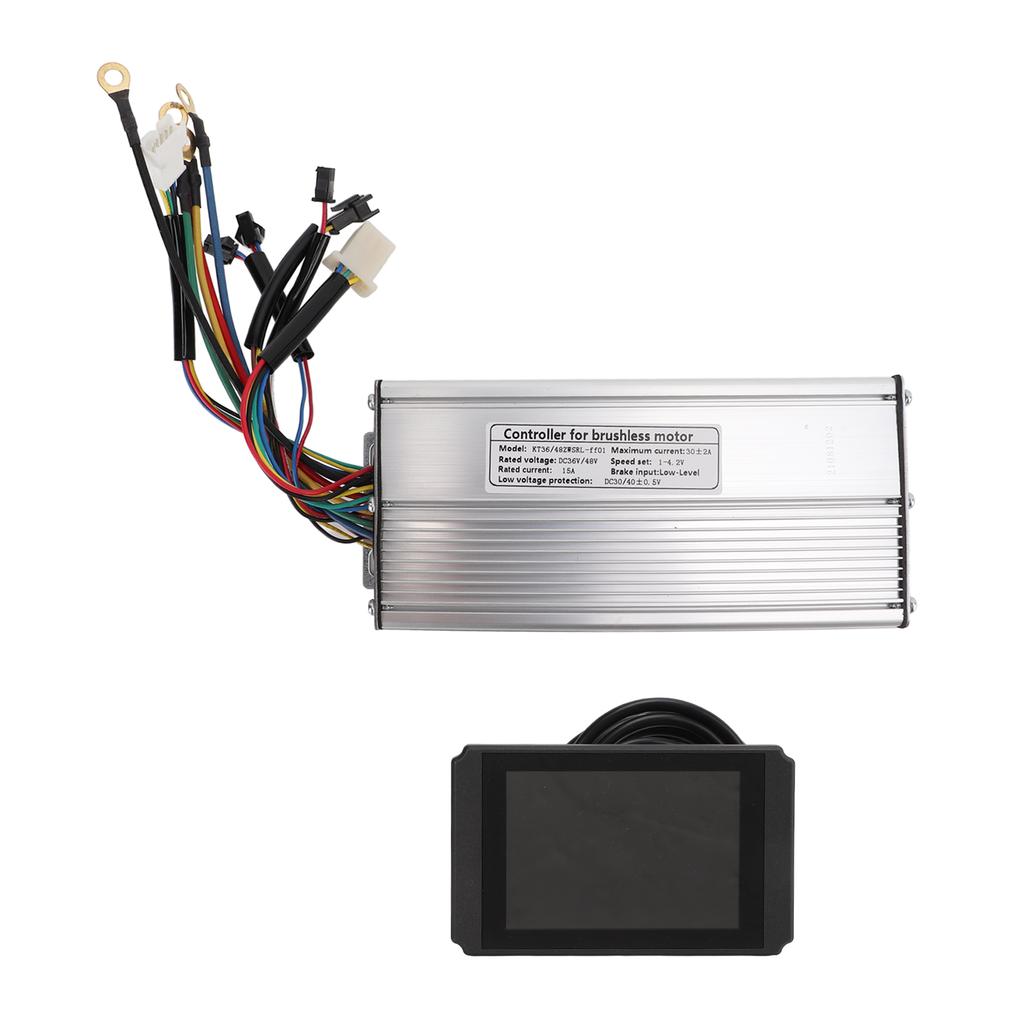

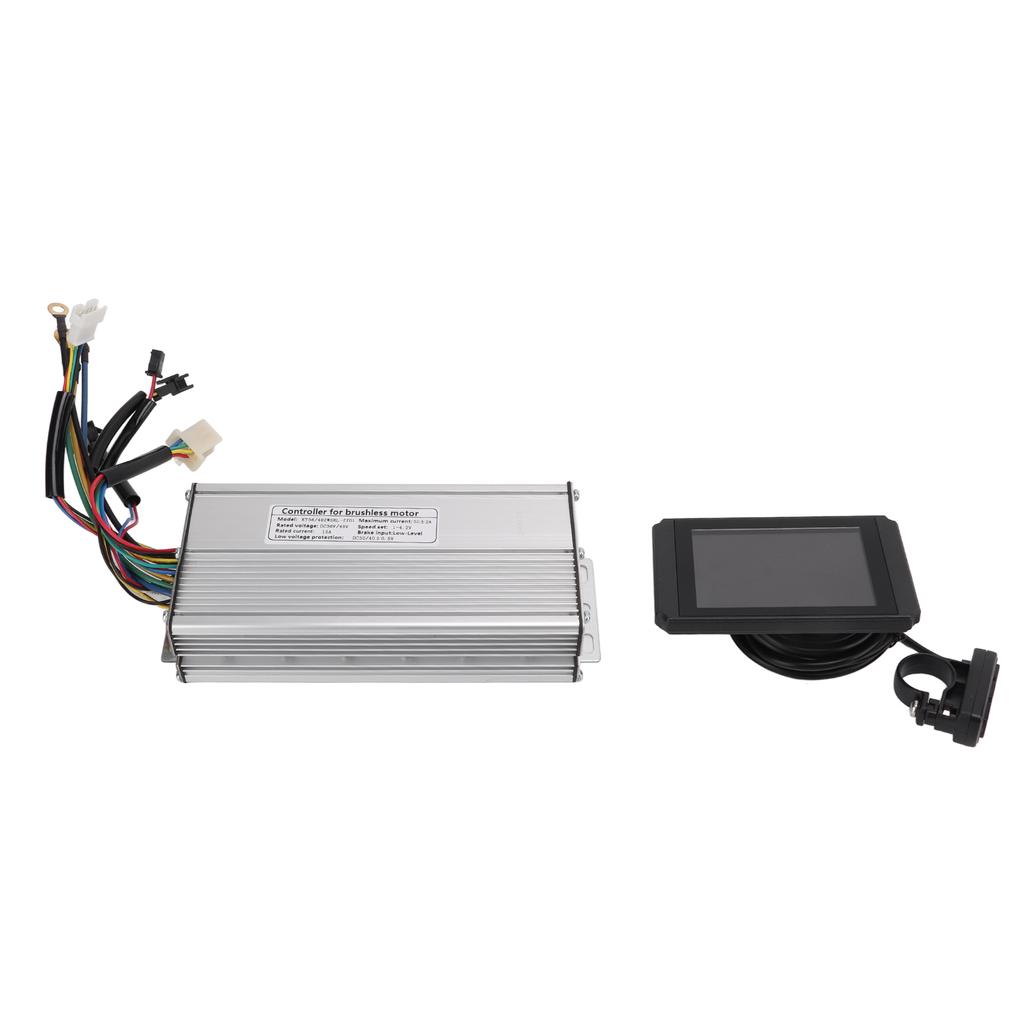

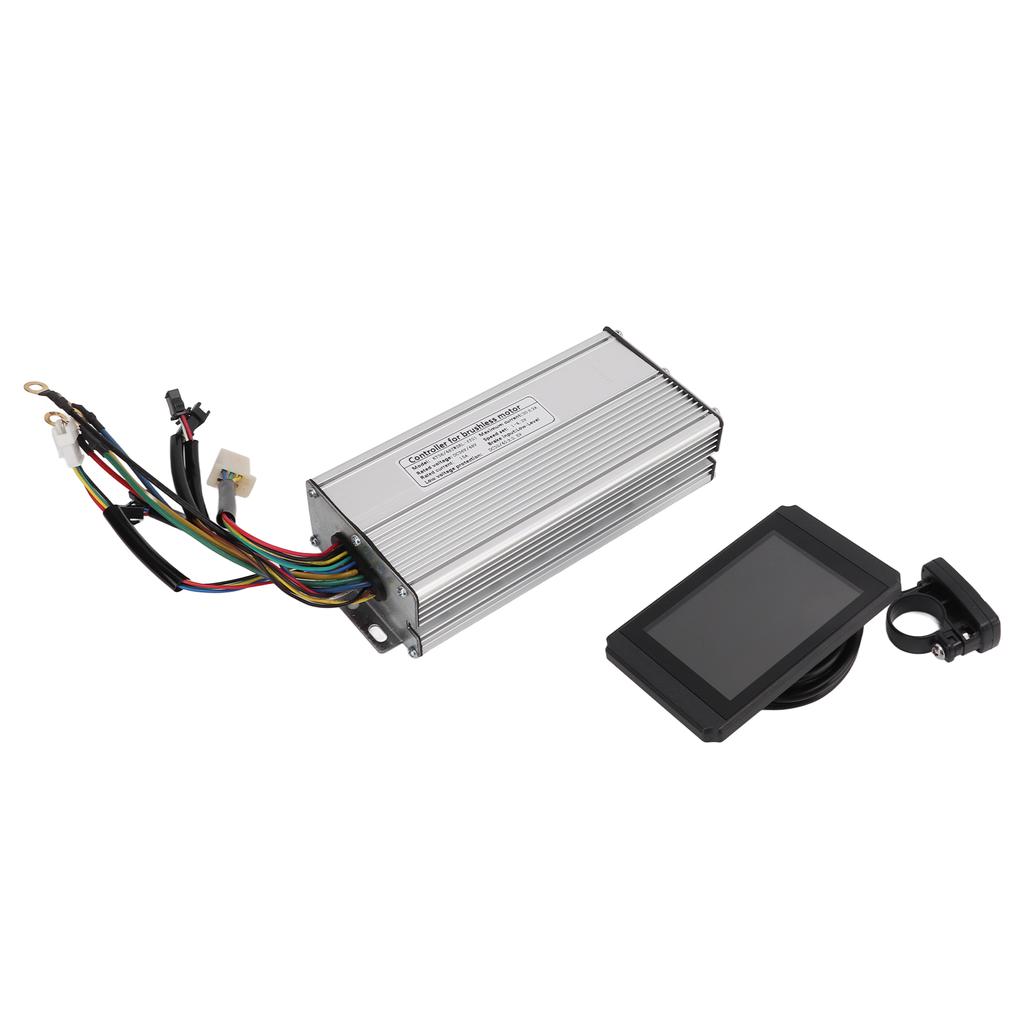

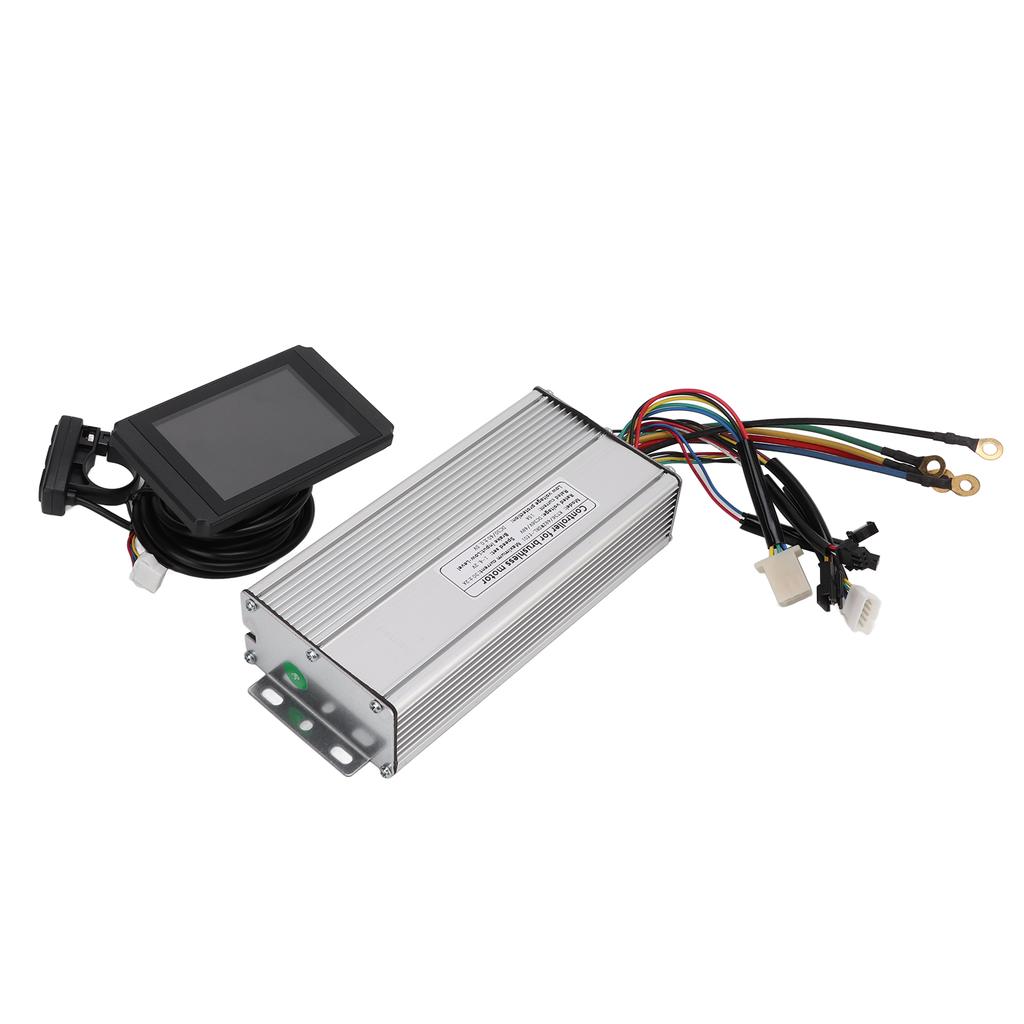

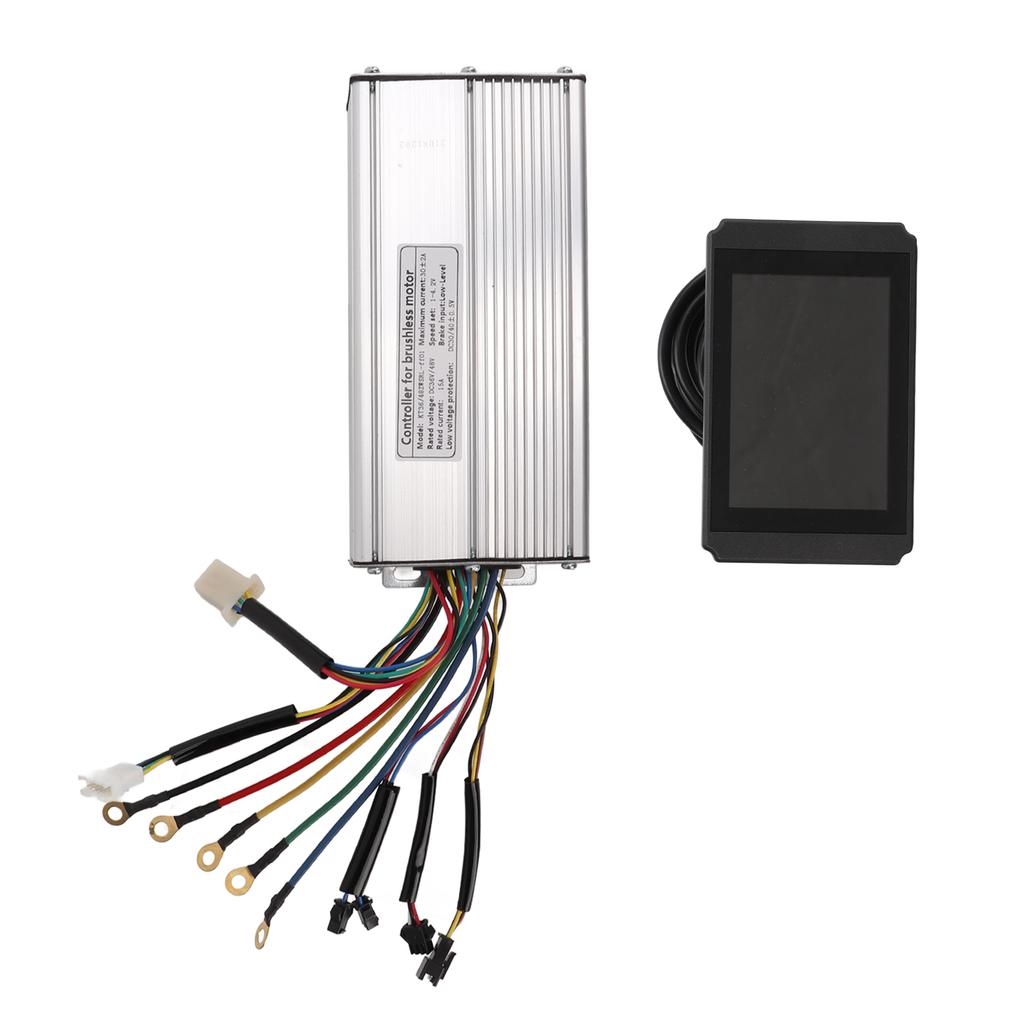

Item Type: Electric Bicycle Controller Instrument Kit
Color: As Pictures Shown
Material: Aluminum Alloy + Plastic
Weight: Approx.850g 30.0oz
Size: Controller Box: Approx. 171x83x42mm 6.7x3.3x1.7in, Meter: Approx. 109x67mm 4.3x2.6in, Meter Cable Length: Approx. 179.5cm 70.7in
Controller Connector Type: Ordinary Connector
Controller Rated Voltage: DC 36V 48V
Controller Rated Current: 15A
Controller Maximum Current: 30+ 2A
Controller Speed Setting: 1 4.2V
Controller Brake Input: Low Level
Controller Low Voltage Protection: DC 30 40+ 0.5V
Applicable Motor Power: 1000W
Display Instrument Function Description: Up Button, Switch Button, Down Button, Power Assisted Sensor Sign, Battery Capacity Indicator, Power Display, Running Sign, One Way Time, Total Travel Time, Battery Voltage, Brake Display, 6km h Thrust Assist, Riding Speed (Metric System), Maximum Speed, Average Speed, Travel Distance, Total Distance, Backlight and Headlights, Ambient Temperature in Celsius, and Ambient Fahrenheit..
Package List:

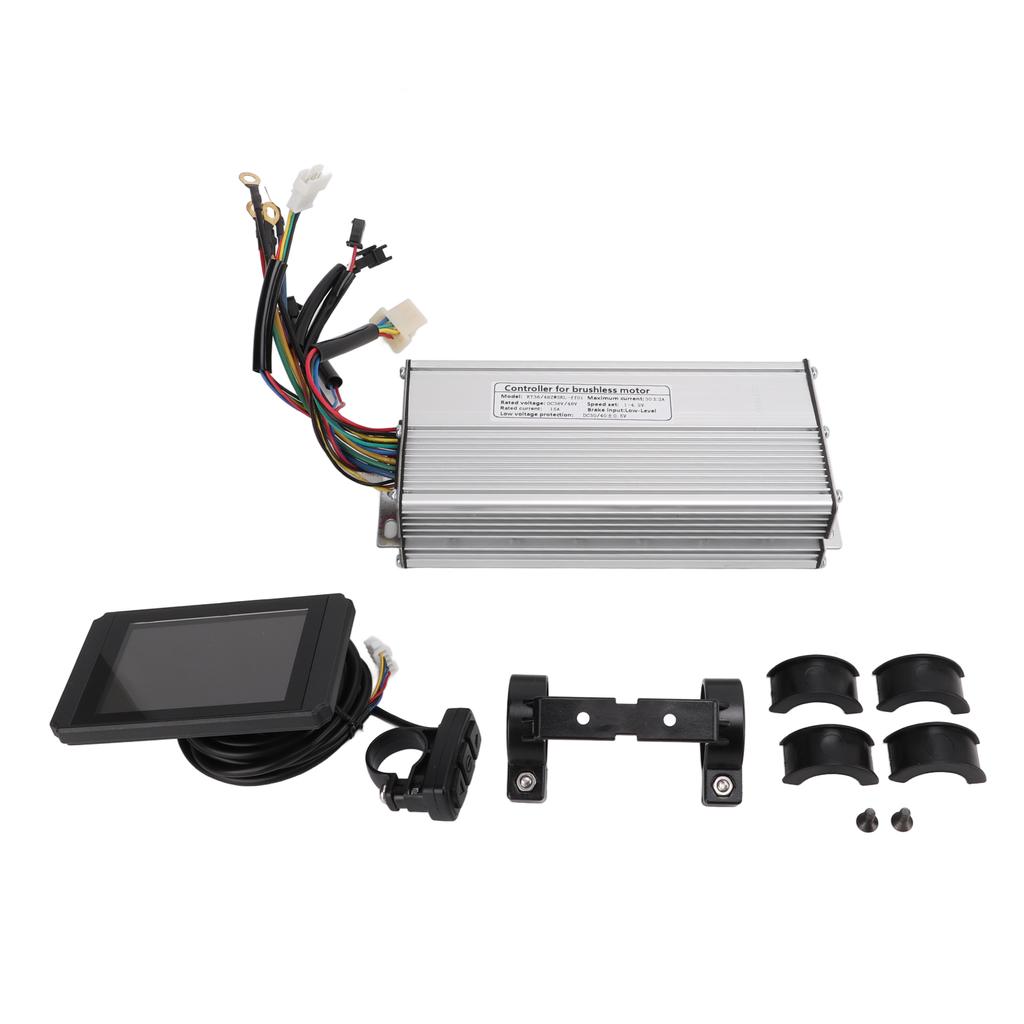

1 x Controller1 x LCD8H Meter 1 x Instrument Mounting Frame4 x Instrument Mounting Bracket Gasket2 x Instrument Mounting Frame Screw1 x Instrument Manual1 x Controller Wiring Manual
Note:
The communication protocol of the product must be applicable to the same brand product.
