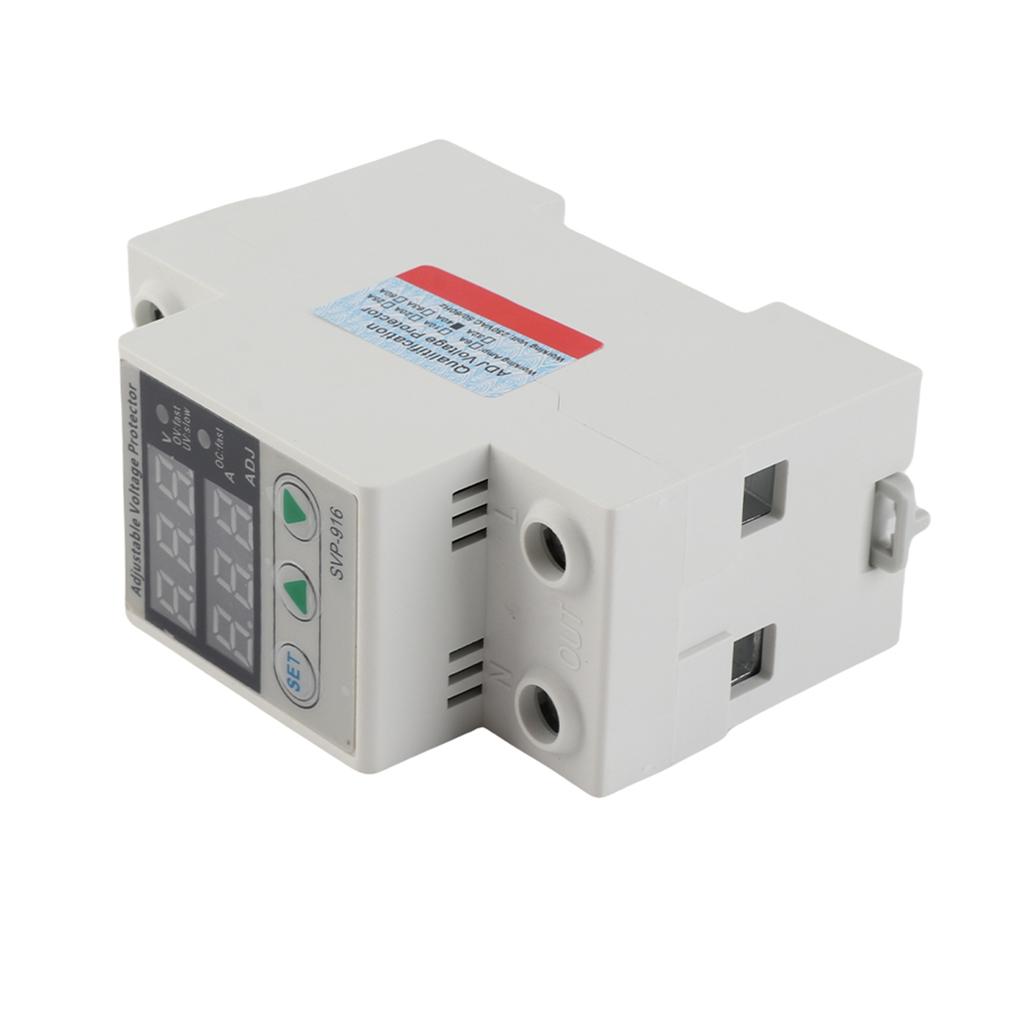

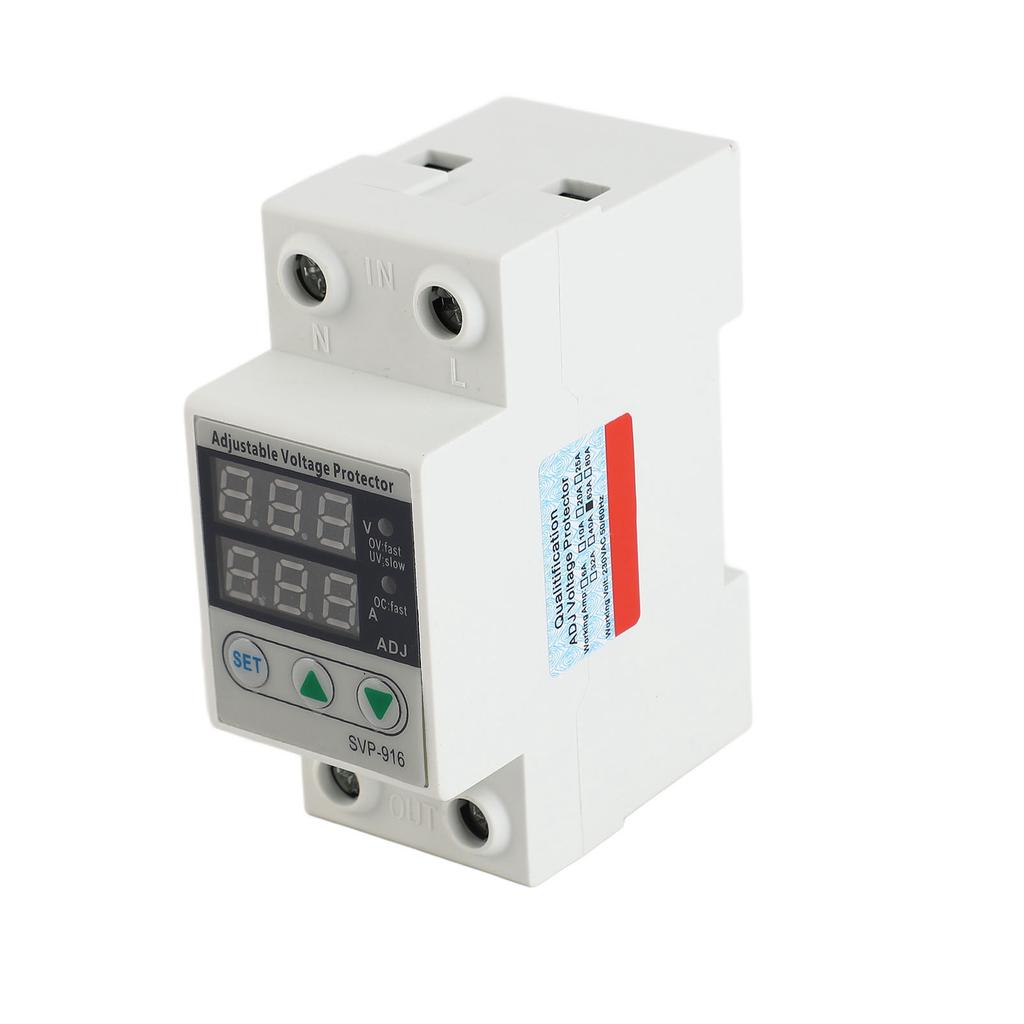

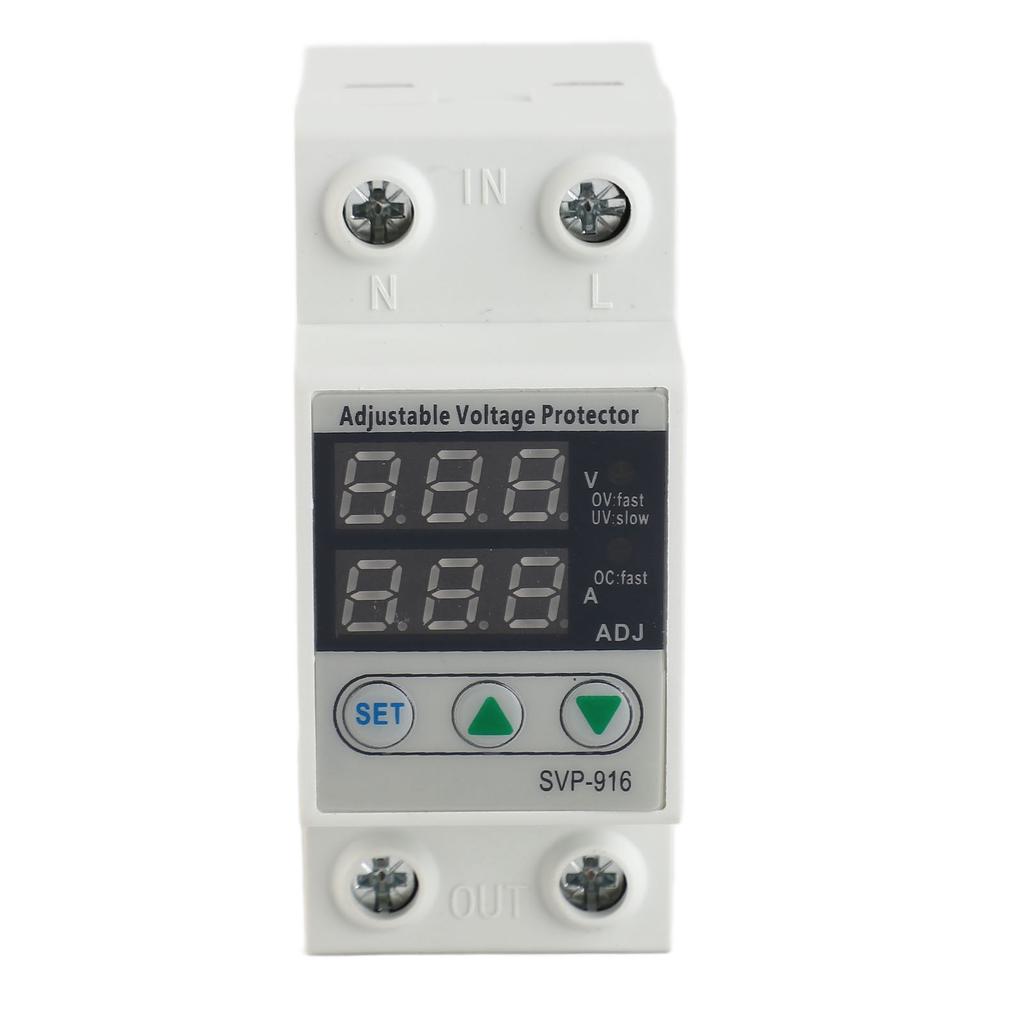

The or has over voltage , under voltage and other functions
The main feature is that the line has overvoltage or undervoltage, overcurrent condition, the product can cut off the power supply instantaneously, the electrical equipment from damage; when the line voltage returns to normal, the or can a
It is mainly used for the of over-voltage, under-voltage or over-current in the distribution line of residential household box or the of single-phase power equipment.
Features:
1. The or has over voltage , under voltage and other functions
2. The main feature is that the line has overvoltage or undervoltage, overcurrent condition, the product can cut off the power supply instantaneously, the electrical equipment from damage; when the line voltage returns to normal, the or can automatically and normally
3. It is mainly used for the of over-voltage, under-voltage or over-current in the distribution line of residential household box or the of single-phase power equipment.
4. Suitable for single-phase AC voltage 230V, 50Celsius60Hz, rated working current 63A and below users or loads
5. Low power consumption and mechanical life
Specification:
Condition: 100% Brand new
Rated voltage 230VAC 50Celsius60Hz
Rated voltage 1-63A (default 63A)Celsius1-40A (default40A)
Overvoltage value range 221V-300V-OFF (default 280V)
Overvoltage recovery voltage mediation range 220V-299V(default value 250V)
Overvoltage action time 0.1s - 10s (default 0.1 seconds)
Undervoltage value range 219V-150V-OFF (default 160V)
Undervoltage recovery voltage mediation range 151V-220V( default value 180V)
Undervoltage action time 0.1s - 10s (default 0.1 seconds)
Overcurrent regulation range 1-63A (default 63A)Celsius1-40A(default40A)
Overcurrent action range 0.1s -512s (default5.0 seconds)
Failure recovery delay time 2s - 512s (default 60 seconds)
Power-on delay time 2s - 255s (default 2 seconds)
Power consumption less than 2W
Electrical mechanical life more than 4000 times

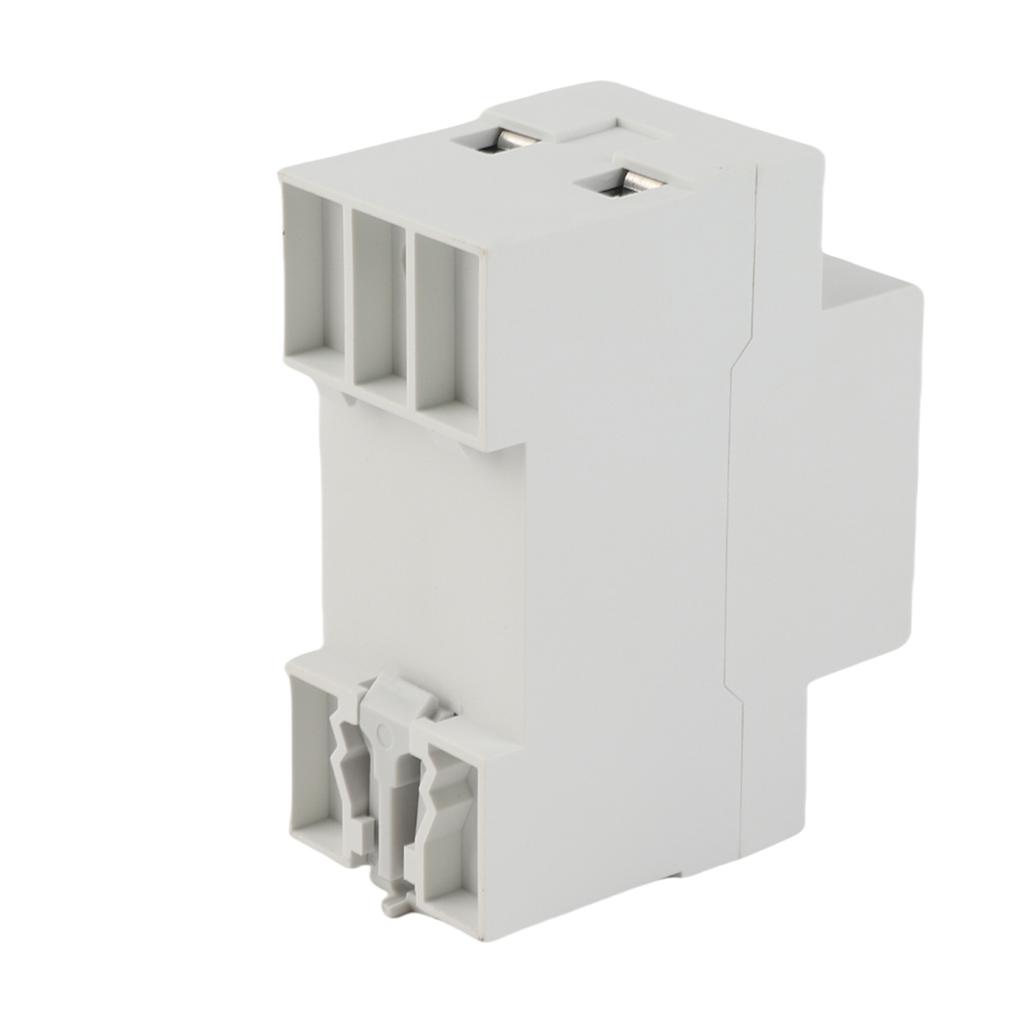

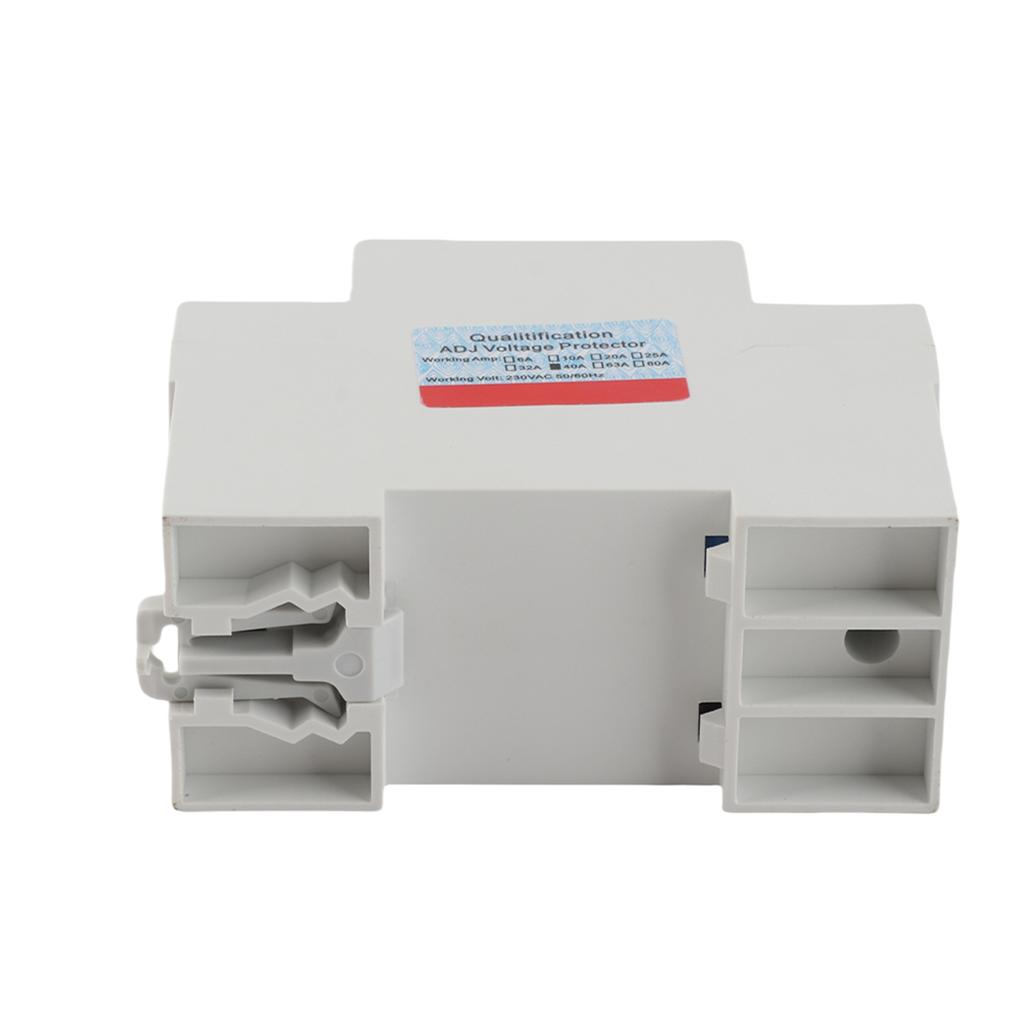

Installation DIN rail
Working environment Temperature:-25 celsius .+40 celsius Humidity: Altitude: no more than 2000m Size: Approx. 81 x 36 x 60mm Celsius 3.2 x 1.4 x 2.4in
Optional : 40A, 63A
Package List:
1 x or
Note:
1. The line conductor should meet the relevant current standard value and the load current cannot be greater than the maximum current value of the or.
2. The neutral line N cannot be connected incorrectly and needs to be secure. The line N of the or is directly connected, and there is no disconnect function.
3. After the product is powered on, do not touch the live parts to avoid electric shock.
4. This or has no isolation and short-circuit . Please use a small circuit breaker at the front end to against isolation and short-circuit. Please disconnect the front-end breaker when repairing the circuit. If the miniature circuit breaker is not used, the short-circuit current cannot be broken when there is a short-circuit fault at the input or output of the or.
5. Since the or has self-reset function, after the or over-current and disconnection, immediately remove the load electric appliance and check the circuit circuit, otherwise the or will frequently turn on the load electric appliance, which will eventually be due to -term Frequently turning on and off to damage the electrical appliance and the or itself.
6. Please note! When the undervoltage breaking time is greater than 0.3 seconds, the or does not open after the power failure. (The power failure of the MCU does not work after 0.3 seconds of power failure)
7. After the overcurrent exceeds 5 times within the
