Input Voltage: 12 V, RF working mode: Superheterodyne
• Receiver sensitivity: > 97 dbm

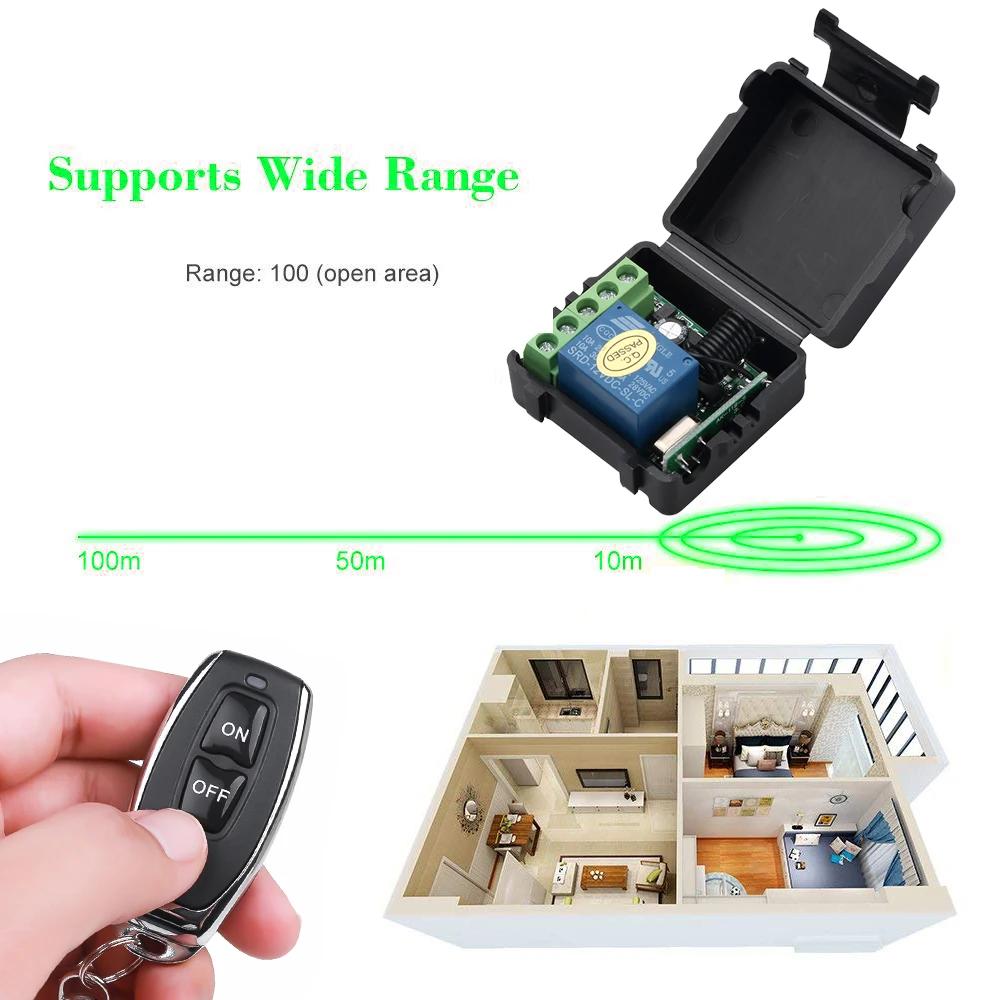

• Transmitting distance:> 100 m ( open space)
• Decoding mode: MCU software decoding
• Remote storage: 20
• Support remote type: EV1527 learning code
• Working mode: Momentary, toggle, latching time delay (5s ,10s ,15s )
• Output terminal: NO , NC , COM
• Remote control battery: 2 x 3 V CR2016 button batteries
Note: Maximum input power is 250 V
Remote programming
Working mode:
1. Inching mode: press the remote controltherelaywill connect, and thenreleasethe remote controlto disconnect the relay;
2. Self-locking mode: press the remote controltherelaywill connect, and then press the remote controlagainto disconnect the relay;
3. Interlock mode: press the remote control key A toconnectthe relay, and press the remote control key B to disconnectrelay.
4. Delay mode: press the remote controltherelaywill connect, release the remote control and start timing. After 5S, 10Sand 15S(3 gears), the relay will be automatically closed.
Learning Methods:
1. Inching learning method:

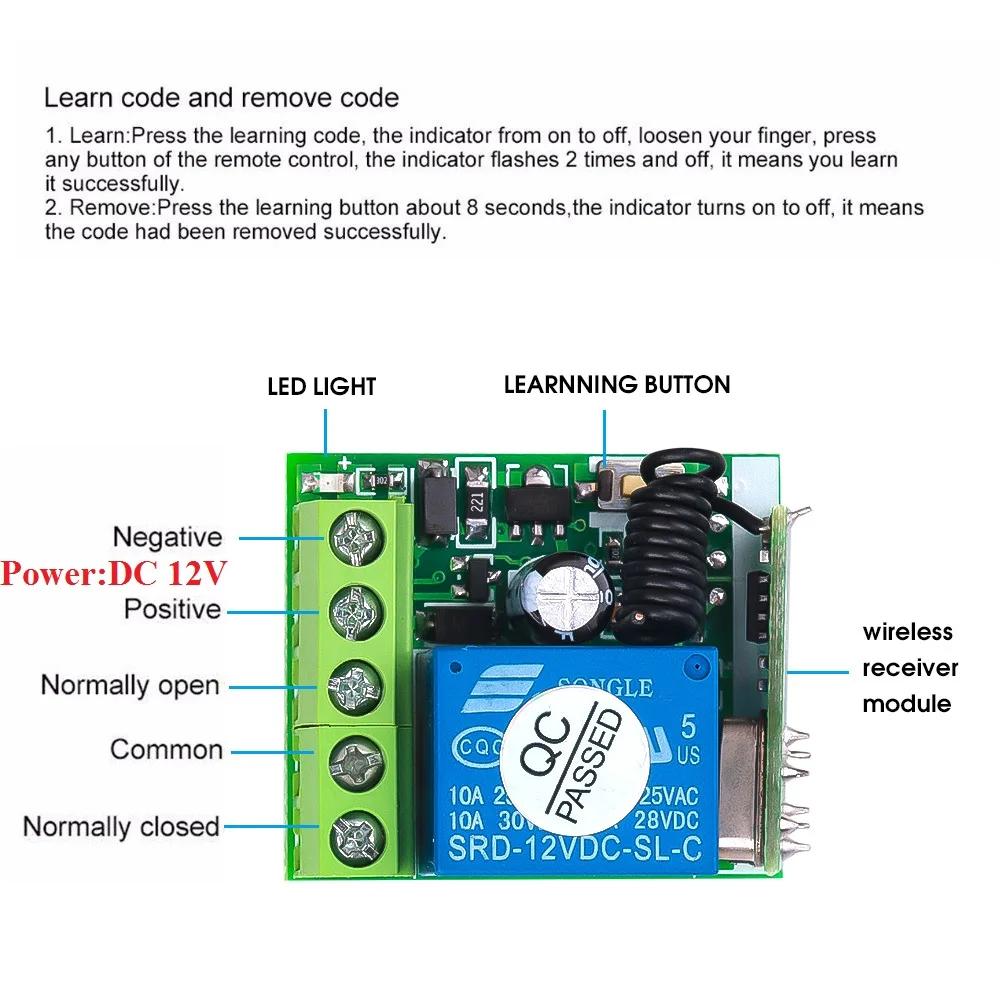

Press the codepairingbutton on the control panel once, and the LED indicator will flash once. After the LED indicatorlit, press the buttonyou need to pairing onthe remote control,the LED indicator on the control panel will flash for 3 timeswhich means the pairing succeed.
2. Self-locking learning method:
Press the codepairingbutton on the control paneltwice, and the LED indicator will flashtwice. After the LED indicatorlit, press the buttonyou need to pairing onthe remote control,the LED indicator on the control panel will flash for 3 timeswhich means the pairing succeed.
3. Mutual lock learning method:
Press the codepairingbutton on the control panelthree times, and the LED indicator will flashthree times. After the LED indicatorlit, press the buttonyou need to pairing onthe remote control,the LED indicator on the control panel will flash for 3 timeswhich means the pairing succeed.
4.5Sdelay learning method:
Press the codepairingbutton on the control panel fourtimes, and the LED indicator will flashfour times. After the LED indicatorlit, press the buttonyou need to pairing onthe remote control,the LED indicator on the control panel will flash for 3 timeswhich means the pairing succeed.
5. 10Sdelay learning method:
Press the codepairingbutton on the control panel five times, and the LED indicator will flashfive times. After the LED indicatorlit, press the buttonyou need to pairing onthe remote control,the LED indicator on the control panel will flash for 3 timeswhich means the pairing succeed.
6. 15Sdelay learning method:
Press the codepairingbutton on the control panelsix times, and the LED indicator will flashsix times. After the LED indicatorlit, press the buttonyou need to pairing onthe remote control,the LED indicator on the control panel will flash for 3 timeswhich means the pairing succeed.
-Clearing the code :
Push the learning button on the receiver 8 times , the codes will be reset.
After clearing the code, remotes will be need to be recalibrated

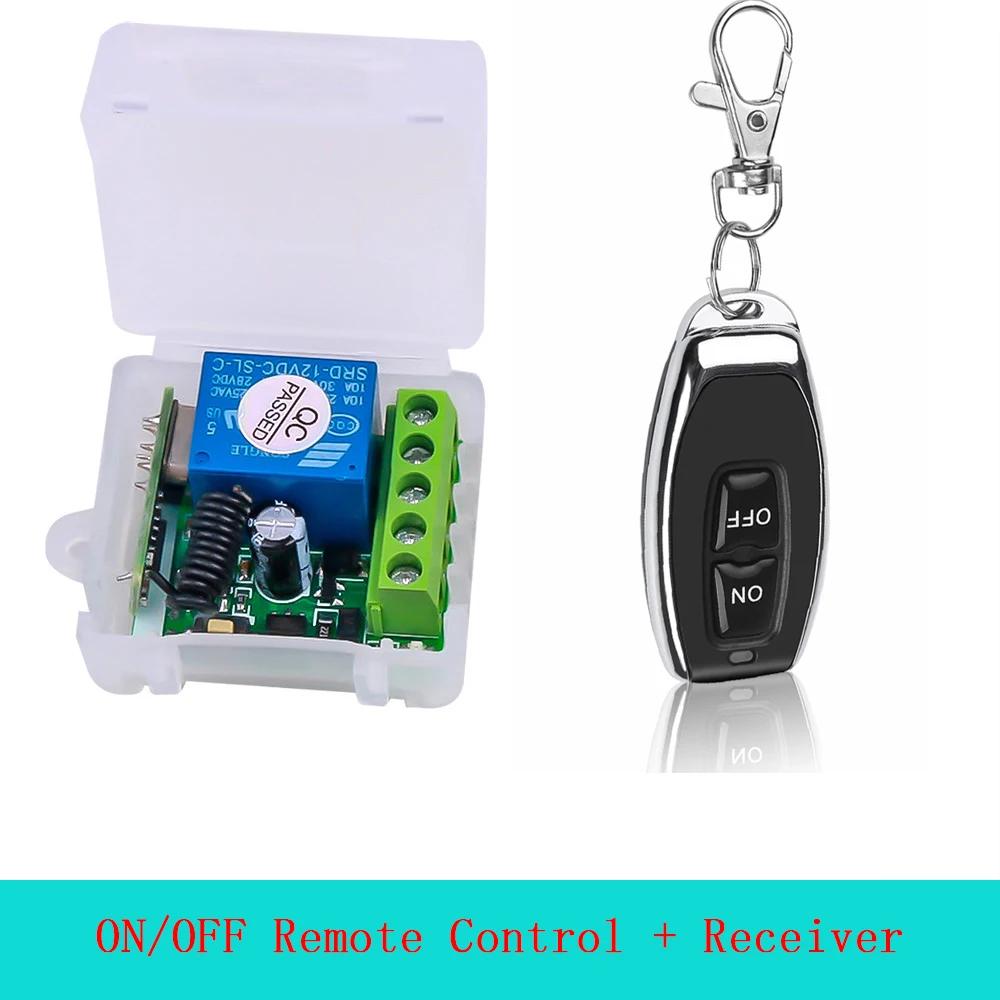

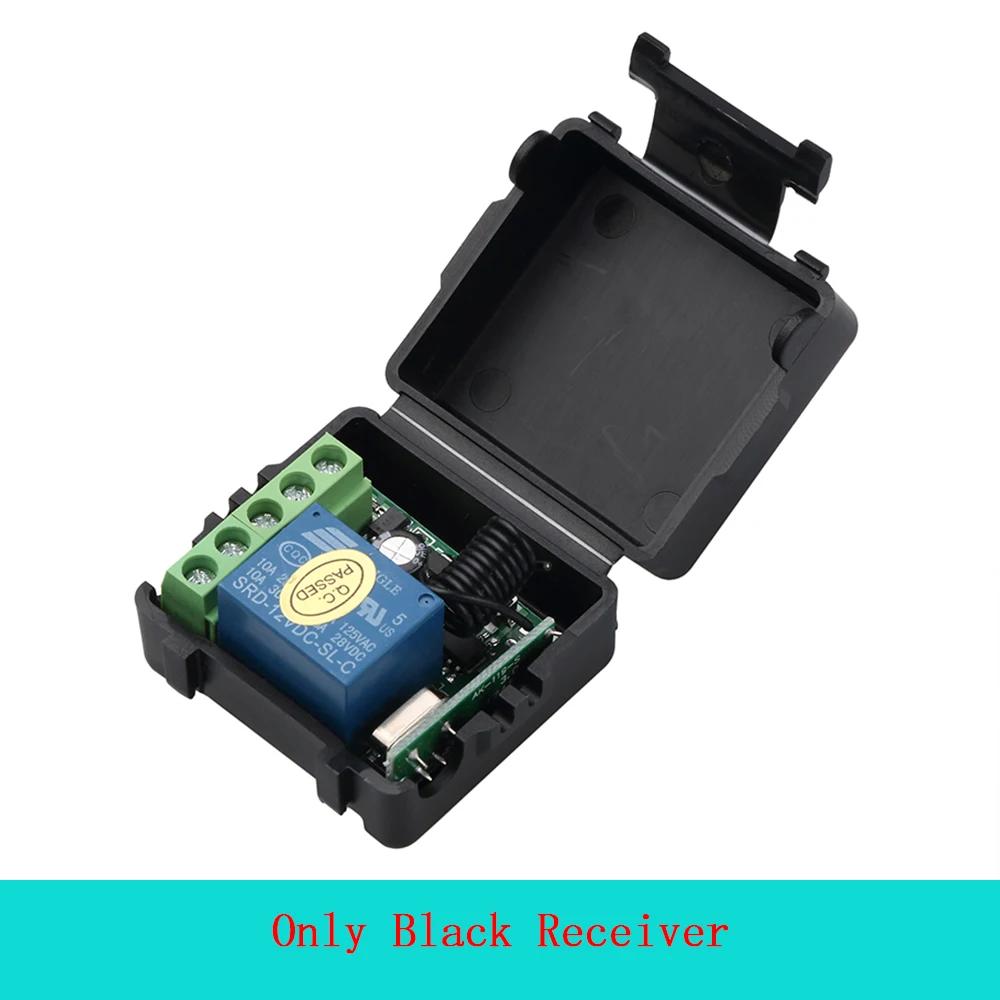

Package Contents:
AS the picture
