Features:
X1301 is a customised 1080P to CSI2 module with 12S auditory for RPi.
Capable of handling Full HD2K videoformats (1920x1080 60fps);Supports 1080P pass-through to local 1080P display
It is equipped with a TC358743XBG bridge chip and a pair of two active 1080P splitter chip, supporting 1080P inputs up to 1080P with a refreshes rate of 60fps.
With the 1080P pass-through function, you can seamlessly output 1080P (auditory/video) from various source devices to a TV or projectors for local monitoring even when the for RPi is in standsby.
For RPi 5B/4B/3B+/3B, but not support HAT Standsby power state, which means they cannot automatically shut down the X1301 when mainboard is poweringd .
Specifications:
Support for RPi 5B/4B/3B+/3B only.
For 12S Auditory port
Capable of handling Full HD2K video formats (1920x1080 60fps)
Supports 1080P pass-through to local 1080P display
Supports 1080P auditory input and transmission via 12S
Equipped with 1080P to CS1-2 bridge
Chip: TC358743XBG

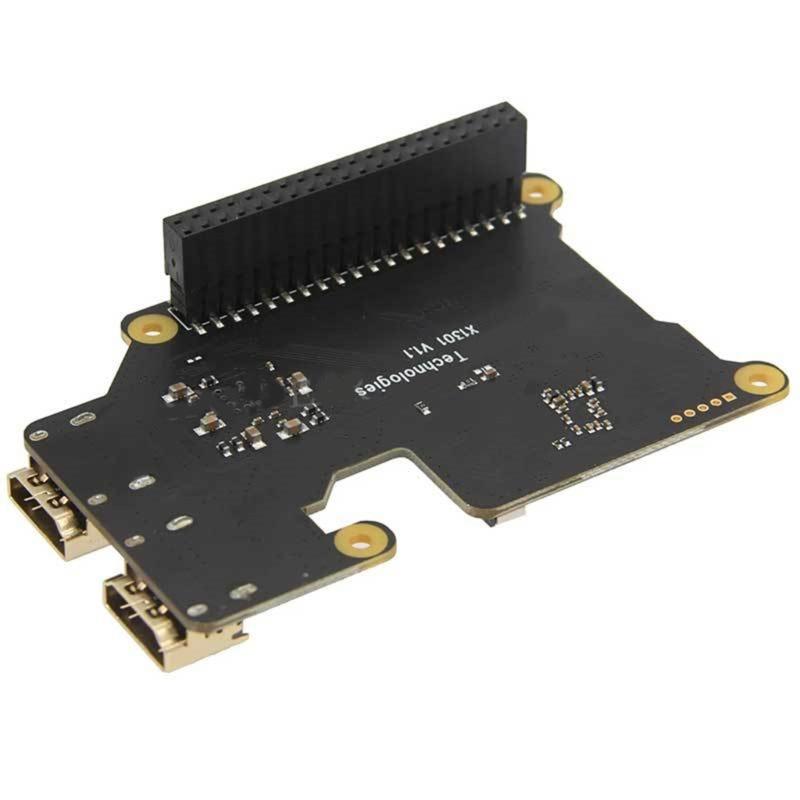

Model: X1301 1080P to CSI2 Module
Product Size:about 88.5x57x25mm/3.48x2.24x0.98in
FFC cable: about 30mm/1.18in
Power supply: through FFC, DC3.30V
Application:for RPi 5B/4B/3B+/3B

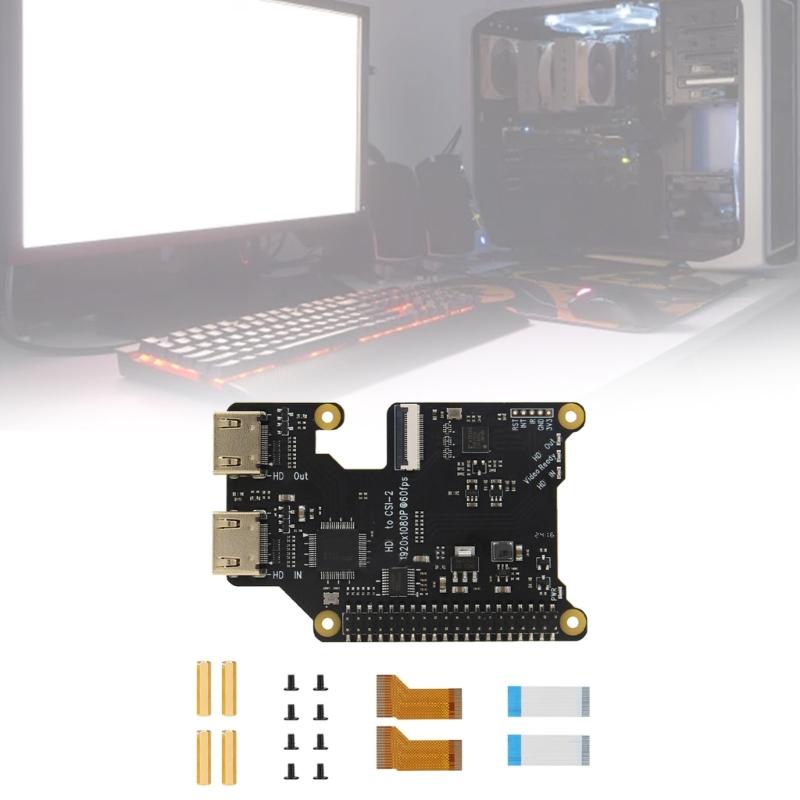

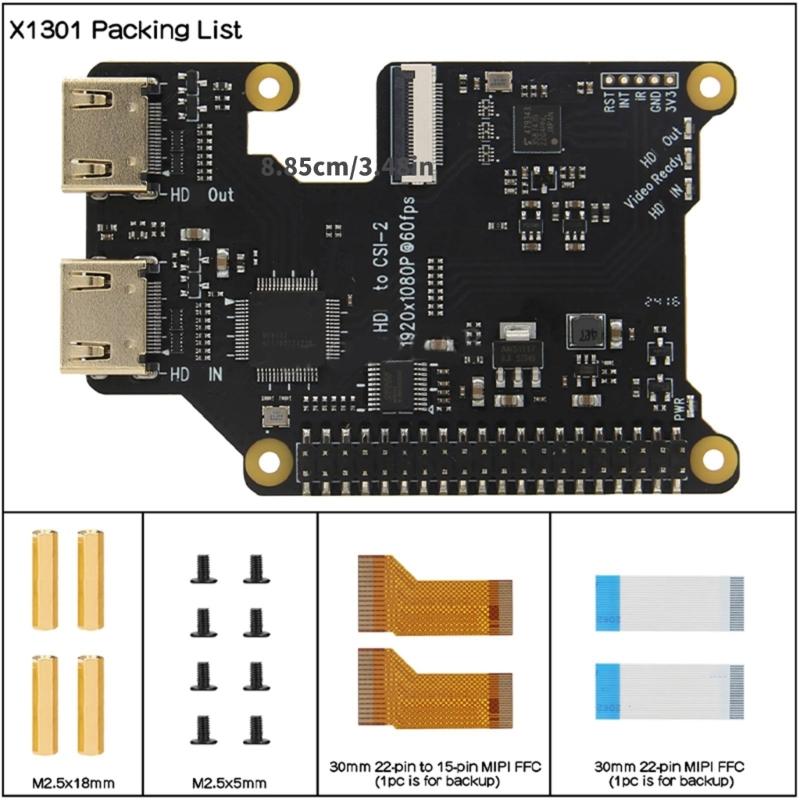

Package Includes:
1Set X1301 1080P to CSI2 Module
note:
Please allow 0-1cm error due to manual measurement. please make sure you do not mind before you bid.
Due to the differences between different monitors, the picture may not reflect the actual color!
No-delivery refund
