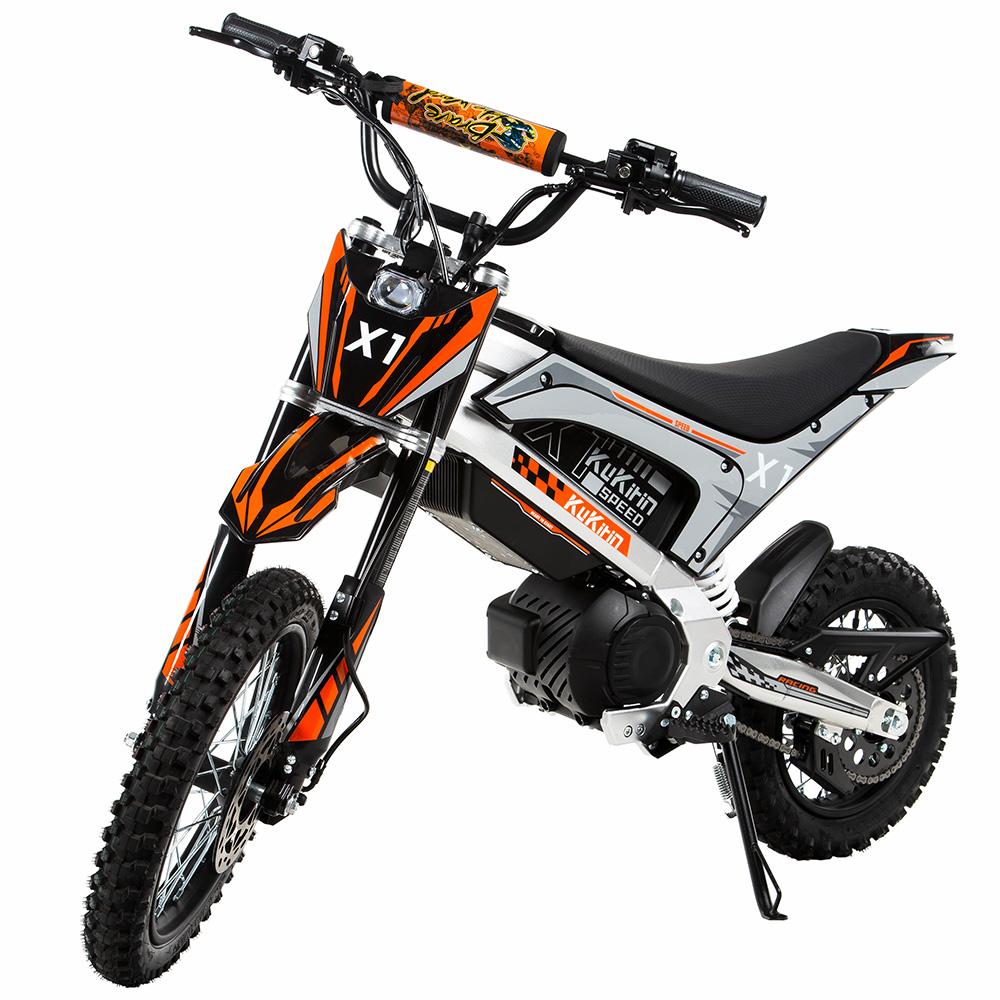

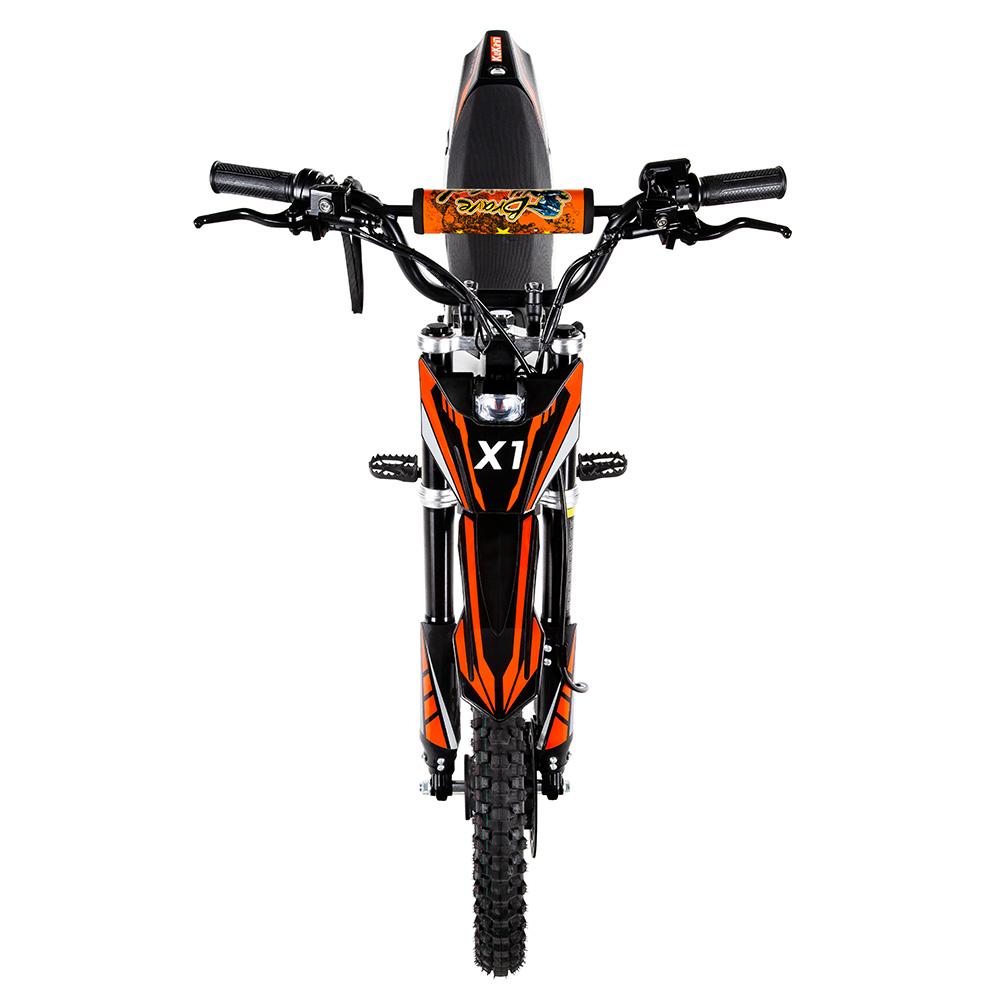

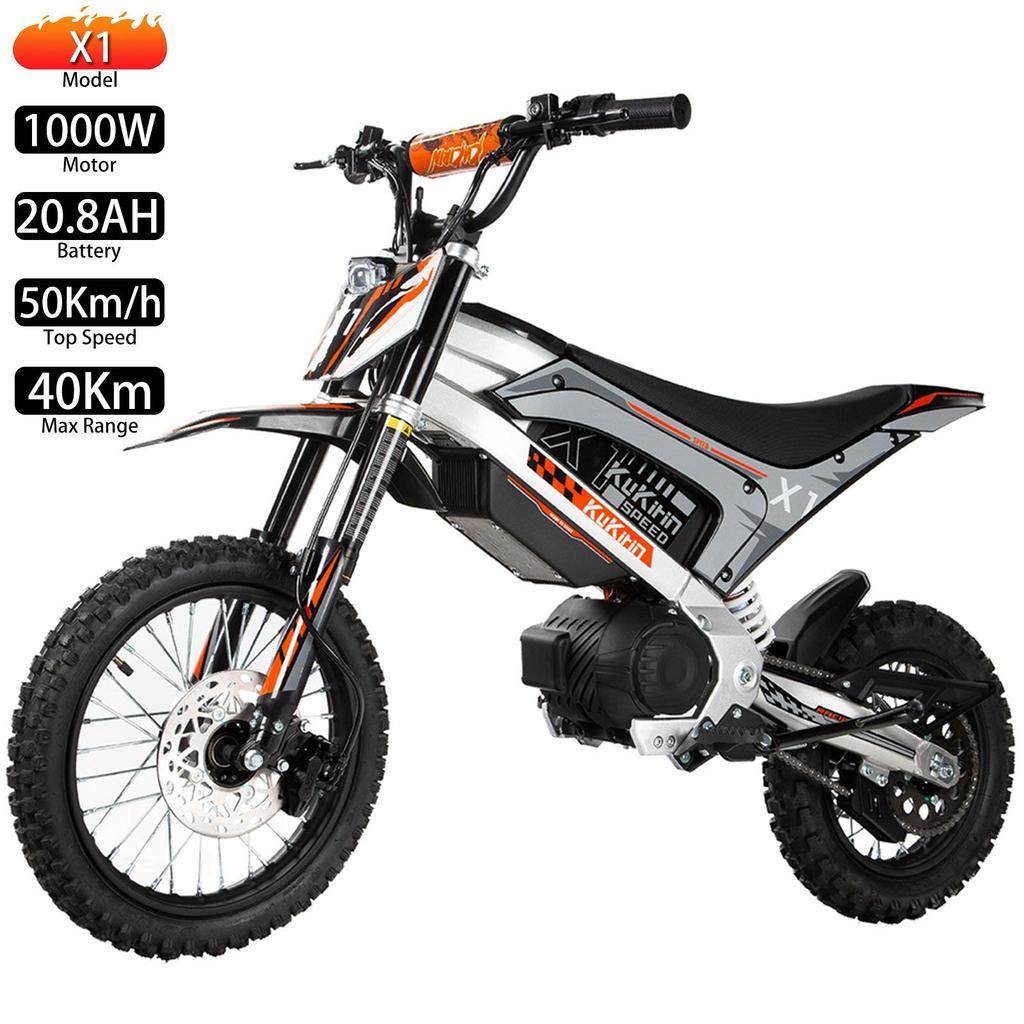

Kukirin X1 14" Off-Road Electric Bike
💗Note:
1. This product is an off-road vehicle and does not include turn signals, horn, or other road-legal features. It is only suitable for off-road use and is not intended for road use.
2. For use only in enclosed areas. Riding on public roads is strictly prohibited.
[⚡2000W Peak Motor (Rated 1000W)] Provides robust power reserves, with rated power meeting regulatory requirements, easily conquering steep inclines and complex off-road terrain.
[🚀Top Speed 45-50km/h] Balances high-speed performance with handling stability, meeting all-terrain riding needs.
[🔋48V 20.8AH High-Performance Battery] Equipped with a high-energy-density lithium battery system, offering a range of 40 kilometers.
[🛞14" Off-Road Tires] 14" front and 12" rear tires feature a deep-tread, anti-slip tread design, combined with a full suspension system, enhancing grip and traction on challenging terrain.
[🏔️Full Suspension System] Front and rear hydraulic shock absorbers effectively filter out severe bumps, ensuring comfort and handling during off-road riding.
[🛑Front and Rear Hydraulic Disc Brake System] Equipped with high-efficiency hydraulic brakes, ensuring stable and reliable braking under complex road conditions.
[👥Recommended rider height: 158-180CM] The frame geometry has been optimized for comfortable riding by teenagers and adults.
Detailed Specifications:
Recommended height: 158-180CM (suitable for teenagers and adults)
Speed: Maximum speed 50km/h
Gears 1, 2, 3: 1st (25km/h), 2nd (35km/h), 3rd (50km/h)
Range: Medium-speed range (60kg load) ≤40km
Performance: Climbing angle ≤15° slope
Braking System: Front/rear hydraulic brakes (manual) + electronic brake
Braking distance: 4-6m
Material: Frame material 6061 aluminum alloy
Motor type: Mid-drive motor (with gearbox)
Voltage: 48V
Hall Effect/Magnetic Encoding: Hall Effect
Acceleration Mode: Sine wave
Power Data: Rated power 1000W
Instantaneous maximum power 2000W
Outer Box label And Product label: 500W
Rated speed 2400rpm
Maximum motor torque 24N.m
Wheel torque 181N.m
Model: Ternary lithium battery 18650
Voltage: 48V
Capacity: Single cell capacity 2600mAh
Battery Pack Capacity: 20.8Ah
Standard Power Consumption: 998.4kWh
Waterproof Rating: IP65
Battery Protection System: Battery Protection Board (BMS)
Input Voltage: 100-240VAC~50/60Hz
Input Current: 2.5A
Output Voltage: 54.6V±0.2V
Output Current: 2.5A
Power: 136.5W
Charging Time: 8.5-9h
Front Damping: Hydraulic Damping
Rear Damping: Hydraulic Damping
Speed Breakdown Protection Switch: YES
Headlight Type: LED
Headlight Power: 5W
Headlight Beam Angle: 45°
Headlight Illumination Area: 6㎡
Type: Off-road pneumatic tire
Optimal tire pressure: 225kPa (32 ps.i)
Wheel size (front/rear): Front 14 inches/Rear 12 inches
Tire size (front/rear): Front 60/100-14
Rear 80/100-12
Disc brake size 3*190mm
Package Contents:
Instruction manual *1, Charger *1, Four-fold leaflet *1, Key *2, Allen wrench *5, Open-end wrench *6, Phillips screwdriver *1, Foot pedals *2, Handlebar holder *2, Steering handlebar cover *2, Front left wheel cover *1 (long), Front right wheel cover *1 (short), Front brake cable clip *2, Round head M10-30 nuts *2, Nuts M8-20 *4, Screws M4.8-12 *2, Nuts M6-12 *3, Nuts M6-8 *2, Nuts M6-30 *2, Flat head M8-20 *4.
Front mudguard *1 (places on the rear mudguard area), Front axle *1 (fixed on the vehicle)
