Features:
This liquid flow controller (DFC15) is used to measure and control liquid flow, turning a solenoid valve on/off when the flow reaches a set value.
Technical Specifications:
Controller Power Requirement: 12VDC
Power Adapter: Input: 100-240VAC; Output: 12VDC, Max 2A
Adapter Lead Length: 1m
Measurement Accuracy: ±1%
Solenoid Valve Output: 12VDC, Max 5A
Temperature Sensor: 0-125°C/32-257°F, NTC3950, Accuracy: ±1°C/±1°F
Thread: M8
Maximum Total Volume: 999,999 g/L
Measuring Range: 0-9999.99 g/L
Flow Rate Range: 0-9999.99/LPM (GPM)
Cable Length: 1m
Dimensions: 88mm x 126mm x 30mm
Weight: 200g
Operating Environment: Temperature: 0-50°C/32-122°F; Relative Humidity: <85%
Note:
1. This controller works with solenoid valves up to 5A, but this kit comes with a 2A power adapter. If driving a larger solenoid valve, use an appropriate power adapter.
2. If necessary, use Teflon on the threads to ensure there are no leaks.
3. The wire can be extended up to 10m.
4. Avoid getting water in the controller.
Package Included:
1 x DFC15 Controller
1 x Temperature Sensor
1 x Power Adapter
1 x Manual
★【Quantity Control & Alarm Function】: The controller automatically turns off the solenoid valve when the flow rate reaches the desired setpoint, making installation and control easy. It can automatically stop the water filling of your concrete mixer. The controller will sound an alarm when the total volume reaches the setpoint.
★【Compatible with All Hall-Effect Flow Sensors】: By adjusting the K value, it can be used with a variety of flow sensors. High-quality, it comes with a temperature sensor for measuring liquid temperature.

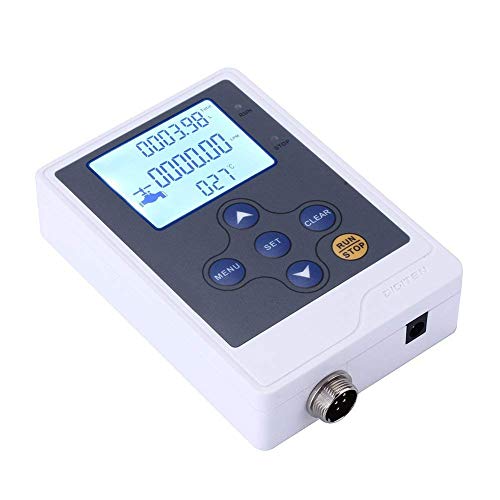

★【Large LCD Screen & Flow Rate Monitor】: The DFC15 clearly displays flow rate (real-time liquid flow rate per minute), total flow rate, and detected temperature. Custom icons on the display indicate the controller's operating status at a glance.
★【Water Meter Function】: Supports readings in liters or gallons, with LPM/GPM switchable. The DFC15 can be used to measure water volume. 12-month warranty!
★【Wide Range of Applications】: Swimming pools, water dispensers, coffee makers, drip irrigation systems, beer brewing, and more. For example, if you need 5 liters of water, you can set the DFC15 controller to 5 liters. When the water in the container reaches 5 liters, the controller will control the solenoid valve to close, automatically stopping the water flow and giving you 5 liters of water. Please select the appropriate flow meter. For liquids other than water, an oil flow meter is required.
