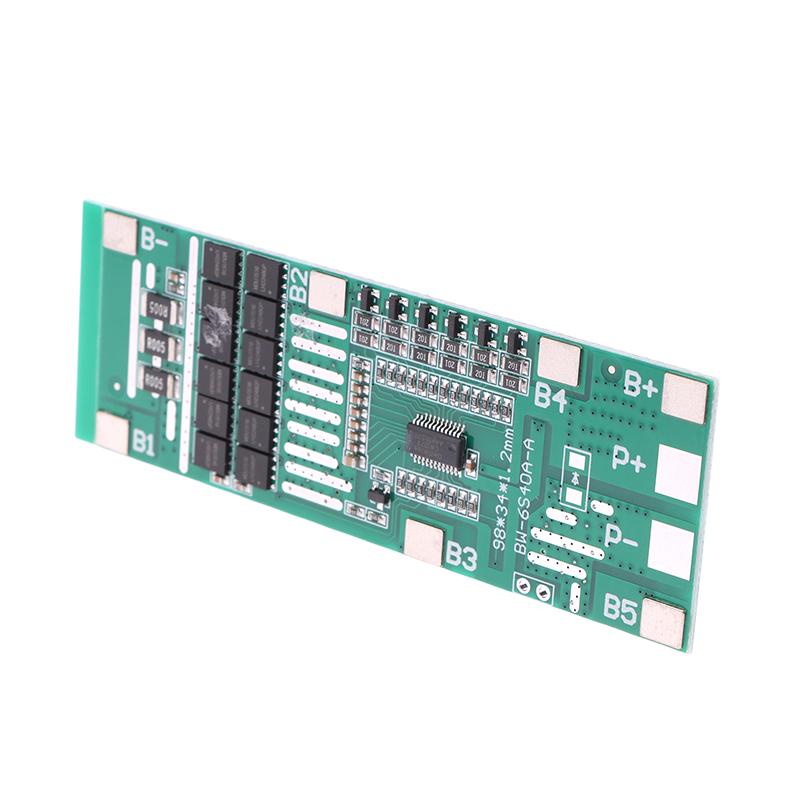

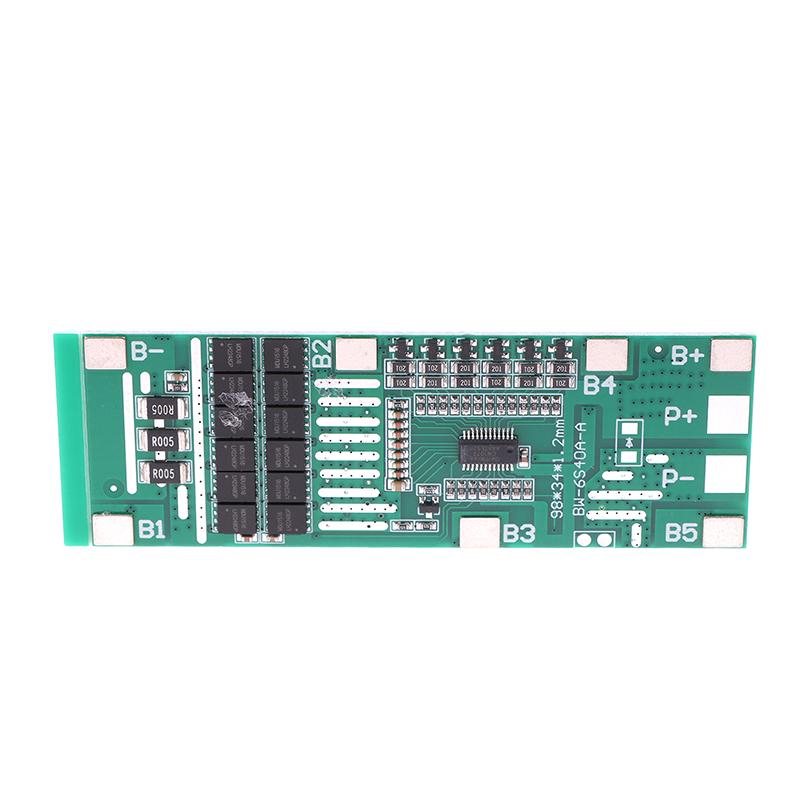

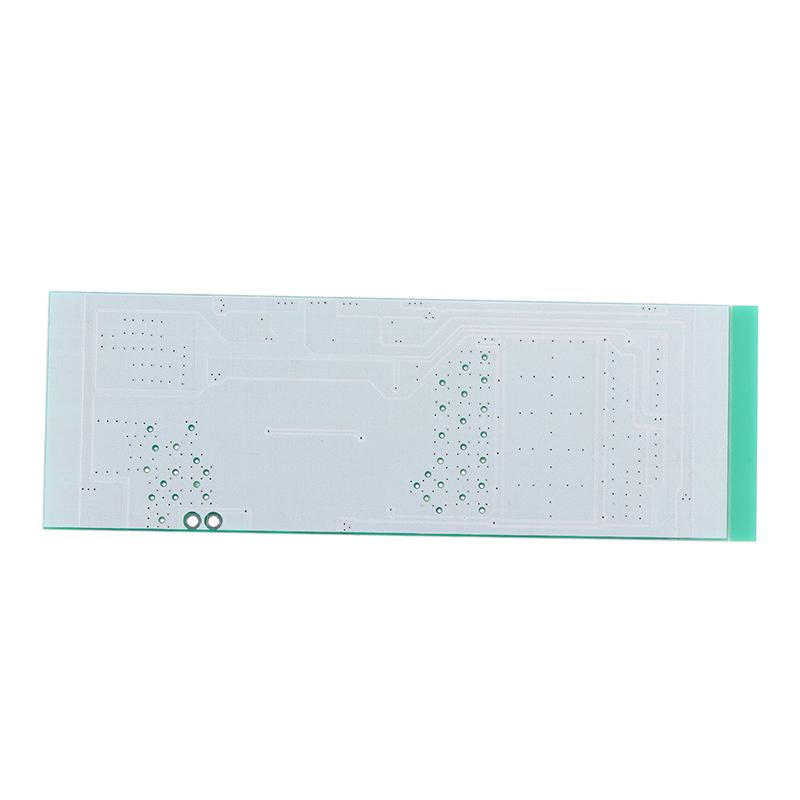

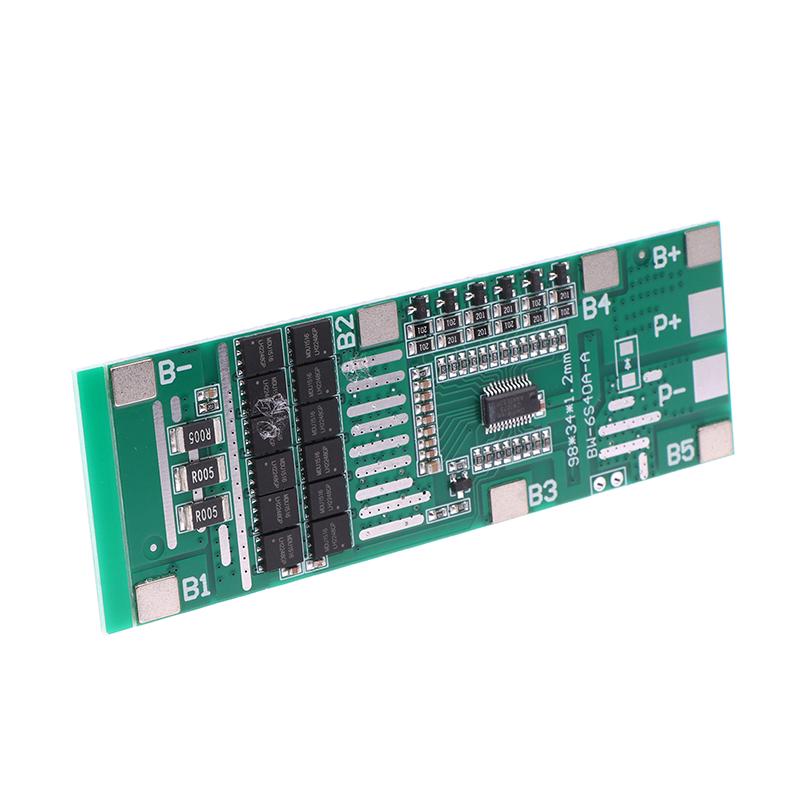

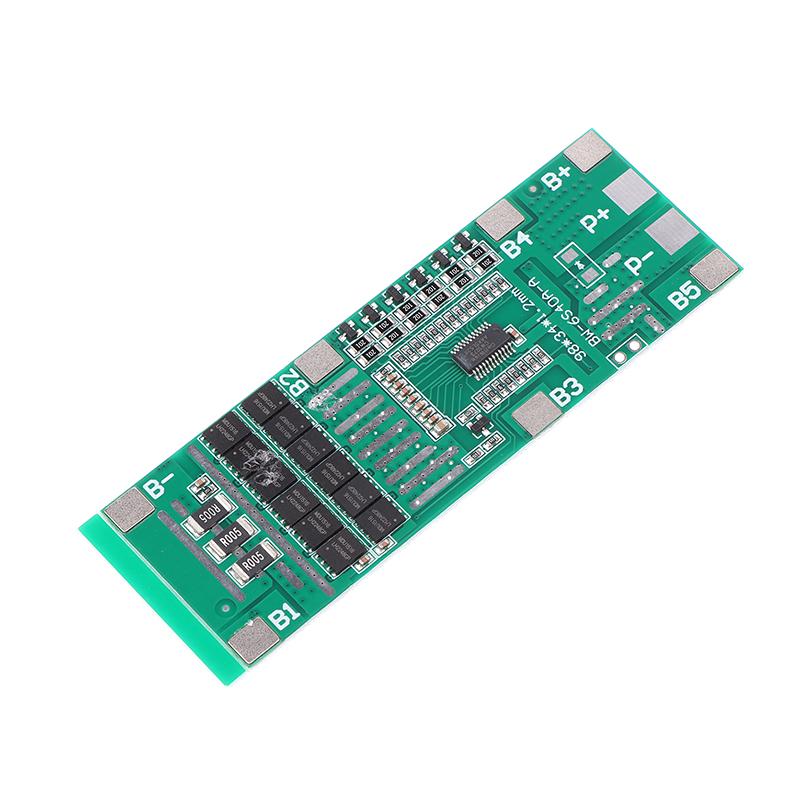

22V 24V 6S 40A 18650 Li-Ion Lithium Battery Poretect Board Solar Lighting Bms Pcb With Balance For Ebike Scooter

Description: This product is 6 string 24V 6-Cell lithium battery power protection board Split-mouth 40A discharge current With heat sink Protection board with overcharge protection, over discharge protection, over current protection, short circuit protection

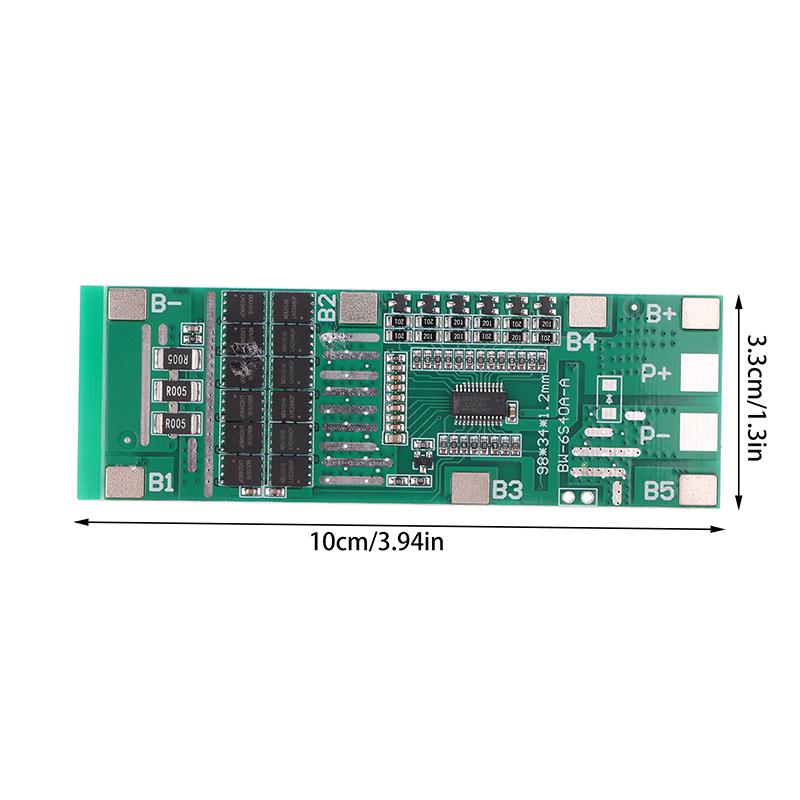

Specifications: Color: Green Material: PCB Maximum discharge current: 40A Instantaneous discharge current: 70A Charging voltage: 25.5V Maximum charging current: 40A Overcharge detection voltage: 4.25±0.025V Overcharge protection delay: 1.0±0.5S Overcharge release voltage: 4.15±0.05V Battery balance detection voltage: 4.125±0.025V Battery balance release voltage: 4.125±0.05V Battery balance current: 41±5mA Overdischarge detection voltage: 2.7 ± 0.1V Overdischarge detection delay: 1.0±0.5S Overdischarge release voltage: 3.0±0.1V Overcurrent detection voltage: 100mV Overcurrent detection delay: 1±0.3S Overcurrent protection current: 75±5A Overcurrent protection release condition: disconnect load Short circuit protection condition: external load short circuit Short circuit detection delay: 250uS Short circuit protection release condition: disconnect load Main circuit conduction internal resistance: ≤20mΩ Working current: ≤40uA Temperature range: -30/+80°C Size: 88*34*2.8mm

Package Contents: 1 x Poretect Board

Only the above package content, other products are not included. Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm. Package Included: 1 * Lithium Battery Poretect Board Notes: Due to differences in lighting and screen settings, the color of this item may vary slightly from the picture. Please allow slight size differences due to different manual measurements. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
