Feature:

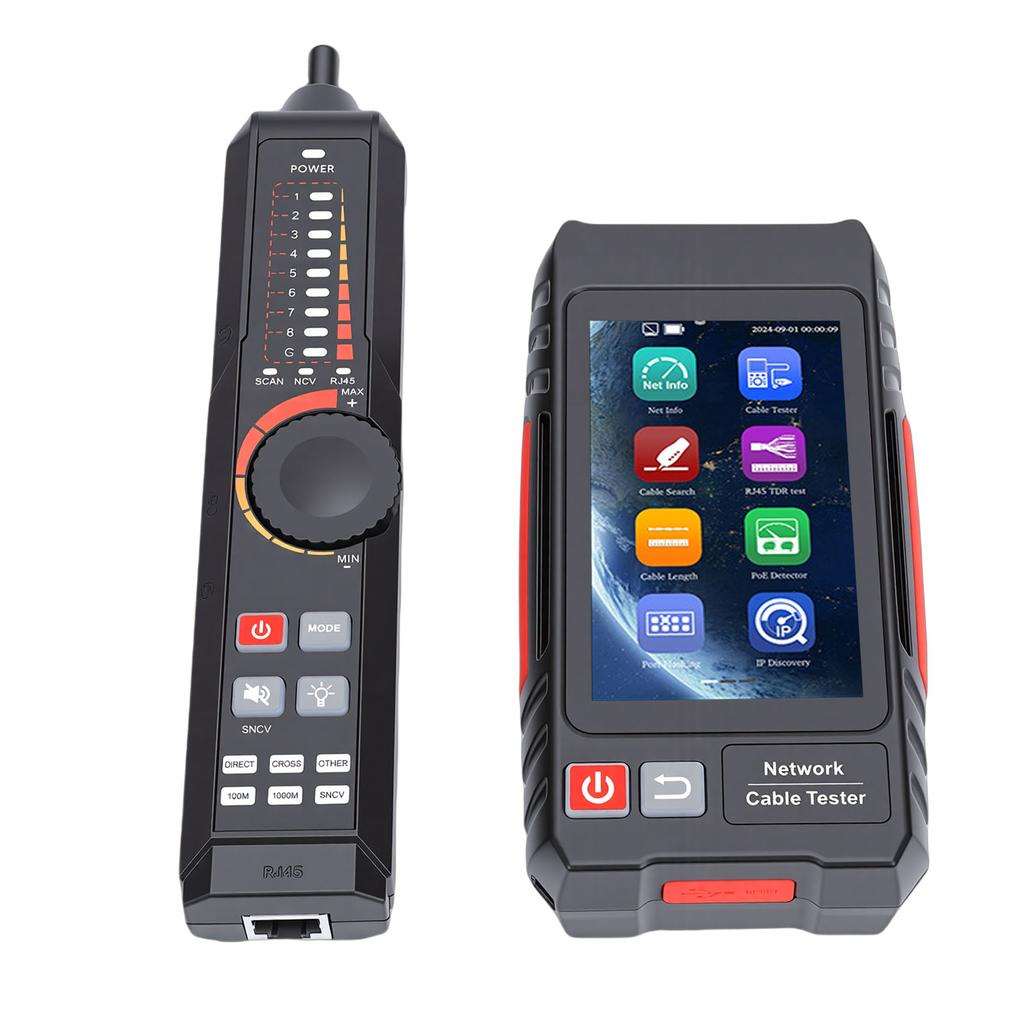

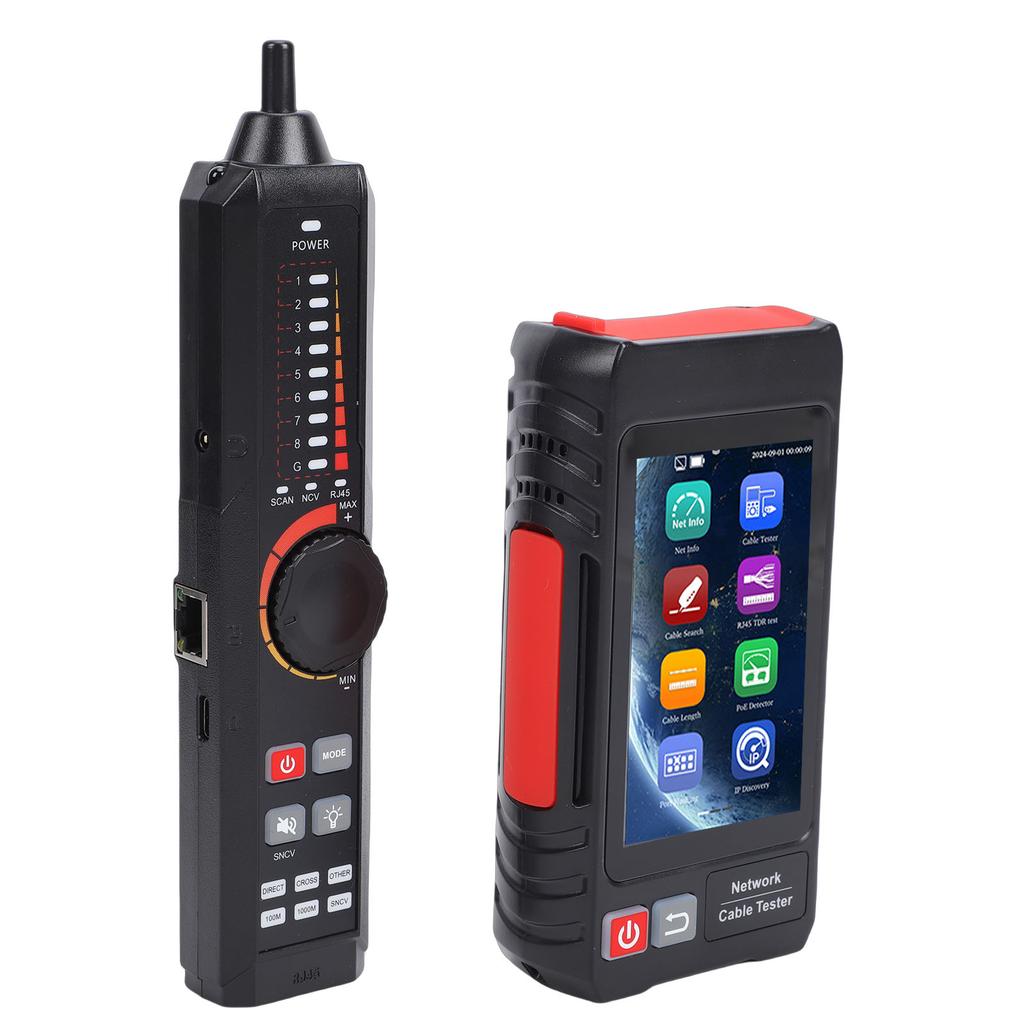

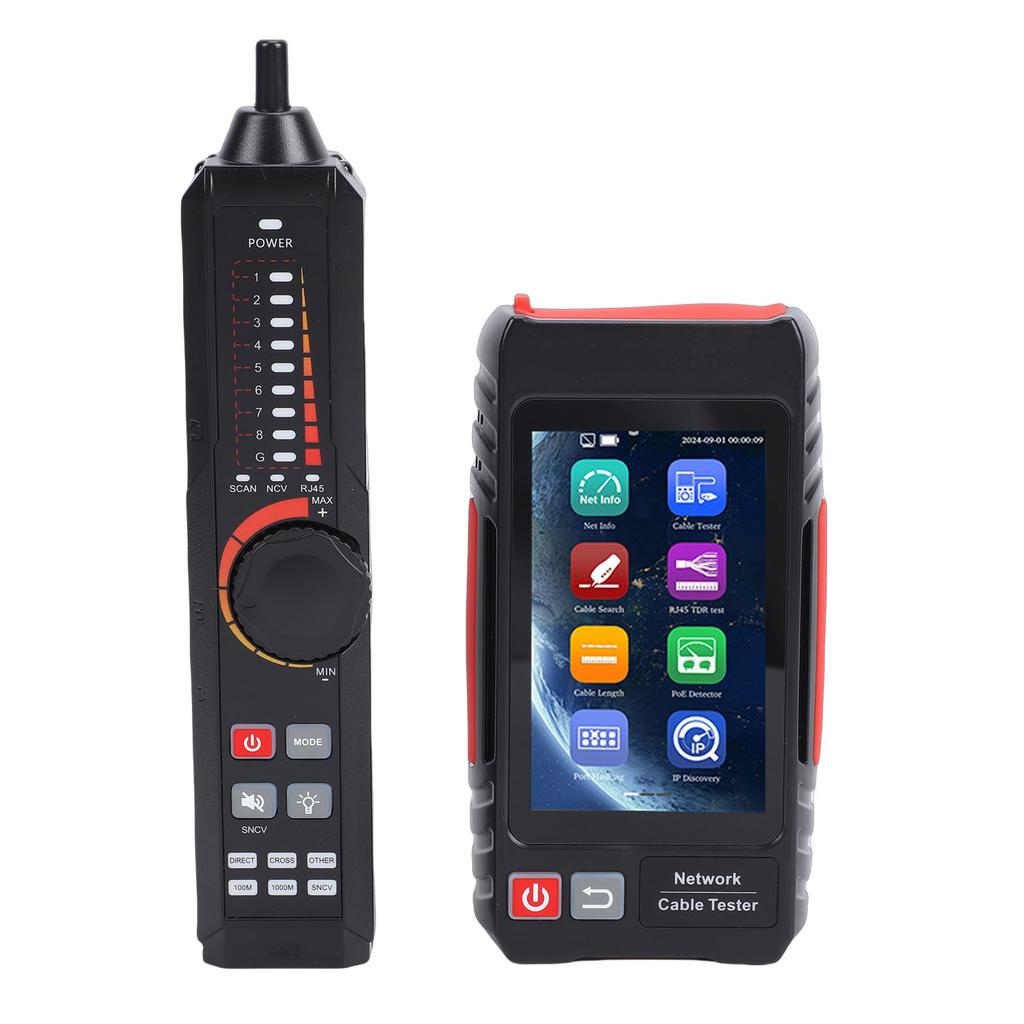

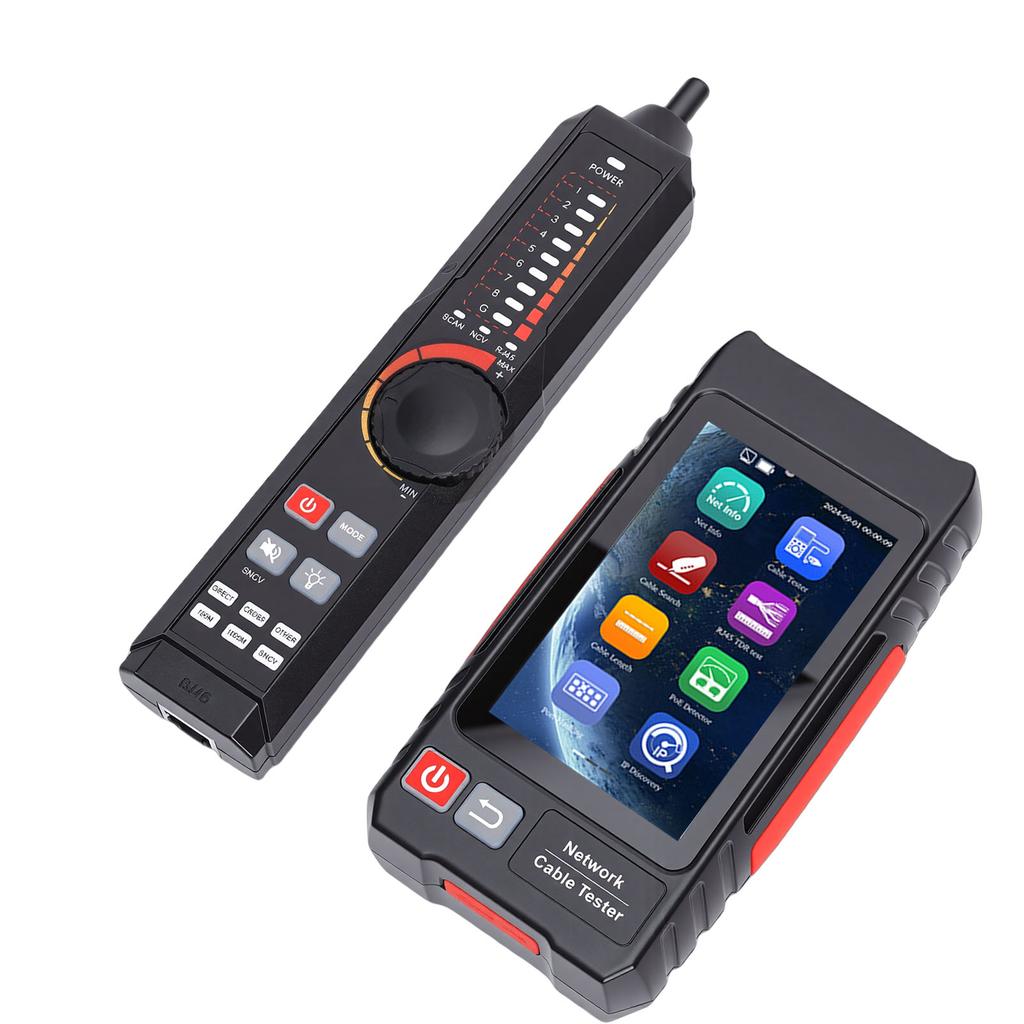

1. Network Cable Tester and Tracker: Advanced UTP cable testing, can test the sequence, type and remote kits of UTP cables, quickly detect RJ45 cable connectors near end, middle end, and far end faults. Digital Ethernet cable tracker can quickly find target cables in cluttered cables (BNC cables, Ethernet cables, phone cables, and other metal cables). Effectively eliminating noise and erroneous signals. The RJ45 tracker and UTP cable can be tested at the same interface, precisely locate cables, avoid misjudgment.
2. Touch Screen and Long Battery Life: RJ45 network cable tester equipped with 800x480 resolution 4.0in IPS touch screen. Built in rechargeable batteries for transmitter and receiver (maximum 4000mAh li ion battery). Long battery life, no need to replace batteries.
3. PD Power Test, NCV Detection, FTP Function: Detects POE switch power output and power supply pins with PD power test. Features inductive NCV scanning. Audible and visual dual reminders, differentiating live wires and neutral wires. FTP function allows users to copy test reports and data via network FTP.
4. TDR Cable Test and Length Measurement: RJ45 tester can easily test cable wire pair status, length, attenuation, reflection, impedance, delay, etc. Test Ethernet cable open circuit conditions, maximum test length up to 3000 meters. Capable of generating test reports.
5. POE++ Detection and Network Tools: Support IEEE802.3BT AT AF and non standard protocol detection with RJ45 POE tester. Displays power voltage, power pins, and pin polarity. Built in 1Gbps network port and various network tools like IP address discovery, IP address scanning, LLDP detection, port refreshing, PPPoE dialing, etc.
Specification:
Item Type: Network Cable Tester
Model: LT 600
Small Memory Card: Not include
Transmitter Battery: 1 x Rechargeable li ion battery(4000mah)
Receiver Battery: 1 x Rechargeable li ion battery(2000mah)
UTP Cable Tester: Yes
RJ45 TDR Cable Testing: Yes
Length Measurement: Yes
Cable Tracker: Yes
PoE++ Detection: Yes
Link Rate Delay: Yes
Port Flashing: Yes
IP Exploration PPPOE: Yes
Routing Tracking LLDP: Yes
4in IPS Touch Screen: Yes
FTP Server: Yes
Non Contact AC Voltage Detection: Yes
Rechargeable Battery: Yes
Longitudinal Federated Learning: No
Optical Power Meter: No
Digital Multimeter: No
Technical Design Review: No
Level Meter: No.
Package List:
1 x Network Tester
1 x Storage Bag
1 x Lanyard
1 x USB Cable
3 x Cables
1 x Screw Driver
1 x Screws
1 x Accessory
1 x User Manual
1 x Cable Tracker
