Feature:
1. [Quick Connect Ports] The LED strip controller features convenient wiring, simply lift the port clamp, insert cables, and press down to secure. This design eliminates tools for effortless setup of light strips
2. [5 Modes] This controller supports 5 LED strip connection modes, including RGBCCT, RGBW, RGB, CCT, and dimmer, and the different colors of the indicator corresponding to different functions
3. [Power On State Setting] Long press the OPT key for more than 5s, the indicator will flash in light blue, go off for 4s, and then return to its previous color, the power on state setting will be completed
4. [Optional Frequency] To adapt to different power sources, the frequency of this LED controller can be selected as 600Hz, 800Hz, 1000Hz, 2000Hz, 4000Hz, and 8000Hz to minimize buzzing
5. [Current and Applications] The maximum total output current is 20A, the maximum single channel current is 15A. This LED controller can be connected to longer light strips, such as 15 to 20 meters
Specification:

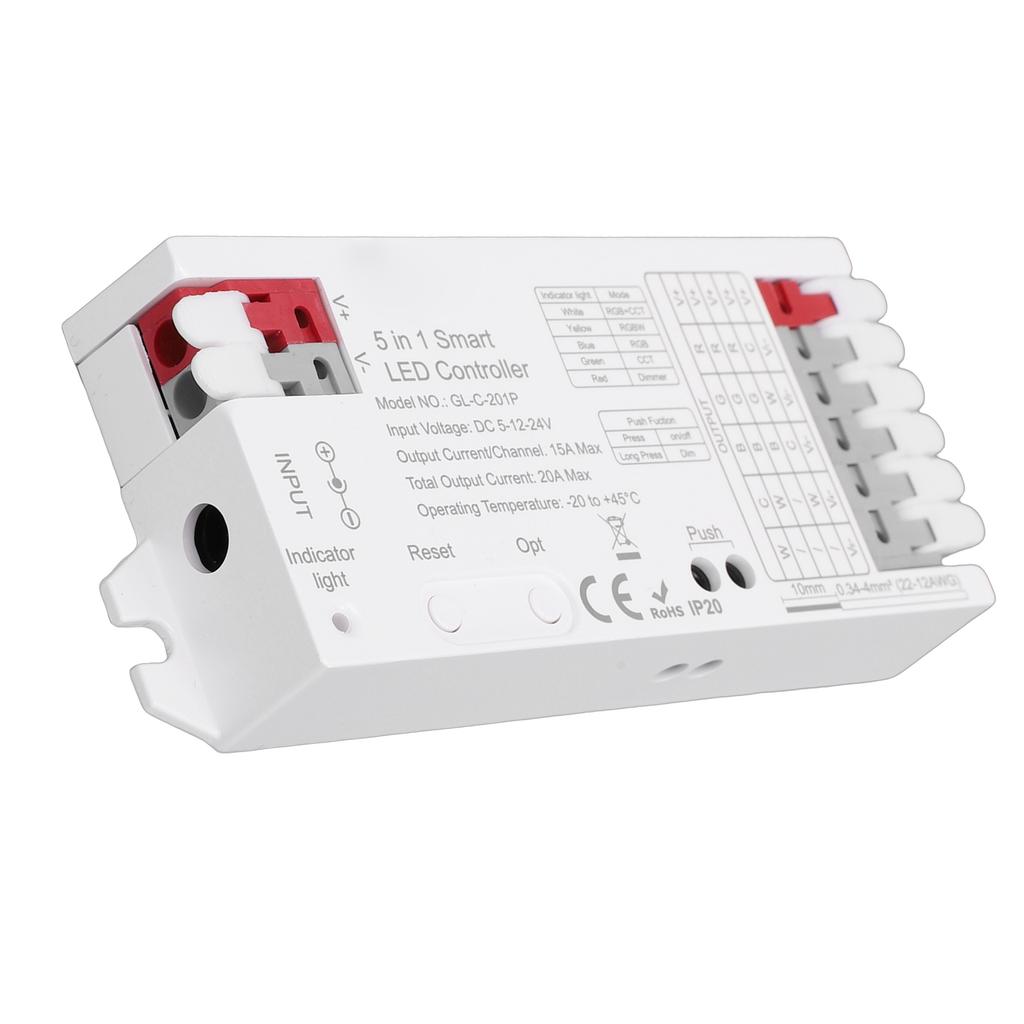

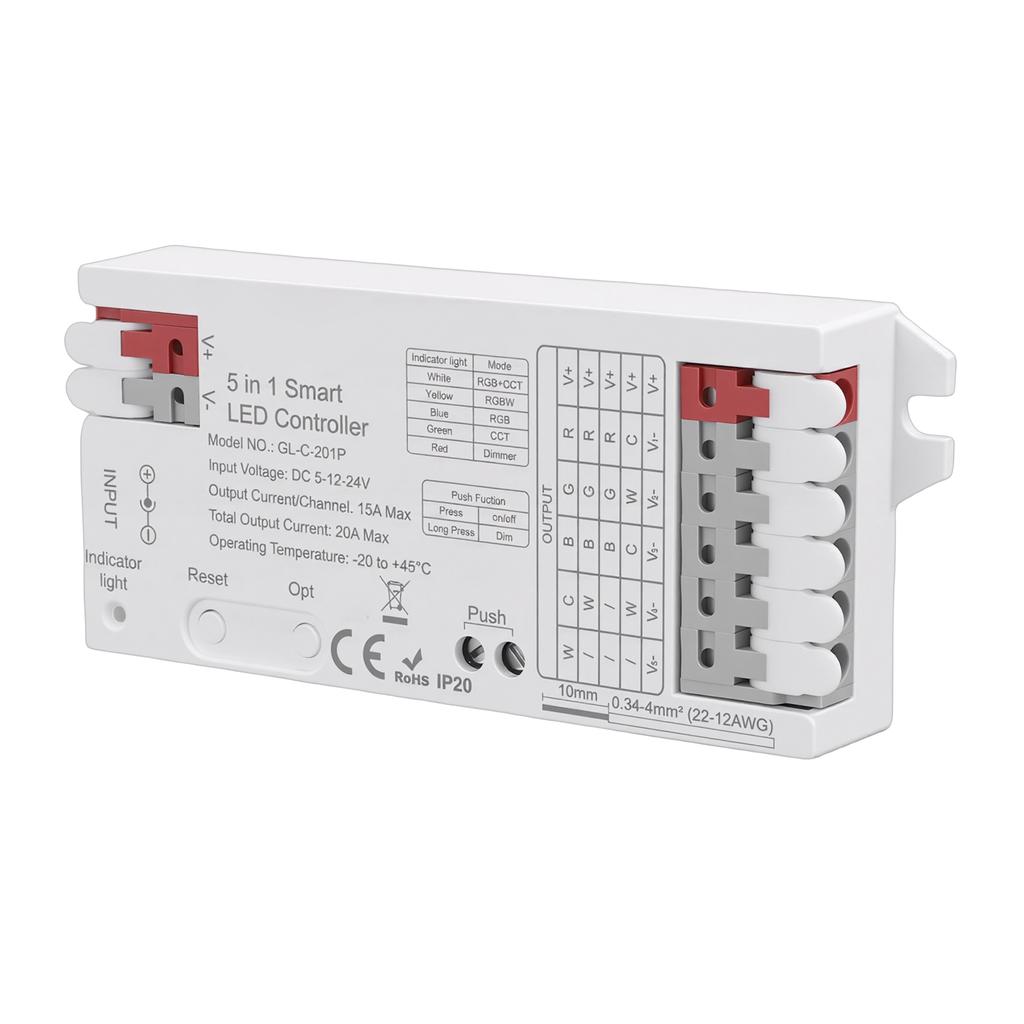

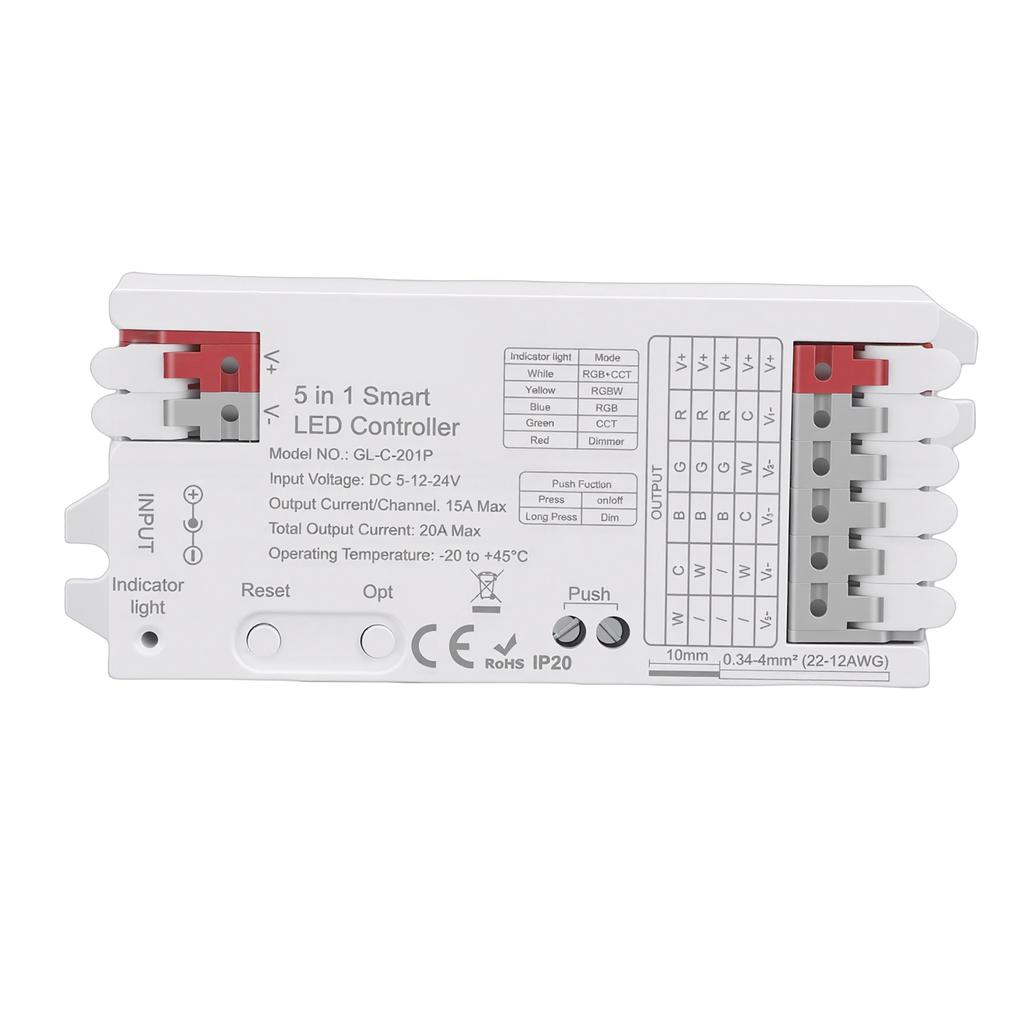

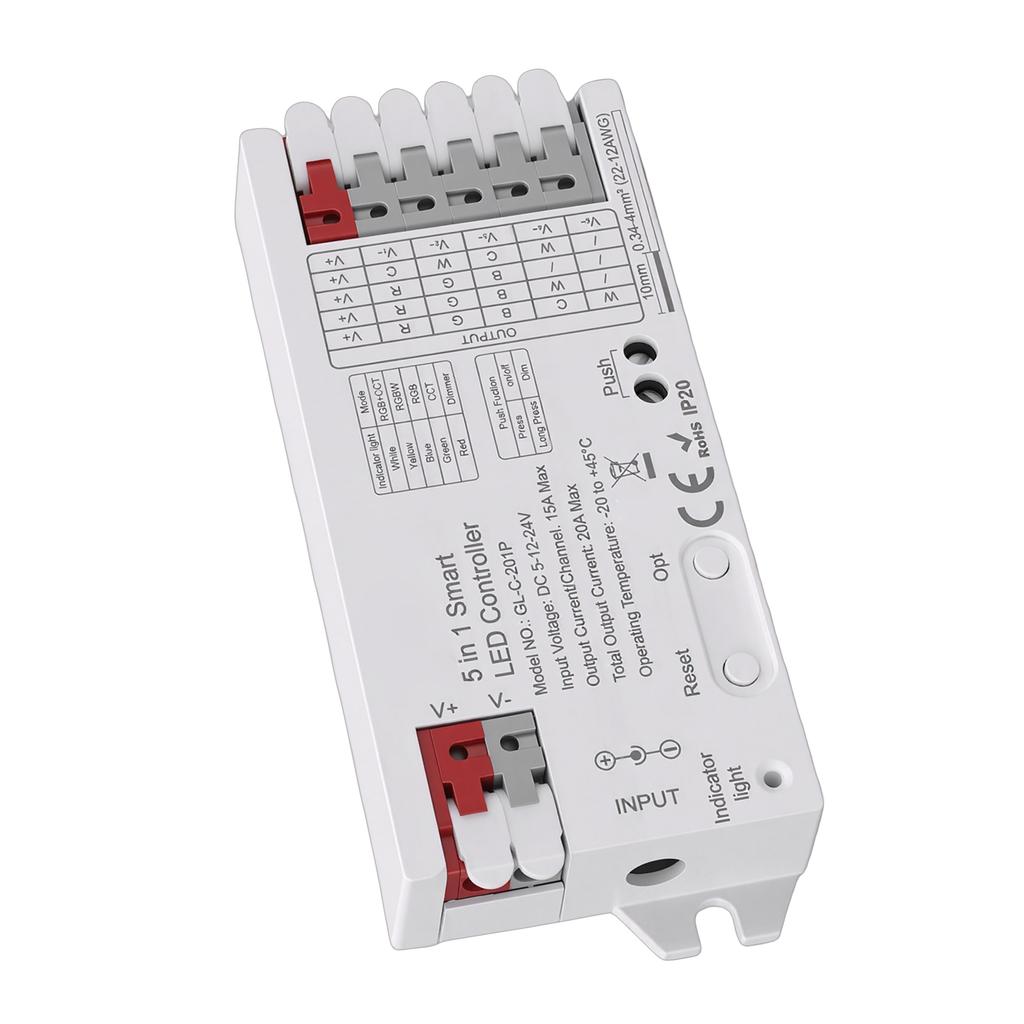

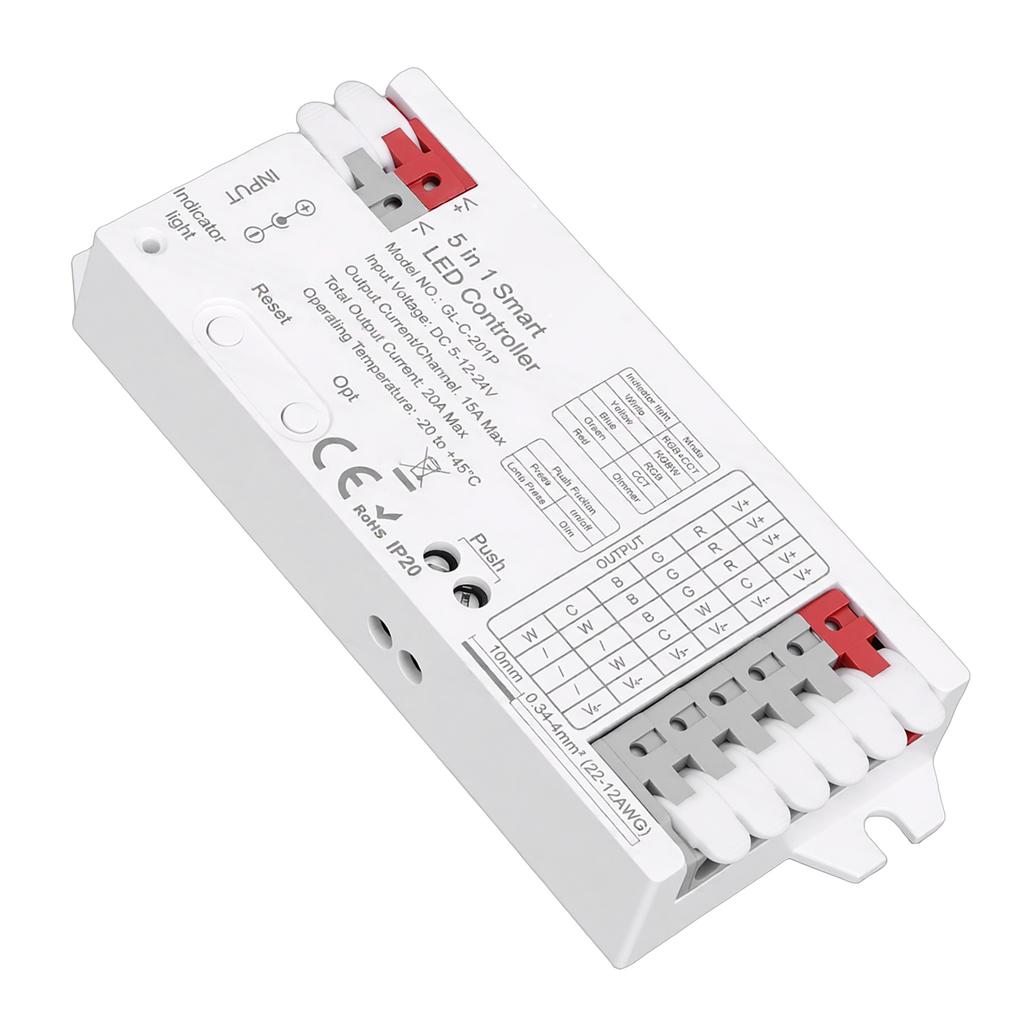

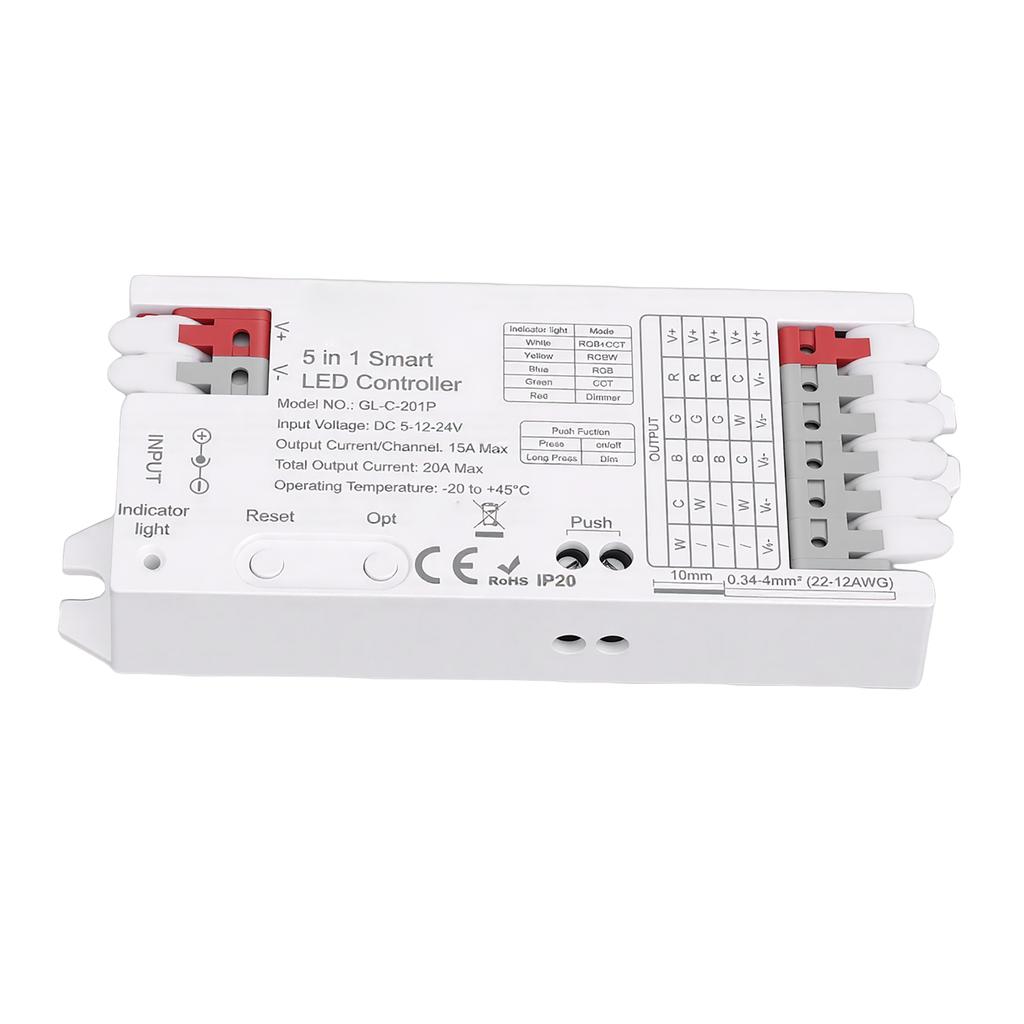

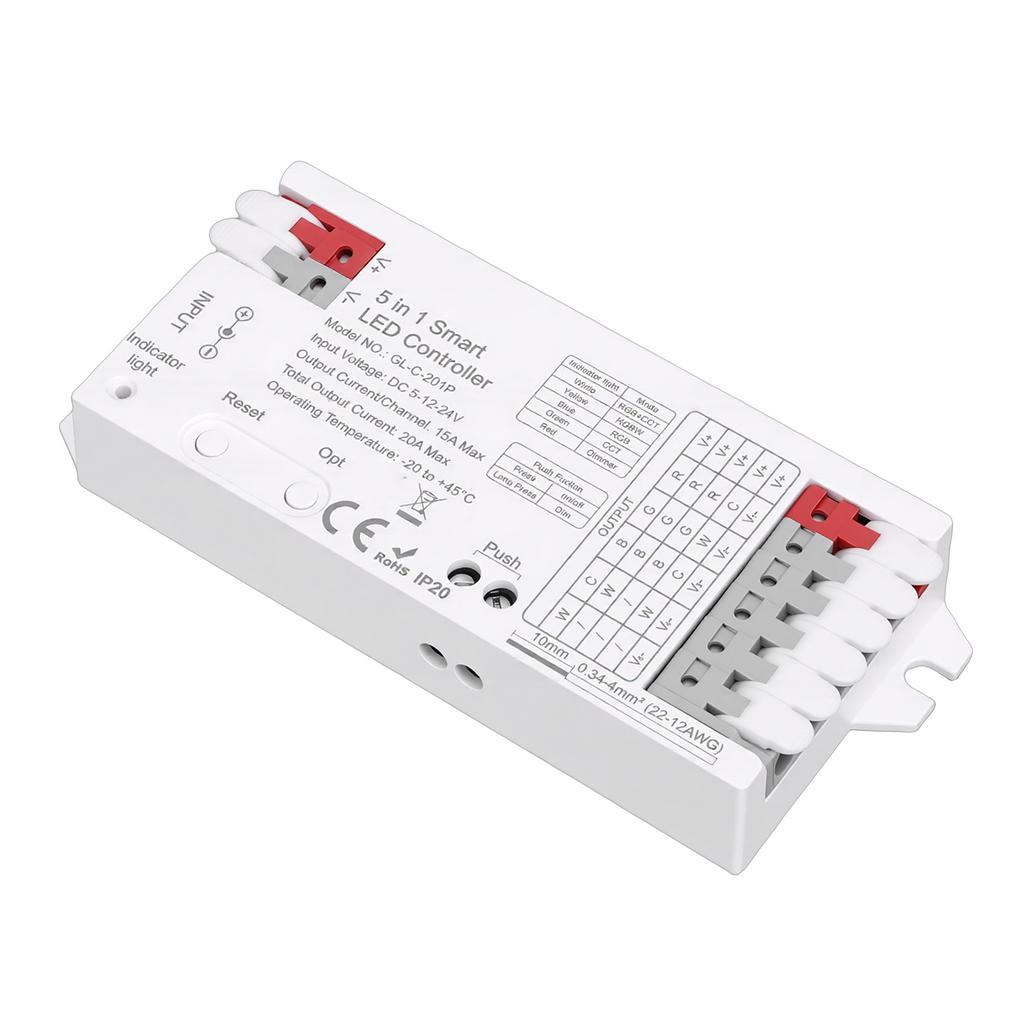

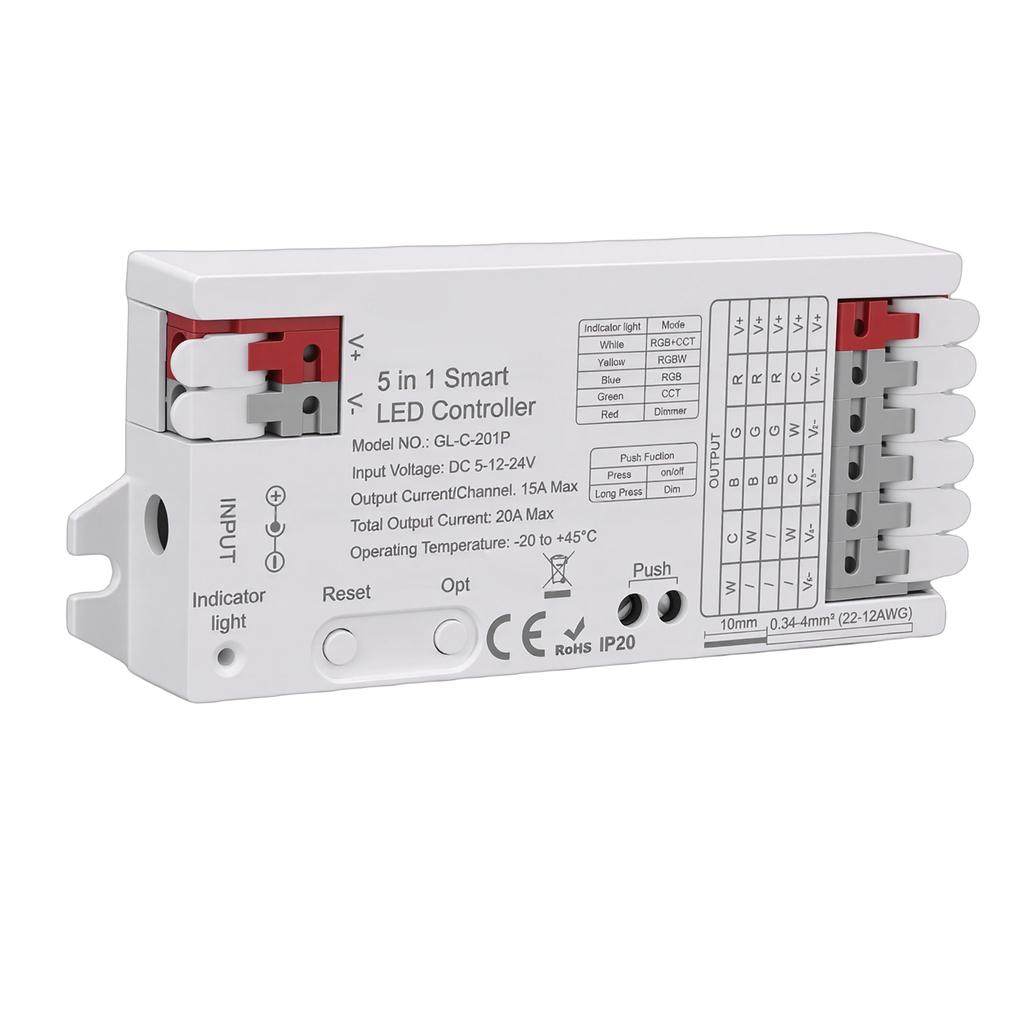

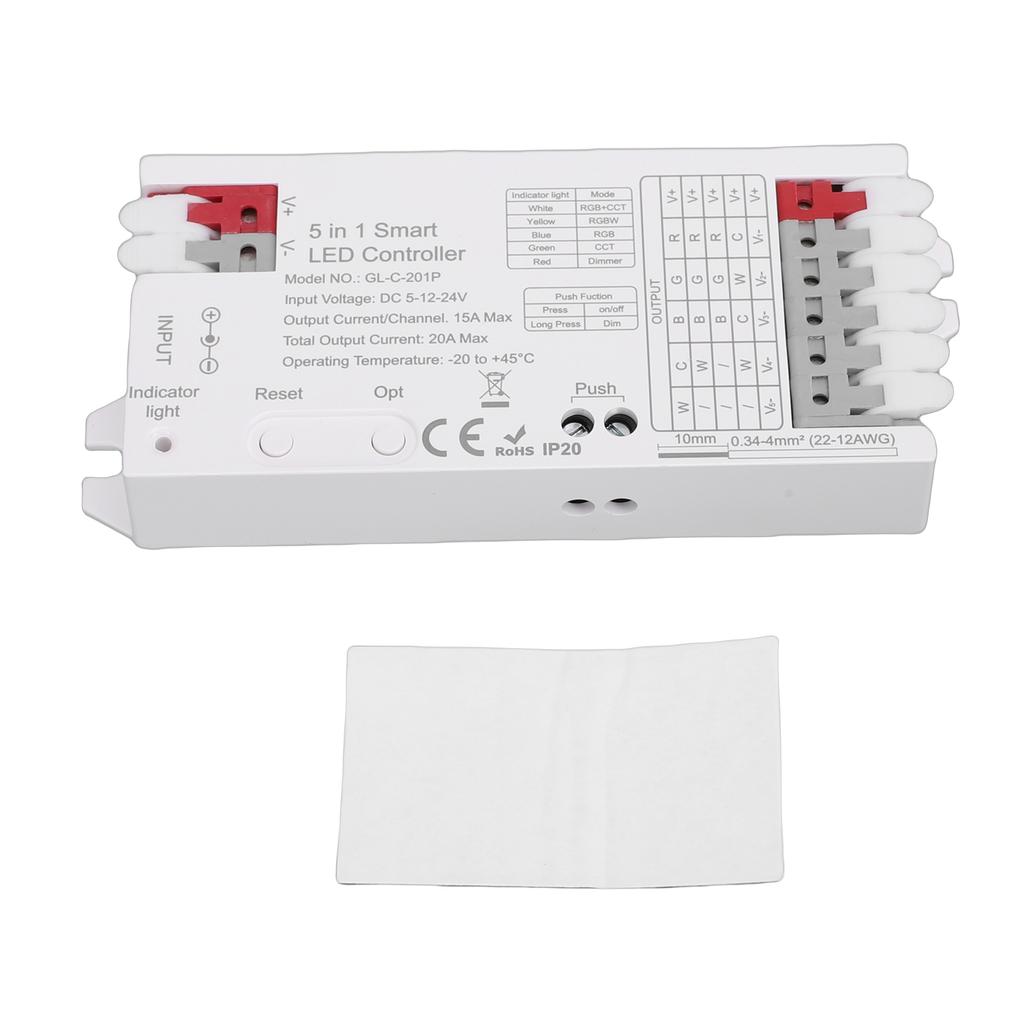

Item Type: LED Strip Controller
Product Material: PC
Maximum Current per Channel: 15A
Maximum Total Current: 20A
Maximum Total Power: 480W
Features:
1.Support for ZIGBEE + 2.4G + PUSH switch multiple control methods
2. Support various light strips such as RGB, CCT, RGBW, RGB, WW CW, and DIMMER (need to use in conjunction with a gateway), and can be easily switched through OPT.
3. The maximum current of a single channel is 15A, and the maximum total current is 20A
4. It can adjust the frequency to reduce noise, and has power on status settings and scene modes
5. Simple wiring, more convenient than the screw pressing wiring
6. With reset key, short press the RESET key to change frequency and hold it for 5 seconds to reset the controller.
7. Short press OPT to change between 5 modes: RGBCCT, RGBW, RGB, WW CW, Dimmer, and long press for 5 seconds to reset the controller.
8.PUSH function, short press to power on or off; Long press to adjust the brightness (assumption: Long press to increase brightness, release and long press again to decrease brightness).
9. Indicator lights of different colors correspond to different functions
Product Size: Approx. 108 x 45 x 18mm 4.3 x 1.8 x 0.7in.
Package List:
1 x LED Strip Controller
1 x Double Sided Sticker
1 x User Manual
Note:
It needs to be used in conjunction with a gateway(not included).
