The microscope comes with lighting that is perfect for all working conditions, thanks to the ability to adjust its intensity. 10A will be ideal for professional work in electronics repair, as well as for ordinary observations conducted by biologists, geologists, jewelers, and more.. Because the object is visible in three dimensions, more detailed observations can be made and its dimensions can be precisely measured. The microscope optics have a C-mount thread (25mm)
Very large working distance allows for the examination of both flat specimens and larger objects. Example application:Soldering of electronicsIndustrial inspection,inspection of computer parts,inspection of telecommunication module,tool for sciencelaboratory research,medical analysis,tool for school research,insect examination,plant examination,skin examination,textile inspection,jewelry inspection,collection / coin inspections,Print inspection,

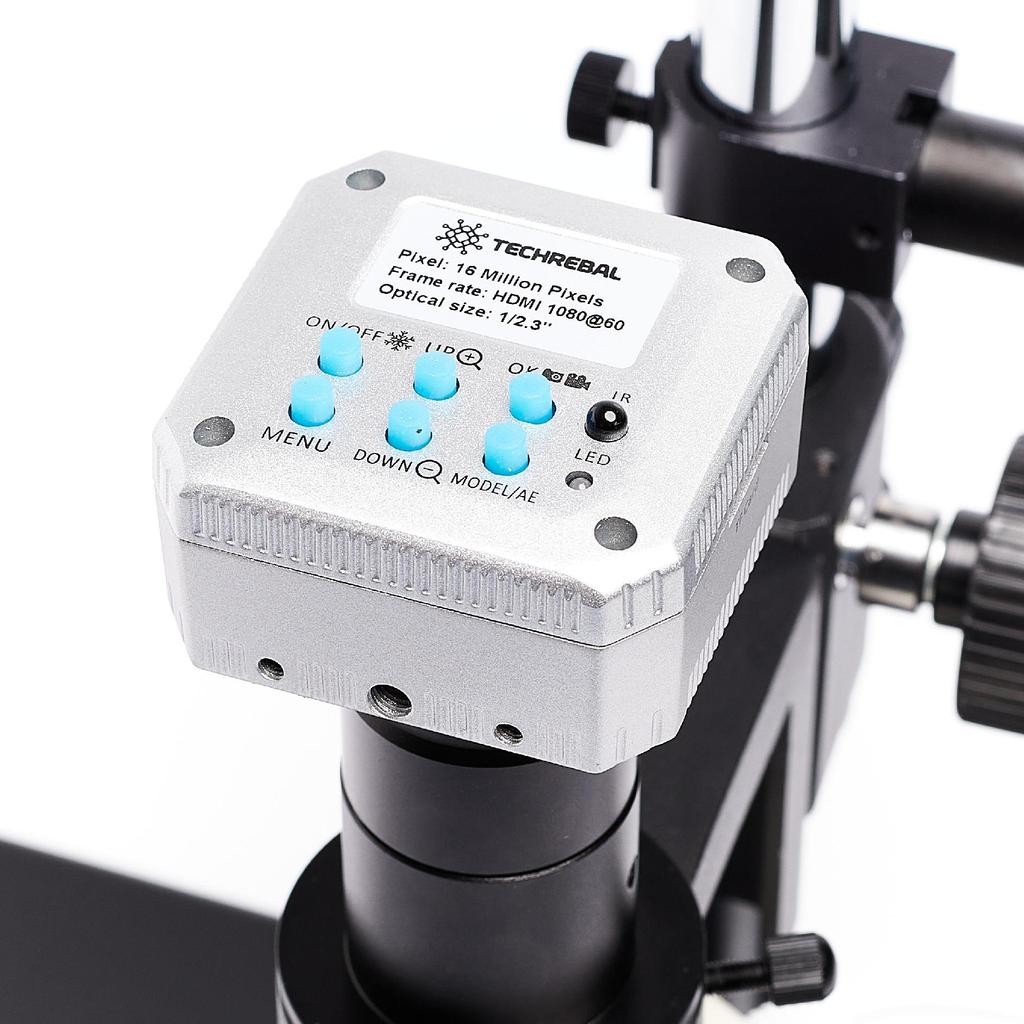

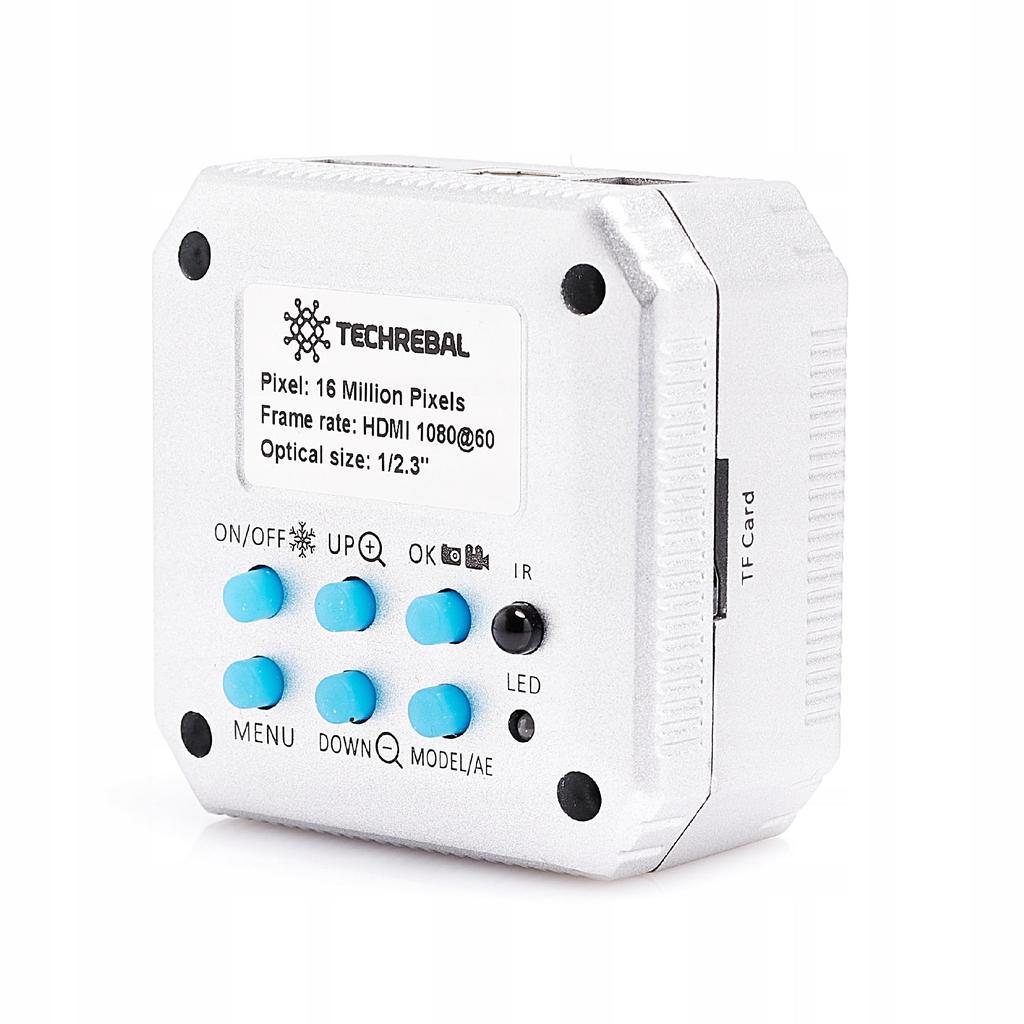

T616 Techrebal 4K HDMI&USB&MicroSD 16MP Camera for MicroscopeThe camera enables observation of microscopic objects. It is characterized by high functionality and quality. We connect the camera to the computer using a USB cable, or using an HDMI cable directly to the monitor.. Allows displaying the image from the microscope on the screen in real-time, in FullHD quality, and saving photos or videos in 4K quality, on a MicroSD card, or directly to the computer.. Additionally, the external program allows for all object measurements. (below the description you will find screenshots showing the capabilities of the camera and the program)Provides excellent color reproduction with low noise levels and is a great choice wherever color fidelity is important.Specification:Sensor: 16MP Effective pixels in real time:1920 * 1080P (FullHD)Frame rate:60fps @ 1080PImage interface:USB / HDMI interface - can be displayed at the same time Operating temperature:0-60 degrees CelsiusMicroSD card support, with a maximum capacity of 64GBEnglish language menuDigital zoom:5x digital zoomPhoto recording resolution:4608 * 3456 - 4K (for TF card and USB)Video resolution:1920 * 1080 @ 30 FPS (for HDMI USB)video format:Assembly AVIGwint:C-mount (25mm)

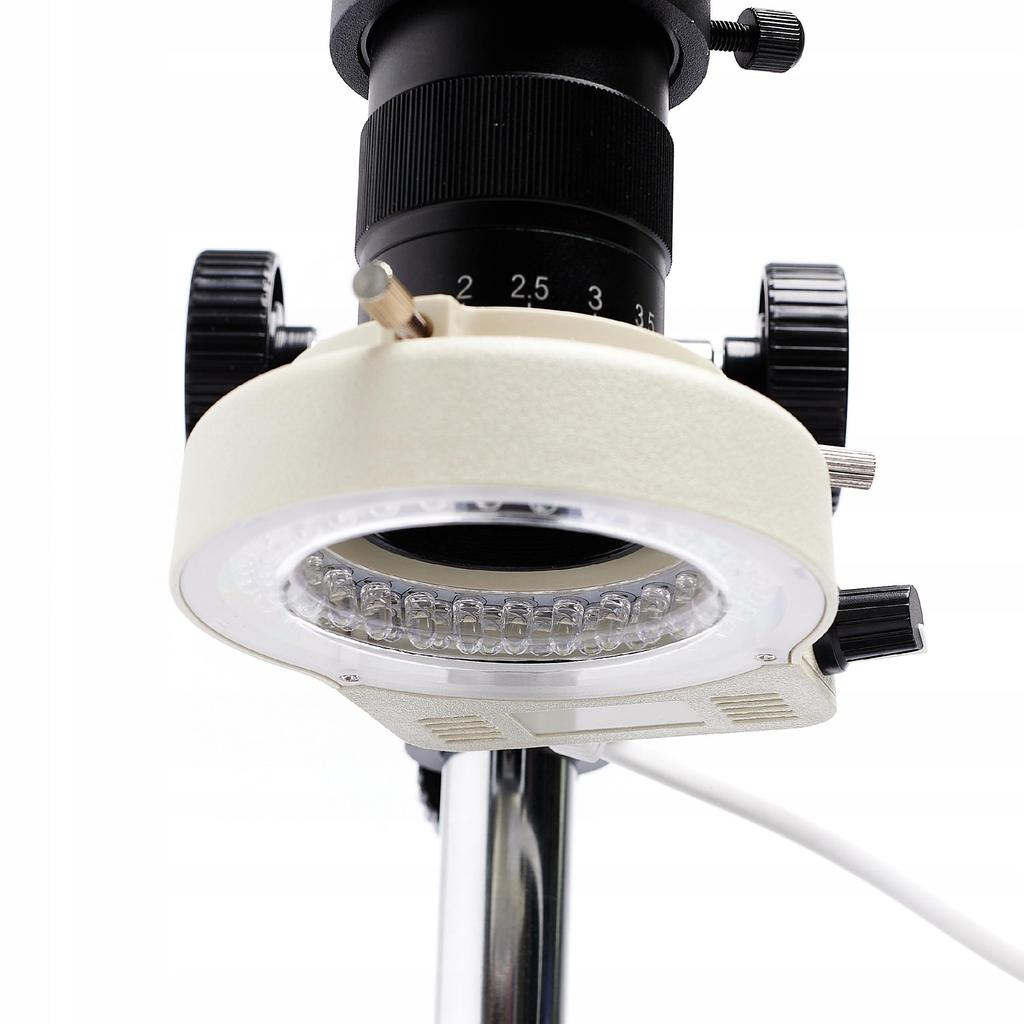

Lighting 56x LED 60mmLight source with LEDs with dimmer. The diameter of the ring is 60 mm on the inside and 95 mm on the outside, respectively. The ring illuminator provides cool, even, intense, and focused lighting without shadows. Specification:Working distance 40 ~ 160Max illumination 60,000 luxLEDs x 56 (Very long-life diodes)Each LED with a brightness of X3500 mcdBrightness continuously adjustableBright white colorEffective optical distance 75mmEffective optical diameter 30mmExternal dimensions: 95 mm, internal dimensions: 60 mmThread of mounting screws :48 * 0.75Moc 8WVoltage: AC input 90V-264V, DC output 12V

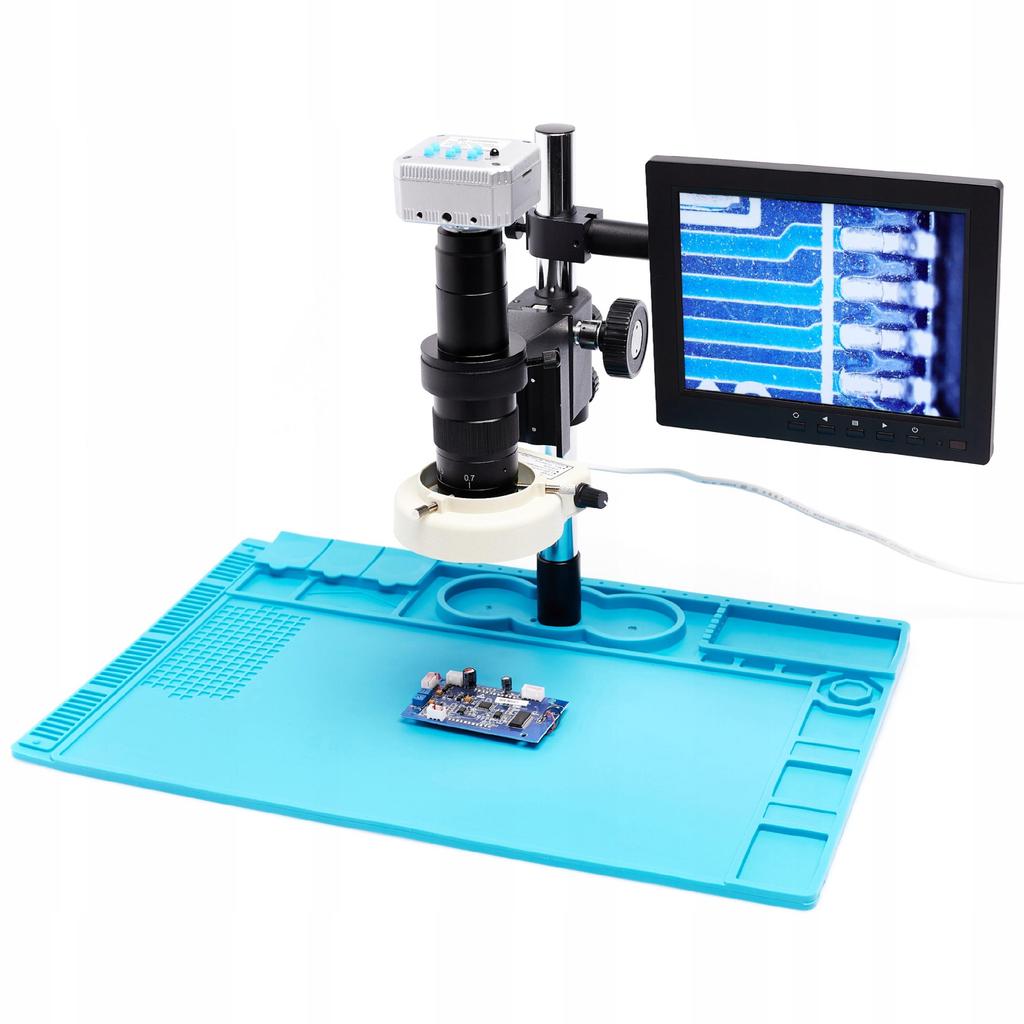

Included:Complete Techrebal 10A MicroscopeAdjustable 56X LED LightingTechrebal T616 Camera 4K HDMI&USB&MicroSD 16MPBNC CablePower Adapter for CameraHigh-Quality 8-inch HD Display for MicroscopePower Adapter for DisplayDisplay Mounting BracketBase with Anti-static Mat for Microscope 480x320mm TE-506
The microscope has the possibility to expand the working space; by using appropriate lenses, we can obtain even several times the offered working space or magnifications.. These types of accessories are available on our other auctions. Below is a preview of the image from the microscope; during real-time observation, we obtain an image in FullHD quality.
