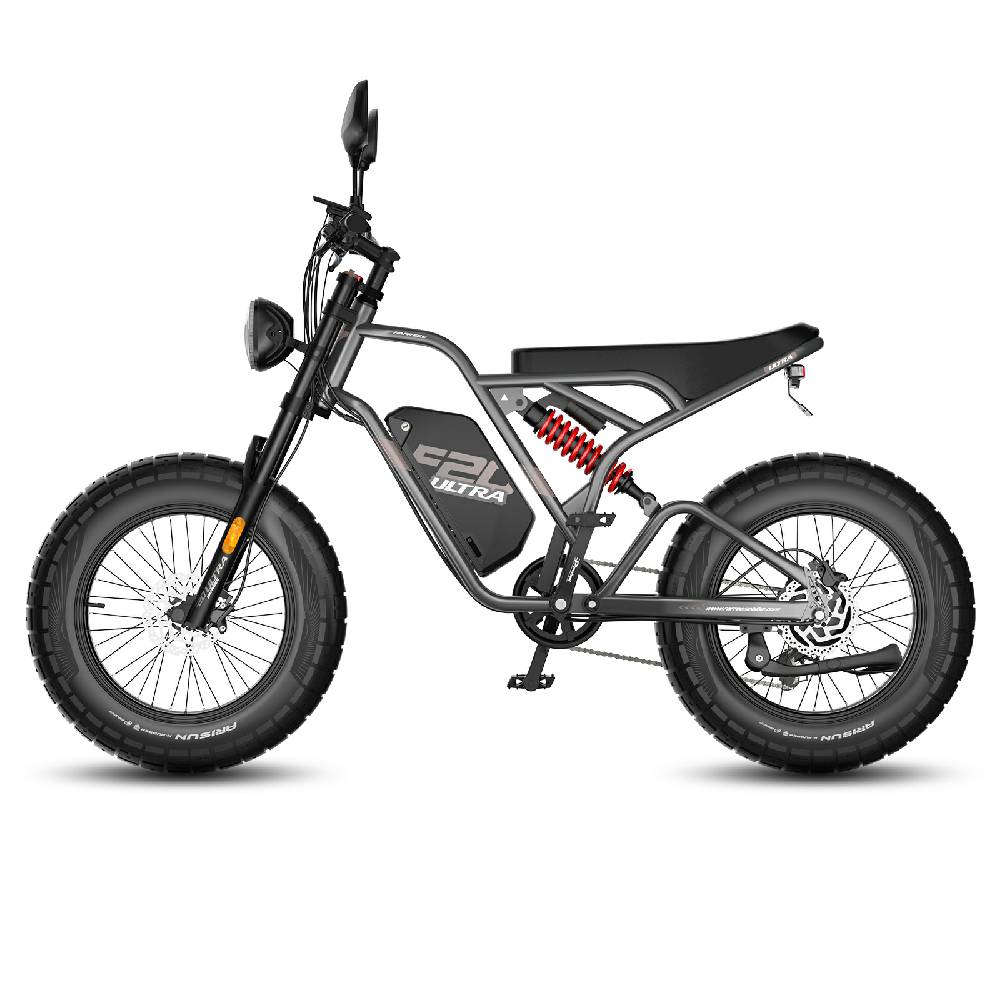

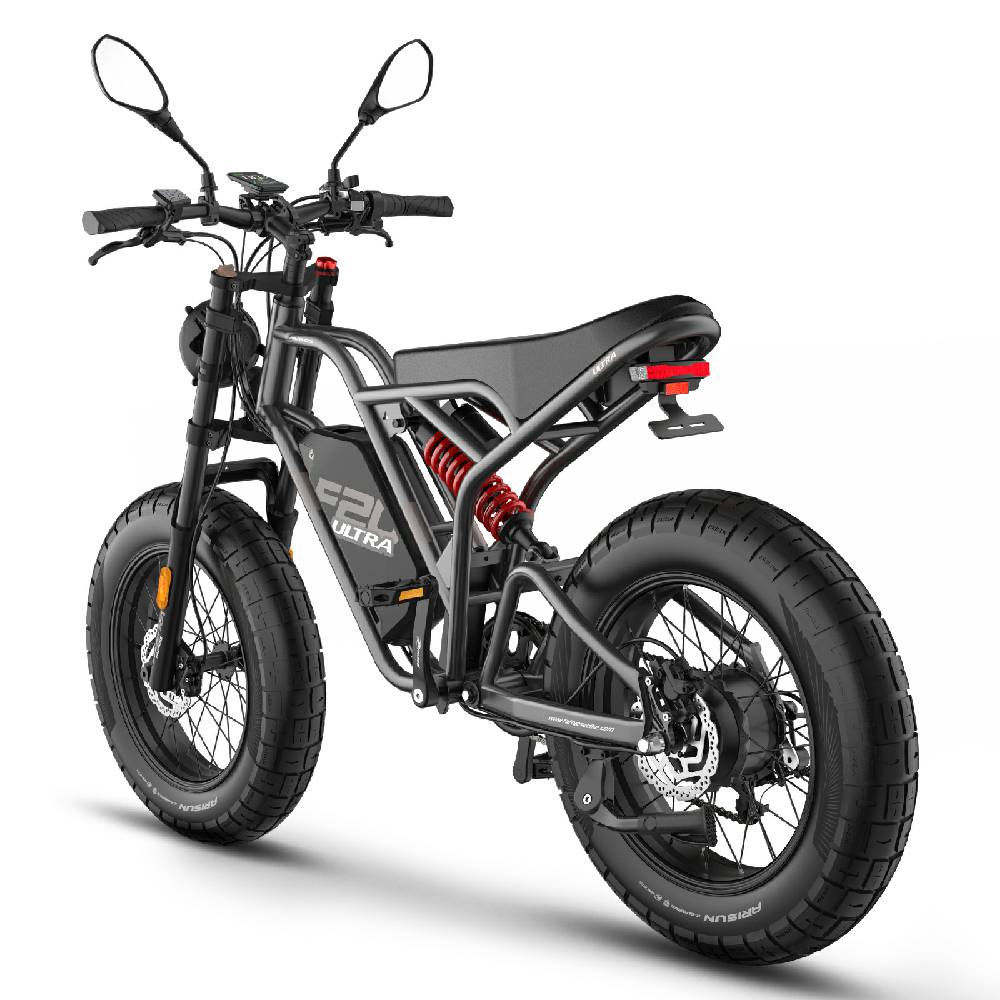

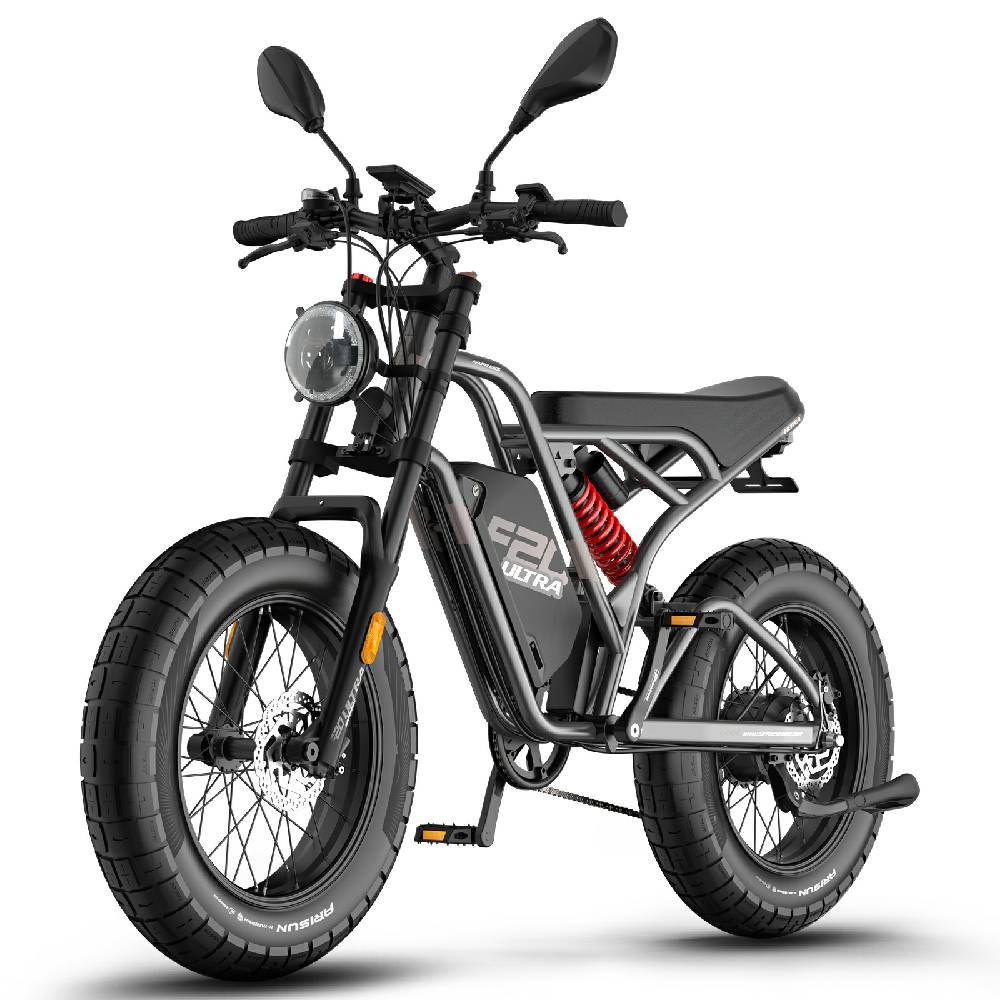

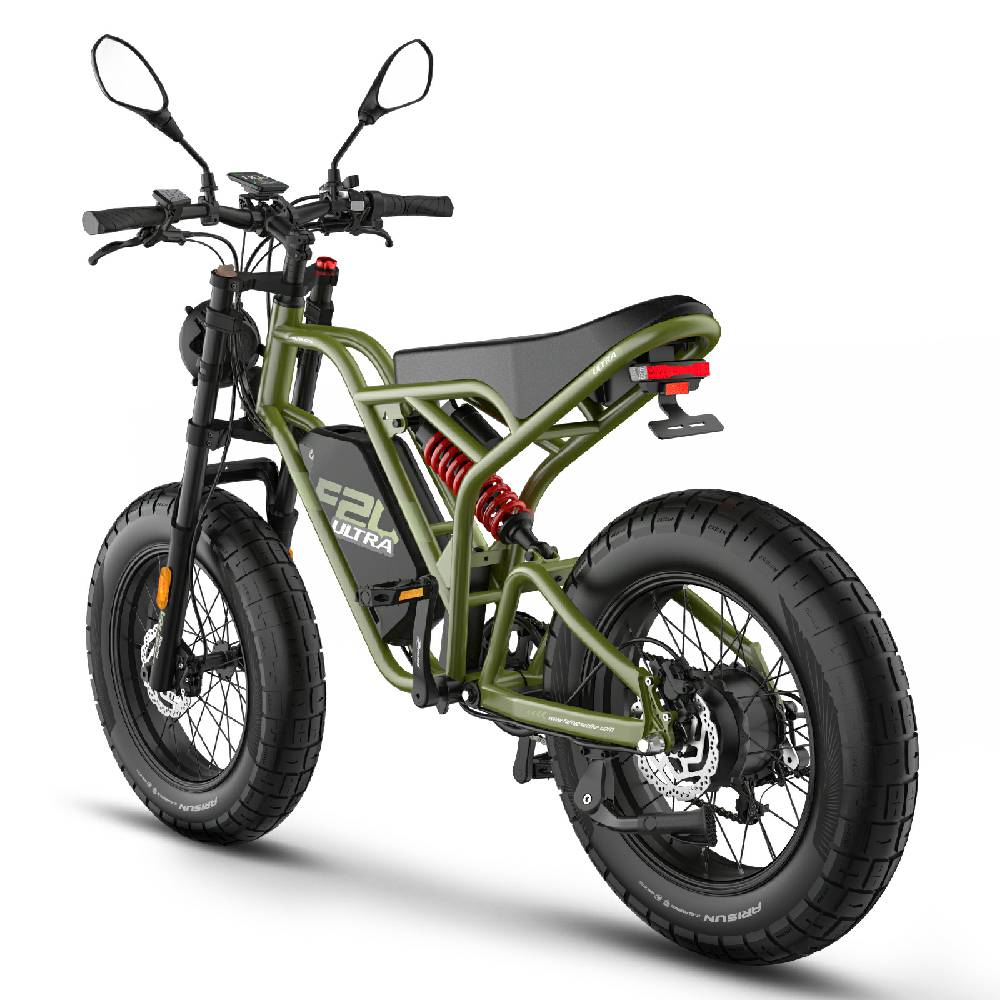

Fafrees F20 Ultra 20"x5.0" Fat Tire Electric Bicycle

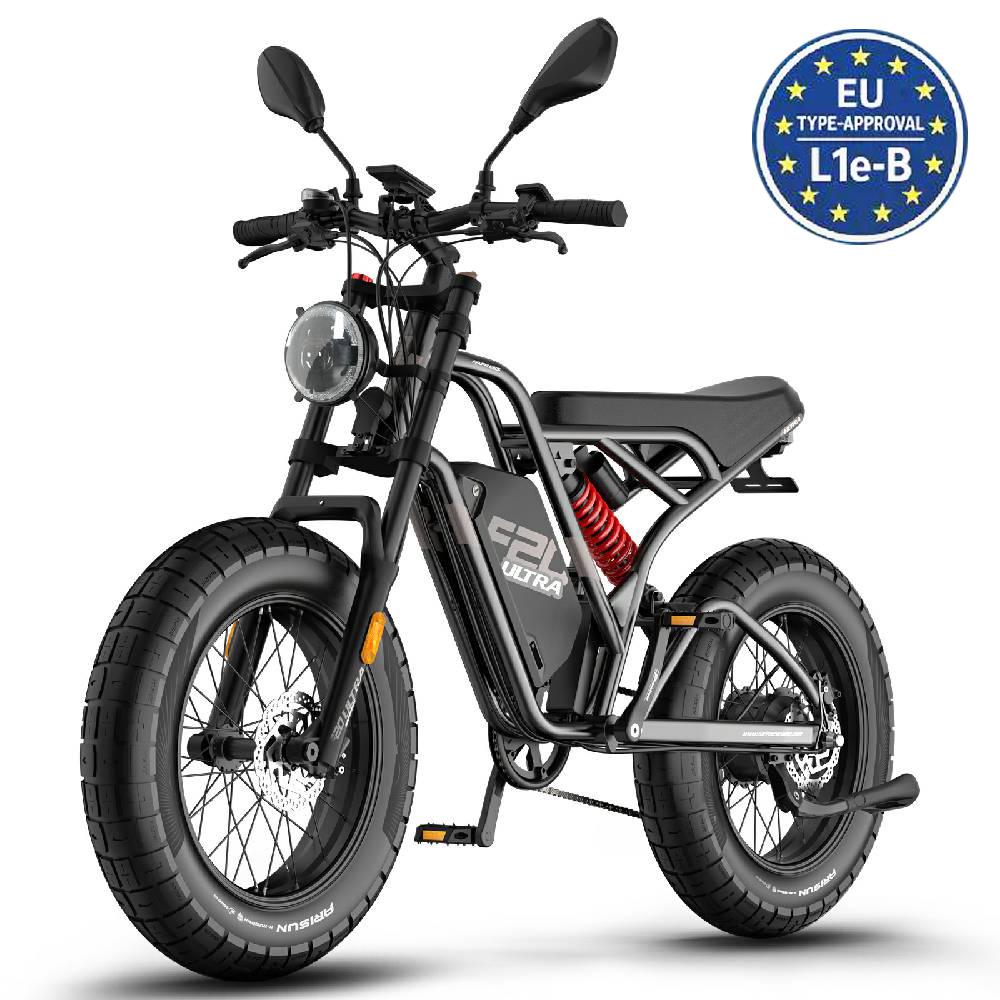

[📜EU COC Certification] This product has passed EU COC certification, meeting European road safety and registration standards, and supports compliant registration and use.
[⚡750W Powerful Motor] Provides ample power output, easily handling steep slopes and complex road conditions.
[🚀Top Speed 40-45km/h] Balances power and handling, meeting the needs of efficient commuting and light off-roading.
[🔋48V 25AH High-Capacity Battery] Equipped with a high-energy-density lithium battery system, providing a range of 80-100km in pure electric mode and extending to 100-140km in assisted mode.

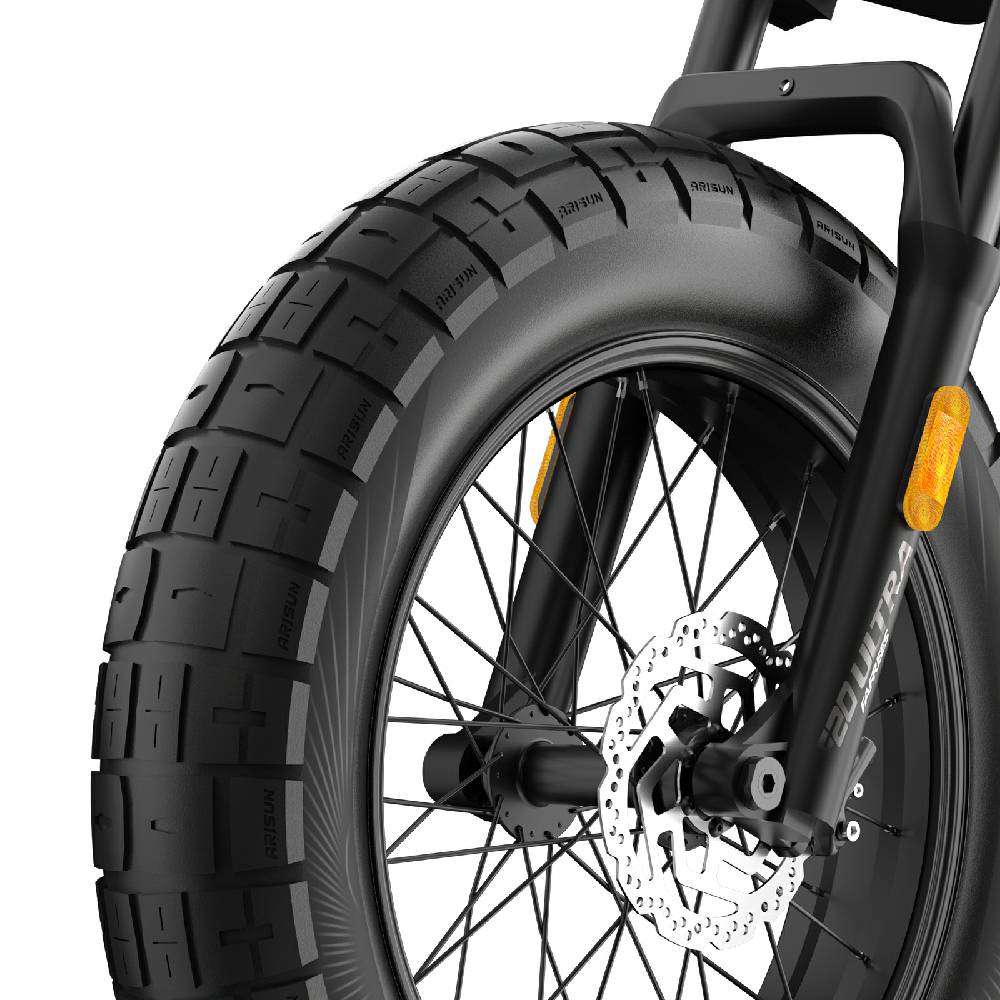

[🛞20"x5.0" Extra-Wide Fat Tires] Utilizes extra-large anti-slip tires, providing excellent grip and cushioning performance, suitable for various complex road surfaces such as sand and snow.
[⚖️Reinforced aluminum alloy frame] Features a high-strength structural design to ensure safe and reliable riding.
Detailed parameters:
Brand: FAFREES
MODEL: F20 ULTRA
Type: Fat tire Moto Ebike
Color: Satin Black / Gunmetal Black / Olive Green
Dimensions:
Unfolded size: 182*74.5*111 cm
Folded size: No folding function
Adjustable height of handlebar: 111cm
Adjustable height of seat: 84cm
Package size: 151*33*89cm
Tire size: 20*5.0 inch
Pedal-ground distance: 16.5cm
Recommend rider heights: 160-200cm
Net weight: 40kg
Package weight: 48.5kg
Battery weight: 5.3kg
Load capacity: 130kg
Frame material: Aluminum alloy
Tire Type: Air tire
Default maximum speed: 40-45KM/H
Max range for assisted mode: 120-140KM (25km/h, 70Kg, 22℃. Flat road)
Max range for pure power: 80-100KM
Max climbing Gradability: 20°
Battery type: Lithium-ion (LG cell 21700)
Rated voltage (V): 48V
Input voltage (V): 54.6V
Battery capacity (AH/Wh): 25Ah / 1200Wh
Undervoltage protection value (V): 41±1V
Overcurrent protection value (A): 25±1A
Motor rated power (W): 750W
Motor peak output power (W): 1200W

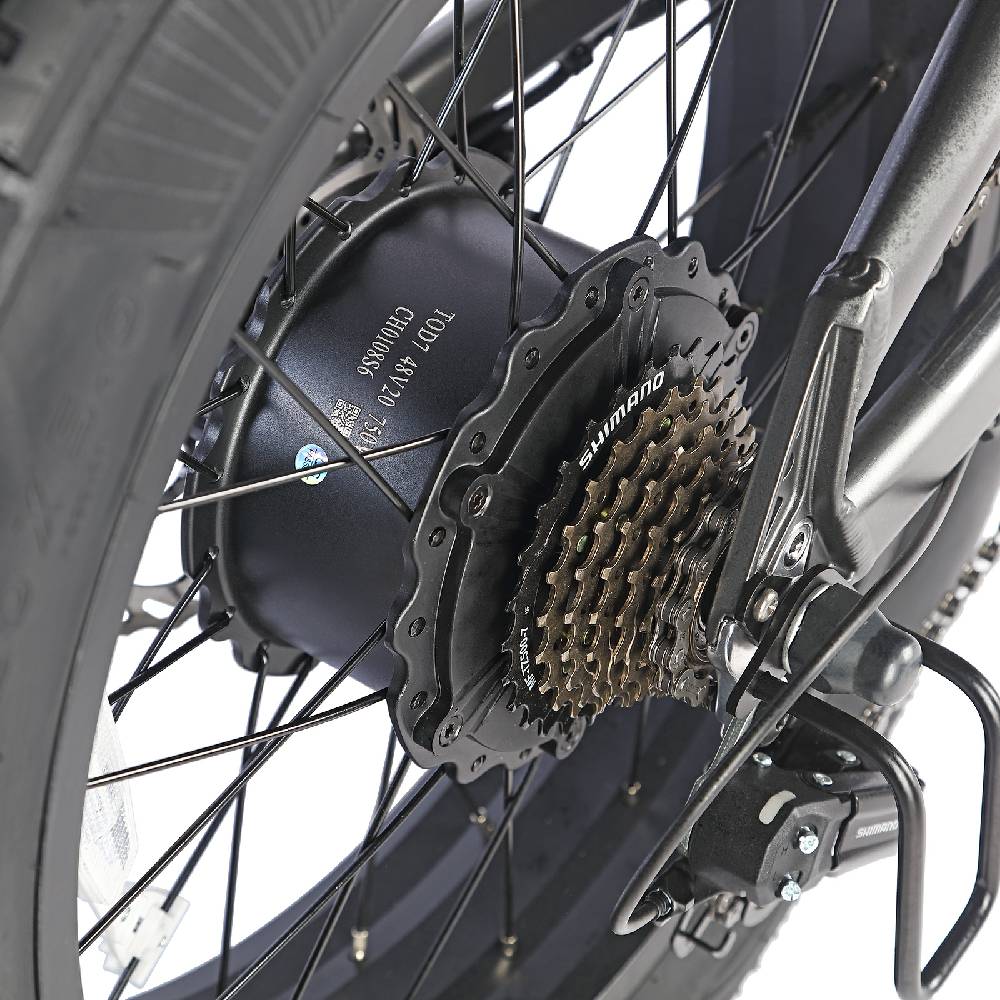

Motor location: Rear drive
Maximum torque (N.m): 79N.m
Input voltage (V): 110-240V
Output voltage (V): 54.6V
Rated current (A): 3A
Charging time: 8h

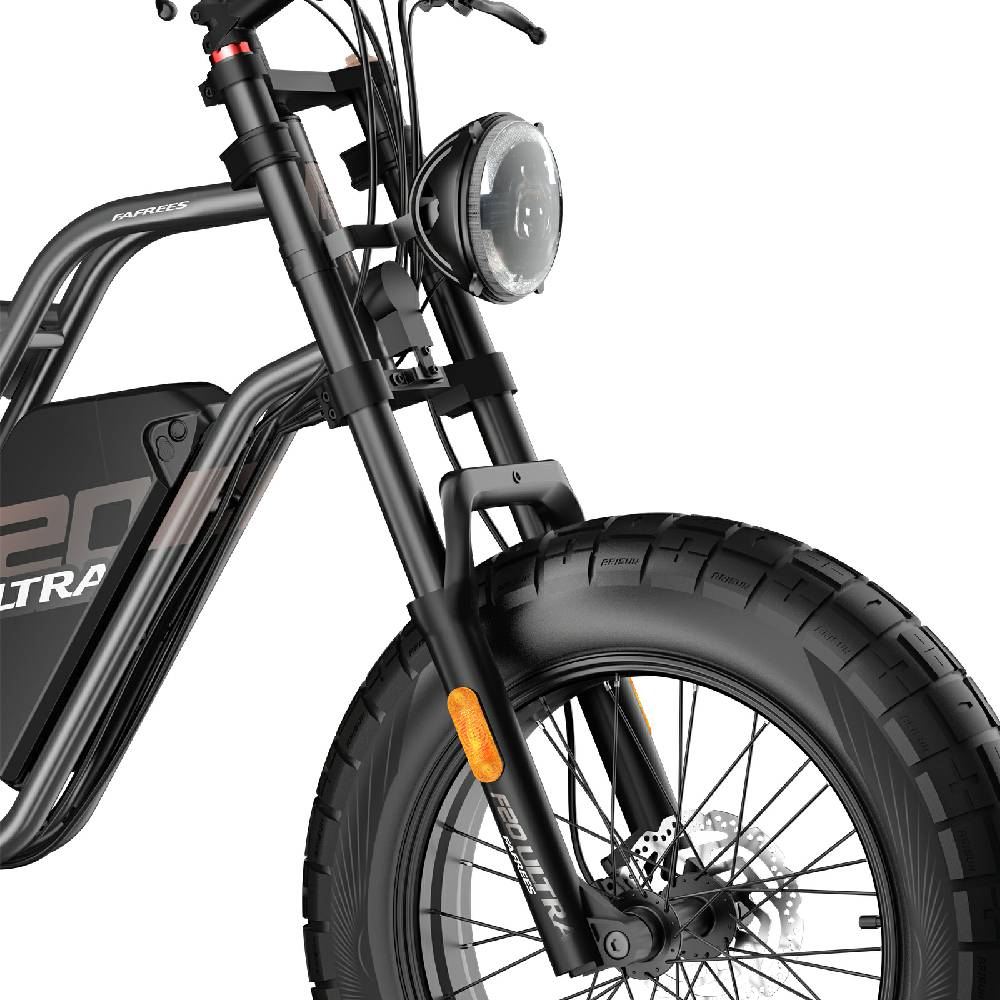

Fork Type: Hydraulic shock fork
Fork travel distance: 100mm

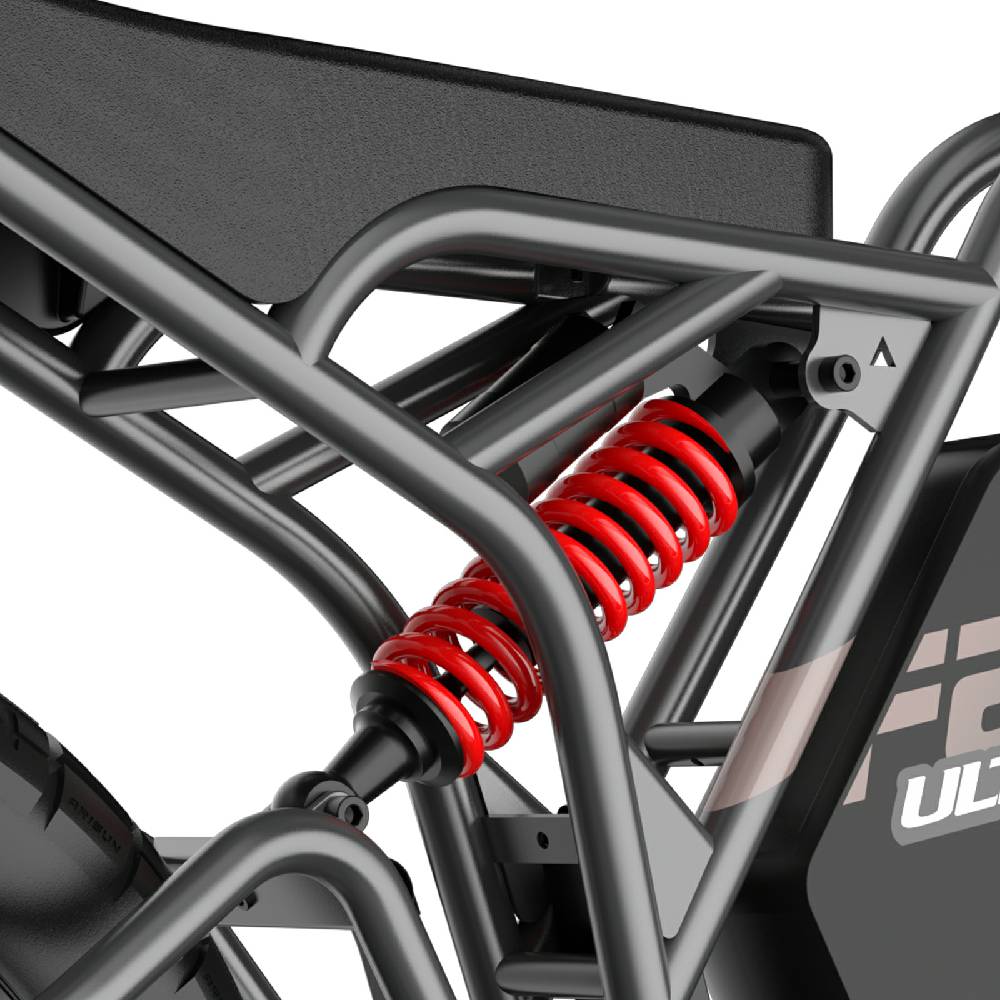

Type of rear shock: Hydraulic shock absorber
Rear shock travel distance: 100mm

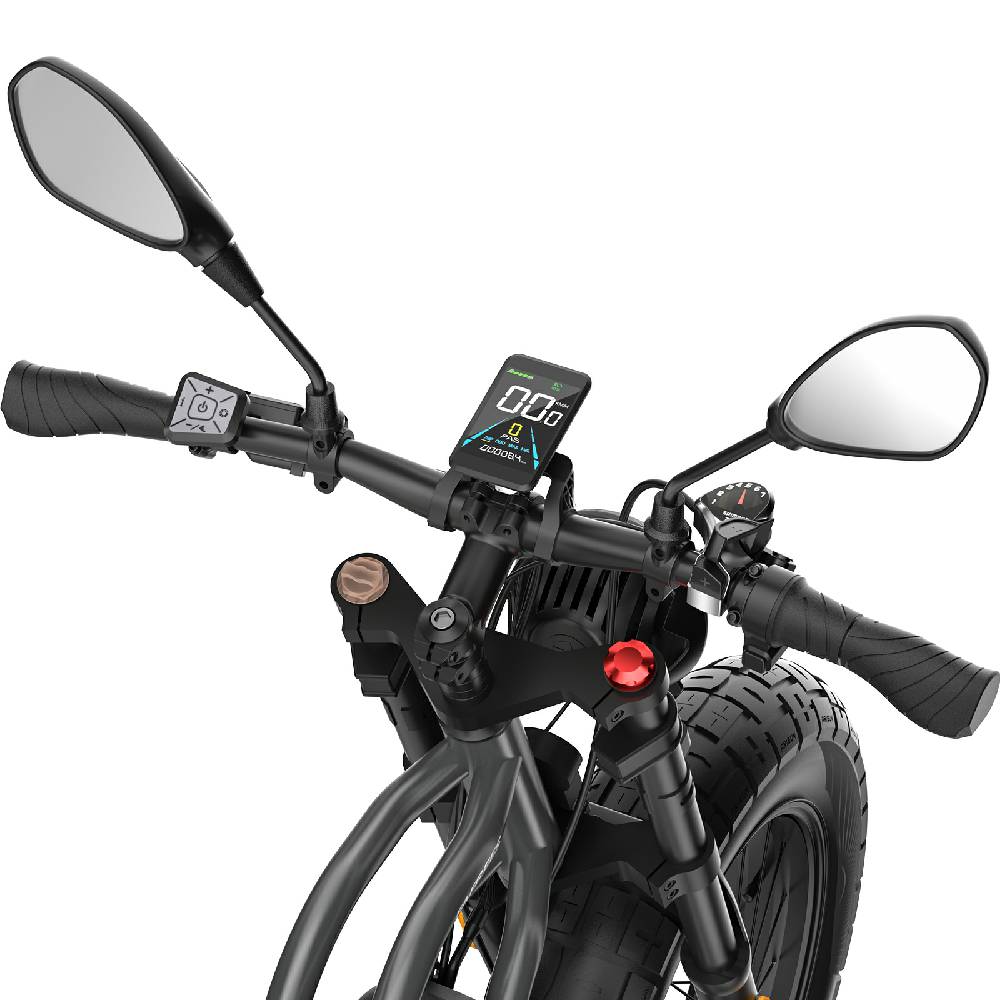

Display type: LCD Display
6km/h walk assist mode: None
Cruise control: None
APP control: None
PAS level: 0-5

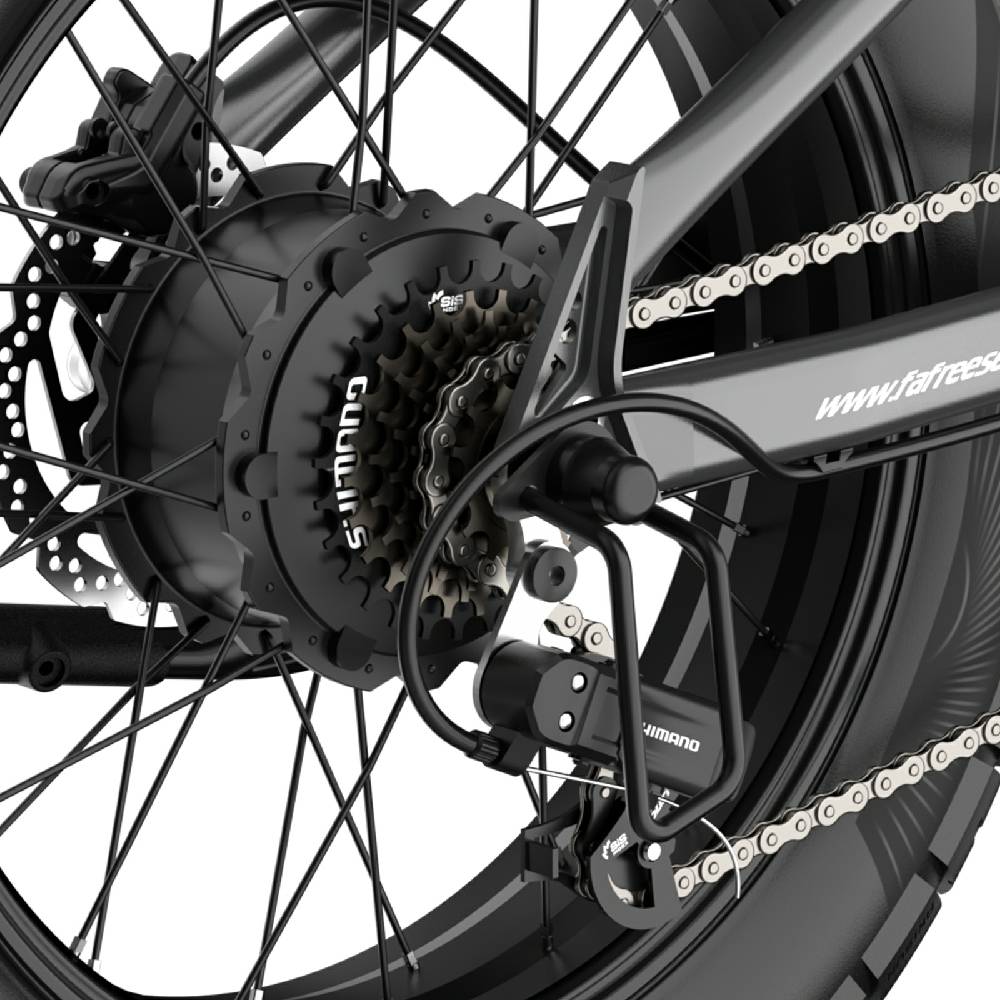

Transmission: 7 Speed

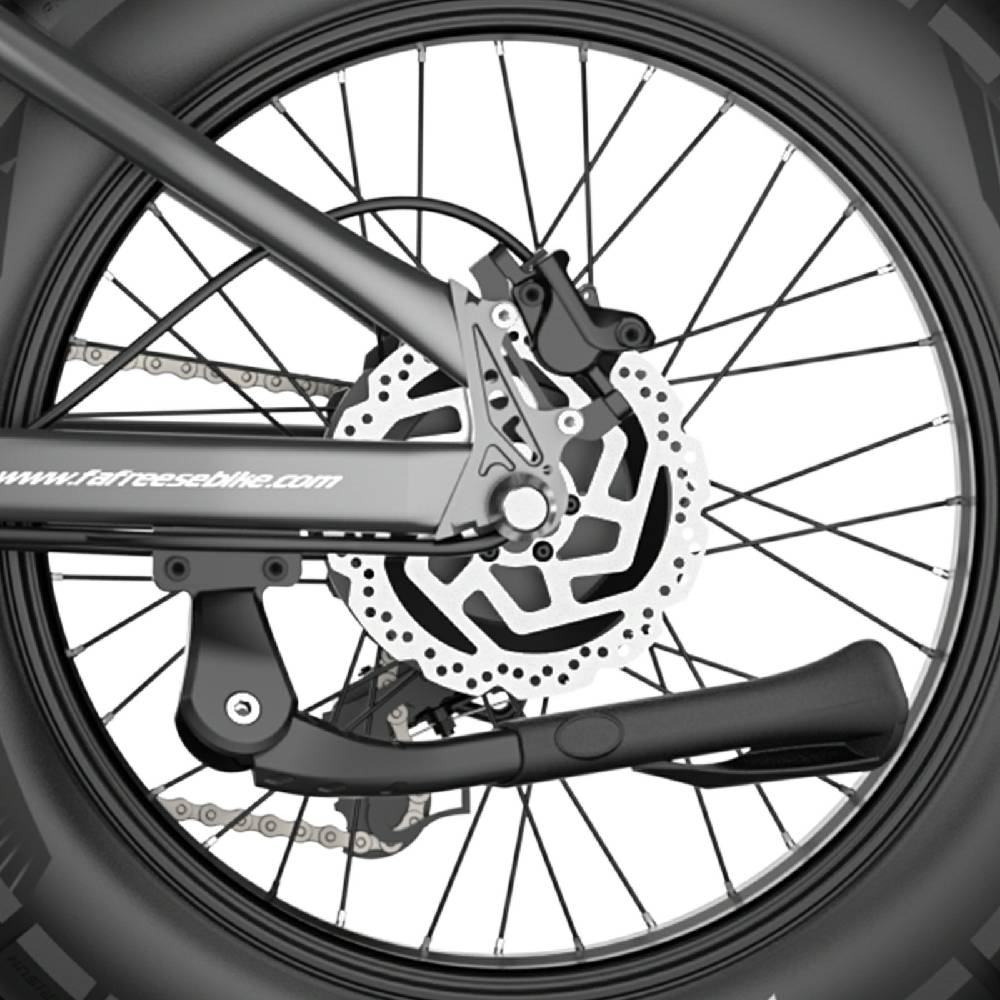

Brake type: Hydraulic disc brakes / Mechanical disc brakes
Folding parts: No folding function

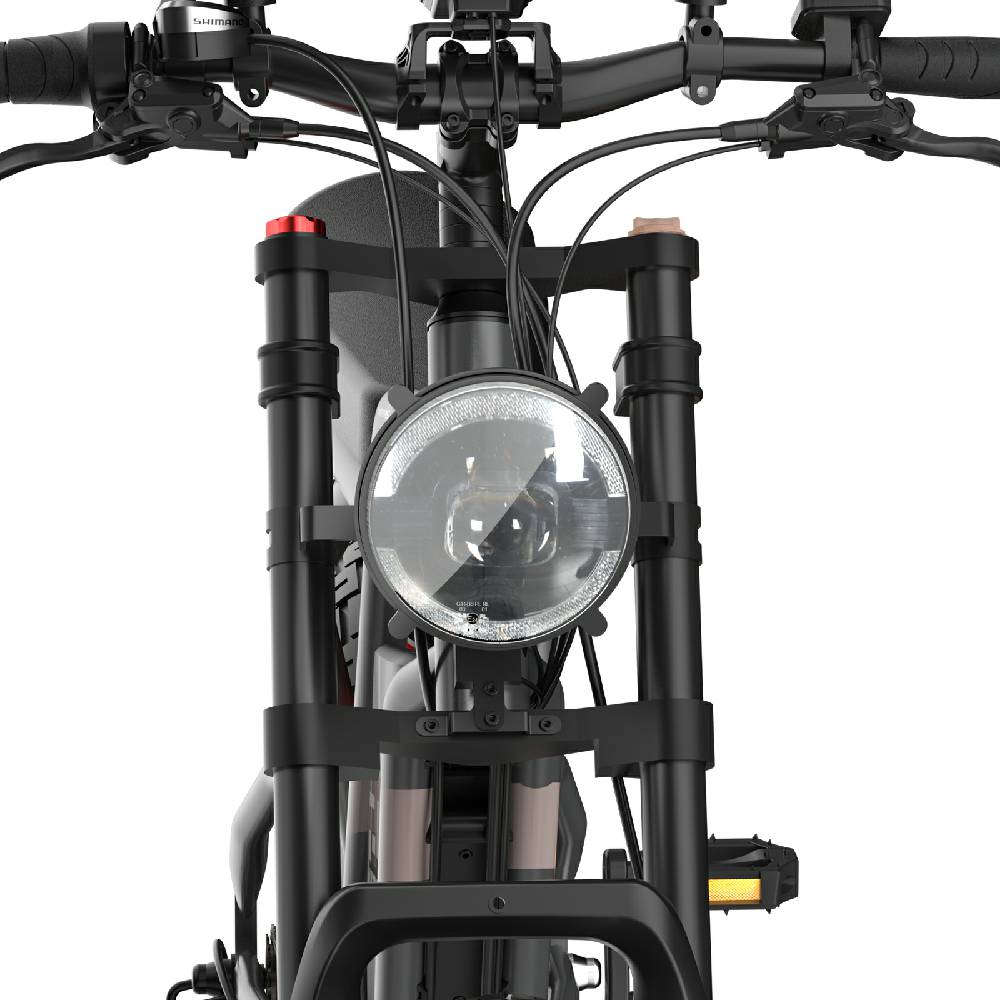

Headlight: Yes

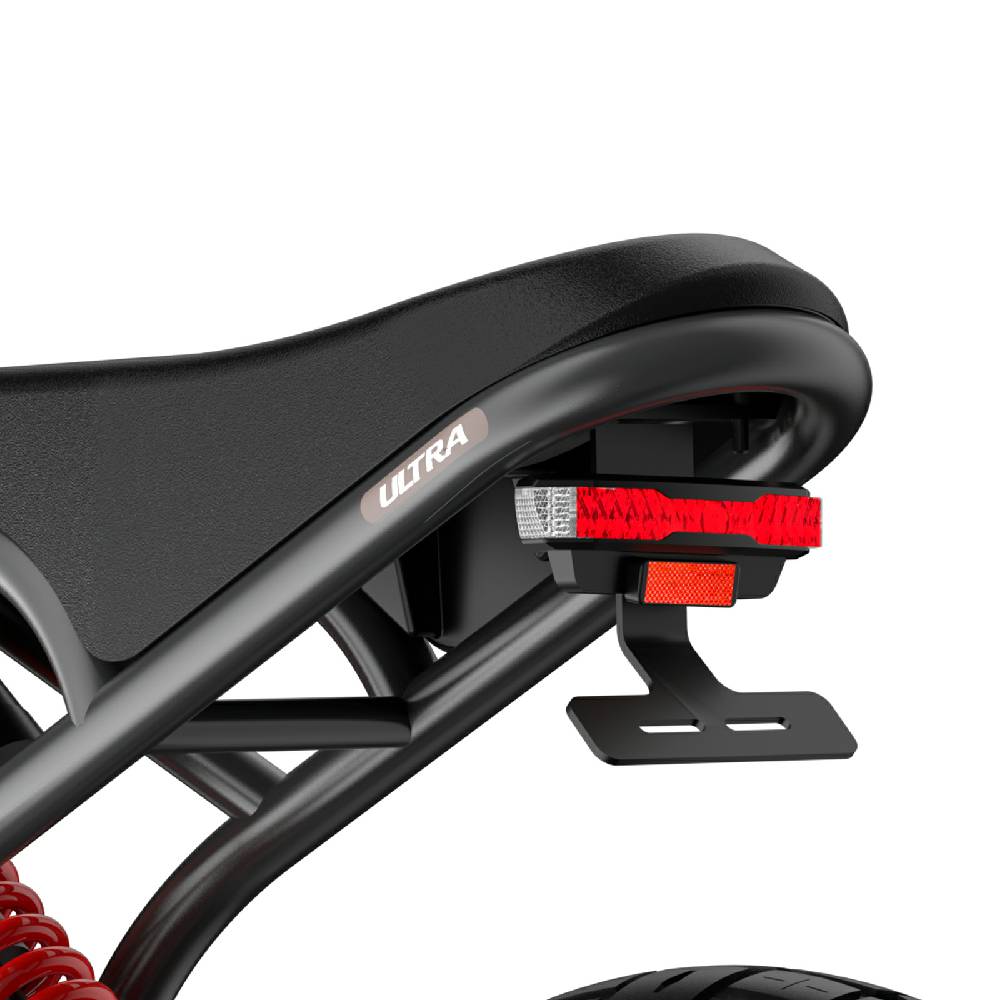

Taillight: Yes
Riding mode: Human / assisted / pure power
Operating temperature: -20℃ to 40℃
Waterproof grade: IPX5
Package contains:
1* F20 ULTRA ebike
1* Charger
1* Owner's manual
2* Pedals
2*Rearview mirrors
1* Gift box (Includes 2* brake pads, 1* inner tube, 2* valve caps, 2* reflectors, 1* multi-functional tool, 1* 13/15 wrench, and 1* keychain)
