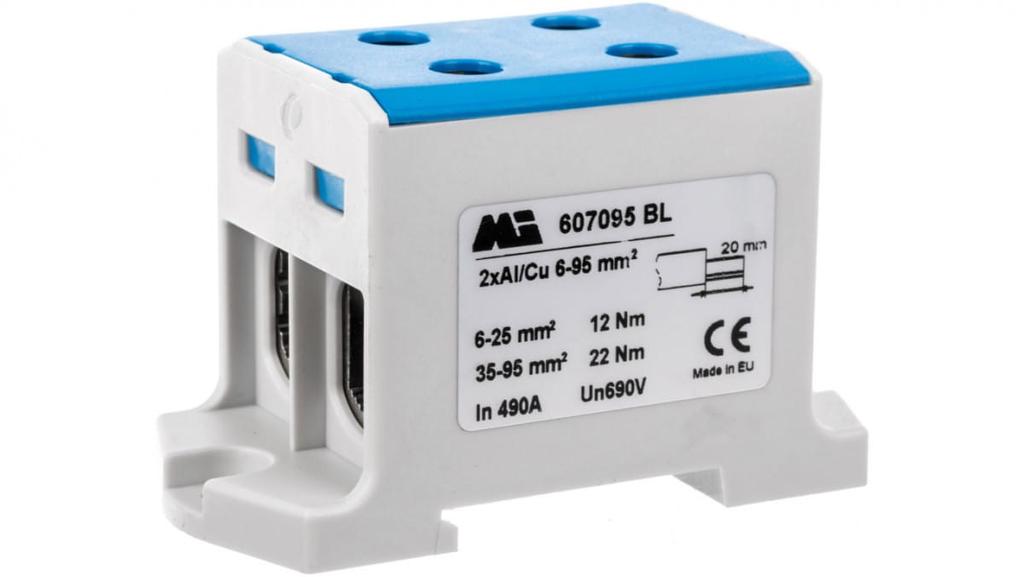

2-Way Busbar Connector 6-95Mm2 Blue Euro Multiotl 95 2Xal/Cu 607095 Bl

CN: 85369010Length: 85Length [mm]: 84EAN: 5901592105805Manufacturer index: 607095BLColor: BlueNumber of levels: 1Number of terminals per level: 4Rated voltage [V]: 690Connection position: From the side / sideRated current In [A]: 254Cross-section of the single-core wire to be connected [mm2] to: 95Cross-section of the single-core wire to be connected [mm2] from: 6Cross-section of the connected stranded wire without a ferrule end: 16Cross-section of the connected stranded wire with a ferrule terminal: 16Cross-section of the connected multi-core cable [mm2] to: 95Cross-section of the connected multi-core cable [mm2] from: 16Type of insulating material: Thermoplastic materialElectrical connection type 1: Screw connectionType of electrical connection 2: Screw connectionAssembly method: DIN 35 mm Mounting RailWidth: 52 Width / grid size [mm]: 42Weight: 0.1200Height: 42Height at the lowest mounting method [mm]: 51
