Features:
100% brand new and high qualityMotor driver board 12-36V DC power input , VCC positive power supply,GND power supply is negative.Pulse speed signal:
high and low output . IC can not understand the information with the customer requestThis board has many functions such as stall protection, enable control, over-current protection, steering control and speed control signal.This driver board has many advantages including low consumption, high reliability and efficiency.When the potentiometer control wiring, the potentiometer middle pin is connected to VR speed port, potentiometer connected to both ends of 5V and GND terminal voltage higher speed faster Package Includes:

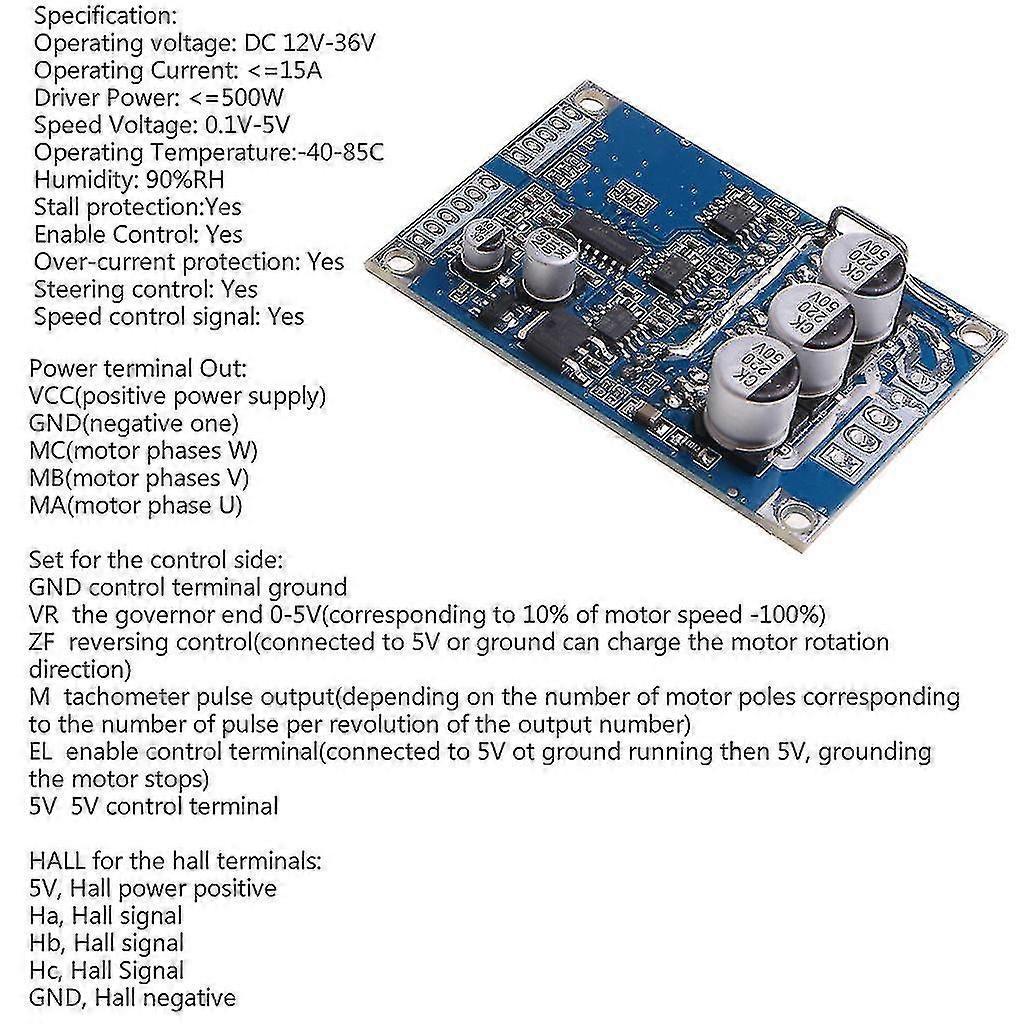

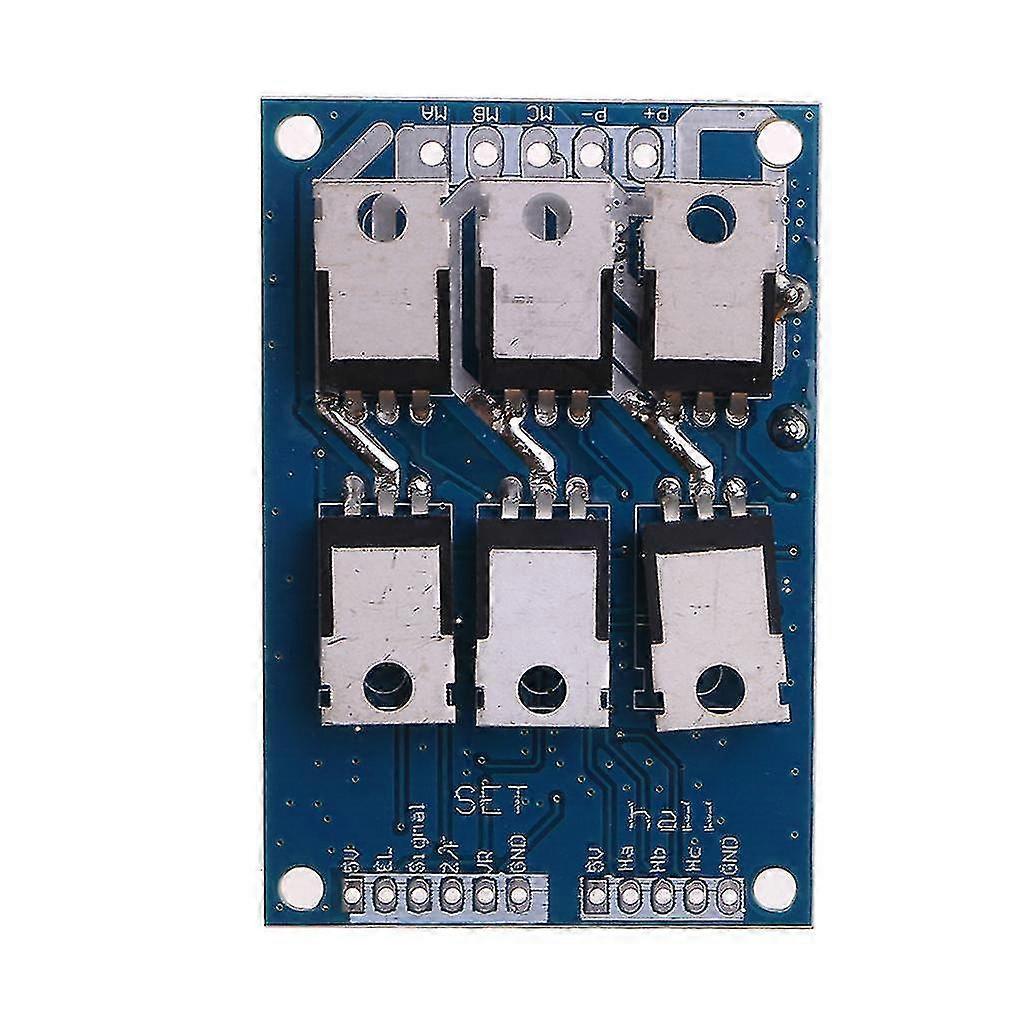

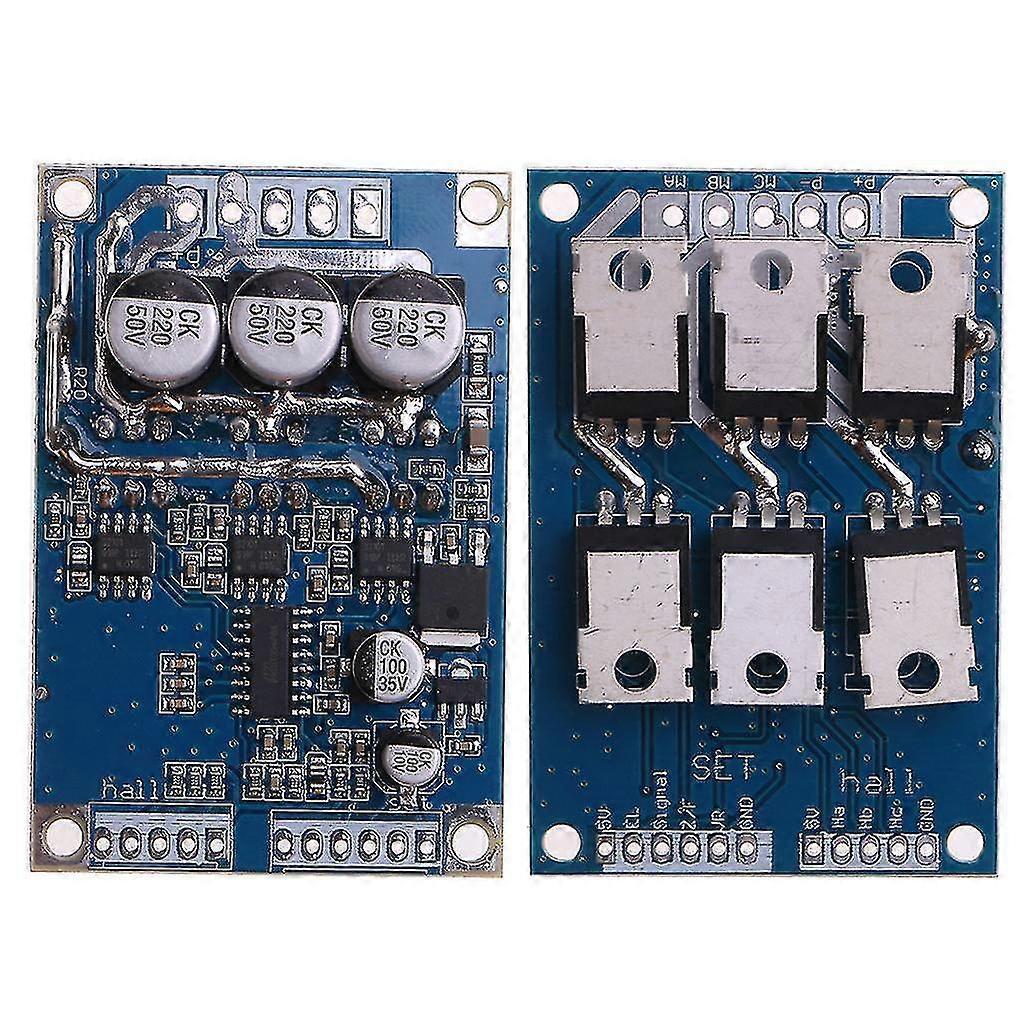

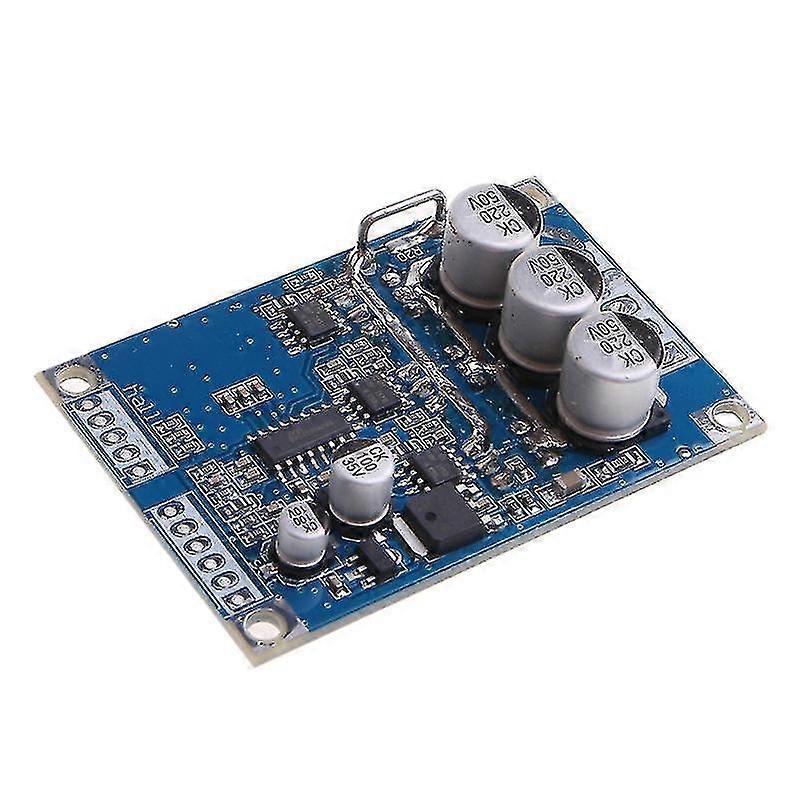

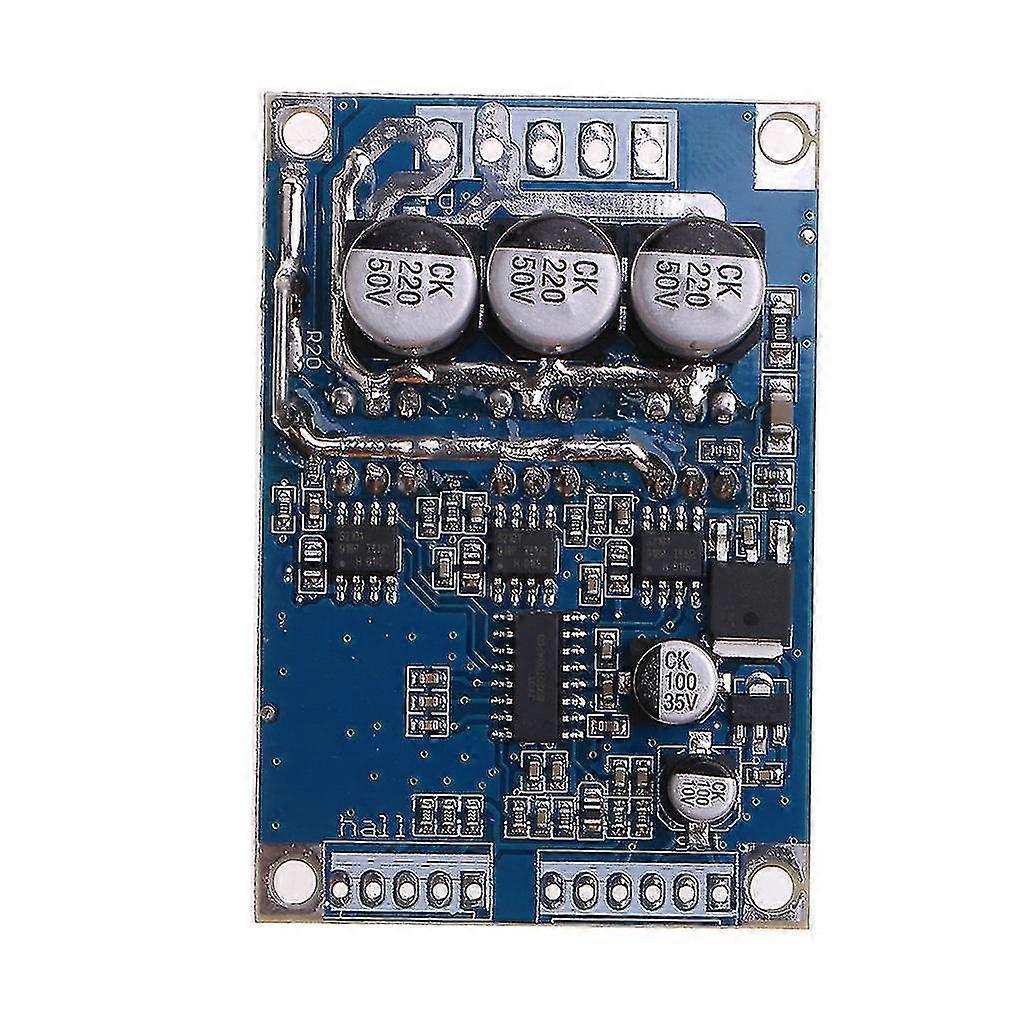

1x 12-36V 500W Brushless Motor Controller Specifications:
Operating voltage:
DC 12V-36VOperating Current:
=15ADriver Power:
=500WSpeed Voltage:
0.1V-5VOperating Temperature:
-40-85CHumidity:
90%RHStall protection:
YesEnable Control:
YesOver-current protection:
YesSteering control:
YesSpeed control signal:
YesSize:
63x42x17mm/2.48x1.65x0.67inPower terminal Out:
VCC(positive power supply)GND(negative one)MC(motor phases W)MB(motor phases V)MA(motor phase U)Set for the control side:
GND control terminal groundVR the governor end 0-5VZF reversing controlM tachometer pulse outputEL enable control terminal5V 5V control terminal note:
Due to the problems of lighting effects and shooting angles, there will be certain tolerances in the product, please understand.Please allow 0-1cm error due to the manual measurment. Due to different motor manufacturers to make the hall of hall line order does not necessarily follow the line on the board to match the sequence, need to be adjusted, please parents who pay attention If the line sequence wrong, does not boot properly, current, or start other phenomena not open, forced to use the drive plate will burn
