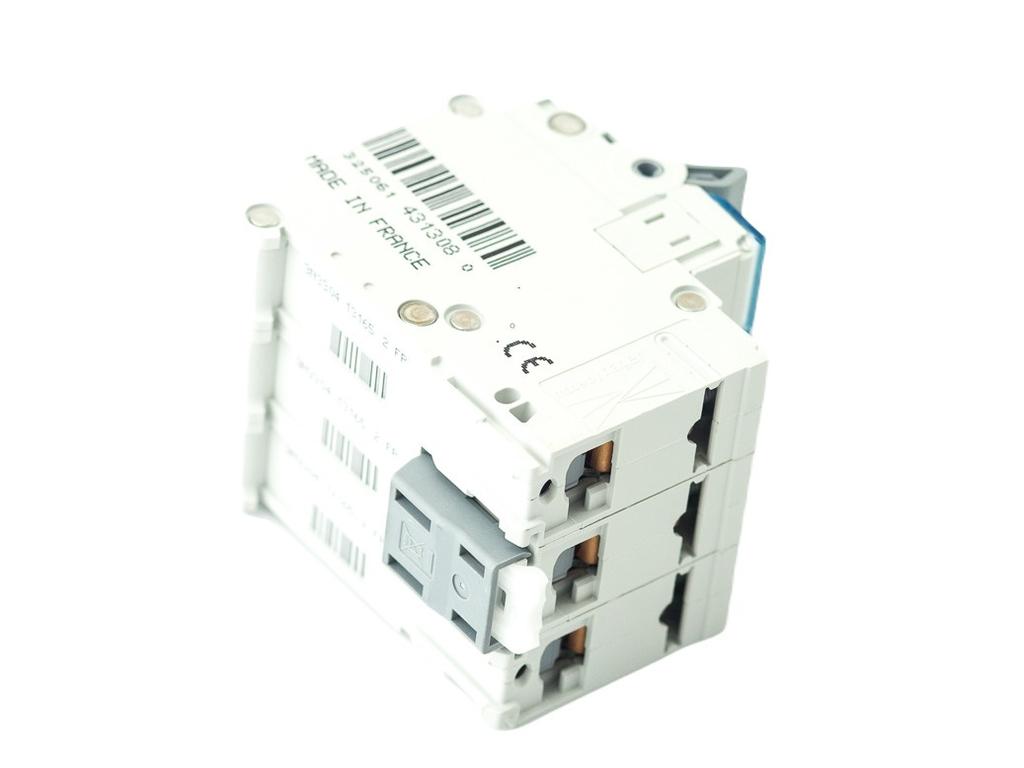

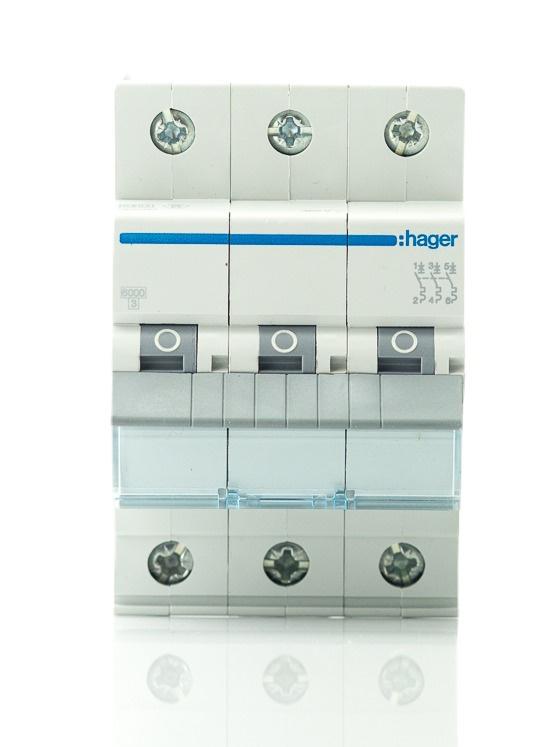

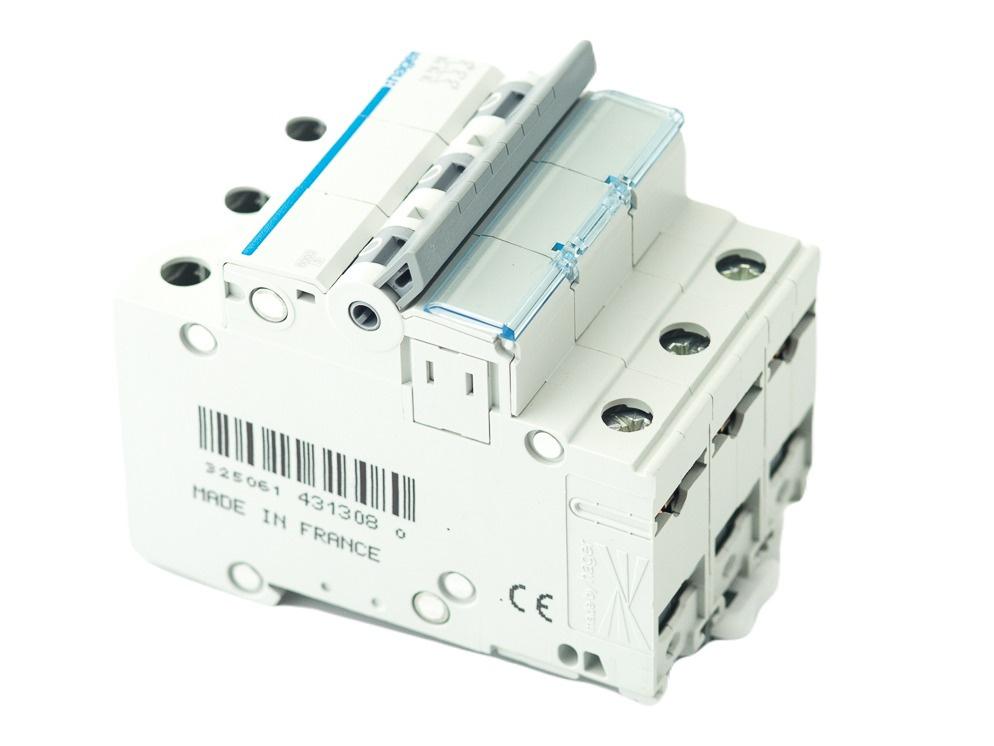

Hager Circuit Breaker B16A Mbn316E 3P

HAGER B16A MBN316E Circuit Breaker

is a type of circuit breaker manufactured by HAGER. It is designed to protect electrical systems from damage caused by overloads by automatically disconnecting the power supply when an excessive current is detected. The B16A MBN316E model is intended for use in residential and commercial buildings.

Hager B16A MBN316E Circuit Breaker

is an electrical device used to protect installations from the effects of overloads or short circuits. It operates by automatically disconnecting the power supply when an excessive current is detected. Hager is a renowned manufacturer of this type of device and offers a wide range of models that can be adapted to various applications and requirements. Technical data:

Rated current In:

16A

Min. circuit breaker type:

B

Short circuit breaker rating Switching capacity:

6 kA

Number of poles:

3 P

Number of modules:

3

Switching voltage (AC):

230/400 V

Rated current Insulation voltage Ui:

500 V

Rated frequency:

50/60 Hz

Connection type:

with screw

Tightening torque:

2.8 Nm

Electrical endurance (number of cycles):

4000

Mechanical resistance (number of cycles):

20000

Operating temperature:

-25 to 60 °C

Storage temperature:

-25 to 80 °C

Installed product height:

83 mm

Installed product width:

52.5 mm

Installed product depth:

70 mm
