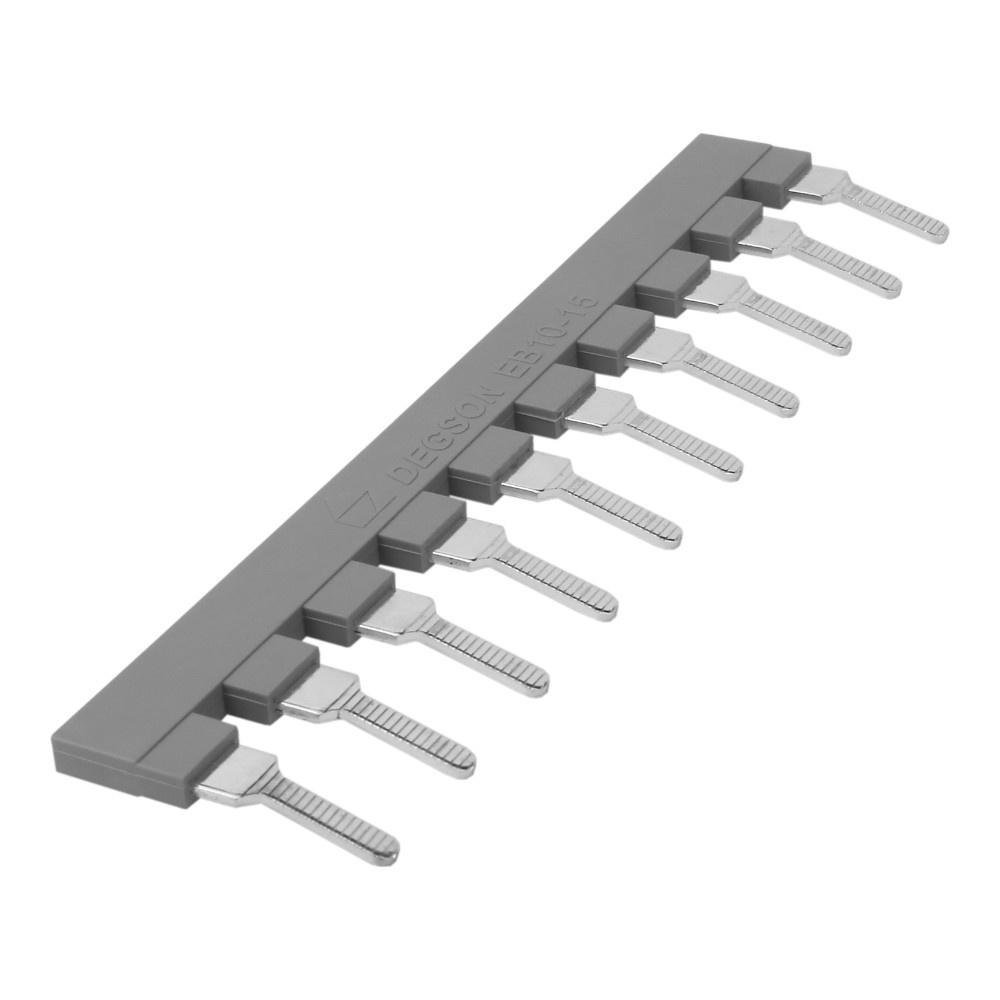

10-Way Plug-in Comb Bridge For Pc35 Eb10 Busbars

Plug-in bridge EB 10-15 for PC35 terminal blocks The DEGSON company is one of the leading "Hi-Tech" enterprises, it has an authorized laboratory both by UL (CTDP) as well as VDE. The DEGSON company is distinguished by many years of experience, a spirit of pragmatic improvements, responsibility, and harmonious development, which translates into modern and innovative products of the highest quality, meeting all required standards.. The DEGSON company laboratory is equipped with advanced equipment and testing devices, allowing all terminal blocks tests to be carried out in accordance with standards UL1059, UL486E, IEC60998, IEC61984, IEC60947, GB13140, CSAC22 2NO 158. The company DEGSON has created a quality management system compliant with ISO9001, ISO14001, ISO80079-34 standards. The products have been authorized by UL, VDE, EX, CE, EAC, COC and are also compliant with RoHS and REACH standards.. The DEGSON company supplies its products to enterprises operating in fields such as: industrial automation, renewable energy sources, instruments, elevators, power plants, public transport, protection, and shipbuilding industry. Jumper bars are used for cross-connecting PC series terminal blocks. Silver-plated copper contacts ensure a solid connection and current conductivity between the busbar connectors. Excellent element for installation in distribution boards, control cabinets, etc. field spacing (raster) 12.2mm number of fields 10P fire class V0 operating ambient temperature -40°C ... +105°C workplace humidity 5% - 95% housing material PA66 plastic contact material silver-plated copper

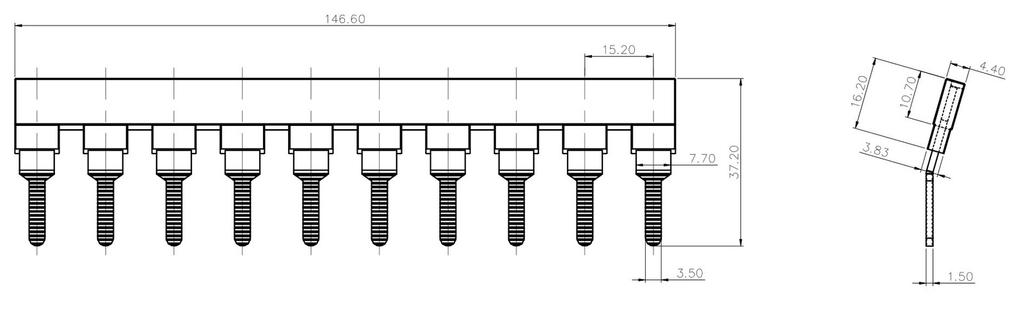

DIMENSIONS

control standard MIL-STD-105E II quality level according to AQL inspection 0.65 matching connectors(available at our auctions)

PC35-01P-11-00A(h) PC35-PE-01P-1Y-00AH

standards and approvals

RoHS CE EAC

net weight

0.042kg

producer Degson EAN 5907589333541 catalog number EB10-15-11-00A(h)
