Brand: Senjiangjia
Material: Iron
Type: Adjustable Type
Applicable Size: 26 - 65 inch
Max Capacity: 60KG / 132.3LB
Up and Down Tiltable Angle: 15 degrees
Distance From the Wall: 47MM
Features:
- Iron material design,with good flexibility, scratch resistance,beautiful appearance.
- High-intensity rotating shaft that can withstand multiple rotations without deformation.
- Safety screw design ensures no offset under load.
- High temperature baking painted, no paint off or rusted.
Fit for most HDTV flat panel TV, LCD TV, LED TV, fit for Plasma TV. Suitable for family, entertainment, public places and commercial places such as living room, KTV, bars, airports, railway stations, bus stations, shopping malls, stores waiting hall, lounge, large conference rooms, classrooms, lobby and restaurants.- The one piece panel is simple and easy to operate.
- The key parts are thickened, the structure is stable, and the ability to withstand weight is strong.

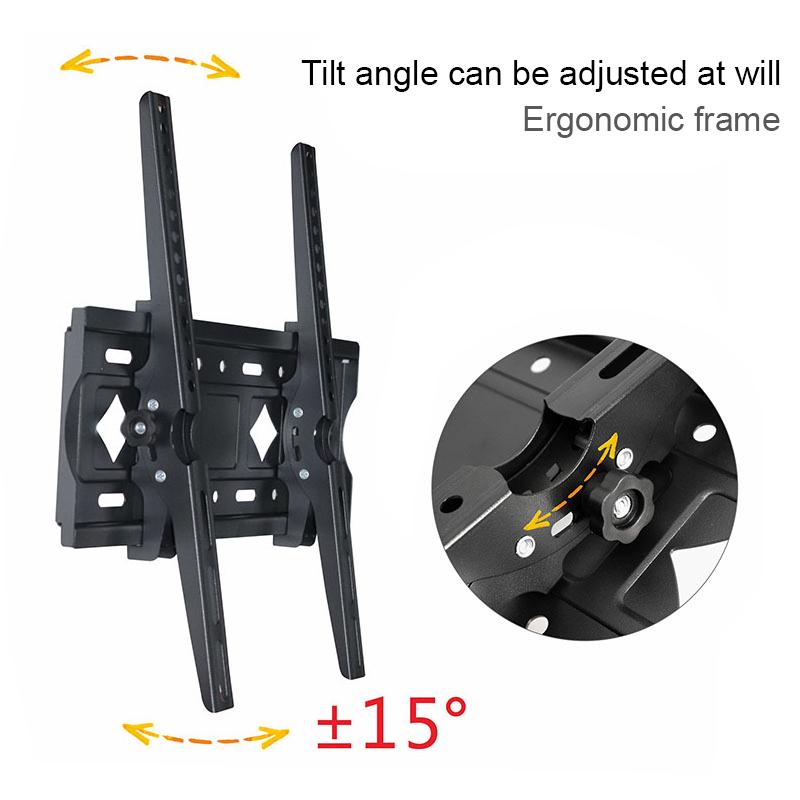

- Pitch adjustment vision, it can be adjusted freely 15 degrees up and down, experience different visual effects.
Installation and performance instructions:
- Use the wall plate as a templet to drill four holes of 10mm diameter and 50mm depth in the concrete wall. Then wedge four plastic concrete anchors into the holes.
- Install the wall plate, Put the wall plate on the wall,and then screw four lag bolts into each plastic concrete anchor through metal washer to four the lag bolt,the plastic concrete anchor and the wall.
- Install the monitor brackets onto the back of the panel TV: screw four bolts into the holes in the back of the panel TV Make sure the distance from each bracket to the top of the panel TV is equal,and also as center as possible.
- Adjust the angel of the LCD between -5°~+5° to a suitable position by hands.
Note:
- The quantity of product accessories will be somewhat deviant, but it will not affect installation and usage.
- When purchasing, please check whether the hole spacing of your TV set is consistent with this product and whether the weight is within the tolerance range of this product.
- There are many types of screws available for most TV sets. You only need to choose the right screw from the rack accessories.
Package Including:
1 x TV Stand
1 x Installation Accessories
1 x A Set of Screws
