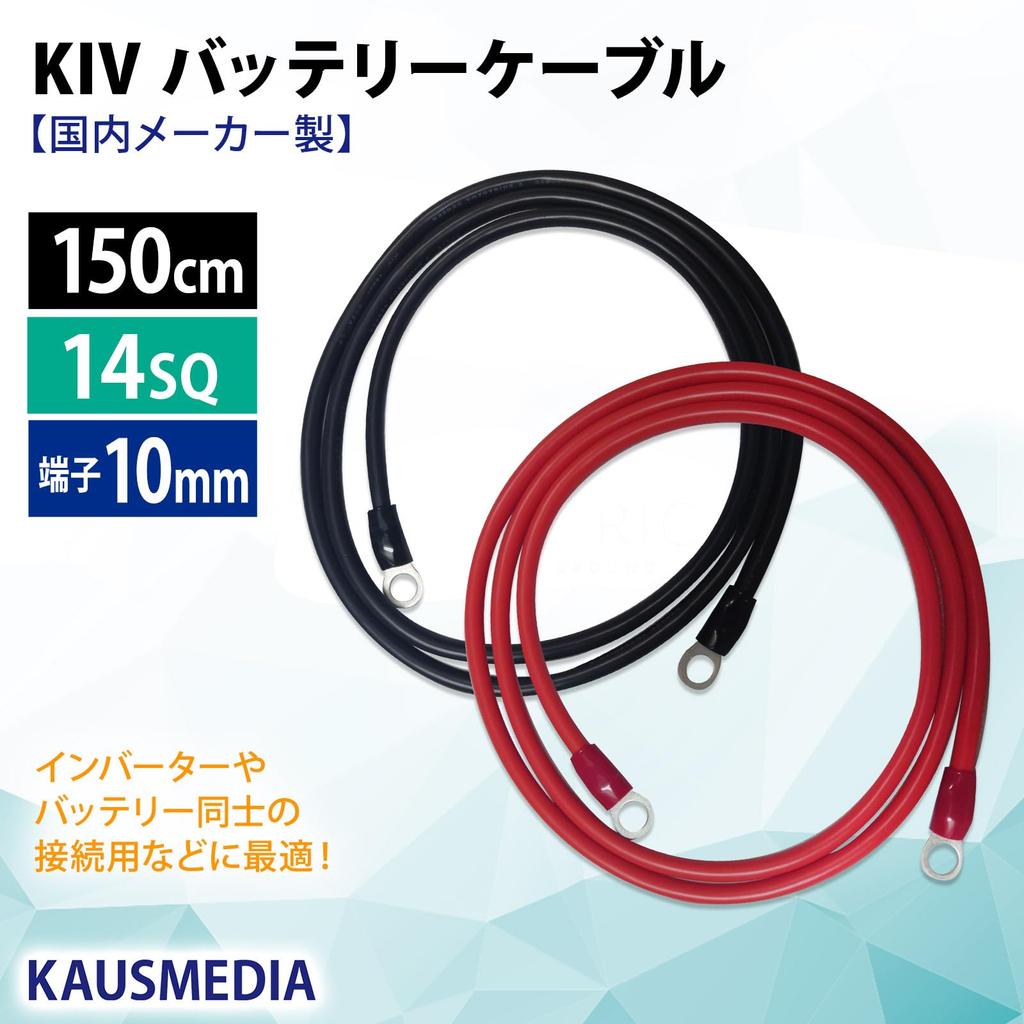

KAUSMEDIA 14SQ KIV 150cm Cable Made by Domestic Manufacturer R14-10

• [14SQ KIV R14-10 Nichifu Cable with Round Terminal] Vinyl insulated wire for electrical equipment made by a domestic manufacturer KIV 14SQ / Used for general low-voltage electrical equipment wiring. (Rating: 60℃, 600V) / Since the conductor is a flexible stranded wire, it has excellent flexibility and good workability / It is a type-certified product according to the Electrical Appliance and Material Safety Law. / Compliant with JIS C3316

• [Features]: Uses flexible strands for the conductor, is JIS C 3316 compliant, complies with the Electrical Appliance and Material Safety Act, and KIV wire is used for wiring of electrical equipment below 600V and control panel wiring. KIV wire has many thinner copper wires twisted together than IV wire, making it easier to bend. I get the impression that KIV wire is commonly used in situations where there is no particular preference because it is soft and flexible and easy to handle even in small environments. Using Nichifu's terminals and insulation caps for KIV cables made by domestic manufacturers.

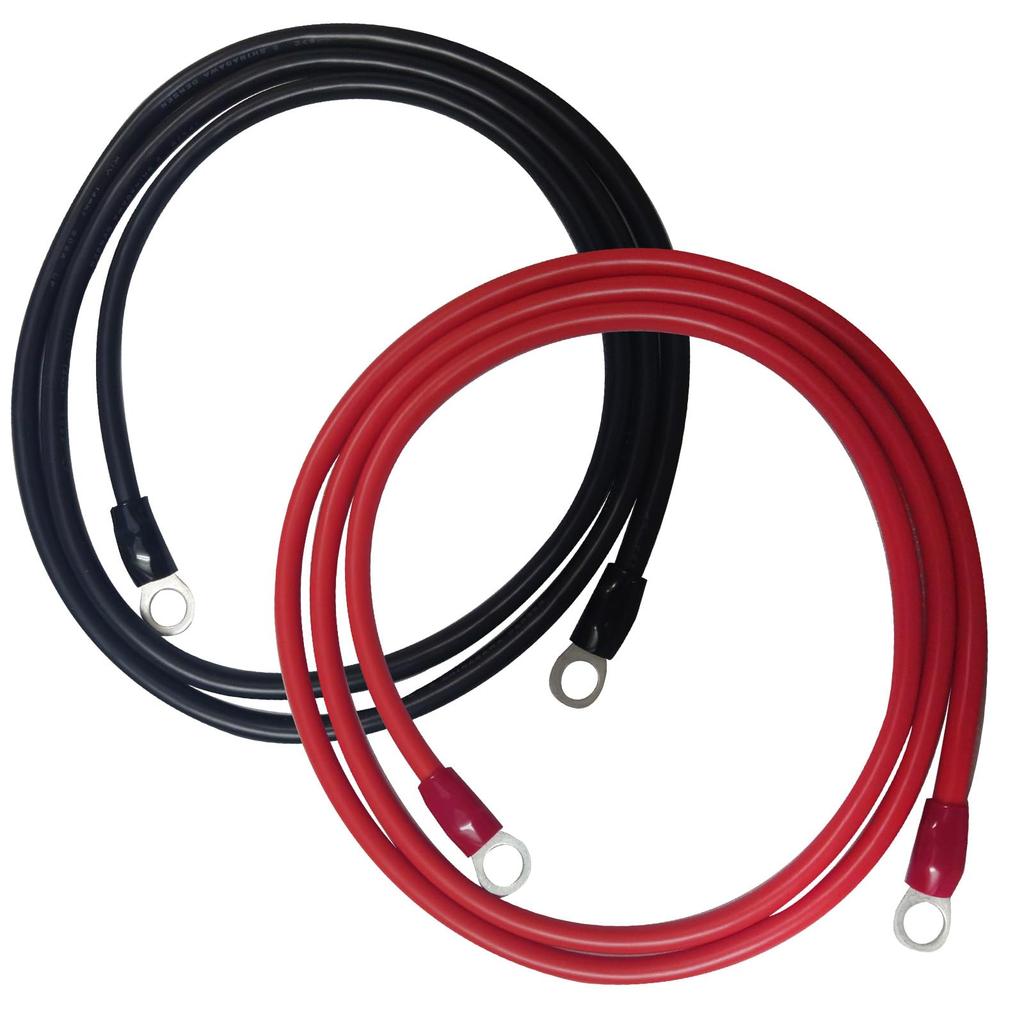

• [Product contents] 1 cable (red) 150cm (1.5m) ・ 1 cable (black) 150cm (1.5m) Total of 2 KIV cables and round crimp terminals from Japanese manufacturers are carefully selected, and the terminals are attached to both ends of each cable by a craftsman using insulating caps and crimping tools. The crimped part is crimped twice to prevent it from coming off. Terminals are mainly available in 8mm and 10mm (only 10mm is available for 38SQ.Smart terminals (R38-10s listed)) Because there may be restrictions on the width of terminals that can be connected depending on the connected devices such as inverters and controllers, we use smart terminals (R○○-8s listed) for the 8mm terminals of 14SQ and 22SQ.

• [Examples of common uses] It is used for a variety of purposes such as wiring for camping car equipment, solar power generation kits, connections between batteries, etc., connections between batteries and inverters, and sub-battery systems.

• We cannot accept returns due to reasons such as a different image or color difference. Domestic manufacturers may make changes without notice depending on the season. Thank you for your understanding. KIV electric wire is available in 14SQ, 22SQ, and 38SQ lengths, but if you have any other requests, we look forward to hearing from you.
