2-CH 18650 21700 Battery Capacity Tester MAh MWh Digital Internal Resistance Meter with 1A Charge Discharge Function Fan Cooling

2-CH 18650 21700 Battery Capacity Tester MAh MWh Digital Internal Resistance Meter with 1A Charge Discharge Function Fan Cooling

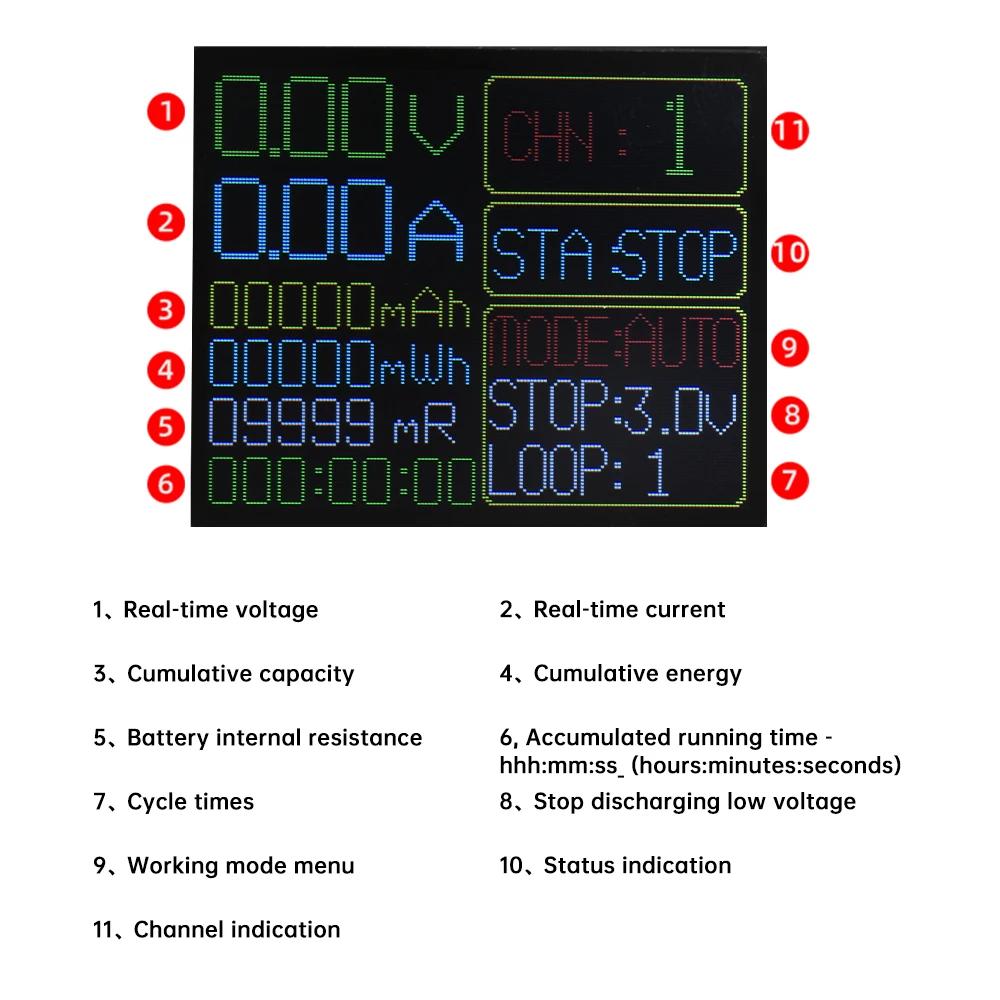

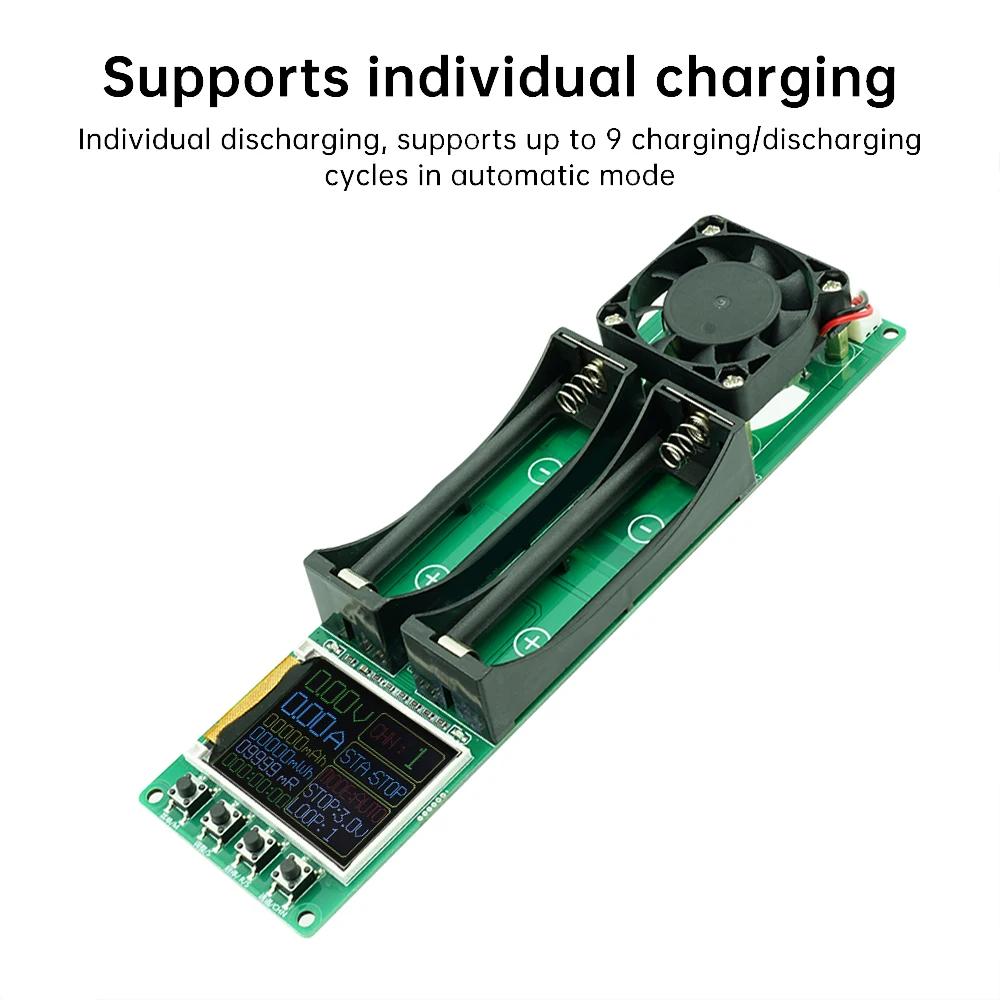

Features: The product supports 2-channel capacity and internal resistance measurement. Supports separate charging and discharging, and supports up to 9 charging and discharging cycles in automatic mode. Each channel is independent of the other, can be set up separately, independent operation, no interference with each other. Strong battery clip, 18650 battery holder using compact battery holder, suitable for flat battery measurement. Specialized battery charging chip control, maximum about 1A charging, full voltage 4.2V, charging current less than 0.1A stop charging.

Specifications: Working voltage: DC 5V Applicable batteries: meet the stop discharge voltage 2.5 ~ 3.5V, 2.8V start ~ 4.2V full of batteries are applicable Power supply interface: Type-C power supply interface (power supply and power cord provided) System language: Chinese, English Test quantity: 2-way charging and discharging measurement Internal Resistance Measurement: Support, using DC two-wire method to test internal resistance. Charging function: support, full of automatic cut-off charging (does not support lithium iron phosphate battery charging) Discharge function: Support, automatically stop when conditions are reached, discharge current is not adjustable. Automatic charging and discharging: Support, the battery is fully charged at the end of automatic mode. Cyclic charging and discharging: Support, 1~9 cycles adjustable (only automatic mode support) Status Alert: Support Heat dissipation mode: fan active heat dissipation Overheating protection: Support Stop Discharge Voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, adjustable in 11 steps. Discharge current: maximum of about 1A non-constant current, non-adjustable, does not support independent transformation Charging voltage: special battery charging chip control, maximum about 1A charging, full voltage 4.2V, charging current less than 0.1A stop charging. Power failure save: only save the setup parameters, do not save the measurement data Product size: 190×50×27mm

Instructions for use: 1.Product switch on and off: The product has no switch key, power on automatically turn on, power off shutdown 2.Language switching: Live in the "menu / M" key and then power on, the screen displays the main interface, release the "menu / M" key, wait 10 seconds to restart after the shutdown can be 3. Switch channel display: Each channel is independent of each other, do not interfere with each other, click the "channel / CHN" button to switch the display channel, and can view the parameters of each channel, and set the parameters of each channel 4.Test internal resistance: Install the battery, power on, wait for 10 seconds, display the battery voltage and internal resistance test results, this product uses DC two-wire method to test internal resistance, subject to the limitations of the test principle, may not be able to identify the battery, the internal resistance is always displayed in the case of 9999. When the battery is not installed, the test circuit is disconnected, which is equivalent to the infinite resistance value, and the internal resistance shows 9999 milliohms. 5. Charging function (not suitable for lithium iron phosphate battery charging): Install the battery in the battery holder, adjust the mode to "charging" mode, click "start/stop/R/S" to run the program; after the charging is finished, the status indication is complete; the charging process records the capacity, energy, charging time, charging metering capacity is for reference only, please take the discharging capacity as the standard 6. Test capacity: Capacity test needs to be discharged, need to wait for time, capacity test is carried out through the resistance discharge, discharge resistance heat generated high temperature, do not touch directly with your hands to avoid burns outside. Capacity test results are only the capacity measured during the test phase when the battery starts discharging and stops triggering. 7. Battery capacity dividing and running cycle: Capacity dividing and running cycle is a process of charging, discharging and recharging, the stopping voltage can not be lower than 2.8V, otherwise it can not be charged and the program can not run normally. 8. Data zeroing: Shutdown, switch mode, capacity, energy, time data is automatically cleared to zero

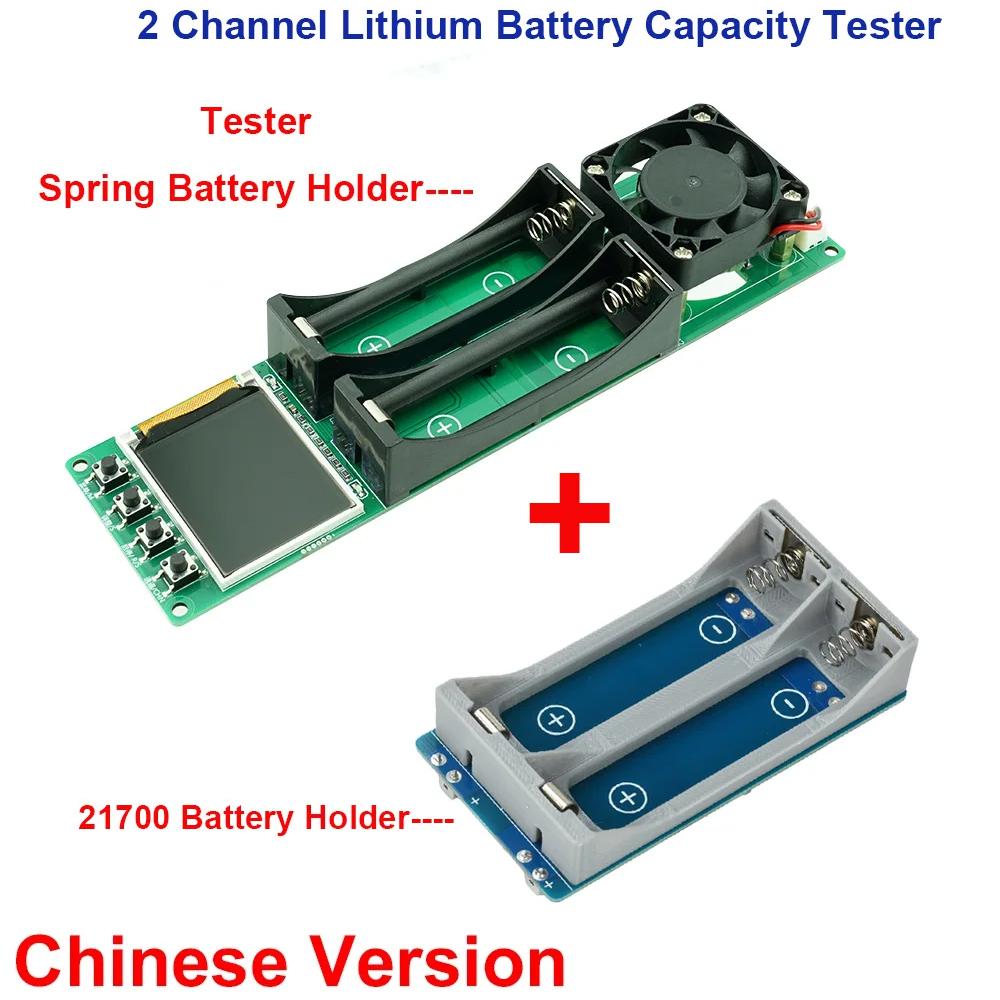

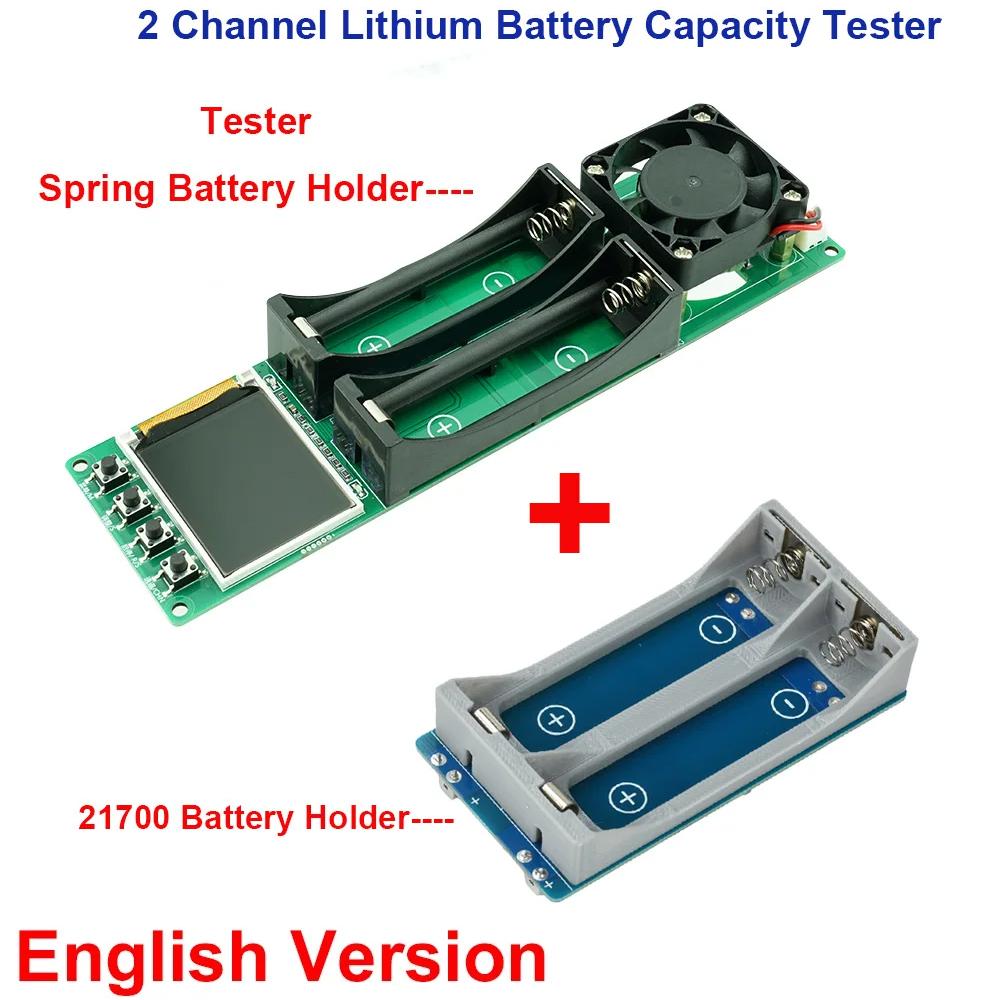

Package Included: Type A:2 Channel Battery Capacity Internal Resistance Tester*1 Type :2 Channel Battery Capacity Internal Resistance Tester*1+21700 Battery Holder*1

Battery capacity: 43200 Charge indicator: No Number of ports: 1 port Quick charge: No
