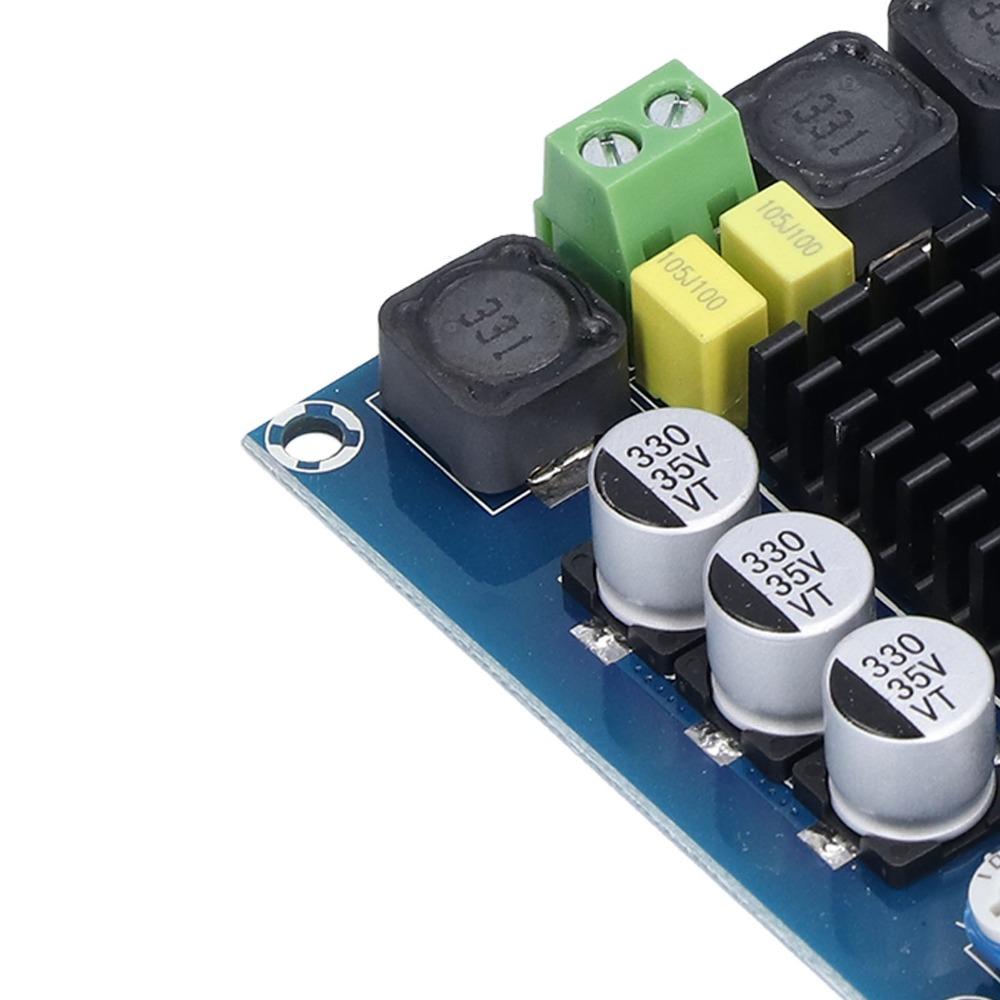

TPA3116D2 Chip Amplifier Board XH-M543 High Power Amplifier Board Car Vehicle

Label:Yes The power amplifier chip has the characteristics of more than 90% power efficiency and low spatial loss characteristics. Integrated self protection circuit, including overvoltage, undervoltage, overheating, DC detection and short circuit protection, heatproof package. With Surface Mount Capacitor, European 3P wiring terminal, large heat sink and convective heat dissipation. Suitable for car computer speaker DIY home theater audio system , durable, can be used for a long time, bring a lot of convenience. Advanced modulation system configuration to reduce the number of components.

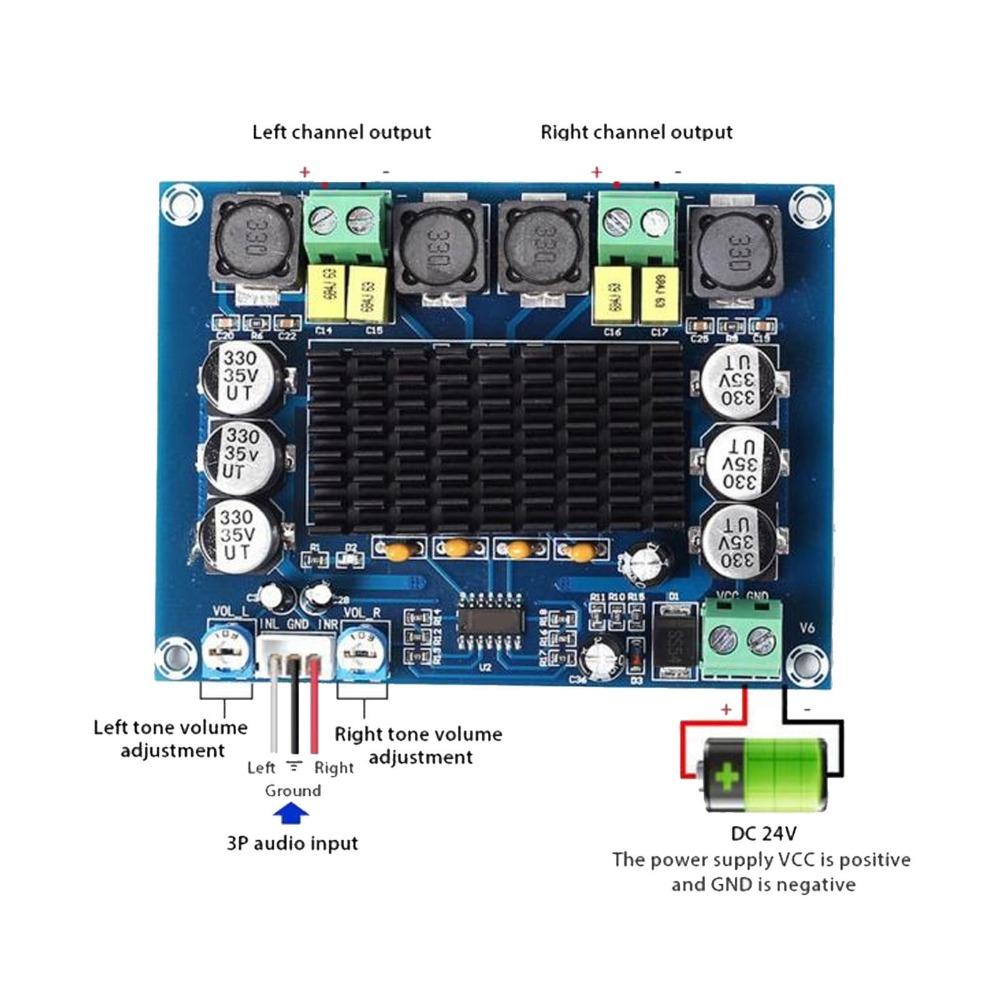

Specification Item Type: Amplifier Board Material: PCB Purpose: Audio Amplifier Model: For XHM543 Chip Model: TPA3116D2 Working Voltage: DC12V to 26V Rated Current: 4.2A (Maximum) Output Power: 2 x 120W Maximum, DC12V 2 x 50W, DC24V 2 x 120W Signal to Noise Ratio: 100db Channel: Dual Channel Stereo Size: 92*68*16mm(3.62*2.68*0.63in) Color: Blue

Package List 1 x Module 1 x Cable

Note Do not use in voltage and current range.
