Feature:
1. Smart Engraving: Easily lift the laser engraver to perfectly fit the rotation axes for high engraving efficiency.
2. Easy for Adjust: The engraving diameter varies form 30mm to 200mm, the laser rotary roller has 3 adjustable level.
3. Greater Effects: Ensuring smoother working performance, this 360 degree roller enables great engraving effects.
4. Better Matching: Works better with most laser engravers, including for ATOMSTACK, for NE, for Or, for Tws, etc.
5. Simple to Install: Just connect the Y axes terminal to the laser engraver, no assembly required and very simple.
Specification:

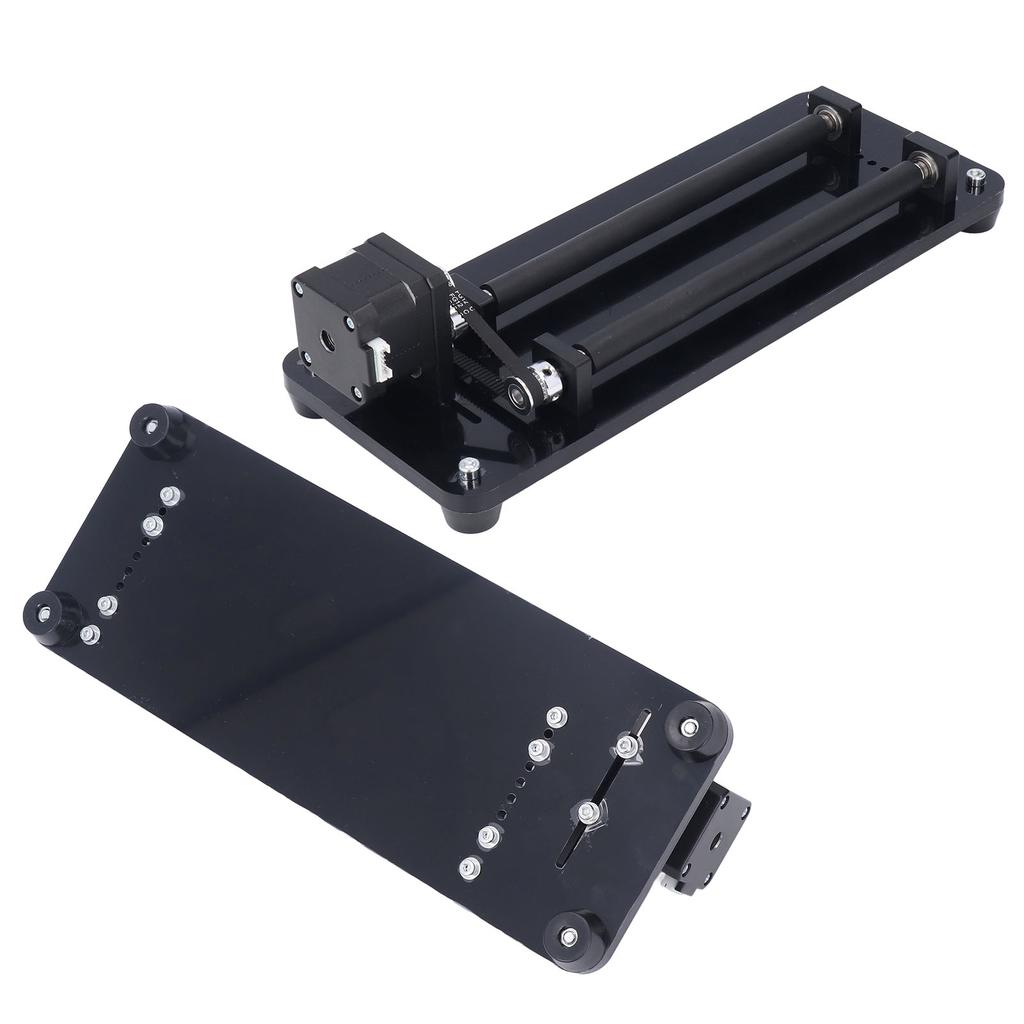

Item Type: Laser Rotary Roller
Engraving Roller Length: Approx. 195mm / 7.68in
3 Level Width Adjustment: Approx. 0 ~ 30mm / 0 ~ 1.18in
Engraving Roller Diameter: Approx. 30 ~ 200mm / 1.18 ~ 7.87in
Motor Model: For NEMA17, 42 x 34mm / 1.65 x 1.34in
How to Use:
1. Connect one end of the motor wire, 4 pin 2.0 to the motor of the rotating shaft, and the other end, 4 pin 2.54, to the motor socket of the Y axes of the control board. 2. Enter $101=80 in the console window of the software, change the stroke of the Y axes stepper motor, and synchronize the engraving scale.
Package List:
1 x Laser Rotary Roller
1 x User Manual
5 x Hex Wrench
1 x Power Cable
2 x Screw
2 x Washer
2 x Accessory
