150W is the lifting voltage module
300W is the lowering voltage module
300w buck dc-dc:

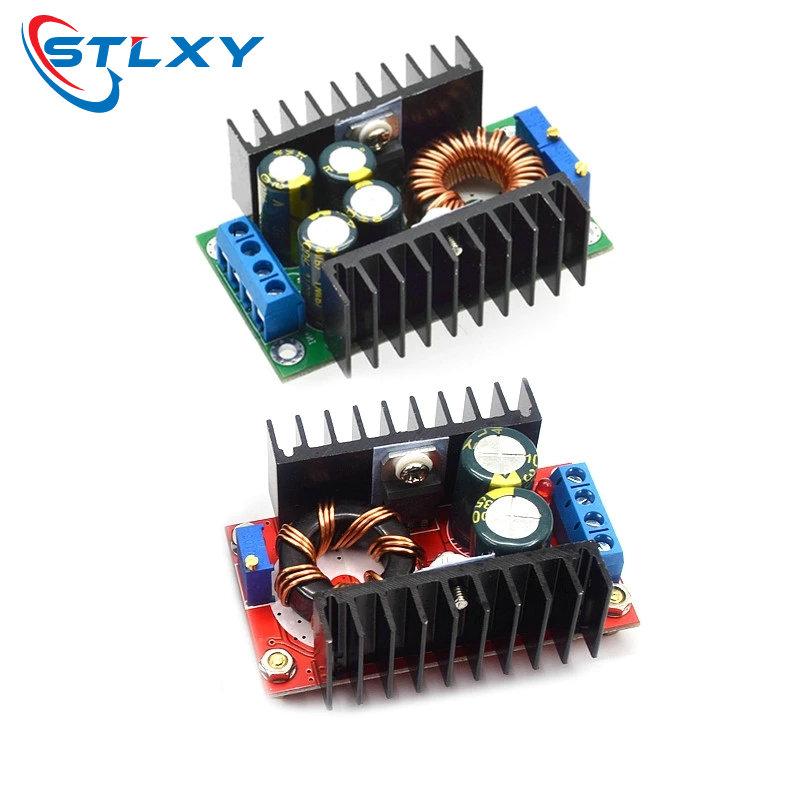

Dimensions: 65 (length) *47 (width) *23.5 (height) mm
1. Module properties: Non-isolated step-down constant current,constant voltage module (CC CV) charging module
2. Input voltage: 7-32V
3. Output voltage: (1) 0.8-28V continuously adjustable. (2) Fixed output:Choose between 0.8v-28v
4. Output Current: 8A (when power tube's temperature exceeds 65 degrees,please add cooling fan)
5. Constant current range: 0.2-8A ( adjustable )
6. Turn lamp current: Constant current value * ( 0.1 ),turn the lamp current and constant value linkage,
such as constant current value is 3A,turn the lamp current is set to a constant current is 0.1 times (0.1 * 3A = 0.3A).
7. Lowest pressure: 1V
8. Output Power: Maximum power is about 300W
9. Conversion efficiency: Up to about 95%
10. Operating frequency: 300KHZ
11. Output ripple: 20M bandwidth
12. Input 24V output 12V 5A ripple around 50mV (Excluding noise)
13. Output short circuit protection : Yes,constant current
14. Input reverse polarity protection: None
15. Output prevent backflow: None
16. Wiring: Terminal
17. No-load current: Typical 20mA (24V switch 12V)
18. Load regulation: ± 1% ( constant )
19. Voltage regulation: ± 1%
20. Dynamic response speed: 5% 200uS
21. Potentiometer adjustment direction: clockwise (increase),counterclockwise (decrease),
the potentiometer(CV) closed to the input voltage is used to regulate voltage,the potentiometer(CC)
closed to output voltage is used to regulate current (CC)
22. Operating temperature: Industrial grade (-40 °C to +85 °C) ( please note the actual use
of the power tube temperature,high temperature heat strengthened)
23. Indicator: dual color indicator,charging indicator light is red,the green light means
fully charged ( No load is green )
24. Size(approx): 65 x 47 x 22mm (L x W x H)
25.Precision of constant current and temperature: On the actual test,the module temperature from 25 degrees
to 60 degrees,the constant current value change is less than 5% (5A constant current value)
26. Output short circuit protection: Yes,Constant current (the current setting constant current value)
27. Input reverse connect protection: NO
28. Output prevent reverse flow: NO
29. Wiring Method: amphenol connector
Features:
1. Fixed turn lamp current is 0.1 times the current value
( Used to identify whether the battery is fully charged When charging).
2. Made from a dedicated benchmark IC and high-precision current sensing resistor,proving a more stable
constant current,(when 20°C to 100°C constant current 1A,temperature drift less than 1%).
Particularly suitable for LED driver.
3. High output current,the max output current can reach 8A.
4. Four high frequency capacitance,can lower output ripple,enhance the work stabilization.
5. Double heat sink design. MOS schottky diode independent heat sink,which heat dissipation is good,
and won't affect each other.
6. Using large size Sendust Core and double pure copper wiring,improve working efficiency,reduce fever.
7. 3296 multiturn potentiometer,high accuracy voltage and current regulation,good stability.
8. Double color lamp,working condition be clear at a glance
9. Voltage and current are adjustable,wich effect is good.
Applications:
1. High-power LED driver.
2. Lithium battery(or lead accumulator) charge.
3. Vehicle-mounted power supply.
4. Low voltage system power supply.
5. 6V,12V,14V,24V battery charge.
6. On-board laptop power supply.
7. regulated power supply.
8.Low voltage power supply system.
Battery charge:
1. Make sure of the battery float voltage and charging current that you need,as well as the input voltage of the module.
2. Adjust the constant voltage potentiometer and adjust the output voltage to about 5V.
3.Use the multimeter in 10A current scale to measure output short-circuit current,and adjust the
current potentiometer to make the output current to the expected charging current value.
4. Adjust the constant voltage potentiometer to make the output voltage reaches the float voltage.
5. Connected to the battery,try to charge.
(1,2,3,4 steps to connect the power module input,output no-load does not connect battery.)
LED constant current drive:
1. Make sure the operating current and Max operating Voltage of the LED you need to drive.
2. Adjust the constant voltage potentiometer,adjust the output voltage to about 5V.
3. Use the multimeter in 10A current scale to measure output short-circuit current,and adjust the current
potentiometer to make sure the output current to the expected LED operating current.
4. Adjust the constant voltage potentiometer to make the output voltage reach the maximum LED operating voltage.
5. Connect LED,test.
(1,2,3,4 steps to connect the power module input,output No-load does not connect LED.)
150w dc- dc:
Size: 65 (length) *47 (width) *23.5 (height) mm (excluding copper column)100% Brand new and high quality dc-dc Boost Converter 10-32v to 12-35v Step Up Charger Power Module 150WAdjustable Static Power Boost Voltage Regulator Converter Module 10-32V to 12-35V Step Up 150W 6AInput voltage: 10-32 VOutput Voltage: 12-35 V(Adjustable)The Output Current: 6 a (MAX)Input current: 10A (MAX)Output Power: natural cooling 100W (MAX),strengthening cooling 150W (MAX) real Power.Conversion efficiency: 94% (when Input 19V 2.5a Output 16V,Reference)Output ripple: 2% (MAX)Working Temperature: industrial (40 ° c to + 85 ° c),environmental Temperature,wining 40 degrees,both please reduce power to use,or to enhance cooling).Full-load temperature: 45 degreesNo-load current: 25mA typicalVoltage regulation: 0.5%Load regulation: 0.5%Dynamic response speed: 200uS 5%Short circuit protection: No Please installs the fuse or protection circuit at input parts.Input Reverse protection: No (please comply with a Reverse protection or connect a bond at Input parts.)Size: 65 * 23 * 56.3 mmApplications:Adjustable vehicle power supply,connect the 12V input,and output could be 14-35v (adjustable vehicle power supply),However,the output voltage can not be less than the input voltage.Boost charger. You can use the 12V power supply to charge battery more than 12V,for example,24V battery.Power your electronic devices as long as you adjust the voltage to the voltage you need and the current does not exceed the rated currentSystem level power supply before,when you are doing a project when the input is 10 to 18 v,and your system board and will need about 24 v power supply and the power is large,using ordinary - module power is too small,that you choose this module we will be your best choice,can be used without debugging direct work,easily achieve efficient high-power booster.
