BME680
The BME680 is a low-power gas, pressure, temperature and humidity sensor. The BME680 is a digital 4-in-1 sensor that measures gas, humidity, pressure and temperature based on a proven sensing principle. This sensor module is encapsulated in an extremely compact metal LGA package, with a floor area of only 3.0x3.0 square millimeters and a maximum height of 1.00 millimeters (0.93±0.07 millimeters). Its small size and low power consumption enable it to be integrated into battery-powered or frequency-coupled devices, such as mobile phones or wearable devices.
Typical applications
Indoor air quality Home automation and control Internet of Things Weather forecast GPS enhancement (for example, improvement of the first positioning time, distance calculation, slope detection); Indoor navigation (floor change detection, elevator detection); Vertical speed indication (ascent/descent speed) for outdoor navigation, leisure and sports applications.
BME688
The BME688 environmental sensor is a highly integrated MEMS environmental sensor capable of comprehensively measuring environmental parameters such as temperature, humidity, air pressure, and VOC gases (volatile organic compounds). Its software protocol and hardware size are fully compatible with the BME680, so no adjustments are needed to directly replace the BME680 in the existing system. Meanwhile, BME688 has enhanced the accuracy of temperature measurement and hollowed out the area around the chip on the circuit board to reduce the impact of heat generated by external components on the measurement.
Another major improvement of BME688 is the introduction of a "heating layer" technology at the bottom of the chip. Traditional VOC sensors are prone to interference from ambient temperature, leading to measurement errors. However, the heating layer of BME688 enables users to precisely control the temperature of the sensor, thereby reducing the impact of ambient temperature on VOC measurement. By taking advantage of this feature, users can also collect the response data of specific composite gases at different temperatures by adjusting the temperature of the heating layer.
Product Parameters

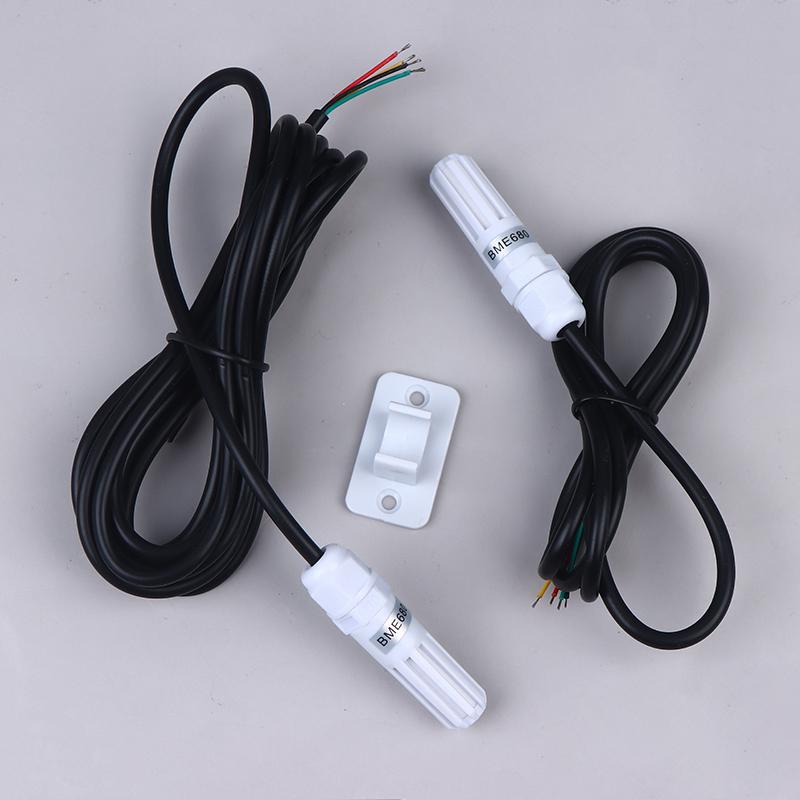

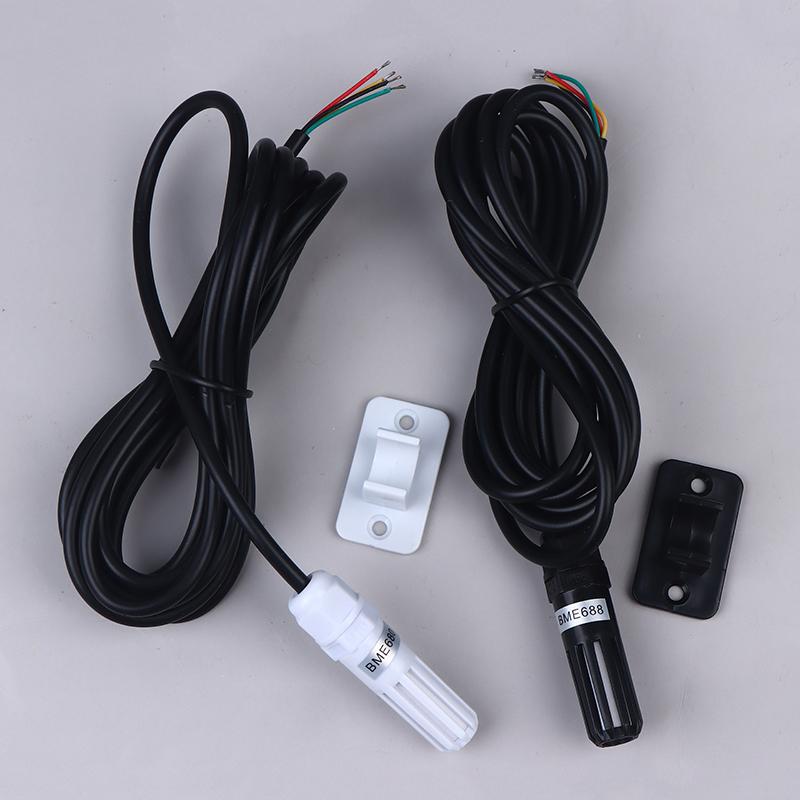

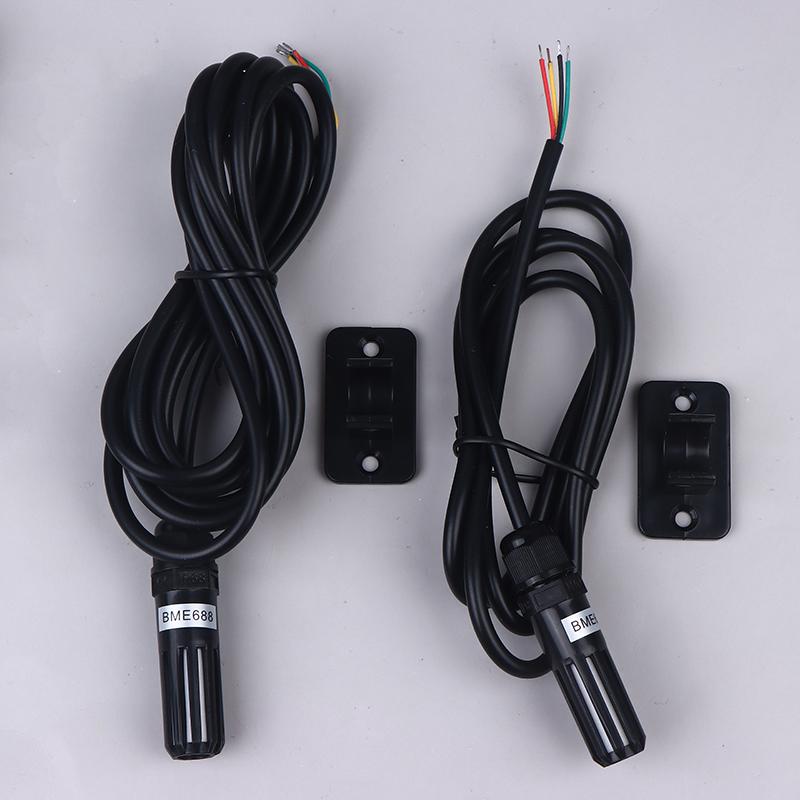

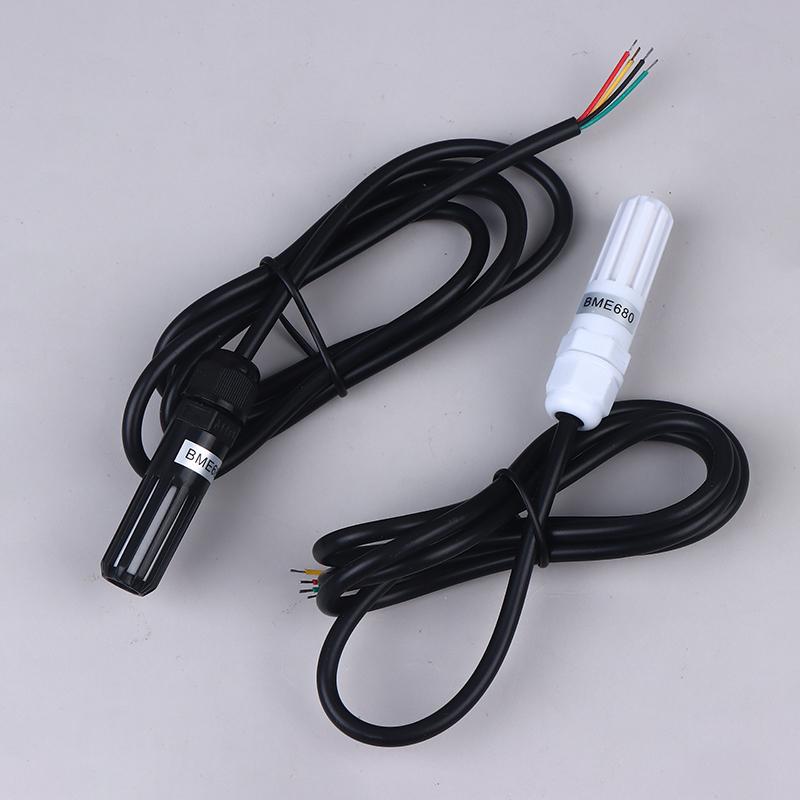

Product Model:BME680/BME688
Supply Voltage:3-3.6V
Output:IIC Signal
Temperature Range:-40 to 85°C
Humidity Range:0-100% RH
Pressure Range:300-1100 hPa
Gas Output Data Processing:
IAQ Index Output(BME680)
IAQ, bVOC, CO2(BME688)
Humidity Accuracy:+3%
Temperature Accuracy (Typical):±0.5°C

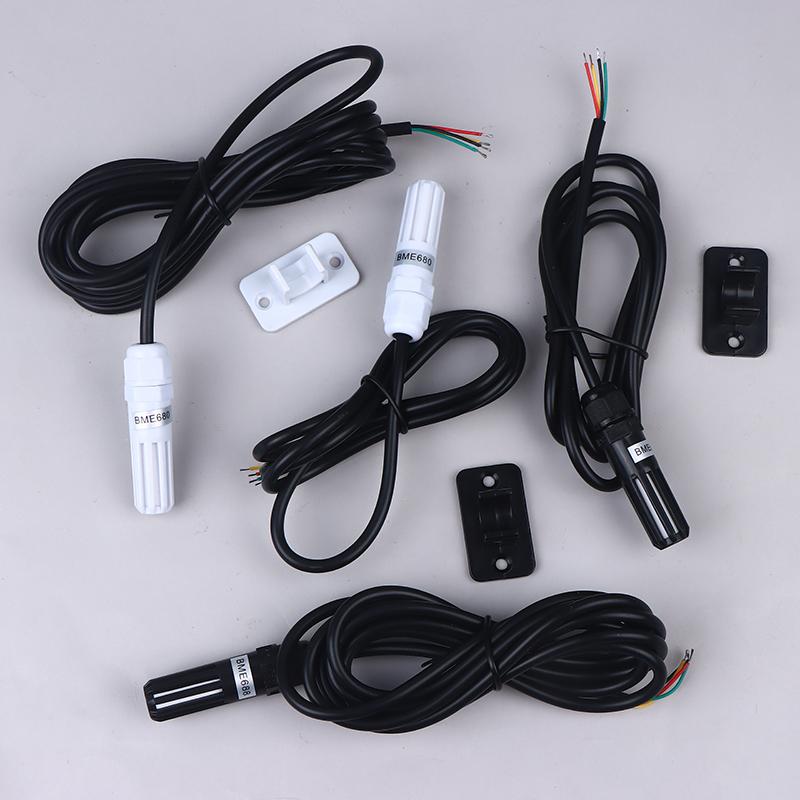

Color: Black/White
Size:As the pictures show
Package quantity:1Pc
Note:
Please allow 2%-3% differences due to manual measurement. The above dimensions are for reference only.
As different computers display different colors, thank you for your understanding, the actual product color may be slightly different from the image.
