Feature:
1. Strong thrust, high efficiency, low power consumption, high performance, exquisite workmanship and long service life.
2. Using high‑quality materials, it is lightweight and portable, with stable and low‑noise working performance.
3. Easy to install, it is used to replace the damaged or unusable motors, with simple operation.
4. The precisely balanced rotor is stable, has the best reliability and the largest RPM.
5. Precise design can achieve maximum energy conversion and outstanding performance, fit for RC fixed‑wing aircraft with 4.0mm banana plug.
Specification:

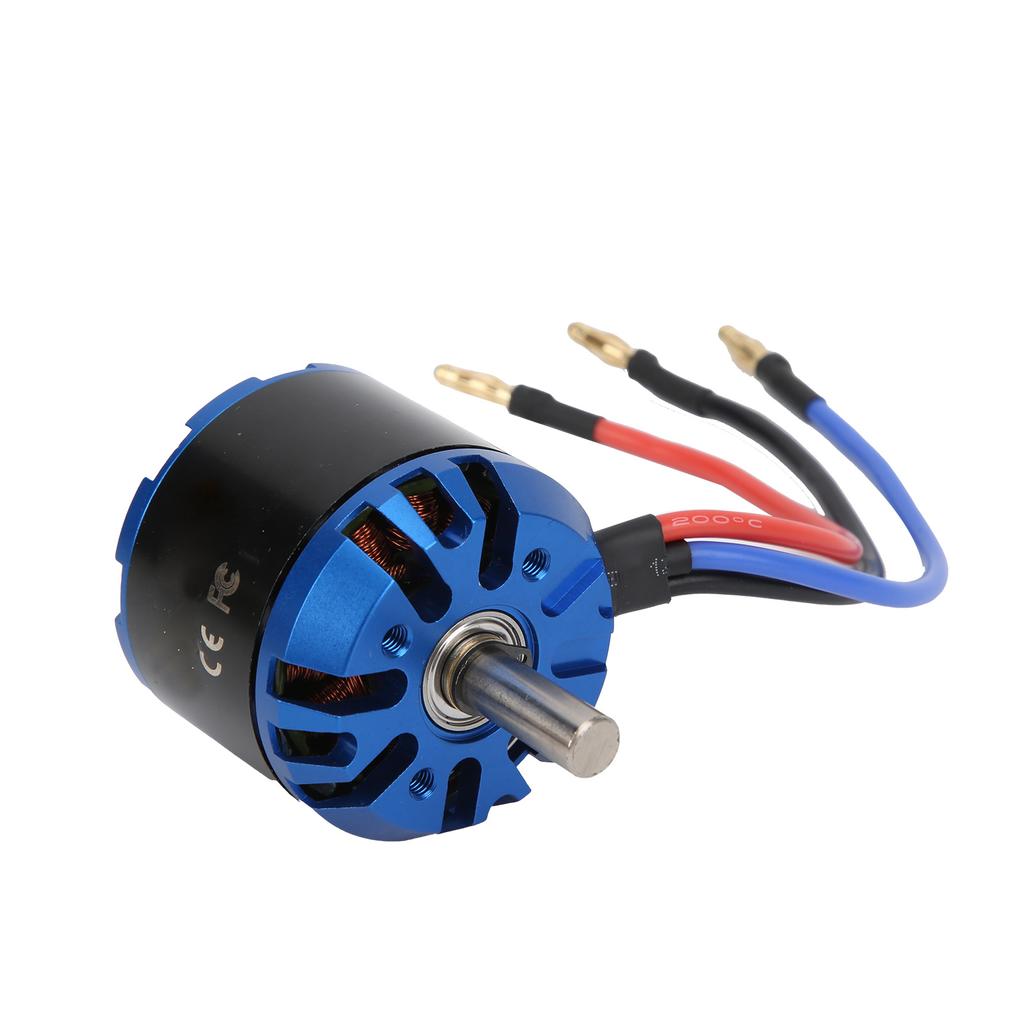

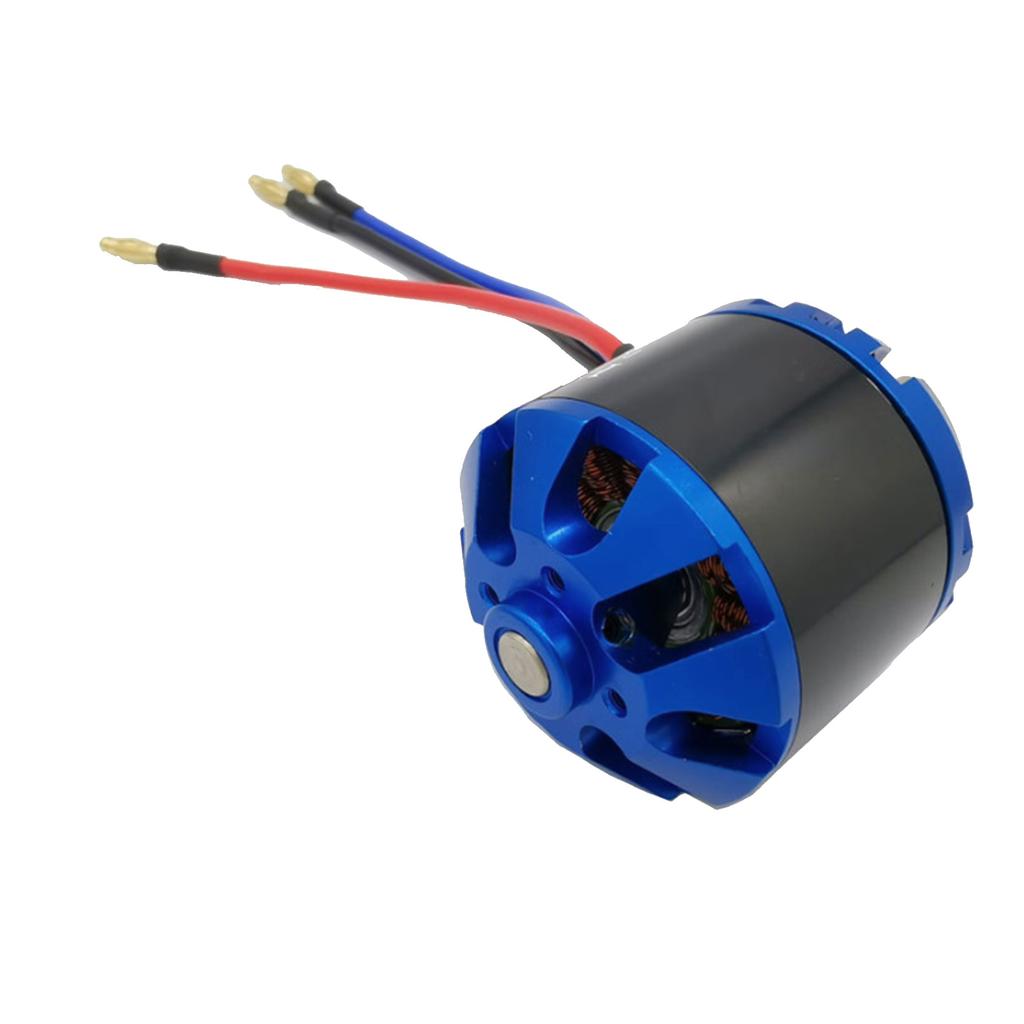

Item Type: 5055 400KV Brushless Motor
Model: 5055
Material: Aluminum Alloy + Copper
Product Color: Black and Blue
Motor Size: Approx. 55x50mm / 2.2x2.0in
Product Weight: Approx. 401g / 14.1oz
KV: 400KV
Maximum Power: 1420W
Adapter Blade: 14x5/15x8/17x9
Support Battery: 11.1-25.2V
Recommended ESC: 100A
Compatible: Fit for RC Fixed-wing Aircraft with 4.0mm Banana Plug
How to Use:
1. After fixing the motor, link the battery assembly to the electronic speed controller (ESC).
2. Link the corresponding colors of the three wires of the motor to the governor. If the direction of rotation is incorrect, just change any two wires.3. Connect the receiver, the third receiving channel (CH3) to the electronic governor, and start the test.
Package List:
1 x Brushless Motor
1 x Cross Seat
1 x Paddle Clip
1 x Fixed Nut
3 x Heat Shrink Tube
3 x 4.0mm Banana Plug
8 x Screw
1 x Manual
Note:
1. Please allow 1‑3mm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
