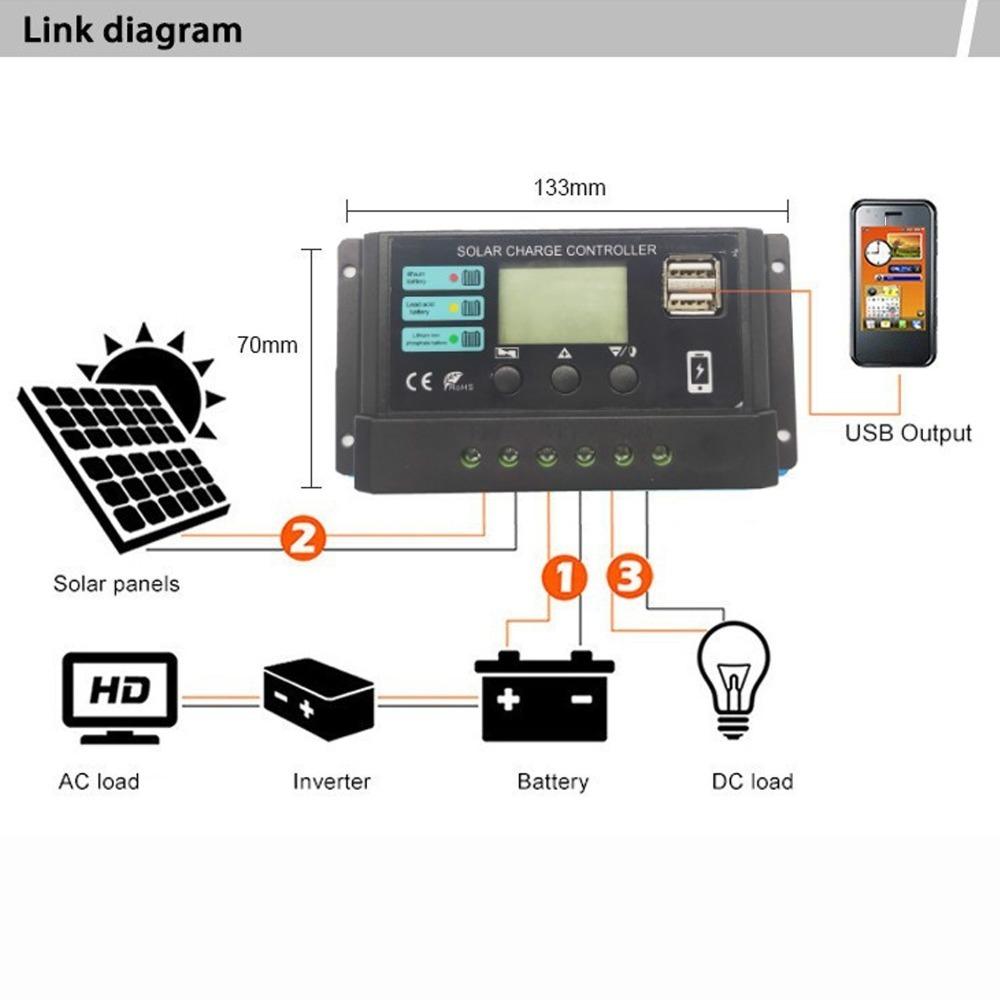

EASY TO USE: The PV charge controller has a simple structure, easy to connect and operate, suitable for home, industry and commerce.

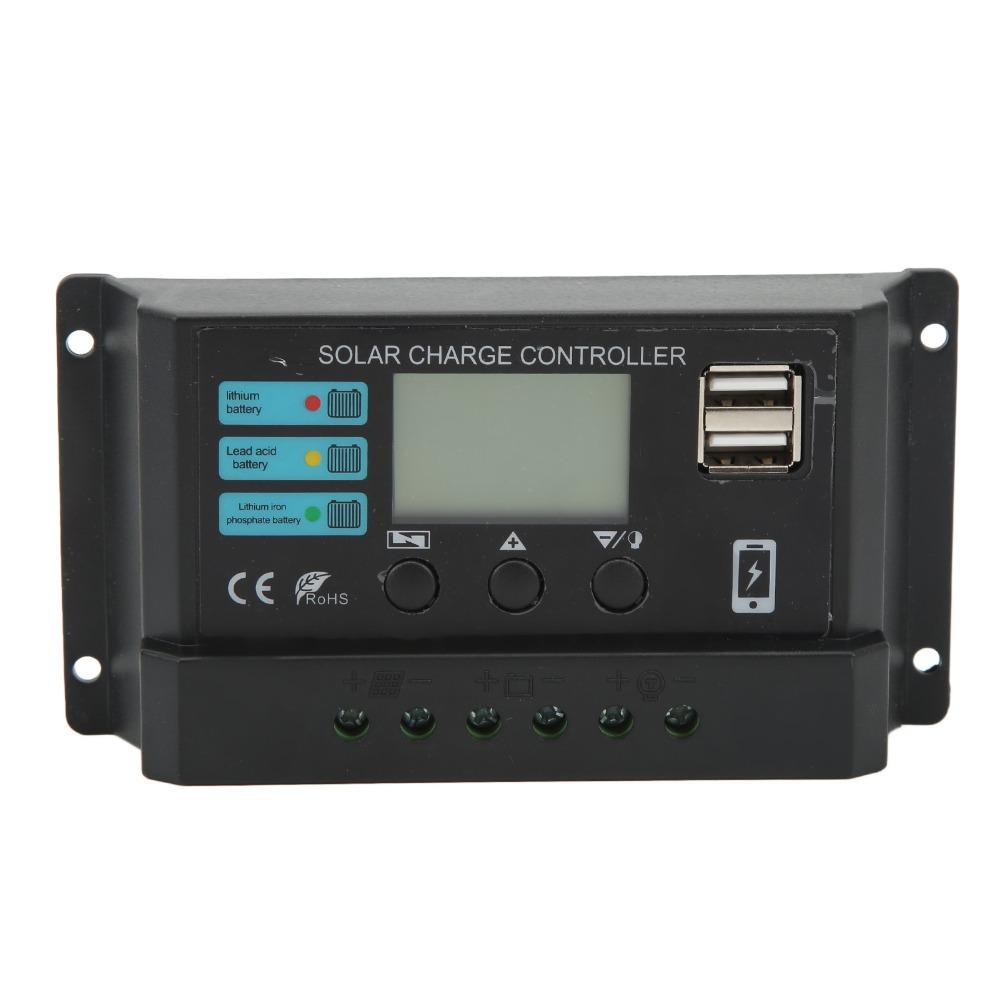

CLEAR DISPLAY: The status and data can be clearly displayed on the LCD, convenient for mode switching and parameter configuration.
CIRCUIT PROTECTION: The solar controller has short circuit protection, open circuit protection, reverse protection and overload protection.
EXCELLENT CHIP: The solar charging controller adopts industrial grade master control chip, with stable performance and less interference.

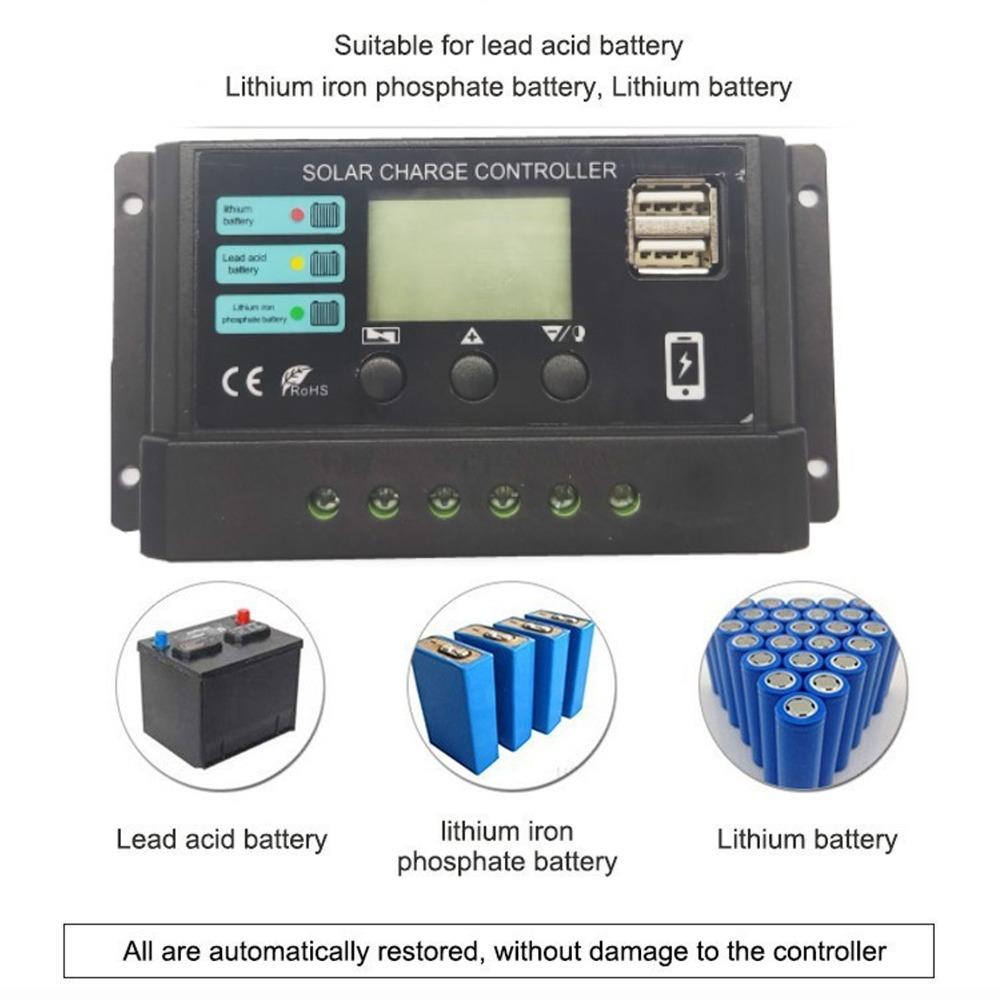

SPECIFICATIONS: Solar panel charging controller, 12V 24V adaptive voltage, with 5V 1A USB output, suitable for lithium battery, etc.
Specification
Item Type: Solar Controller
Material: ABS
Voltage: 12V 24V Self Adaption
Rated charging current: 10A/20A/30A (Optional)
Rated discharging current: 10A
Maximum photovoltaic voltage: 12V battery<(18V-23V)/ 24V battery<(36V -46V)
USB Output: 5V 1A
Working Ambient Temperature: -35℃ to 60℃
Standby Current: <10mA
Color: Black

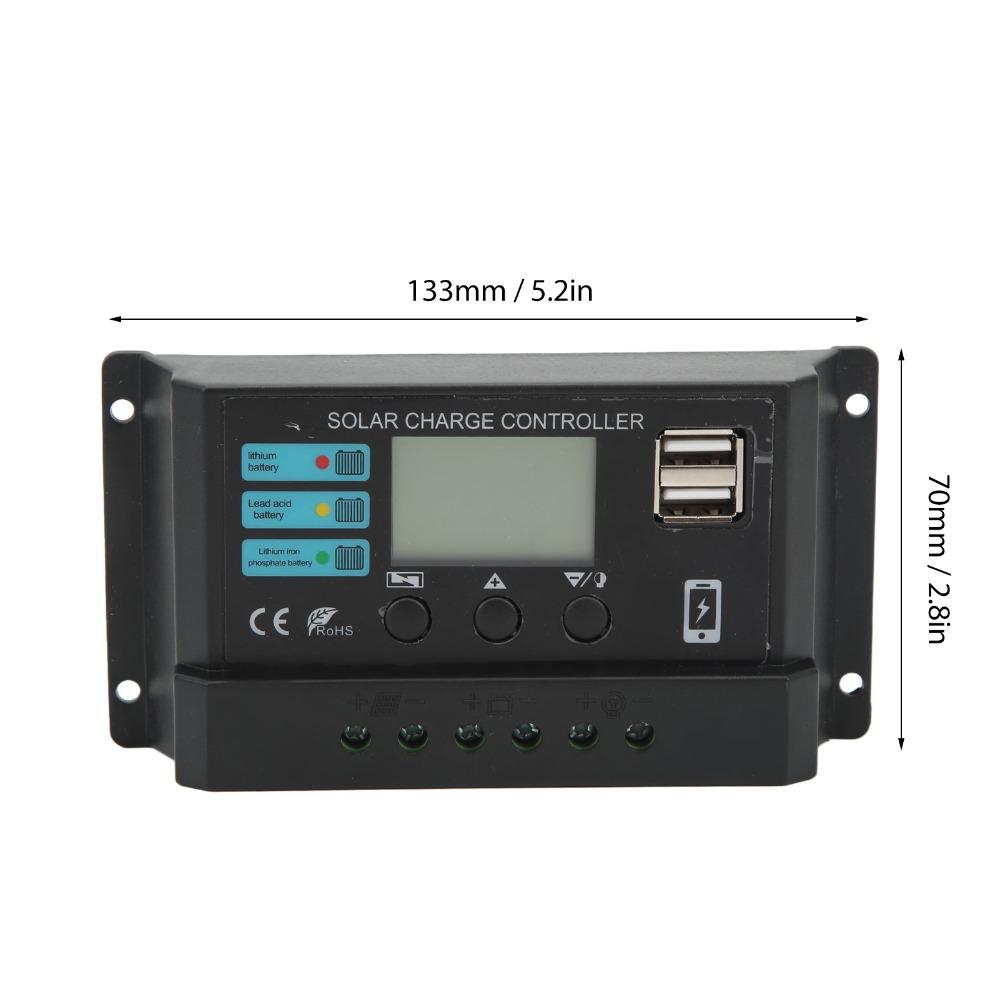

Size: 133*70mm(5.2*2.8in)
Cut-off charge voltage:
B1: 14.4V
B2: 12.6V
B3: 14.6V
Discharge cut-off voltage:
B1: 10.7V
B2: 9V
B3: 10.8V
Discharge recovery voltage:
B1: 12.6V
B2: 11V
B3: 12.6V
Package List
1 x Solar Controller
1 x User Manual
Note

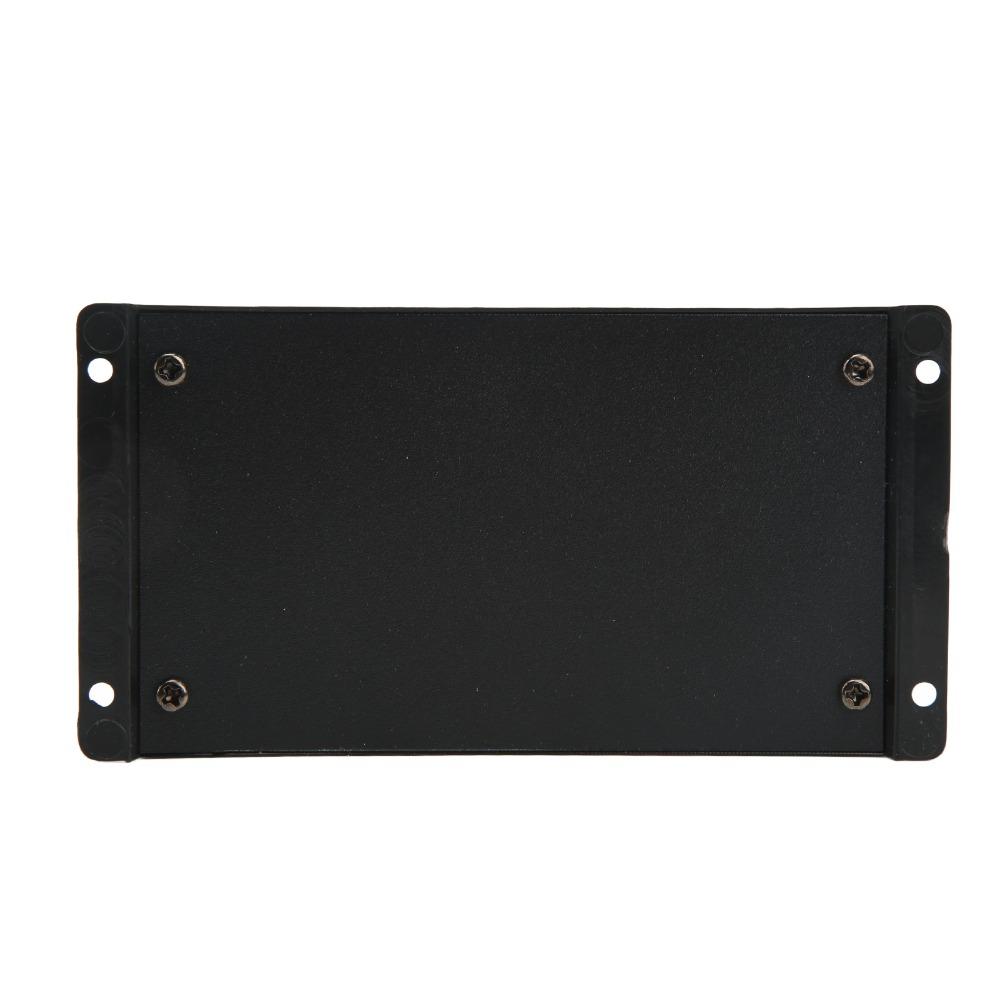

The controller will generate heat during use. Please install the controller on a flat and well ventilated surface.
