Description：
【4K HDMI Video Capture Card】:The Video Capture Card adopts a high-end intelligent chip design, with pocket size and aluminum alloy design, supporting up to 4K@60fpsHDMI Video capture. This Video Capture Card is very suitable for live streaming, game broadcasting, video recording, conference rooms, and other usage scenarios.

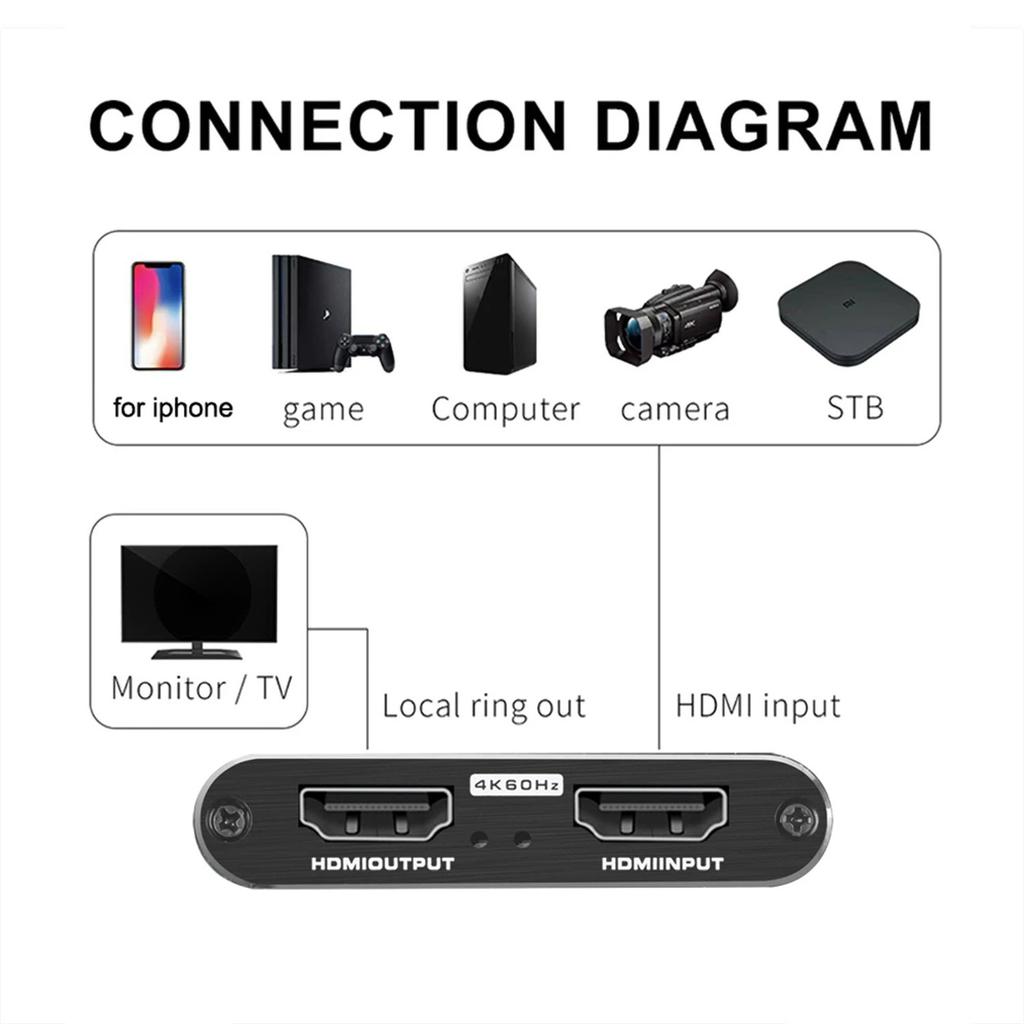

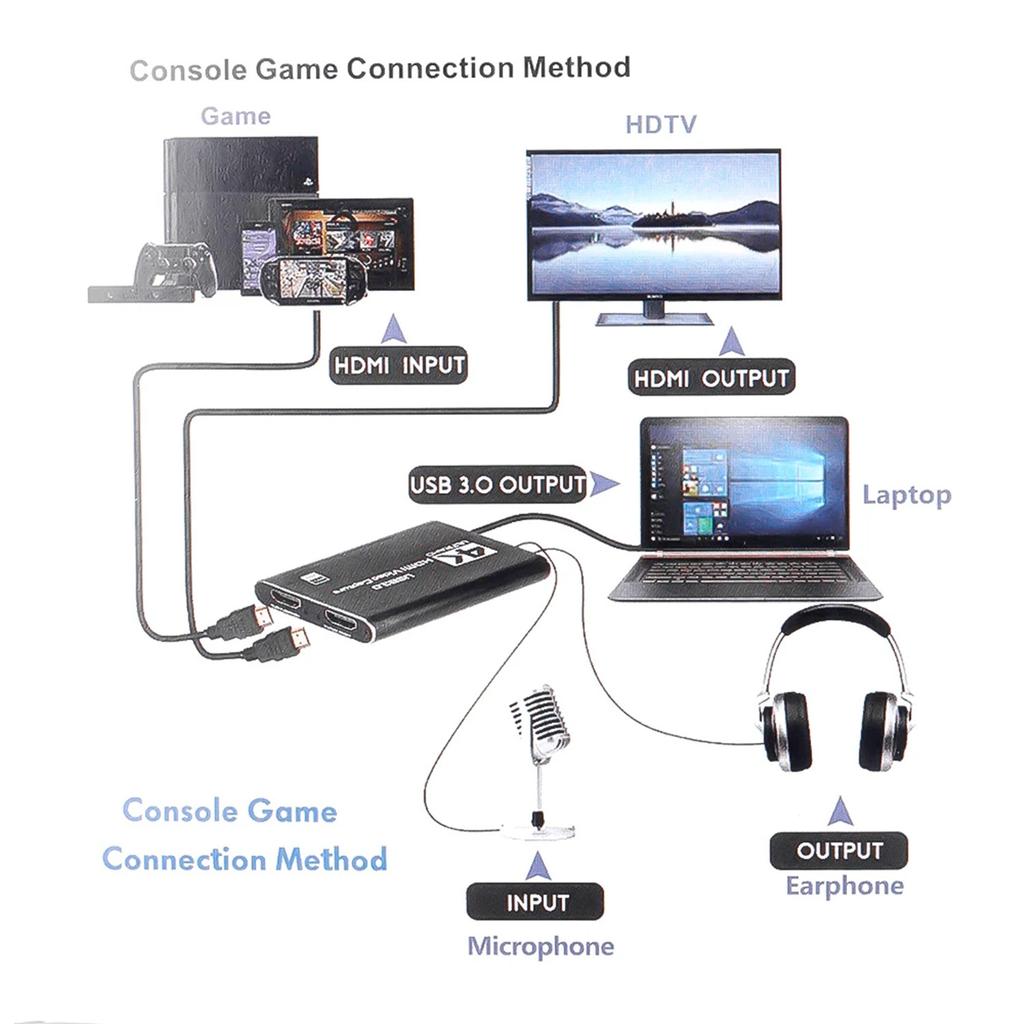

【Full HD HDMI LOOP-OUT】: 4K HDMI Capture Card for games console, USB 3.0 output resolution up to 4K@30fps, and streams 1080p@60fps. No frame lag. it can capture one single channel HD HDMI video signal. There is no delay when you are playing game live.
【Wide Compatible with Multiple Systems】: Video Capture Card is suitable for Windows 7/ 8/ 10, Mac OS, Linux and many other systems. Compatible with Switch, PS4, PS5, Camera, Webcame, DSLR.Easier transfer of live streaming to Youtube/OBS/Twitch/VLC/Potplayer.

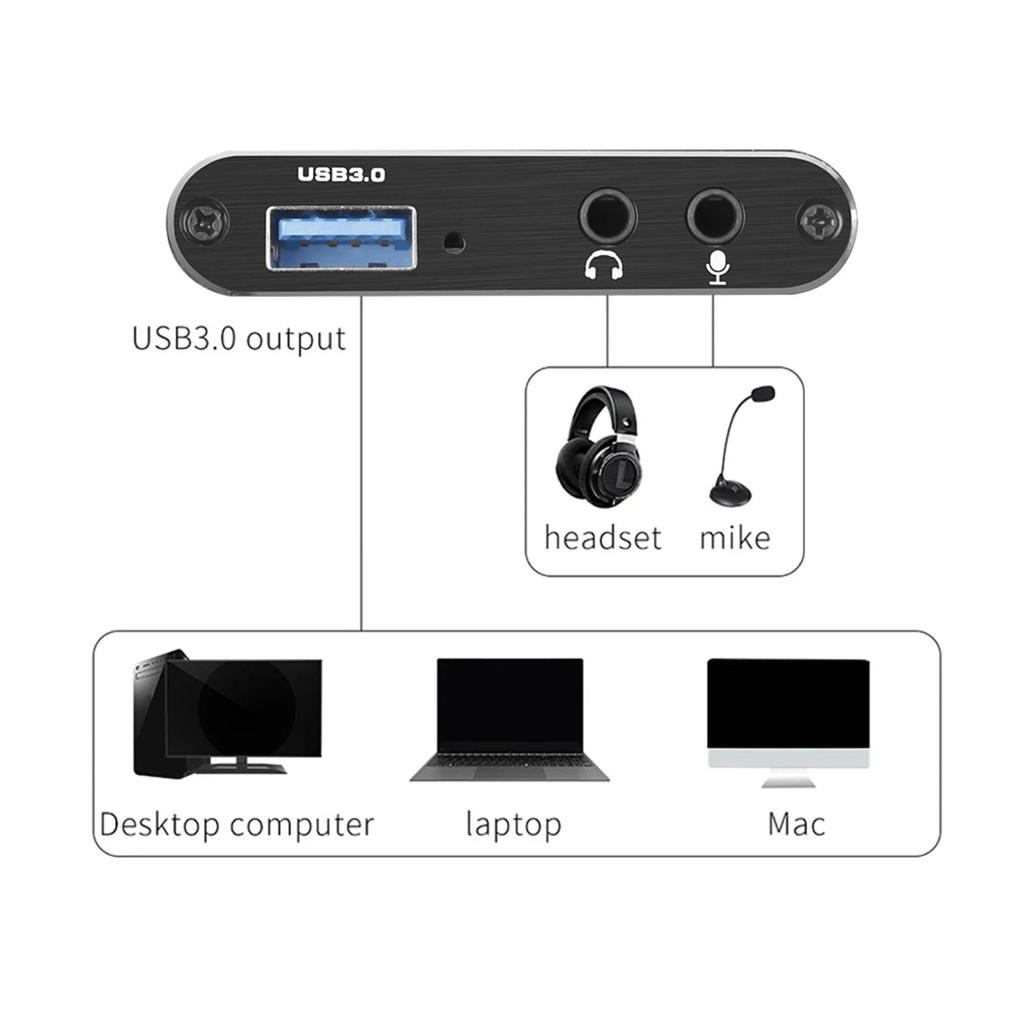

【3.5mm Microphone and Audio】: TEasily stream and record voice through 3.5mm headphone port output and 3.5m microphone port input.Please note: it only accepts 3.5mm TRS standard microphone heads.
【Plug and Play】: No driver or external power supply required.Won't occupy CPU, optional audio capture. the usb capture card is plug and play, easy to use.
Warm tips:
1) USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0
2)The process of video and audio is done by the dongle and will not occupy the CPU
3)It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
Specification:
Element type: for capture card.
Material: aluminium alloy.
Host interface: USB3.0, 300-350 MB/s, USB 2.0, 40 MB/s.
Input interface: HDMI interface
HDMI input format: 480i, 480p, 576i, 576p, 720p, 1080i, 1080P, 4KP30, 4KP60
HDMI output format: 480i, 480p, 576i, 576p, 720p, 1080i, 1080P, 4KP30, 4KP60
USB 3.0 output format resolution: 360 x 240/640 x 480/720 x 480/720 x 576/768 x 576/800 x 600/1024 x 768/1280 x 720/1280 x 800. /1280 x 960/1280 x 1024/1368 x 768/1440 x 900/1600 x 1200/1680 x 1080 a> Frame rate: 30/40/48/50/59.94/60 FPS
Power consumption: 2.5 W.
Operating temperature: 0-50.
Storage temperature: -20-70.
Store humidity: 5%-90%.
Package list:
1 x for capture card,
1 x HDMI cable.
1 x USB 3.0 cable.
1 x user manual (English language)
No-delivery refund
