IP CAMERA DAHUA IPC-HFW1639TC-A-IL-0280B-S6IP CAMERA DAHUA IPC-HFW1639TC-A-IL-0280B-S6IP CAMERA DAHUA IPC-HFW1639TC-A-IL-0280B-S6

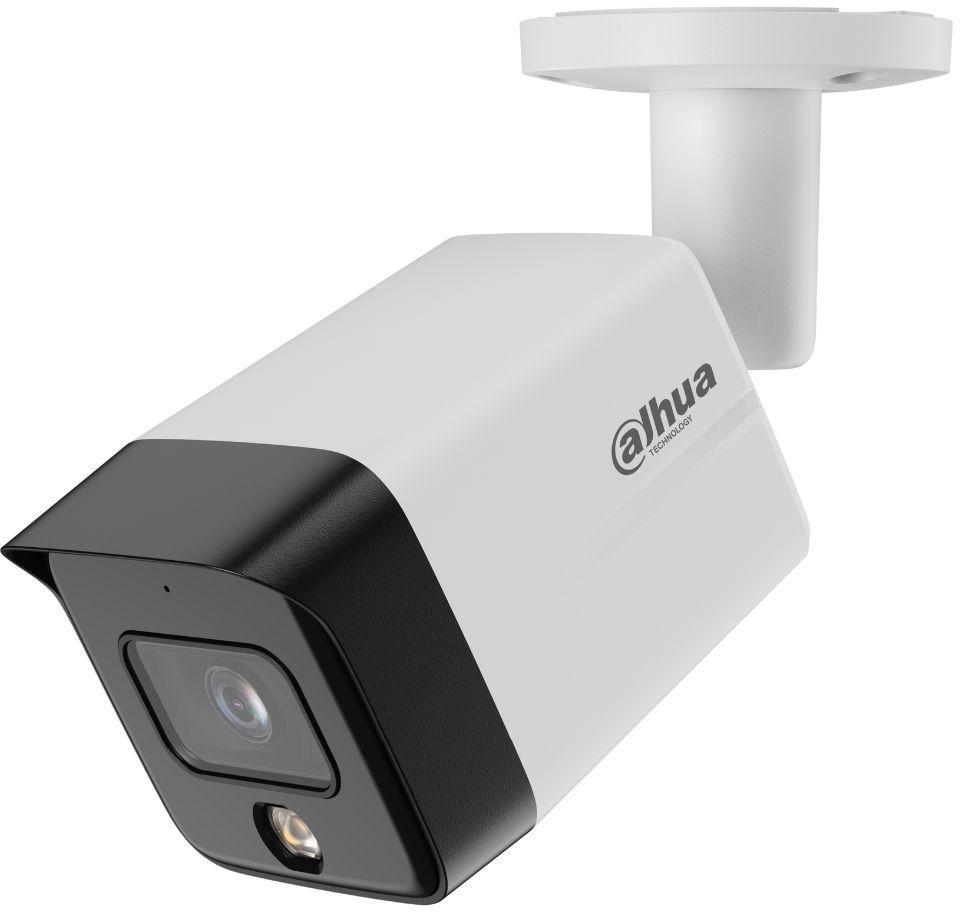

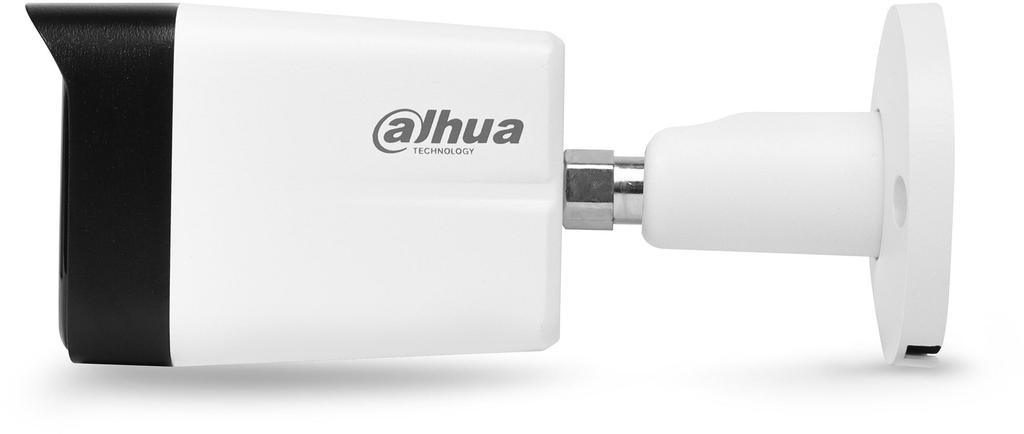

DAHUA IP CAMERA IPC-HFW1639TC-A-IL-0280B-S6
Model: IPC-HFW1639TC-A-IL
Dahua 6mpx IP Camera for monitoring - key features:
1/2.7" CMOS Sensor: Guarantees a clear and detailed image even in low light, ideal for all monitoring conditions. Resolution up to 6 MP: Enables recording in high resolution 3200 × 1800 at 20 fps, as well as 2688 × 1520 at 25/30 fps, ensuring exceptional image quality. H.265 compression: Thanks to a high compression ratio and ultra-low bitrates, it saves disk space and bandwidth while maintaining high recording quality. Advanced lighting: Built-in infrared and warm lighting, with a range of up to 30 meters, provides excellent visibility both at night and during the day.Flexible coding: Supports ROI and SMART H.264+/H.265+ functions, which adjust encoding quality to different network conditions and storage requirements, maximizing efficiency. Advanced image features: Rotation mode, digital glare reduction (DWDR), 3D noise reduction (3D NR), correction of the intensity of light points (HLC), background brightness correction (BLC) and a digital watermark, which ensure a clear image in every situation.Built-in microphone: Records sound, enabling a fuller analysis of the situation and increasing the level of safety. Power supply 12 VDC/PoE: Facilitates installation thanks to the ability to power and transmit data with a single cable, which reduces costs and the amount of cables. IP67 Protection: Guarantees full resistance to dust and water, ensuring reliability in difficult weather conditions. People detection: Intelligently recognizes the presence of people, minimizing false alarms and increasing monitoring effectiveness.
Technical specification
Image settingsBrightness; Contrast; Sharpness; Saturation; GammaOSDOverlayTime; Channel; Location; CustomRecording ModeManual Recording; recording upon motion detection; scheduled recording; emergency recording Recording priority: Manual > motion detection > scheduleDefaultOne-click restore supportUser managementUp to 20SecurityUsername and password; MAC address; HTTPS; Network access controlLow light levelStarlightHuman detectionSupport for classification and accurate human detectionSmart searchCooperation with Smart NVR for precise smart searches, event extraction, and linking them into event videosVideo compressionH.265; H.264; H.264H; H.264B; MJPEG (supported only by substream)Intelligent codecSmart H.265+; Smart H.264+Frames per secondMain stream: 3200 × 1800@(1–20 fps)/2688 × 1520@(1–25/30 fps) substream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The above values are max. frame rate for each stream; for many streams, these values will depend on the total encoding capacity. Stream capabilities2 streamsResolution6M (3200 × 1800); 4M (2880 × 1620/2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)Bitrate Control VBR; CBRBitrate videoH.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbpsDay/Night ModeAuto(ICR)/Color/B/WBLCTakHLCTakWDRDWDRWhite balanceAuto; natural; street lighting; outside; manual; regional customGain controlAuto/ManualNoise reduction3D NRMotion detectionOff/On (4 areas, rectangular)Default bitrate with default resolution4096 kbps (3200 × 1800)Region of Interest (Return on Investment)Yes (4 areas)Smart lightingYesSmart dual lightYesImage rotation0°/90°/180°/270° (90°/270° operation with a resolution of 2688 × 1520 and lower)MirrorPrivacy Masking4 AreasLanguageEnglish; Russian; SpanishEmergency EventsNetwork Disconnection; IP conflict; illegal access; motion detection; video sabotage; sound detection; SMD (people); security exceptionRJ-45 network port (10/100 Base-T)SDK and APITakNetwork ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2PInteroperabilityONVIF (Profile S & Profile T); CGIUser/Host20 (Total throughput: 48 M)FTP StorageIE Browser; Chrome; FirefoxManagement SoftwareSmart PSS Lite; DSS; DMSS; DoLynk CareMobile ClientiOS; AndroidCybersecurityVideo encryption; configuration encryption; Digest; WSSE; account block; safety logs; generating and importing X.509 certificate; HTTPS; trusted boot; trusted execution; trusted update Operating temperature–40 °C to +60 °C (–40 °F to +140 °F)Operating humidity≤95%(RH), without condensation Storage temperature–40 °C to +60 °C (–40 °F to +140 °F)Storage humidity≤95%(RH), without condensationProtectionIP67Lens TypeFixed Focal LengthLens MountM12Focal Length2.8 mmMaximum ApertureF1.6Field of ViewH: 110°; V: 58°; D.: 132°Aperture controlFixedMinimum focusing distance1.1 m (3.61 ft)Distance DORID: 63.6 m; O: 25.4 m; R: 12.7 m; I: 6.4m (D.: 208.66 ft; O: 93.33 ft; R: 41.67 ft; I: 21.00 ft) *DORI (Detection, Observation, Recognition, Identification) this is a standard system (EN-62676-4) defining the ability of a person watching a video to distinguish people or objects in the area covered by the camera. The numbers in this table do not reflect the distances of the intelligent functions. For the range of smart functions, refer to the installation and commissioning instructions/design tool.Image sensor1/2.7" CMOSPixel6 MPMaximum resolution3200 (H) × 1800 (V)ROM128 MBRAM256 MBScanning systemProgressiveElectronic shutter speedAuto/Manual 1/3 s–1/100,000 sMinimum illumination0.007 lux@F1.6 (Color, 30 IRE); 0.0007 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)Signal-to-noise ratio (S/N)>56 dBOdległość oświetleniaDo 30 m (98.43 ft) (Infrared) Do 30 m (98.43 ft) (warm light)Auto illuminator on/off control; ManualNumber of illuminators1 (Multicore (IR + warm) light)Angle adjustmentPan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°Built-in microphoneYes, built-in microphoneAudio compressionG.711a; G.711Mu; PCM; G.726Audio sampling8 kHz; 16 kHzHousing materialMetalProduct dimensions173.3 mm × 70.0 mm × 70.0 mm (6.82" × 2.76" × 2.76") (D × S × W)Package dimensions206 mm × 106 mm × 97 mm (8.11" × 4.17" × 3.82") (D × S × W)Net weight0.44 kg (0.97 lb)Gross weight0.55 kg (1.21 lb)AssemblyCeiling mounting; wall mounting; mounting on a vertical poleCE-LVD Certificates: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUNominal voltage12 VDC (±30%); PoE (802.3af)12 VDC/PoE Power Supply (802.3af)Power consumptionBasic: 2 W (12 VDC), 2.9 W (PoE); Maks. : 4 W (12 VDC); 5.3 W (PoE) (H.265 + intelligence enabled + DWDR + illuminator intensity)
Key features
Image sensor: CMOS 1/2.7", low light, high image resolution. Resolution: Maks. 6 MP (3200 × 1800) at 20 fps, also supports 2688 × 1520 at 25/30 fps. Compression: H.265 codec, high compression ratio, ultra-low bitrate. Lighting: Built-in infrared illumination with a range of up to 30 m and warm illumination with a range of up to 30 m. Encoding functions: ROI, SMART H.264+/H.265+, flexible encoding, adapted to different bandwidth and storage environments.Image features: Rotation mode, DWDR (digital glare reduction), 3D NR (noise reduction), HLC (correction of the intensity of light points), BLC (background brightness correction), digital watermark, suitable for various monitoring scenarios. Microphone: Built-in microphone.Power supply: 12 VDC/PoE, easy installation.Protection: IP67.Detection: Supports human detection.
