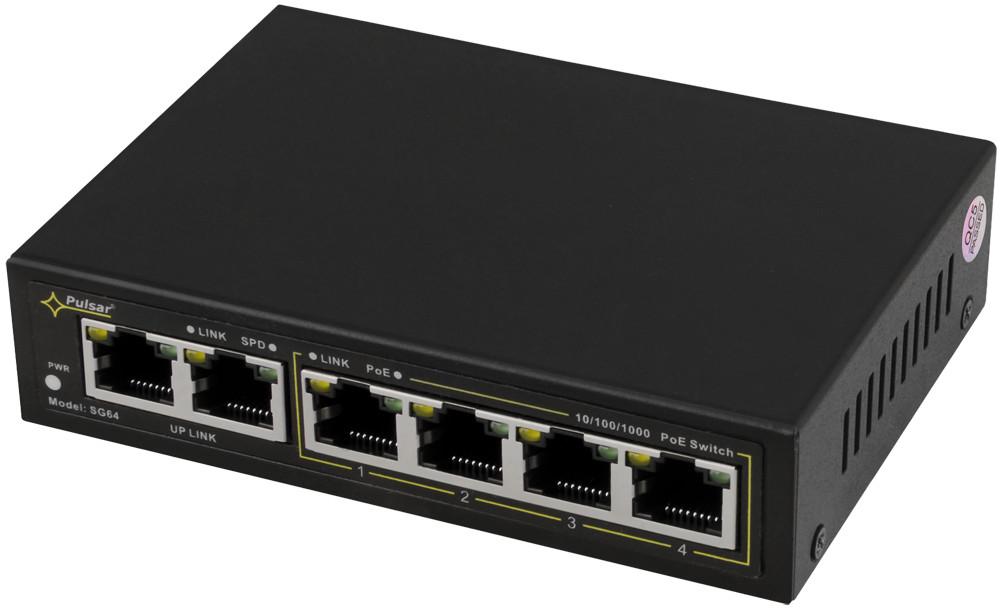

PULSAR SG64 6-Port Gigabit PoE Switch, 4 PoE + 2 Uplink, 30WPULSAR SG64 6-Port Gigabit PoE Switch, 4 PoE + 2 Uplink, 30WPULSAR SG64 6-Port Gigabit PoE Switch, 4 PoE + 2 Uplink, 30WThe PULSAR SG64 is a compact 6-port Gigabit PoE switch designed for connecting and powering compatible network devices. It provides four PoE ports for data transmission and power supply, plus two dedicated uplink ports for connecting additional network equipment.
Ports 1–4 support IEEE 802.3af/at PoE standards and can deliver up to 30 W per PoE port. The automatic detection function identifies compatible powered devices, helping to provide a practical connection for IP cameras and other PoE-enabled equipment.
6 Gigabit Ethernet ports: 4 PoE ports and 2 uplink ports
PoE support: IEEE 802.3af/at on ports 1–4
Power output: up to 30 W per PoE port
Port speed: 10/100/1000 Mb/s with automatic negotiation
Auto MDI/MDIX for automatic cable crossover
Auto-learning and auto-aging of MAC addresses
The two ports marked UP LINK operate at 10/100/1000 Mb/s and are intended for connection to another network device. The switch supports a MAC address table of 1K entries, a switching capacity of 8.8 Gbps, and the Store-and-Forward transmission method.
The SG64 is suitable for installations using IP cameras, as well as other PoE-compatible devices such as IP phones, access points and routers. PoE technology combines network communication and power delivery through the network connection, helping to simplify installation without a separate power cable for every connected device.
Optical indicators: switch power, Link/Act and PoE status

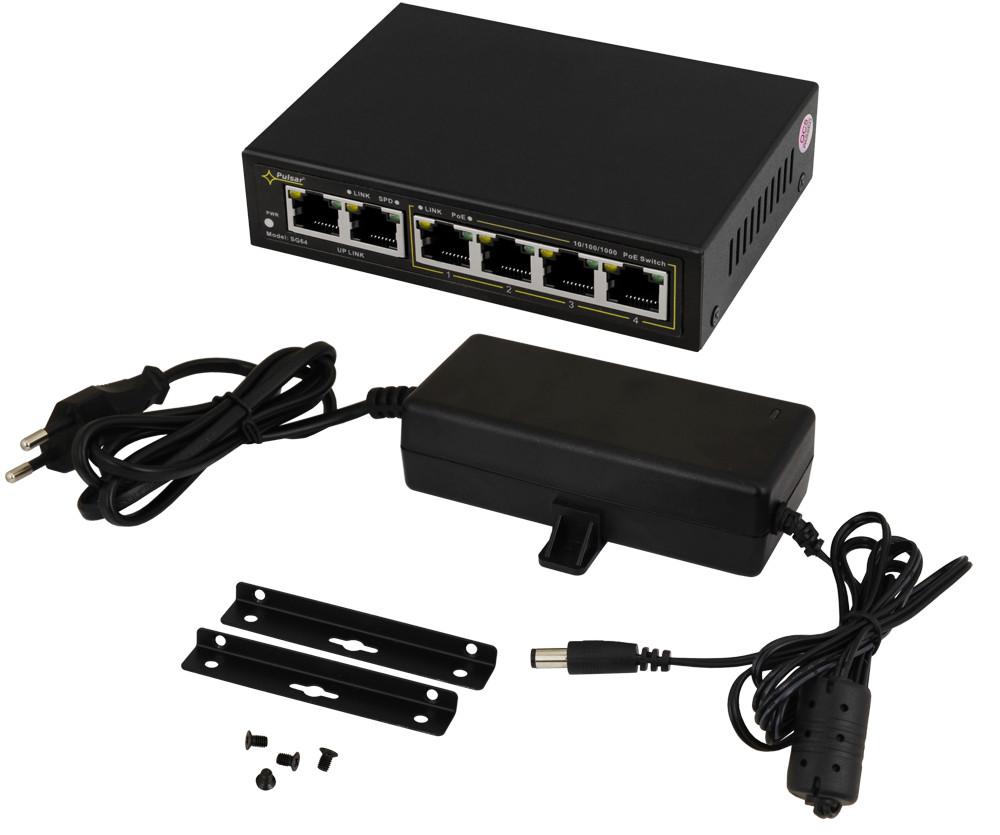

Included power supply: PSD520115 desktop adapter, 52 VDC / 1.15 A / 60 W maximum
Power input: 90–264 VAC, 50–60 Hz, 0.5 A at 230 VAC
Operating temperature: -10°C to 40°C
Relative humidity: 5%–90%, non-condensing
Dimensions: 118 × 28 × 85 mm, with a tolerance of ±2 mm
Net/gross weight: 0.5/0.7 kg
The compact housing measures 118 × 28 × 85 mm and is supplied with additional mounting brackets for attachment to a surface. The device has Class II protection, CE declarations and a 2-year warranty from the production date.53.59PULSAR
