Feature:
1. FC 6S Fiber Optic Cutter: Accuracy cutting for 0.25mm, 0.9mm, and 2.5 to 3.0mm fibers. Automatic push rod, 16 cutting segments, and are robust for seamless cold connections.
2. AUA Y710A OPM Power Meter: Multifunctional tester for measuring 10 standard wavelengths from 850 to 1650nm. Extended testing range of ‑70dBm to +10dBm for accurate results.
3. 30MW VFL: Long distance output. Battery powered red light VFL with a range of 20 to 30km. Stable power circuit for continuous and pulse mode operation, ideal for fault detection.
4. OPM 2 in 1 Function: Features 2.5mm SC, FC, ST universal interface, auto calibration, 500 data storage capacity, and dual functionality for efficient testing and analysis.
5. Fiber Tools Kit: Complete set for fiber optic installation and maintenance, including a variety of tools such as cutters, power meters, visual fault locators, and more. Necessary for seamless fiber optic connections.
Specification:
Item Type: Optical Fiber Tool Kit
Material: ABS, Oxford Cloth

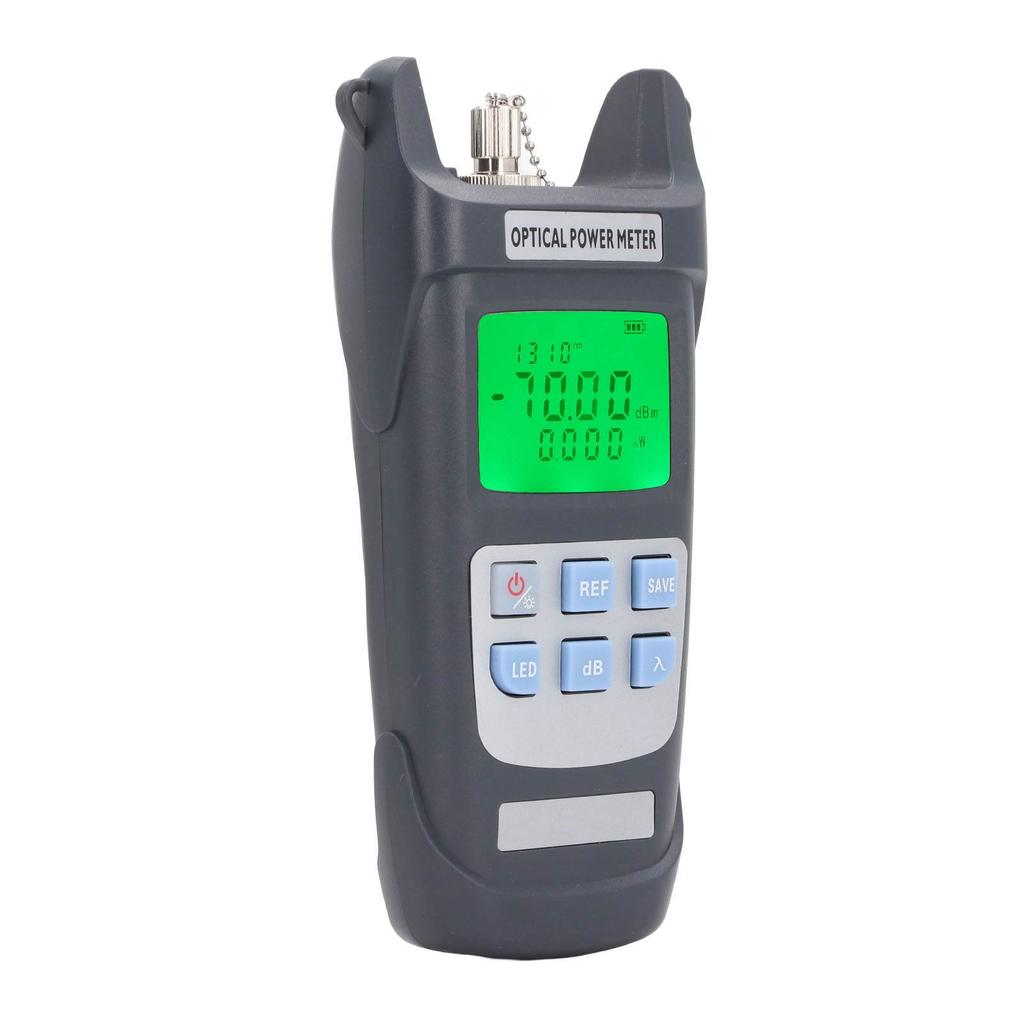

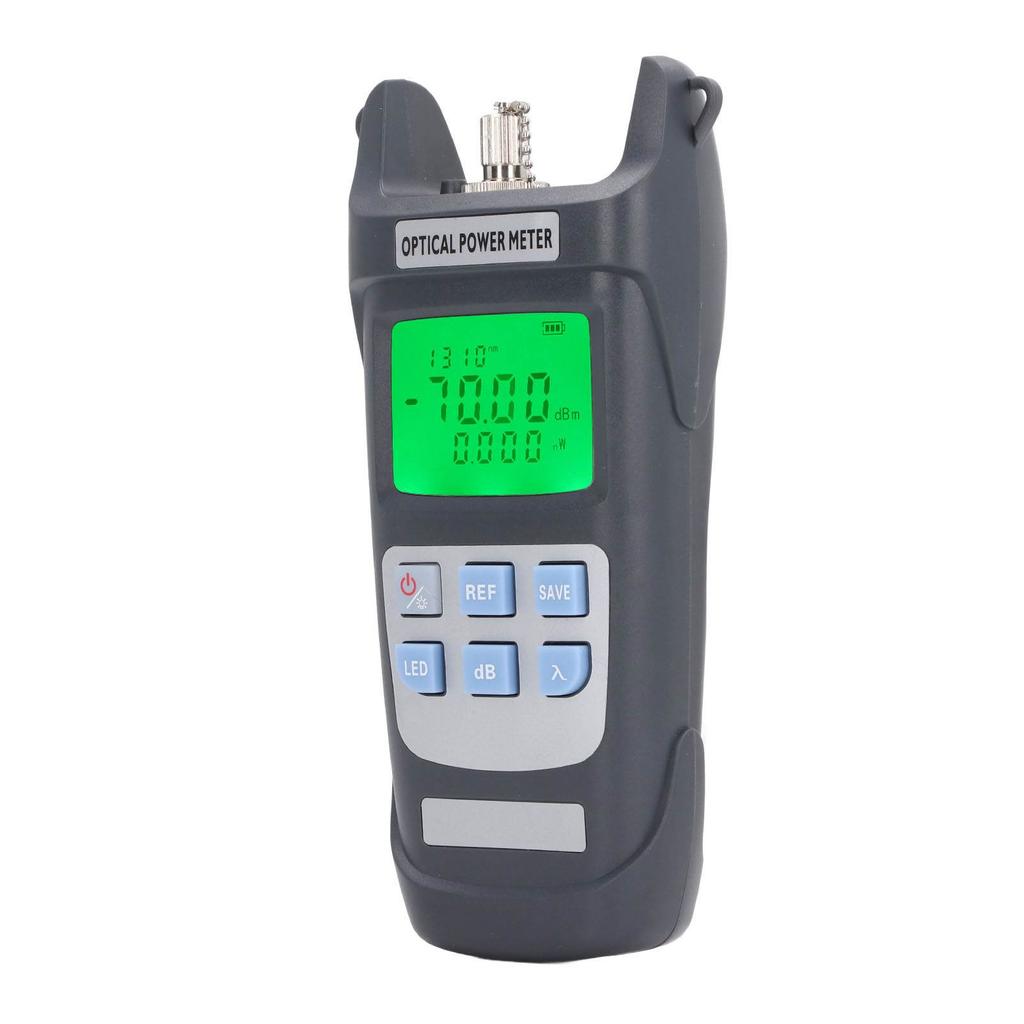

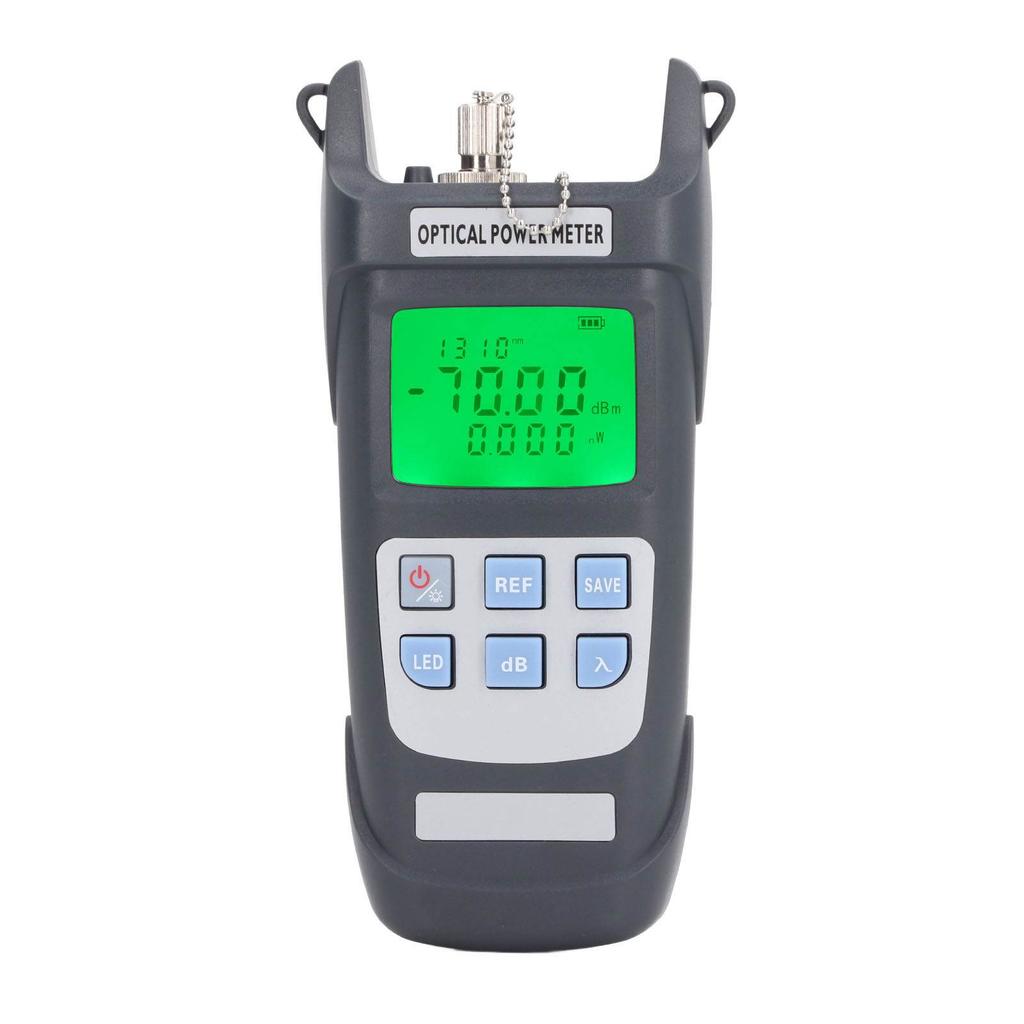

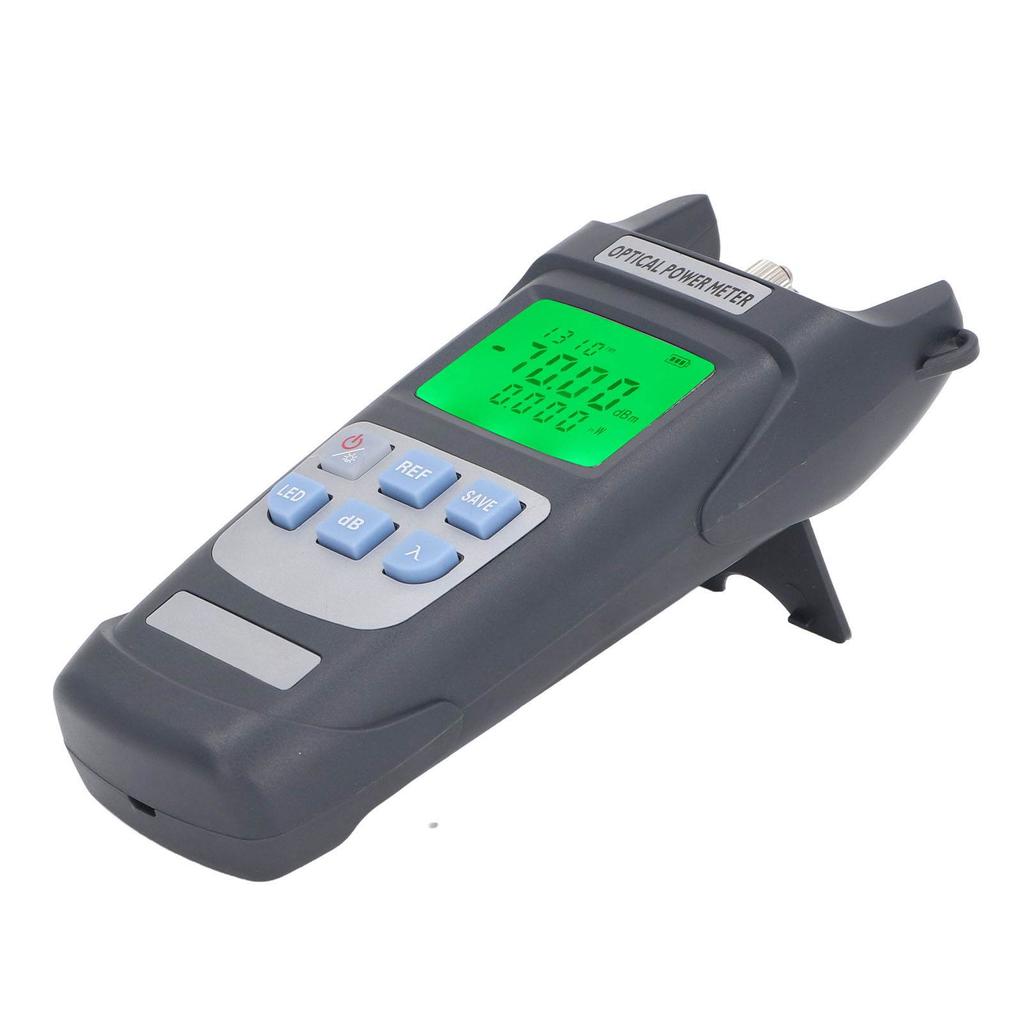

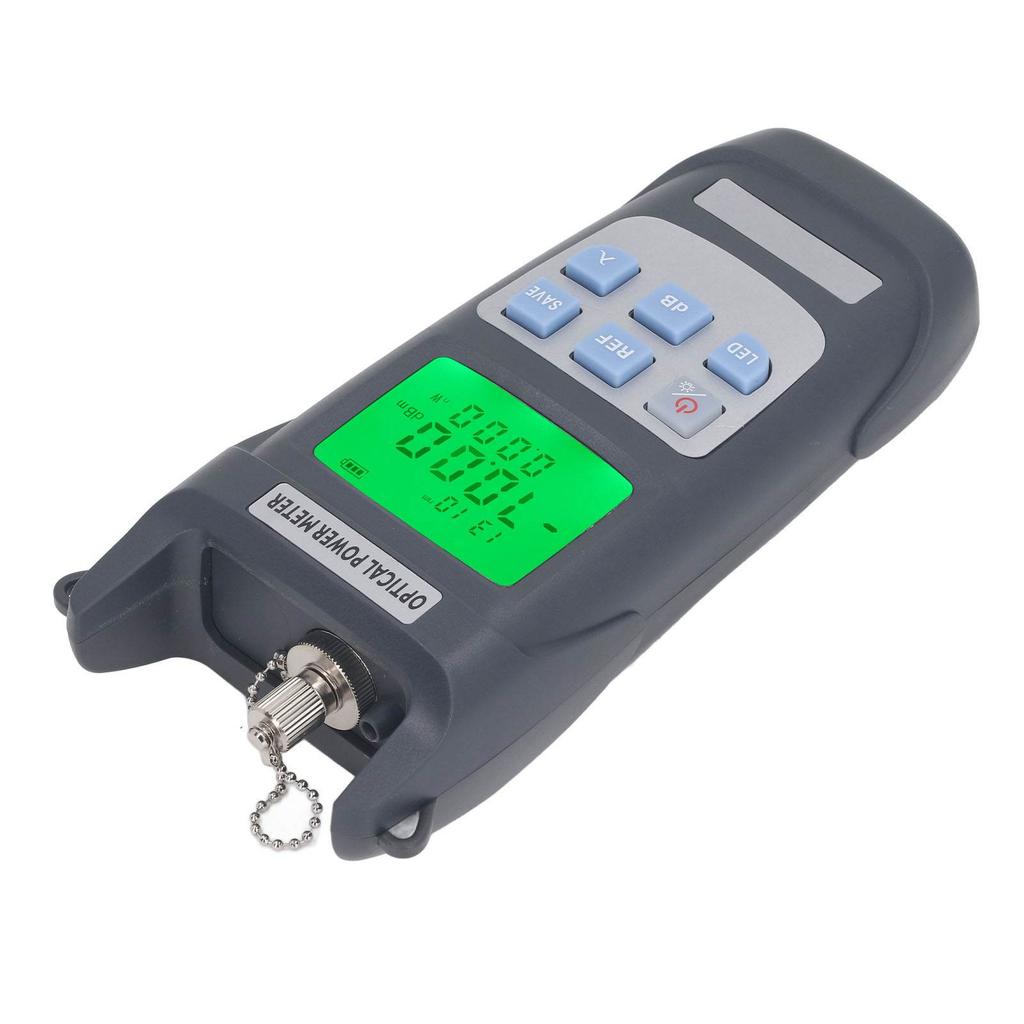

AUA Y710A Optical Power Meter
Probe Range: for InGaAs
Test Range: 70 to +10dBm
Wavelength Range: 850 to 1650nm
Standard Wavelength (nm): 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650
Display Resolution:
Linear Display: 0.1percent
Logarithmic Display: 0.01dBm
Power Supply: 3.7V AA Lithium Battery x 2 (Batteries Not Included)
Test Accuracy: + 0.2dB
AUA 30 Fiber Optic Light Pen
Output Optical Power: more than 30MW
Universal Interface: 2.5mm (FC, SC, ST)
Output Wavelength: 650nm + 10nm
Fiber Adapter: Universal Connector
Battery Type: 1.5V AA Battery x 2 (Batteries Not Included)
FC 6S Fiber Optic Cleaver
Cleave Angle: less than 0.5 degrees
Applicable Bare Fiber Diameter: 125micrometer
Fiber Cleave Length: Approx. 9 to 16mm 0.35 to 0.63in (Dia. 0.25mm 0.01in), Approx. 10 to 16mm 0.39 to 0.63in (Dia. 0.25mm 0.01in)
Cleave Number: 36000 Times
Three Hole Fiber Stripper
Large Hole for Stripping Approx. 2 to 3mm (Fiber Outer Safety Layer)
Middle Hole for Stripping 900micrometer to 250micrometer (Fiber Center White Soft Gel Safety Layer)
Small Hole for Stripping 250micrometer to 125micrometer (Fiber Center Coating)
Wire Stripper
Applicable Fiber: 1 2 Center Fiber
Applicable Range: Approx. Indoor 30mm 1.18in (width W), 2mm 0.08in (height D) optical cable
Applicable Fiber Coating Diameter: Approx. Dia. 0.25mm 0.01in and Dia. 0.9mm 0.04in
Applicable Fiber Cladding Diameter: 125micrometer
.
Package List:
1 x Optical Power Meter 1 x Optical Power Meter Adapter1 x Optical Power Meter Instruction1 x Optical Fiber Cutter1 x Cutter Instructions 1 x Cutter Storage Bag 1 x Red Light Pen1 x Spare Red Pen Head 1 x Red Light Pen Instructions1 x Red Light Pen Lanyard1 x Red Pen Storage Bag 1 x Wire Stripper 1 x Wire Stripper Instructions 1 x 3 Hole Wire Strippers 1 x Fixed Length Device 1 x Ethanol Bottle 1 Bag x Dust Free Paper 3 x Hex Wrench 3 x Other Accessories 1 x Tool Bag
