• P300 differential circuit breakers are designed to protect users of electrical installations and devices, providing protection against electric shock and fire.
• The devices are equipped with a test circuit button for testing the correct operation of the circuit breaker.
• The design of the lower hook and terminal shutter make installation and connecting cables to the device simple and convenient.
• An advantage of the TX3 series devices is their ability to interface with auxiliary devices (auxiliary and signaling contacts, undervoltage and shunt releases, remote drives, and others).
• P 300 TX3 series differential circuit breakers are available for rated currents from 16 to 63 A and differential currents from 10 to 500 mA.
• P 300 TX3 differential circuit breakers
• Conventional short-circuit breaking capacity: 10000 A (IEC/EN 61008-1).
• Types: AC and A.
• Made for rated currents from 16 to 63 A.
• Rated differential currents: 10 mA, 30 mA, 100 mA, 300 mA and 500 mA.
• Versions:
• •two-pole (P 302 TX3),
• •four-pole (P 304 TX3).

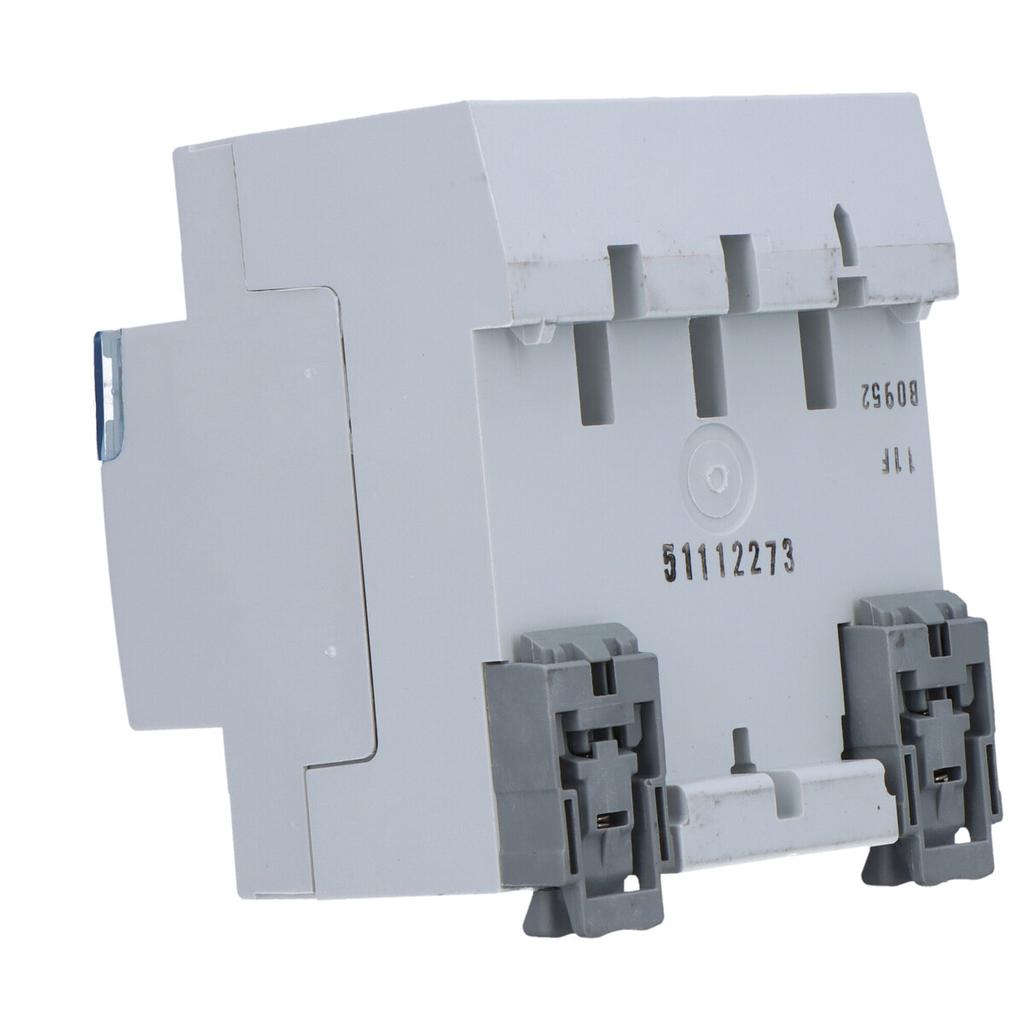

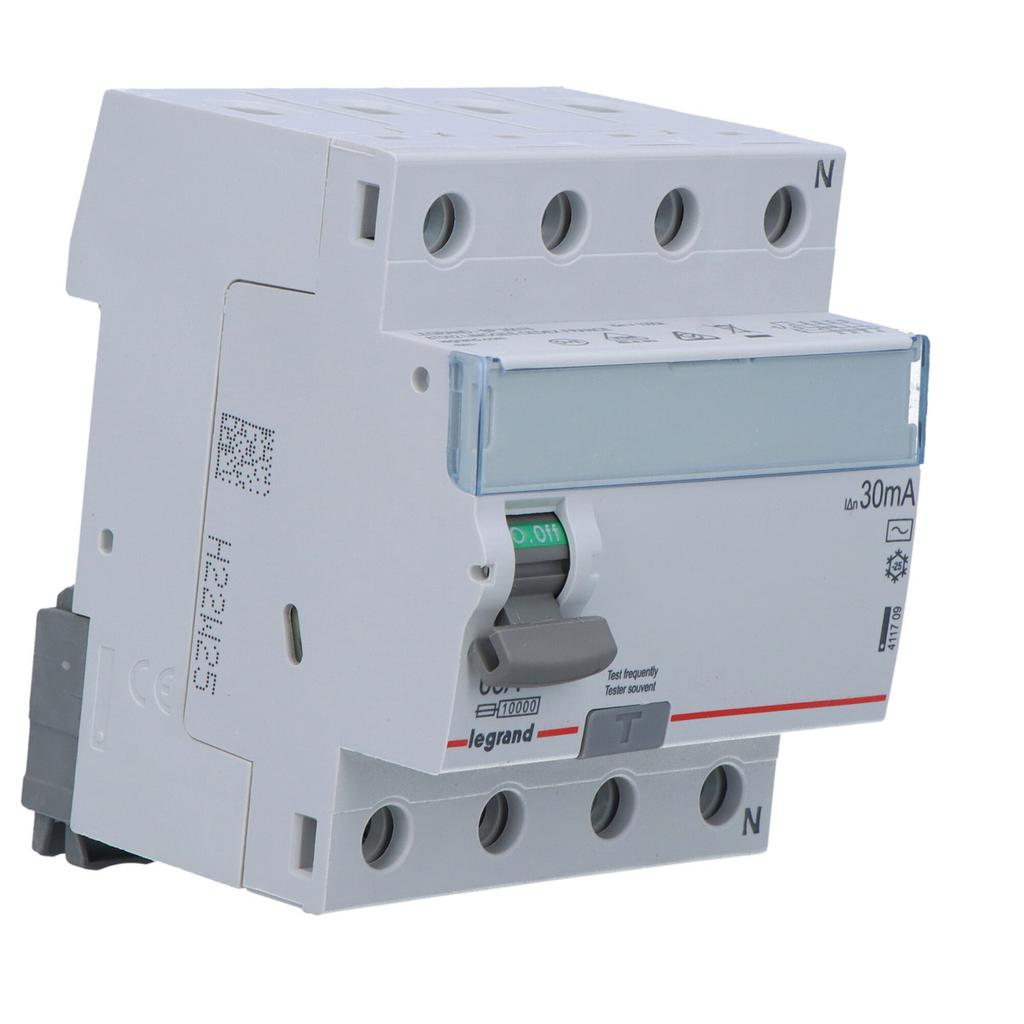

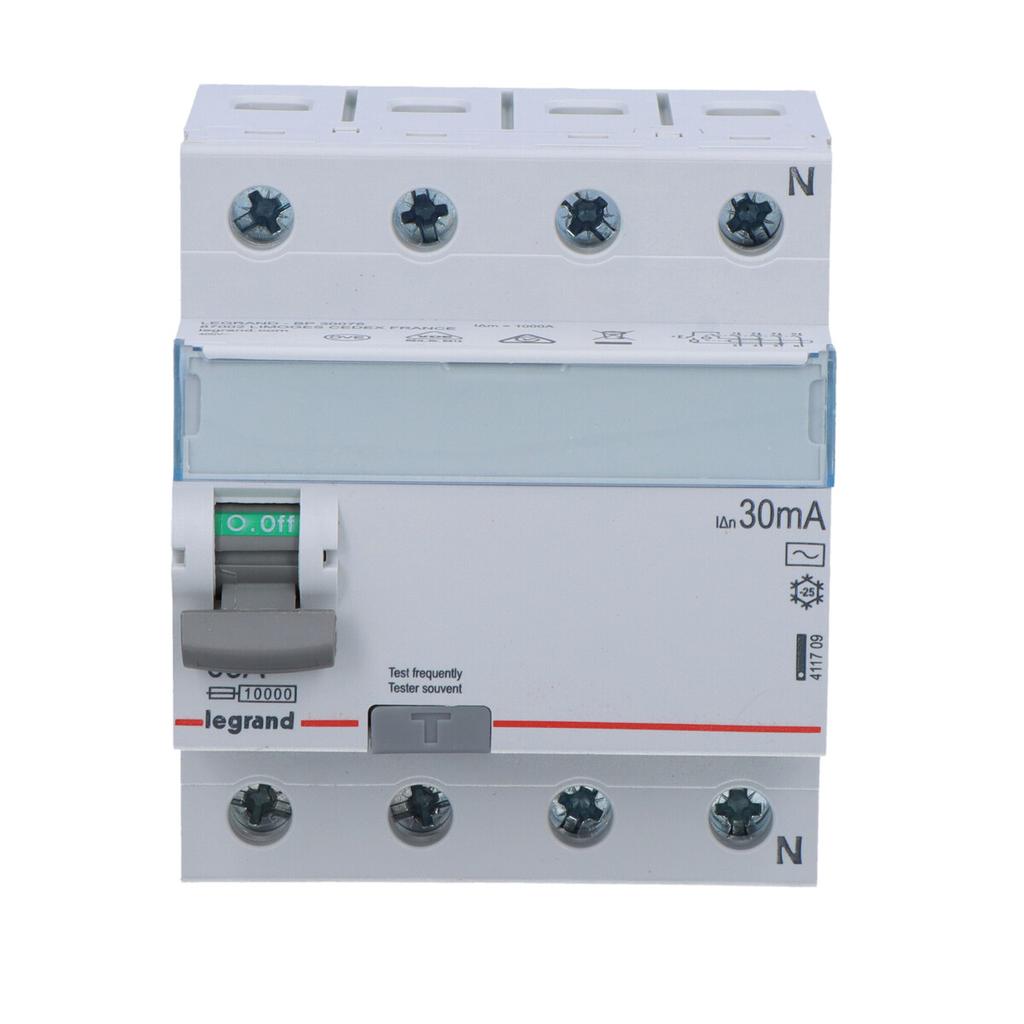

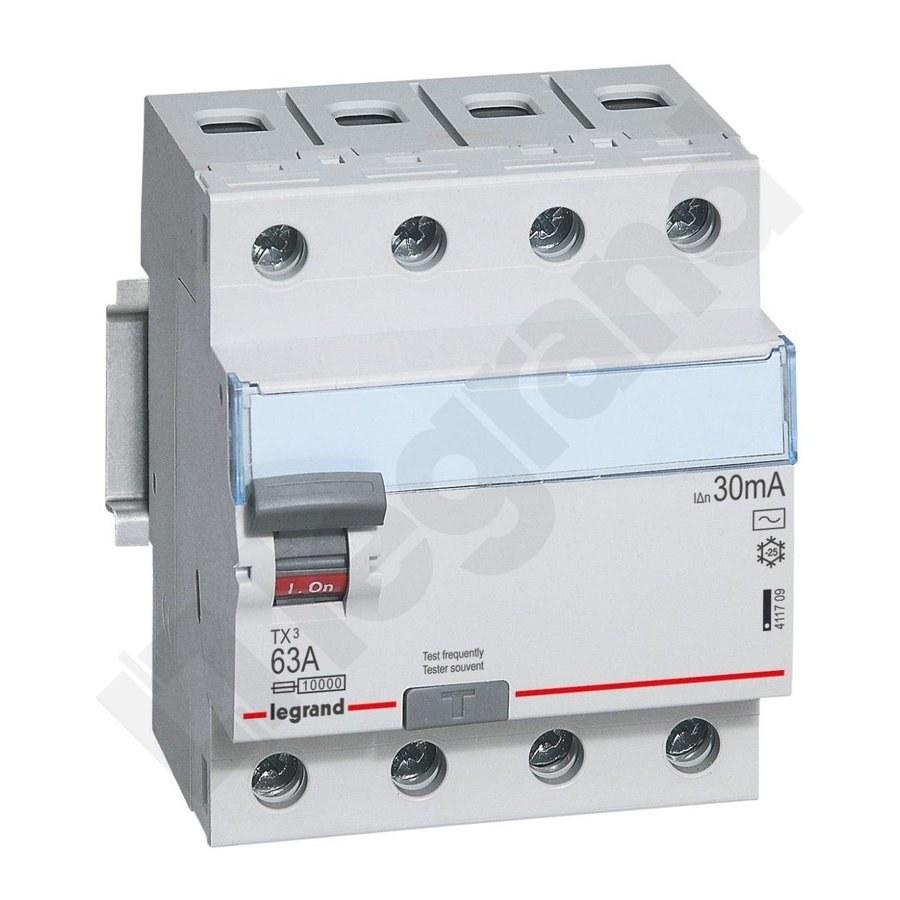

• P300 series differential circuit breakers, three-phase P304, type AC
• Rated voltage: 400 V~
• Rated current: 63 A
• Width in 17.5 mm modules: 4
• Rated differential current: mA
• Design: AC
