• P 310 DX3 Series Residual Current Circuit Breakers
• P 310 circuit breakers combine the functions of a differential current circuit breaker with an overcurrent circuit breaker, providing both shock protection and protection against the effects of short circuits and overloads.
• Integrating two functions in one device allows for better use of available space in the switchboard.
• All P 310 DX3 series circuit breakers are equipped with a test circuit button for checking the correct operation of the circuit breaker.
• DX3 series devices are compatible with the HX3 Optimal Power Distribution System up to 125 A, which enables their wireless connection to the electrical installation.
• DX3 series protection devices are compatible with all ancillary devices (auxiliary and signaling contacts, undervoltage and shunt releases, remote drives and others).
• P 310 DX3 series devices are available for rated currents from 6 to 40 A and differential currents from 10 to 300 mA.
• Short-circuit breaking capacity: 6000 A or 10000 A (IEC/EN 61009-1).
• Available time-current characteristics: B and C.
• Types: AC and A.
• Made for rated currents from 6 to 40 A.
• Rated differential currents: 10 mA, 30 mA and 300 mA.
• Versions:
• •two-pole (P 312 DX3),
• •four-pole (P 314 DX3).

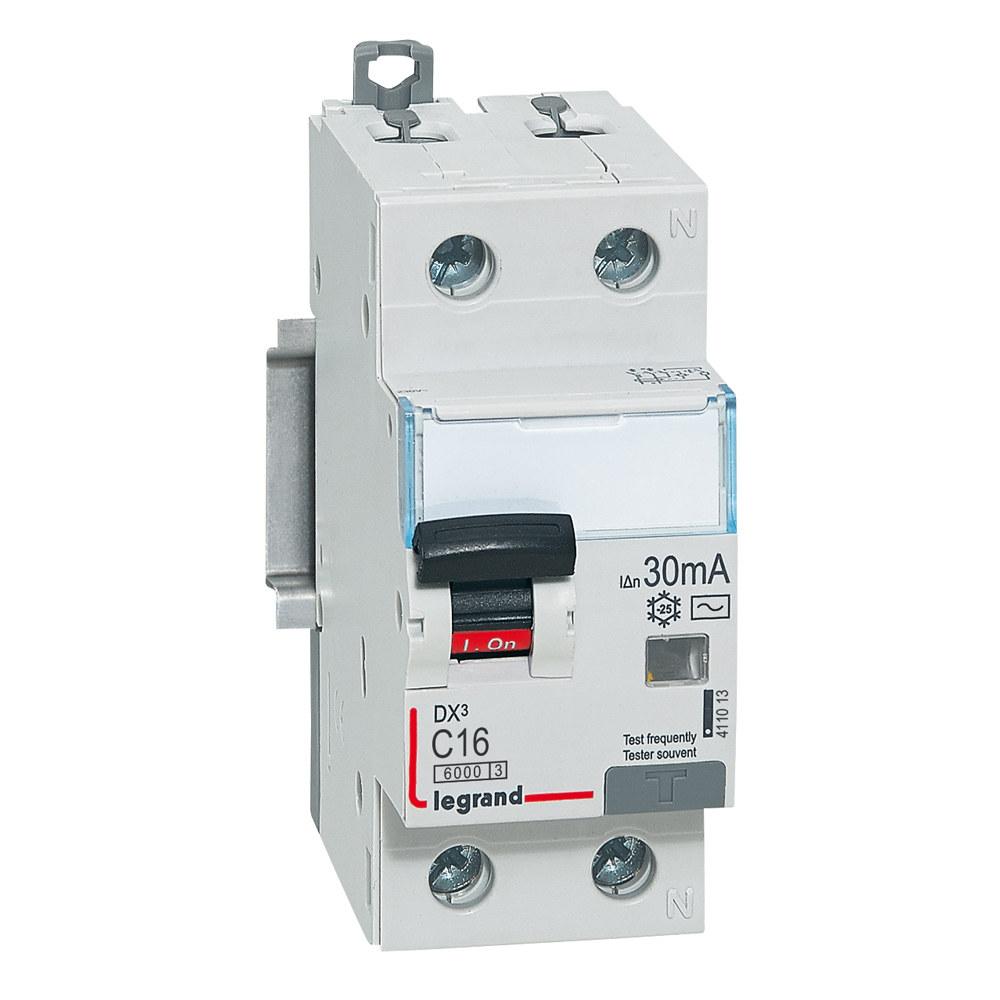

• P310 series differential circuit breakers with overcurrent protection, single-phase P312, C characteristic, AC type
• Rated voltage: V~
• Mounting: TH35 rail
• Rated current: 16 A
• Number of poles: 2
• Width in 17.5mm modules: 2
• Rated differential current: 30 mA
• Type Characteristics: C
• Design: AC
• Surge current resistance (8/20): 250 A
