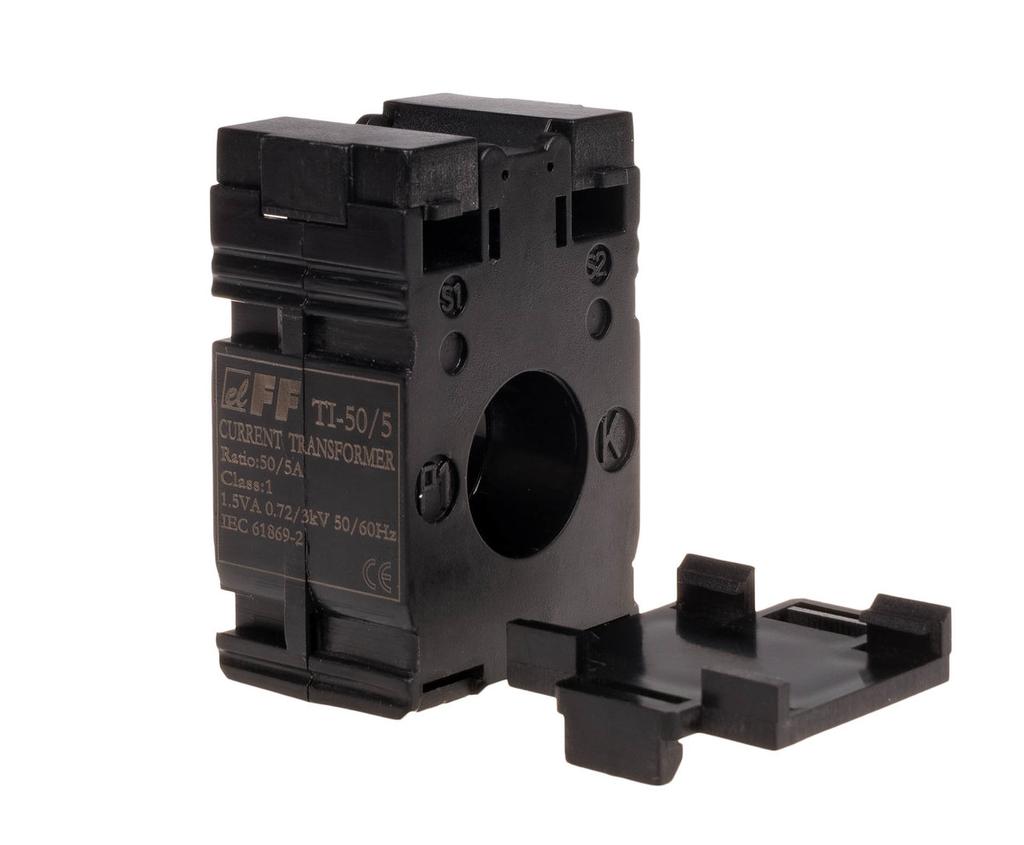

Current Transformer 50/5a 22, Class 1 TI-50-5

• Type single-phase

• Construction with a closed core

• Transformer ratio lp/ls 50/5

• Class 1

• Power [VA] 2.5 VA

• Frequency 50÷60 Hz

• Maximum operating voltage 0.66 kV AC

• Standard number IEC 60044-1

• Nominal secondary current Is 5 A

• Insulation breakdown voltage 3 kV/1 min.

• Hole dimensions P1/P2 O22 mm

• Weight 0.135 kg

• Safety factor FS ? 5

• Dimensions WxH [mm] 87.5 mm x 104 mm

• Connection S1/S2 screw terminals 4 mm2

• Tightening torque 0.5 Nm

• Operating temperature -5÷40°C

• Mounting position vertical/horizontal

• Mounting board/busbar

• Degree of protection IP20
