Description:
- This is a multi-purpose toolkit, it can provides the tools necessary for the assembly of mechanical splices and it will bring you a higher working efficiency.
- -6S fiber used for single fiber cleaving. This optical fiber is available with a single fiber adapter for 250 to 900 coated single fibers.
- With visual fault locator, easy to field test. High quality pen type visual fault locator
- Fixed length rail groove 2 1: Can be used for indoor cable stripping coating layer and positioning length and to locate the indoor cable into the optical fiber cutting.
Specification:
- Detector: InGaAs
- Measurement Range (dBm): -70dBm~+10dBm
- Uncertainty: ±0.2(5%)
- Calibrated Wavelength(nm): 850,980,1300,1310,1490,1550
- Resolution(dB): Linear indication: 0.1% Loharithmic indication: 0.01dBm
- Optical Connector: FC/ Universal 2.5mm adaptor
- Power Supply: Alkaline Battery(2 AA 1.5V batteries) (Not included)
- Battery Operating Time: 240 h with 1.5V Battery(3)
- Operating Temperature: -10 ~ +60C
- Storage Temperature: -25 ~ +70C
- Relative Humidity: 0 to 95% (non-condensing)
- Dimension(mm): 190x100x48mm
- Material: electronic components

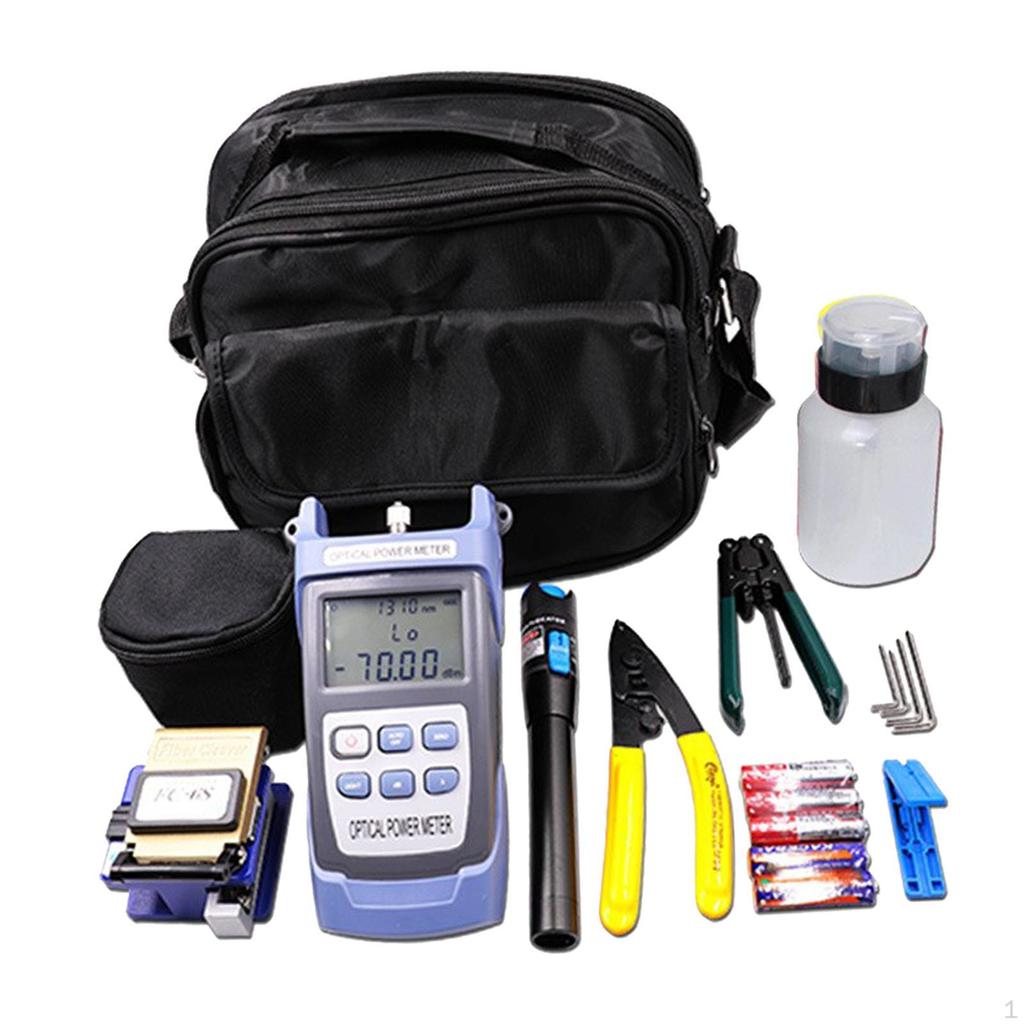

Package Includes:
1 Piece PWA001 power meter
1 Piece 1Mw Visual Fault Locator (With 1pc Bag)
1 Piece SC adapter
1 Piece Fiber China OEM (With 1pc Bag)
1 Piece Fiber Optic CFS-2
1 Piece Fiber Optic Stripping Tool Plier
1 Piece Fixed-length Fiber optic wire stripping
1 Piece 250ML Hard
1 Piece 250x190x170mm Tool Bag
1 Piece Wiping Paper
2 Pieces Replaceable Pen core
2 Pieces Hwxagonal Socket Wrench
