Feature:
1. Efficient Charging: This solar charge controller uses PWM charging technology, ensuring high and stable performance of your solar power system for enhanced efficiency.

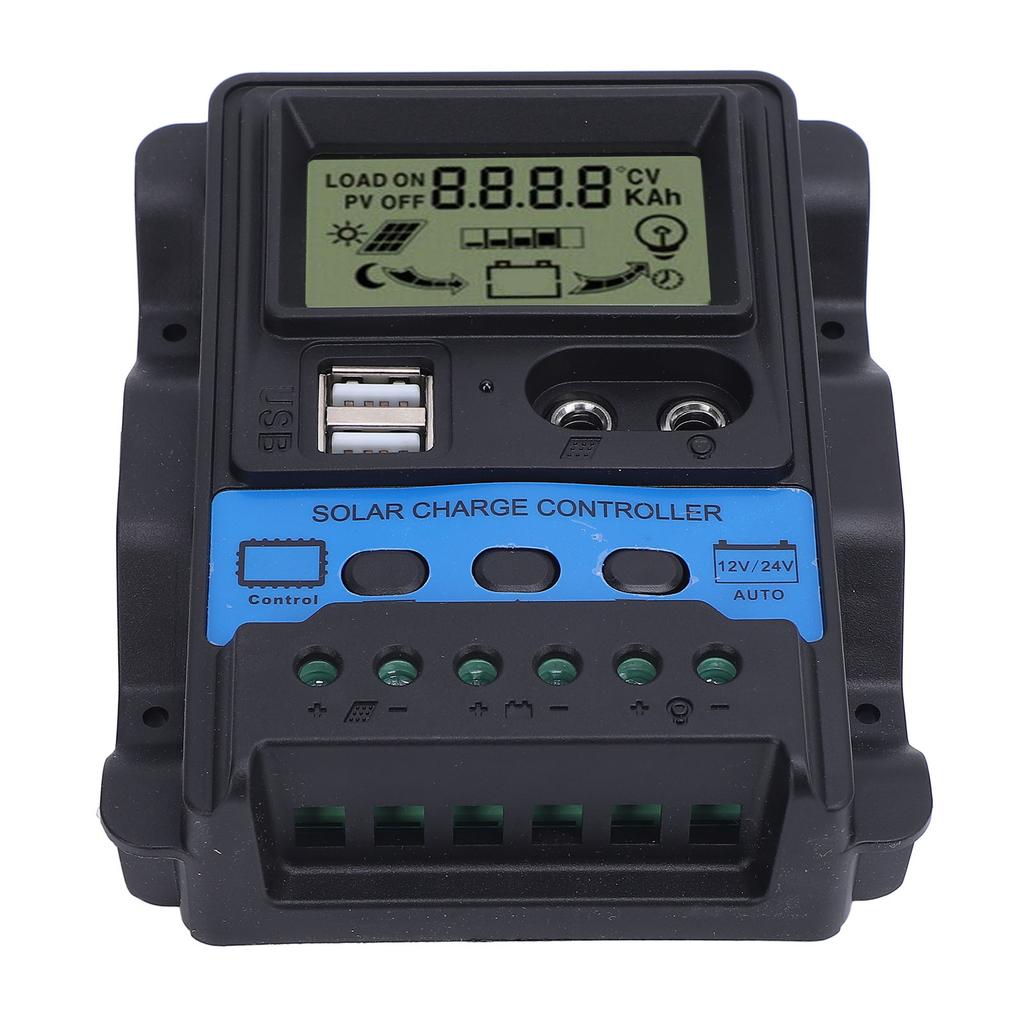

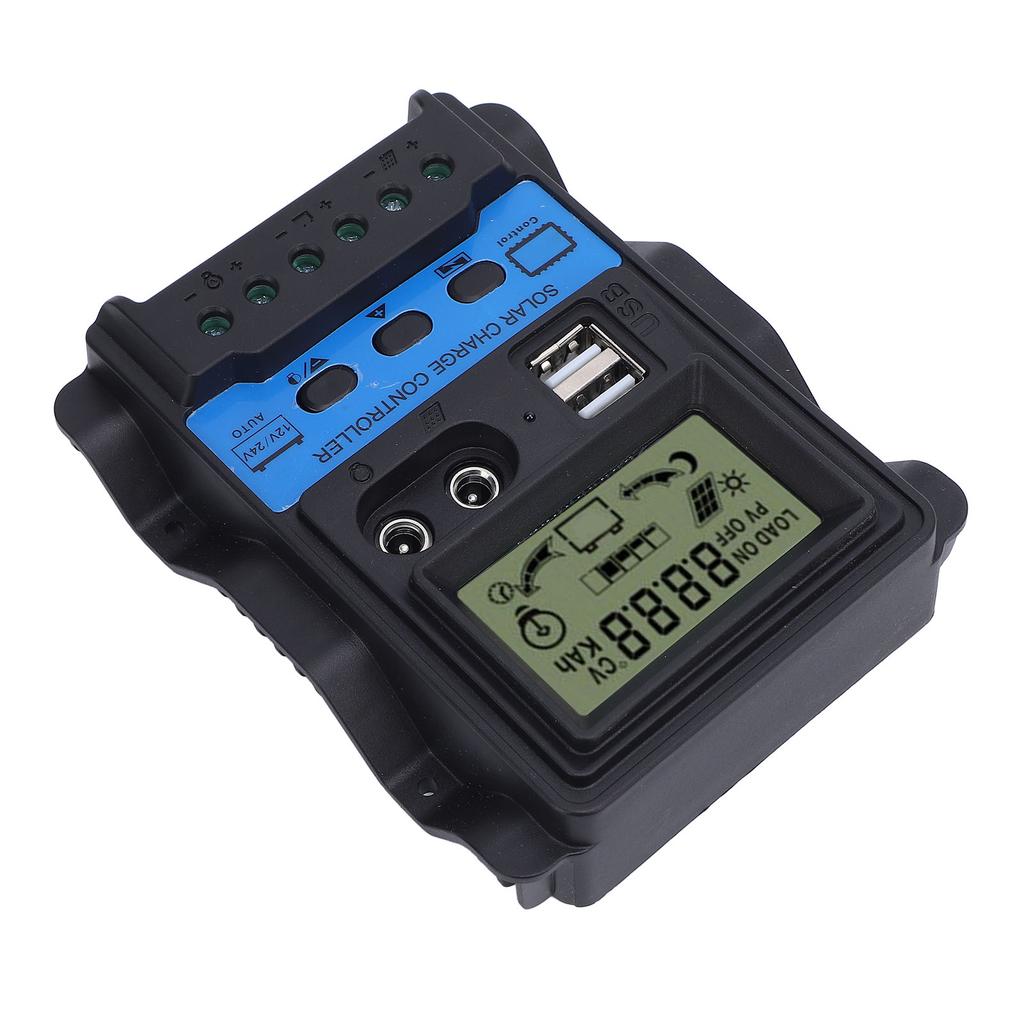

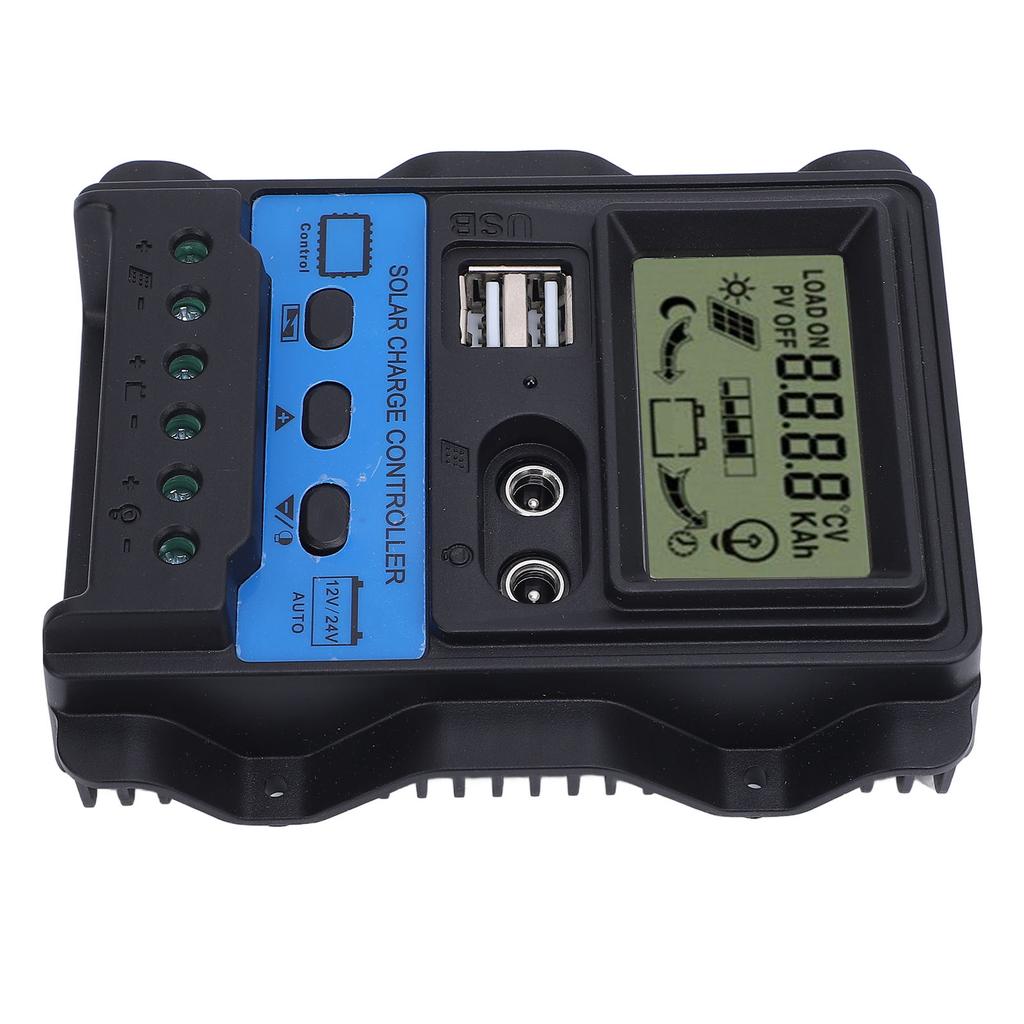

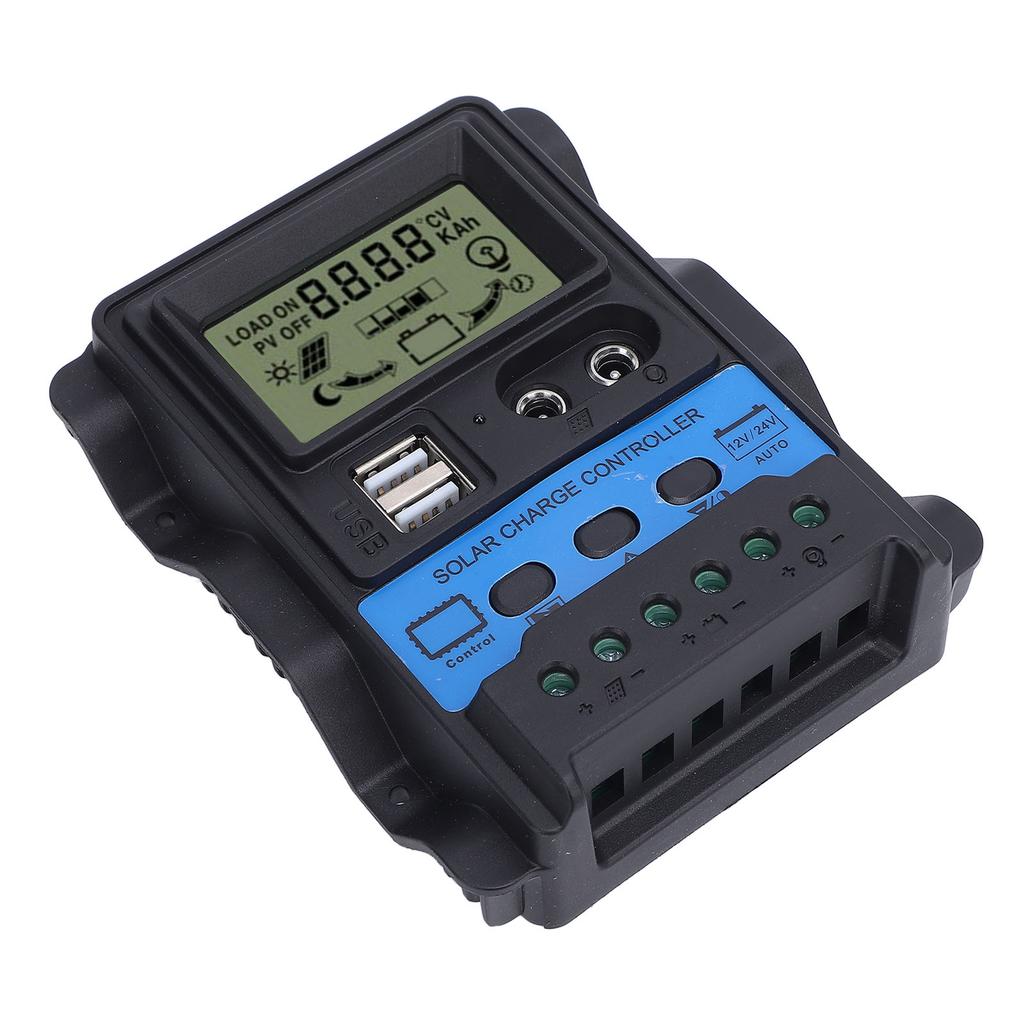

2. Large LCD Display: The solar controller shows charging and discharging current, accumulated power generation and discharge query, temperature display, light control and delay control. Charge and discharge parameters can be adjusted. With power off memory and other functions.
3. USB Port: Equipped with 5V USB ports, this solar battery controller can directly charge your phone, tablet, and other USB devices without the need of any additional power supply or adapters.
4. Versatile Compatibility: Whether your solar system is 12V or 24V, this solar panel charge controller got you covered, making it meet different requirements for various scenarios.
5. Energy Saving Capability: With its low power consumption feature, the solar panel regulator saves energy by using the minimal power in the battery, boosting overall power device efficiency and lifespan.
Specification:
Item Type: Solar Charge Controller
System Voltage: 12V 24V Self Adapt
ive
Maximum PV Voltage: Up to 23V in 12V Battery, Up to 46V in 24V Battery
USB Output: 2 x USB Output, 5V 2.5A (Maximum)
Standby Current: <10mA
The following parameter only corresponds to 12V system only, if using 24V system, please x 2.
Boost Charging Voltage: 14.4V
Float Charging Voltage: 13.7V (Default, Adjustable)
Discharge Stop Voltage: 10.7V (Default, Adjustable)
Discharge Recovery Voltage: 12.6V (Default, Adjustable)
Charging Recovery Voltage: 13V
Weight: Approx. 191.00g 6.74oz.
Package List:
1 x Controller
Note:
1. This controller is automatically recognized as 12V 24V. Please ensure that the battery has sufficient voltage during the first installation so that the controller can correctly identify the battery type. 2. Install the controller as close to the battery as possible to avoid voltage drop caused by long wires, affecting normal voltage judgment. 3. This controller is only suitable for various batteries (including open, sealed, gel, etc.). 4. This controller can only use PV panels as the charging source, please do not use DC or other power sources as the charging source. 5. The controller will generate heat during operating, please make sure to install it on flat and well ventilated surfaces.
